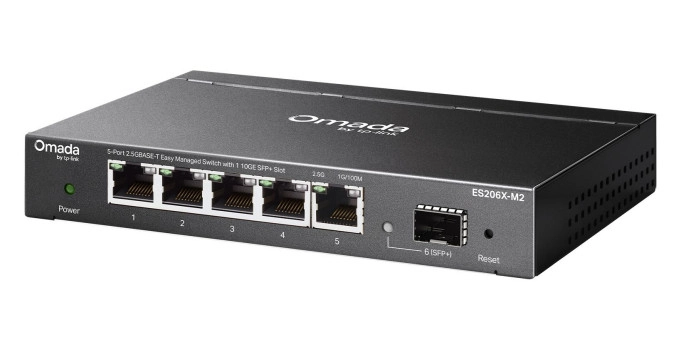

TP-Link Omada ES206X-M2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 45 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE. . . . Form factor: Desktop/Wall-Mounting

Specification

Product
Product id	1013483
Brand	TP-Link
Partnr	ES206X-M2
EAN/UPC code	1210002600729
Data transmission
MAC address table	16000 entries
Switching capacity	45 Gbit/s
Forwarding rate	33.48 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10
Packet buffer memory	0.64 MB
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
10G support	N
Port mirroring	Y
Flow control support	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	MTU VLAN, Port-based VLAN
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	1
Security
DHCP features	DHCP client
IGMP snooping	Y
Weight & dimensions
Width	158 mm
Depth	100.7 mm
Height	25.4 mm
Weight	520 g
Power
Power source	AC
AC input voltage	100 - 240 V
Power consumption (max)	5.63 W
Endurance
Mean time between failures (MTBF)	1223587 uur
Design
Form factor	Desktop/Wall-Mounting
Product colour	Black
LED indicators	Y
Certification	CE, FCC, RoHS
Operational conditions
Heat dissipation	19.21 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Performance
Flash memory	64 MB
Firmware upgradeable	Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
