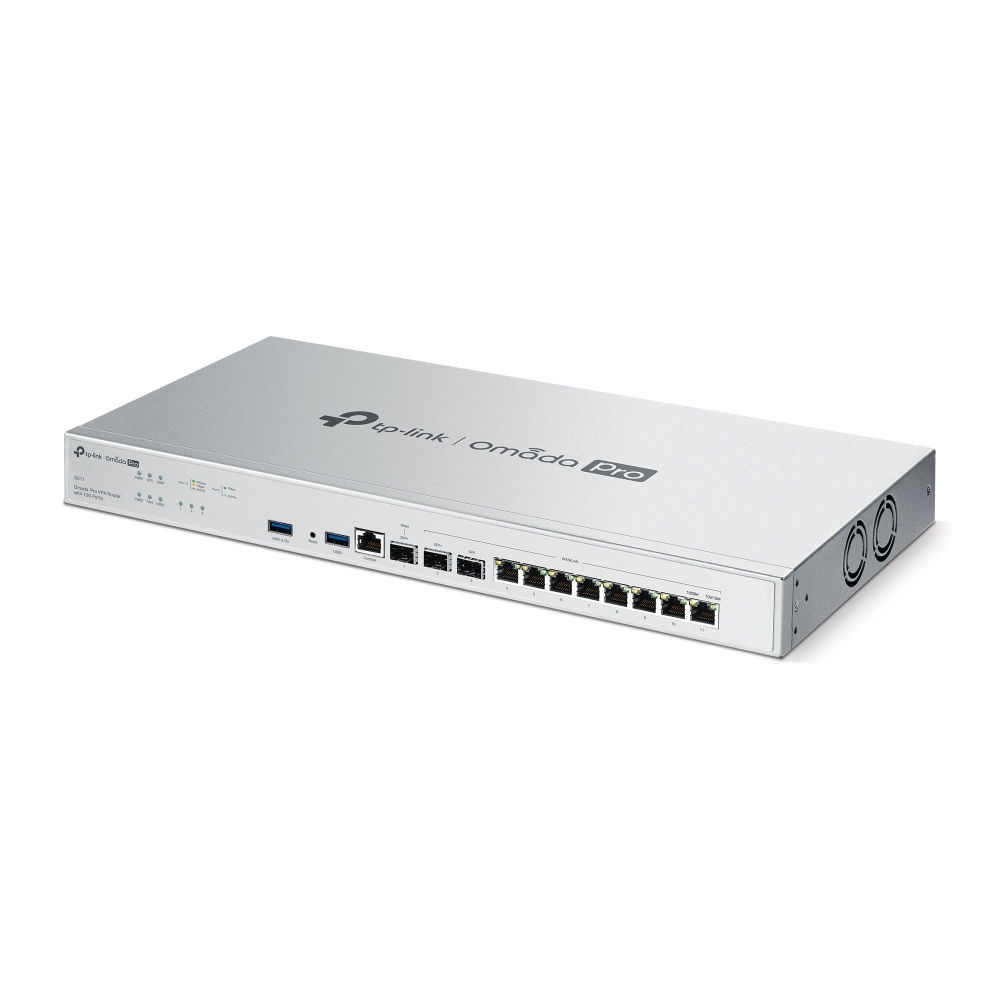

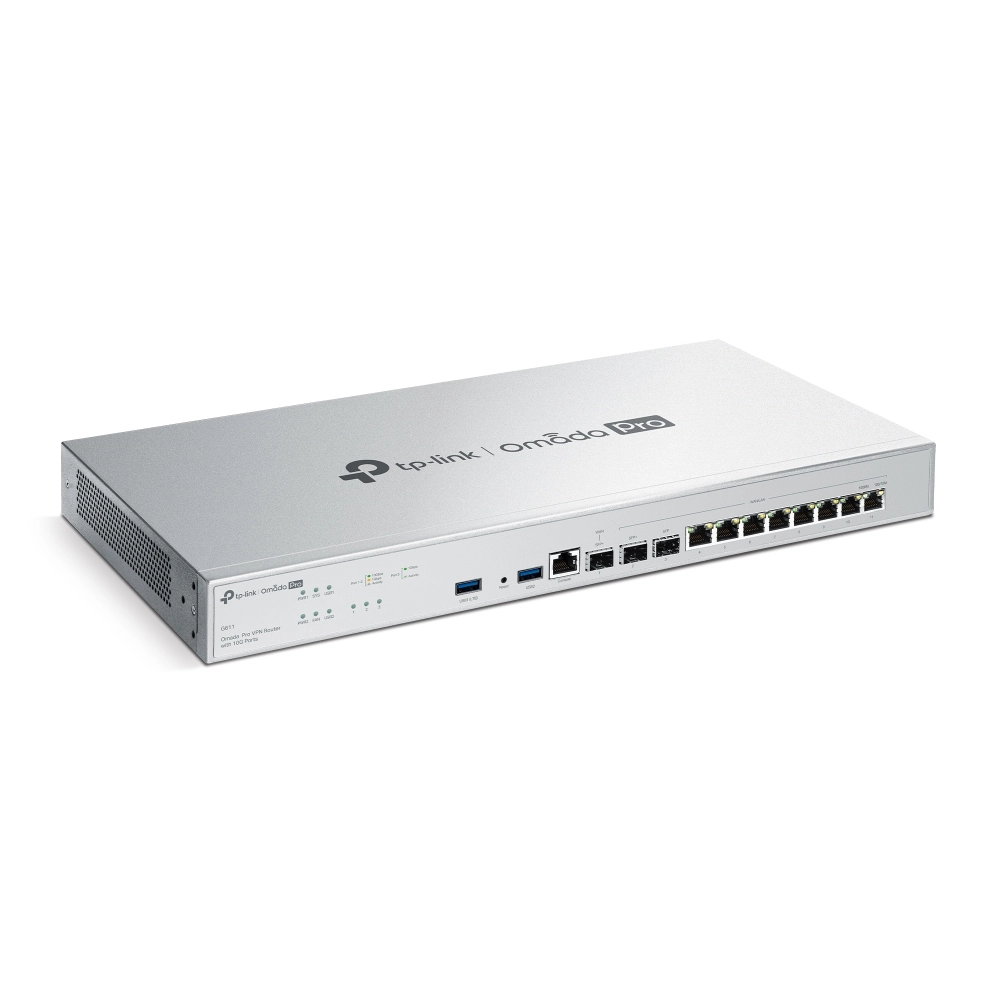

Omada Pro VPN Router with 10G Ports


Not in stock
€ 1.976,00
€ 2.390,96 incl 21% VAT
What This Product Does

The G611 is a superb VPN router with 10G ports. It comes with a quad-core Cortex-A72 @2.2GHz CPU and 4GB DDR4 high-speed memory for outstanding performance.

10× WAN Ports & One USB WAN for Mobile Broadband

Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. *1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup. Note: At least one of the ten WAN/LAN ports needs to function as a LAN.

High-Security and High-Performance VPN

G611 supports pass-through traffic and multiple VPN protocols, including WireGuard, SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. *2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

Robust Security Features

G611 supports various security features. Advanced firewall policies protect your network data and resources. Intrusion detection systems (IDS)*2 monitor and analyze your network traffic for signs of intrusion. DoS Defense automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. IP-MAC Binding reserves static IP assignments for clients to defend against ARP attacks and spoofing. More features like advanced firewall policies, VLAN Support, and One-Click ALG Activation further improve network security.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Integrated into Omada Pro

Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smart phone or tablet.


Product id 907012
Brand TP-Link
Partnr G611
EAN/UPC code 4895252505870
Warranty (months) 3 year limited warranty
Concurrent connections 2300000
WAN connection
Ethernet WAN Y
SIM card slot N
3G/4G USB modem compatibility N
Networking standards IEEE 802.1Q
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10, 100, 1000 Mbit/s
VLAN support Y
Static route Y
Traffic control Y
Port forwarding Y
Policy-based routing Y
Network address translation (NAT) Y
Management features
Quality of Service (QoS) support Y
Universal Plug and Play (UPnP) Y
Reset button Y
Ports & interfaces
Ethernet LAN (RJ-45) ports 8
WAN/Ethernet LAN ports quantity 8
USB ports quantity 2
SFP module slots quantity 1
USB version 3.2 Gen 1 (3.1 Gen 1)
SFP+ module slots quantity 2
DC-in jack Y
Packaging data
AC adapter included Y
Quick start guide Y
DHCP client Y
DHCP server Y
Routing protocols RIP, OSPF
Security algorithms 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SHA-1, SHA-256, SHA-384, SHA-512
URL filtering Y
IP address filtering Y
ARP attack prevention Y
ICMP attack prevention Y
Access Control List (ACL) Y
Guest access Y
System event log Y
VPN tunnels quantity 500
Built-in processor Y
Processor frequency 2.2 MHz
Processor manufacturer ARM
Processor model ARM Cortex-A72
Flash memory 256 MB
Internal memory 4096 MB
Internal memory type DDR4
Certification CE, FCC, RoHS
Product colour Grey
LED indicators Y
Power consumption (max) 26.36 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (typical) 19.12 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 5 - 90 procent
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
