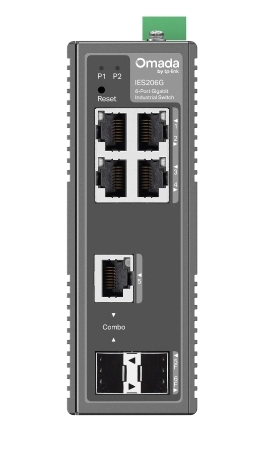

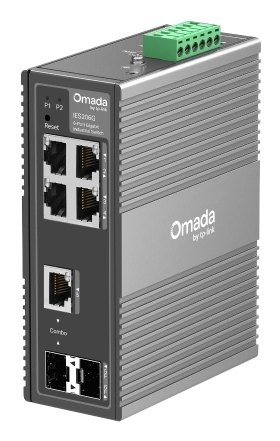

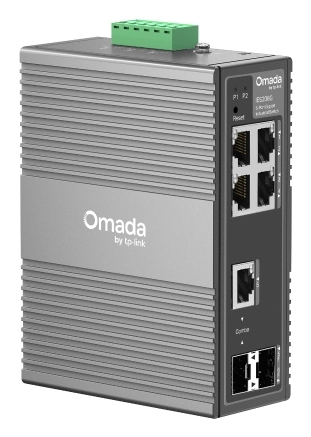

TP-Link Omada IES206G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 60 V. Wall mountable

Specification

Product
Product id	994914
Brand	TP-Link
Partnr	IES206G
EAN/UPC code	1210002602075
Data transmission
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Forwarding rate	8.93 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15000
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	N
Port mirroring	Y
Flow control support	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Link aggregation	Y
Management features
Switch type	Managed
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
SFP module slots quantity	1
Security
DHCP features	DHCP client
IGMP snooping	Y
Weight & dimensions
Width	129 mm
Depth	95 mm
Height	45 mm

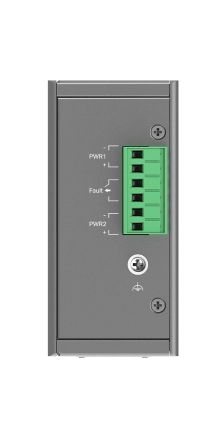

Power
Power source	DC
Power supply included	Y
Redundant power supply (RPS) support	Y
DC input voltage	9 - 60 V
Multicast features
Multicast support	Y
Design
Product colour	Black
DIN rail mounting	Y
Wall mountable	Y
Certification	FCC, CE, RoHS
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Fanless	Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
