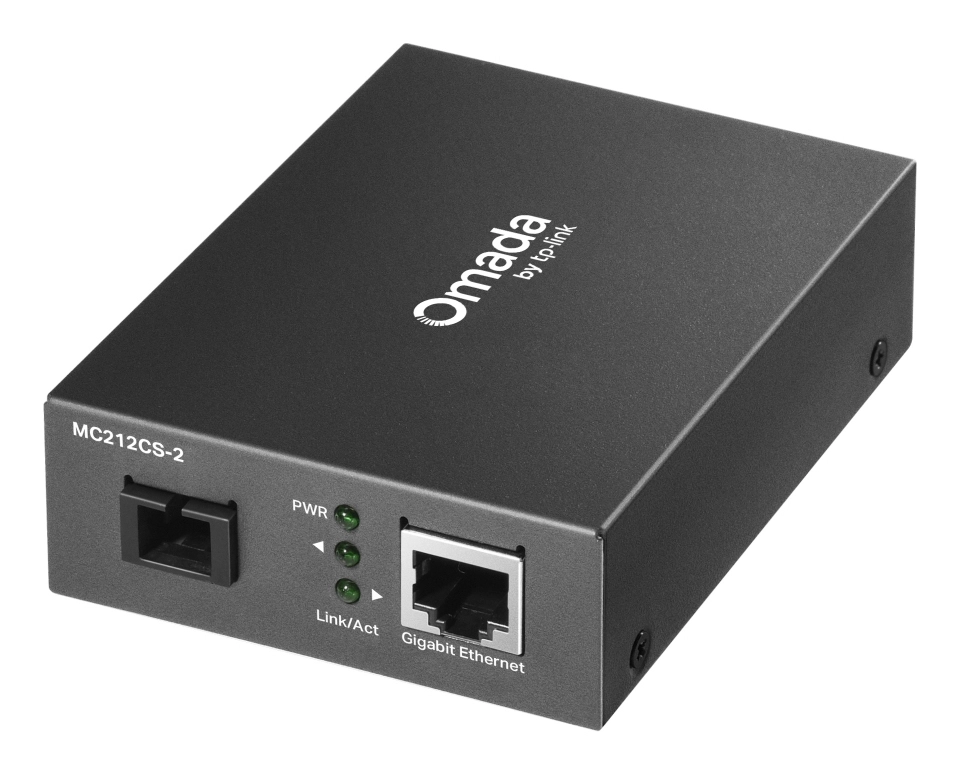

MC212CS-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

Specification

Product
Product id	1002985
Brand	TP-Link
Partnr	MC212CS-20
EAN/UPC code	1210002601856
Warranty (months)	3 year limited warranty
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-X	Y
Duplex system	Full, Half
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC/UPC
Performance
Maximum transfer distance	20000 m
Wavelength	1550 nm
Wavelength-division multiplexing (WDM)	Y
Fiber mode structure	Single-mode
Design
Internal	N
Product colour	Black
LED indicators	Activity, Link, Power
Power
Input voltage	9 V
Input current	0.6 A
Weight & dimensions
Width	94.5 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Packaging content
Manual	Y
