What This Product Does

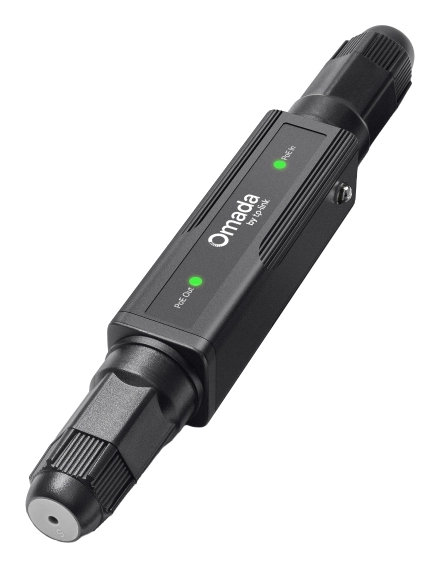

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.

Specification

Product
Product id	1009186
Brand	TP-Link
Partnr	POE20E-OUTDOOR
EAN/UPC code	1210002606479
Performance
Type	Network repeater
Maximum transfer distance	250 m
Data transfer rate	1000 Mbit/s
Cable types supported	Cat3, Cat5, Cat5e
Ethernet LAN data rates	10, 100, 1000 Mbit/s
International Protection (IP) code	IP68
Auto-negotiation	Y
Plug and Play	Y
Network
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
DC-in jack	N
Design
Product colour	Black
LED indicators	ACT, Link
Quantity per pack	1 stuk(s)
Power
Power over Ethernet (PoE)	Y
Maximum output power	30 W
Operational conditions
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 90 procent
Storage relative humidity (H-H)	15 - 90 procent
Weight & dimensions
Width	221.7 mm
Depth	31 mm
Height	31.5 mm
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, BSMI, KC
Packaging content
Quick start guide	Y
