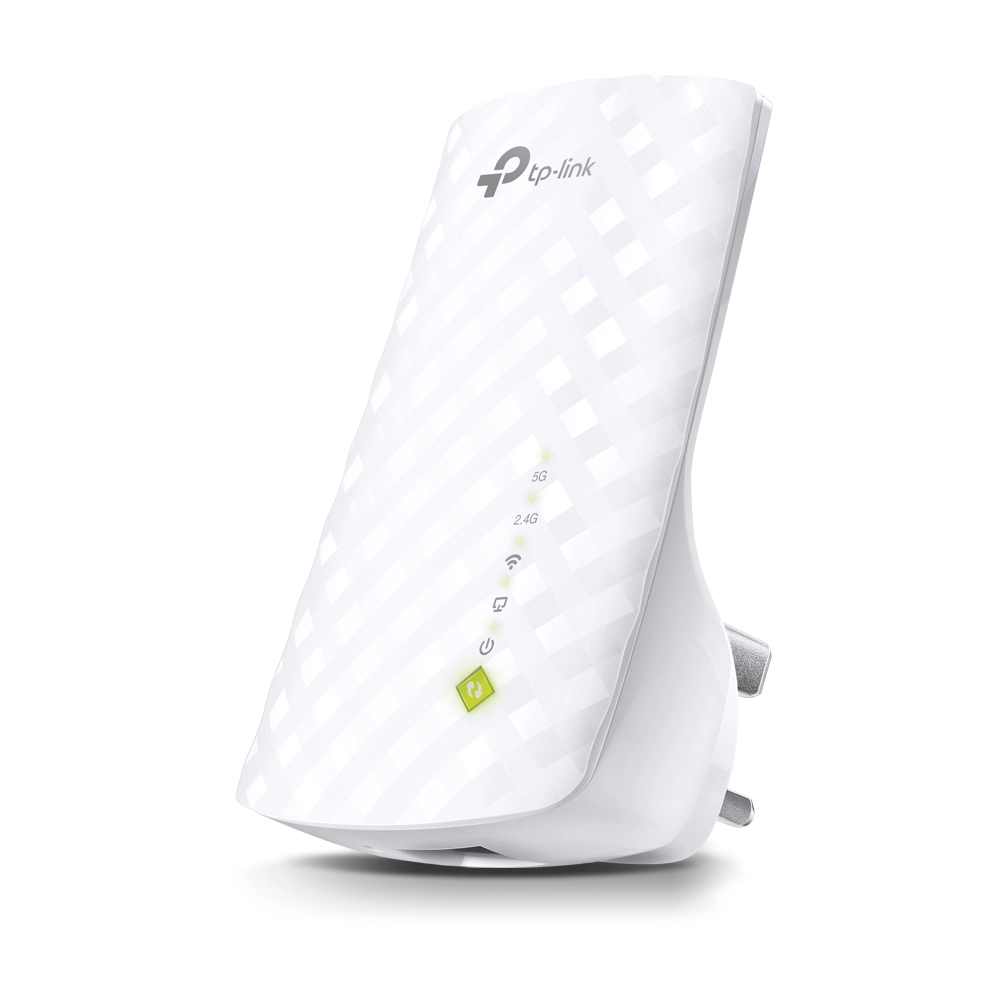

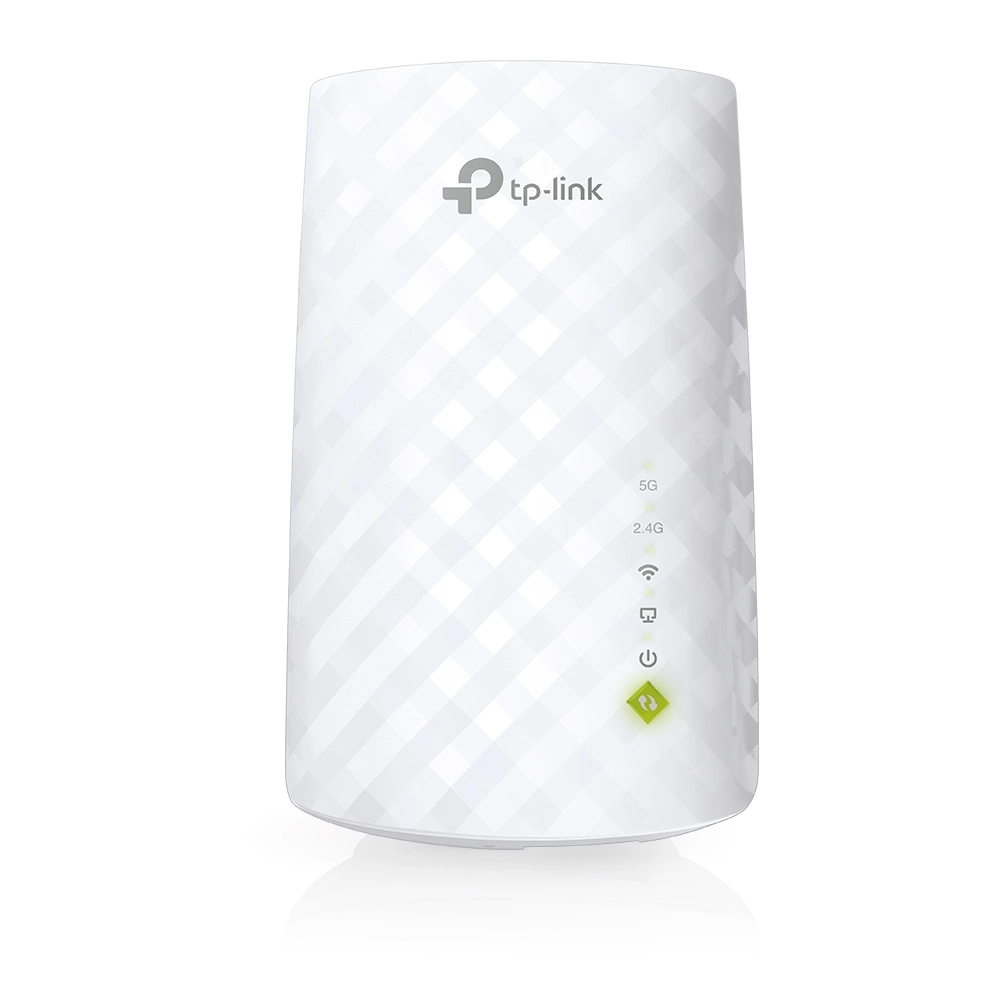

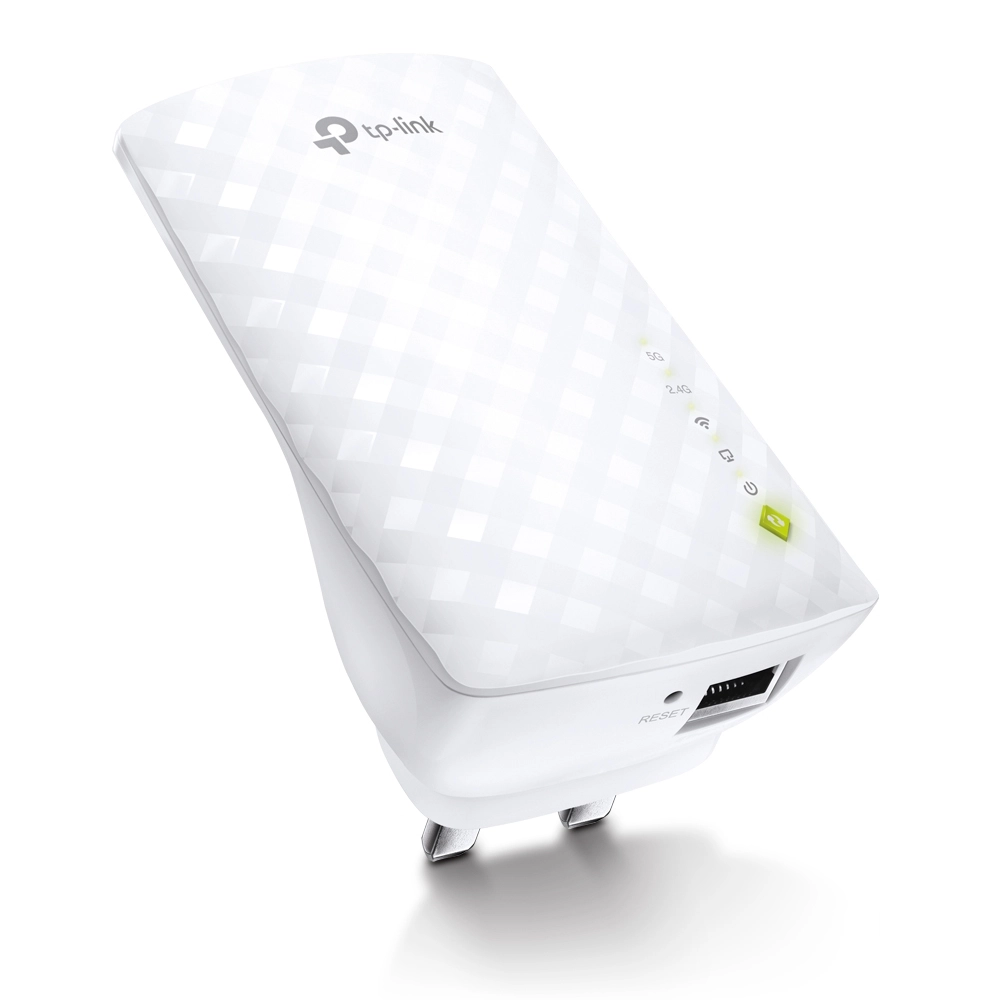

Boost Your WiFi to hard-to-reach Areas
Place the RE220 between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones. Dual-band WiFi can reach speeds up to 750 Mbps and extends up to can not only extend to 3, 200 sq. ft. (300m2) with your router. Make the most of you ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.

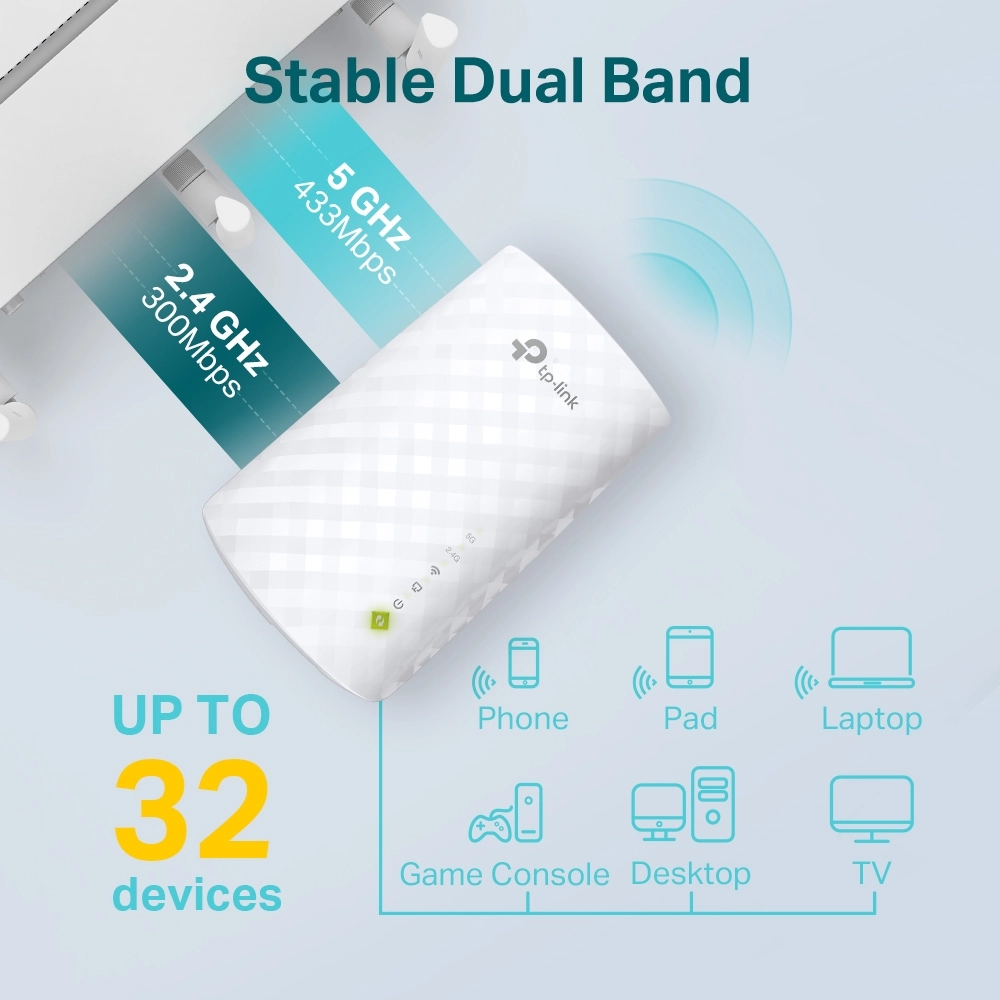

Stable Dual Band Connection for More Devices
The RE220’s wireless AC technology creates faster and stronger WiFi connections across your home and extends dual band WiFi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide WiFi connections for up to 32 devices, allowing you to enjoy a stable and drop-free experience on all your devices.

Simple Two-Step Setup
Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the
extender via Tether app or Web UI if your router doesn’t support WPS.
Step 2: Relocate the extender to a better location for optimal WiFi coverage with the help of the smart signal indicator light.

An Access Point and Wireless Adapter

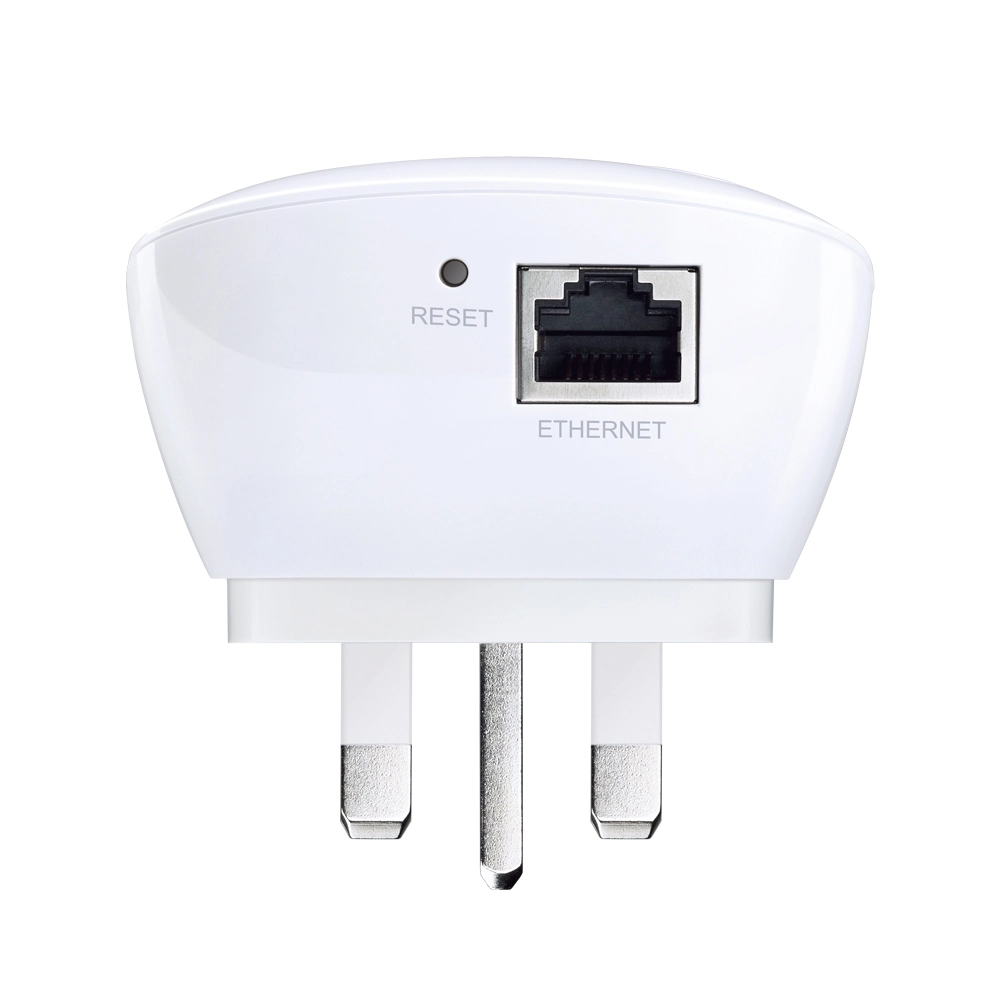

The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices.

High Speed Mode for Maximized Performance
High Speed Mode uses one dedicated WiFi band as backhaul and another dedicated WiFi band as an access point to maximize the bandwidth on extender's WiFi.

Universal Compatibility
The RE220 is compatible with any of your existing WiFi router or access points, making it easy to expand and strengthen your WiFi network.

Smart Management by Tether App
Set up and manage your WiFi through the TP-Link Tether app on your smartphone (Android, iOS).

Specification

Product
Product id	669506
Brand	TP-Link
Partnr	RE220
EAN/UPC code	6935364099732
Performance
Type	Network transmitter
Data transfer rate	750 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Firmware upgradeable	Y
WPS push button	Y
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac compatibility	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Antenna
Antennas quantity	3
Antenna type	Internal
Network
Cabling technology	10/100Base-T(X)
Ethernet LAN interface type	Fast Ethernet
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Y
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	433 Mbit/s
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK
WLAN data transfer rates supported	300 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Product colour	White
LED indicators	Y
Reset button	Y
Certification	CE, FCC
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	6.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	110 mm
Depth	65.8 mm
Height	75.2 mm
Certificates
Compliance certificates	RoHS
Technical details
Harmonized System (HS) code	85176990
Packaging content
Quick start guide	Y
Packaging data
Package width	156.5 mm
Package depth	101.5 mm
Package height	89 mm
Package weight	310 g
