What This Product Does

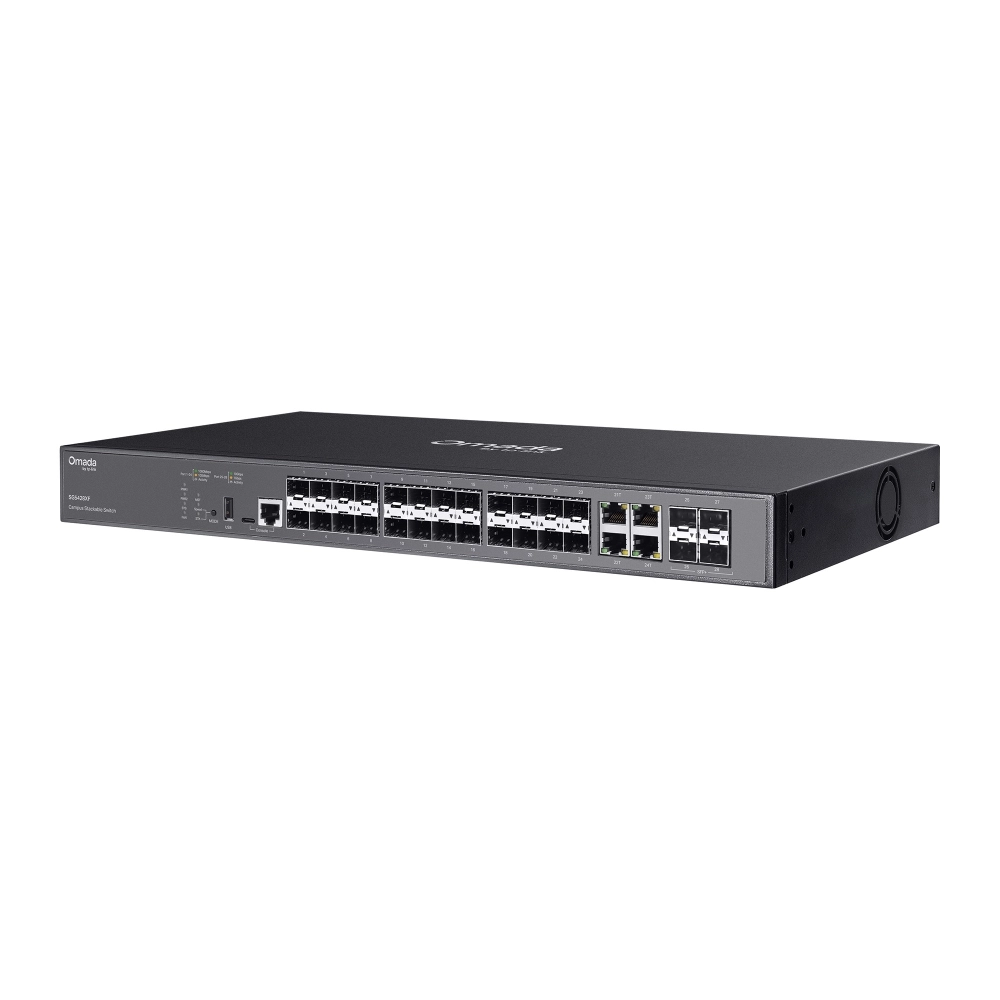

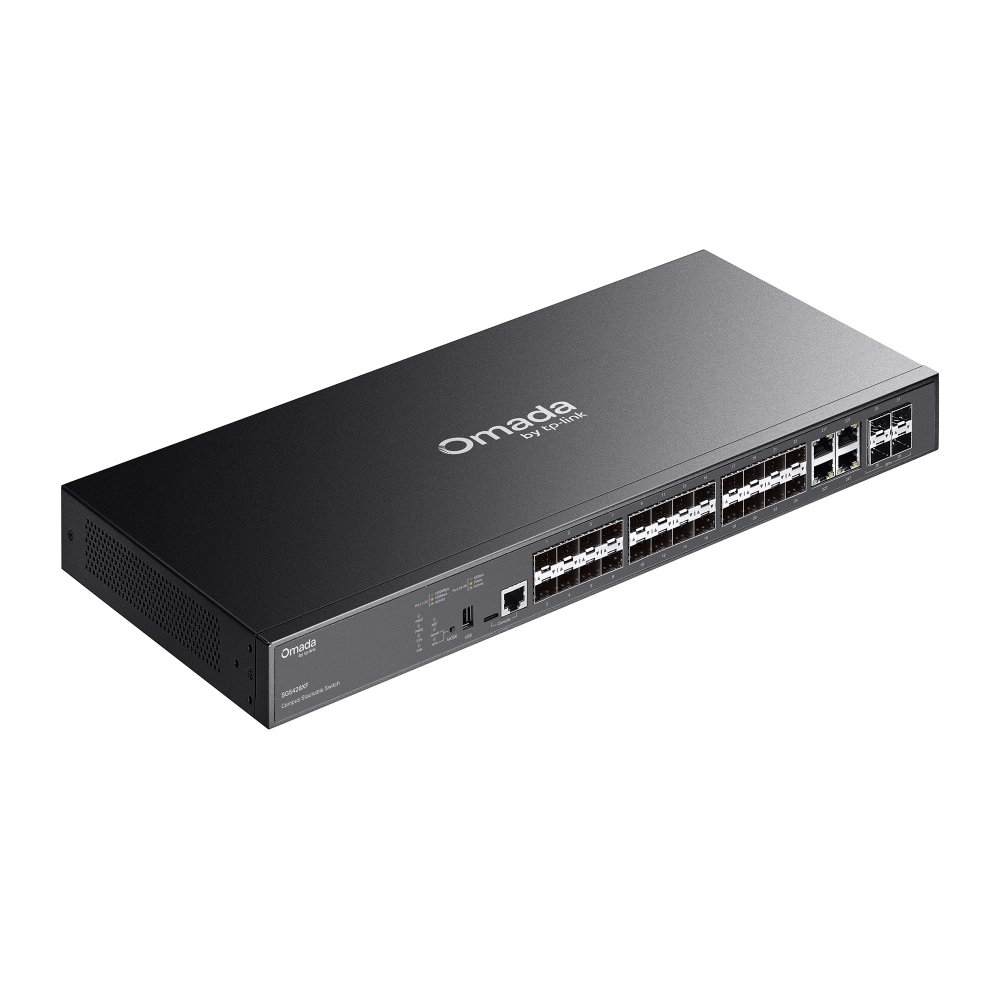

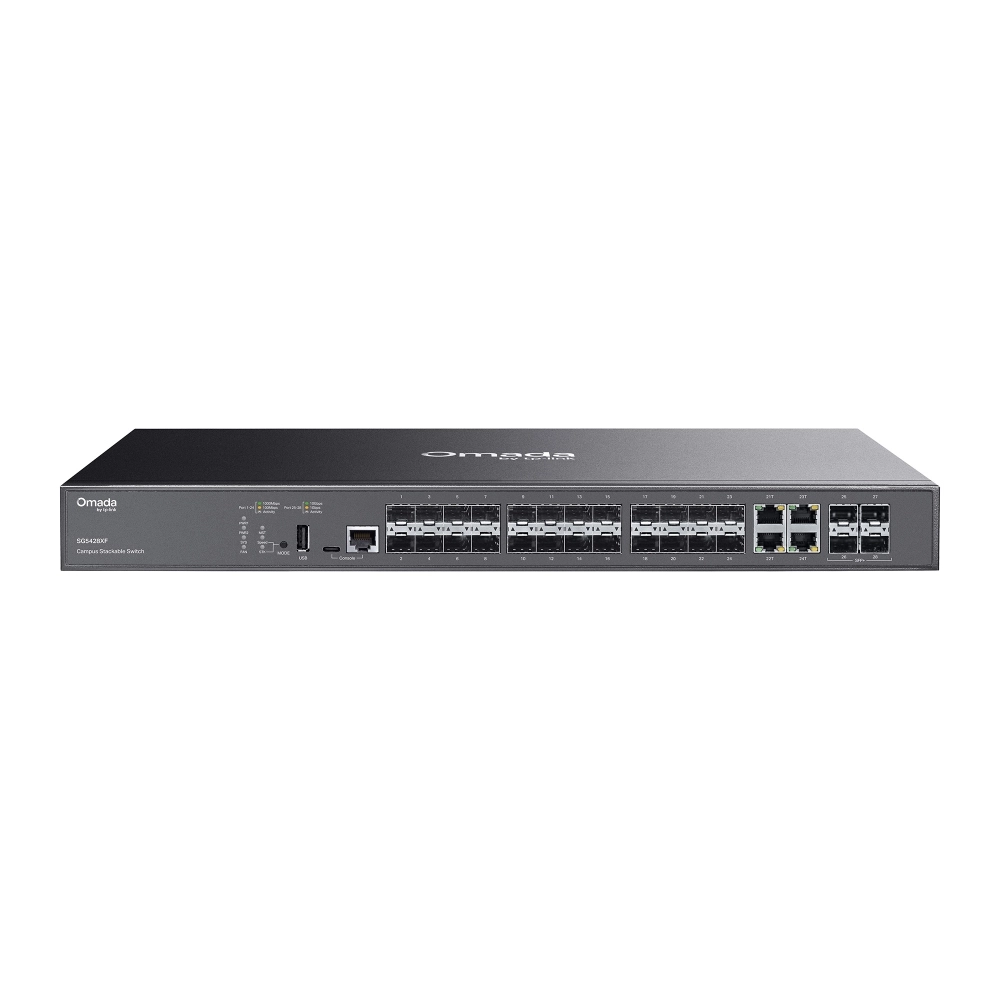

Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.

High-speed Connectivity and Powerful Stacking

20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). † The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specification

Product
Product id	1009188
Brand	TP-Link
Partnr	SG5428XF
EAN/UPC code	1210002602389
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Number of queues	8
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	12 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
Port mirroring	Y
Flow control support	Y
Spanning tree protocol	Y
Rate limiting	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
Protocols
GARP VLAN Registration Protocol (GVRP)	Y
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP
Ports & interfaces
Combo SFP ports quantity	4
SFP module slots quantity	20
SFP+ module slots quantity	4
Fiber ports quantity	4
Fiber optic connector	SFP
Console port	RJ-45/USB Type-C
USB Type-A ports quantity	1
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
IGMP snooping	Y
Authentication type	AAA, TACACS+
Security algorithms	SNMP, SNMPv2, SNMPv3
IP-MAC-Port binding	Y
Authentication	Guest VLAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging data
Cables included	AC
Quick start guide	Y
Rack mount kit	Y
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	28.3 W
Power consumption (max)	28.98 W
Multicast features
Multicast Listener Discovery (MLD) snooping	Yes
Design
Rack mounting	Y
Stackable	Y
Product colour	Black
Number of fans	1 ventilator(en)
Operational conditions
Heat dissipation	98.822 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 procent
