What This Product Does

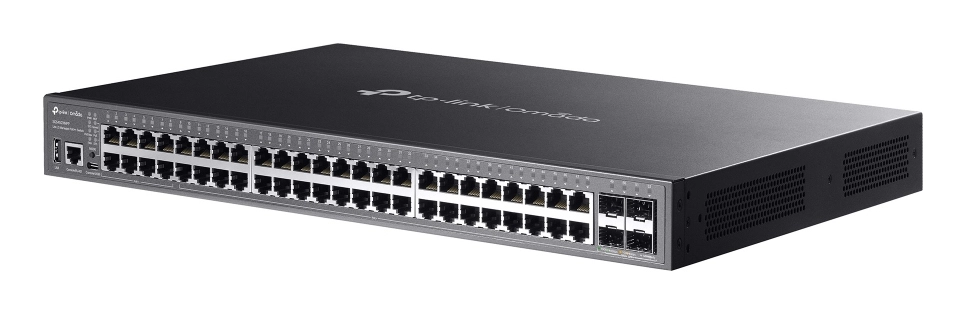

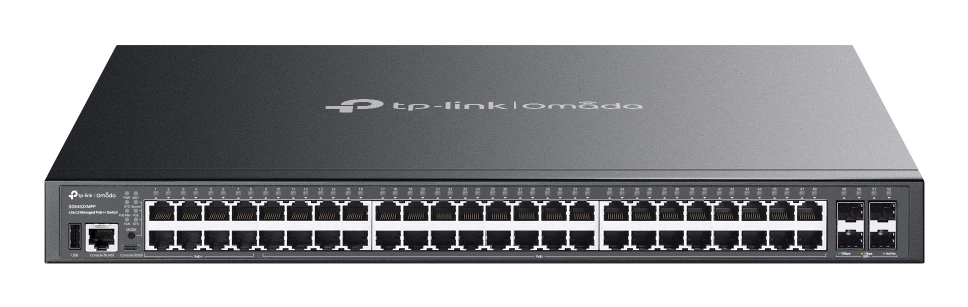

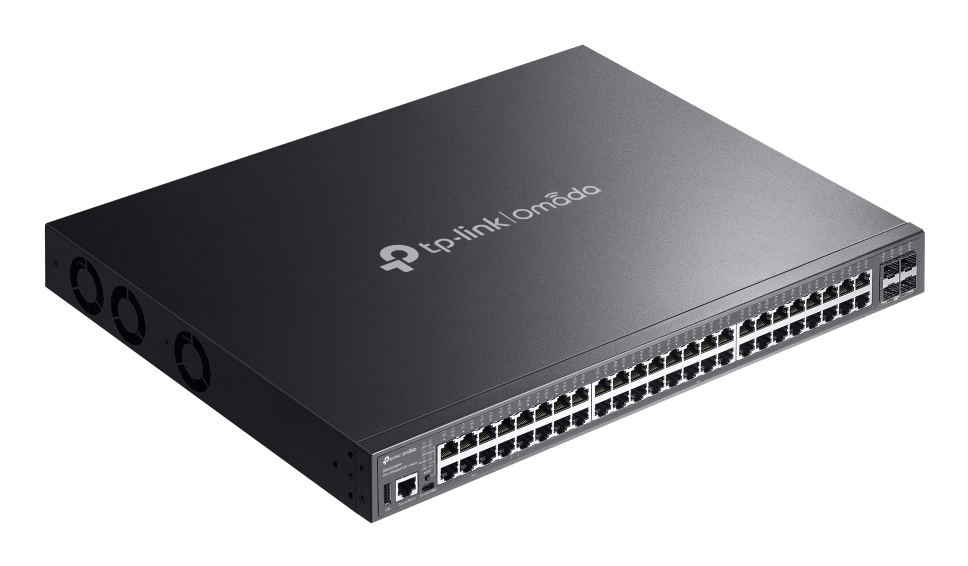

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

IEEE 802.3af/at/bt-compliant Power over Ethernet

8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices. * Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking

48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). † The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specification

Product
Product id	985505
Brand	TP-Link
Partnr	SG5452XMPP
EAN/UPC code	8885020626483
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.94 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	12 MB
Network
Networking standards	IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support	Y
Port mirroring	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
ARP inspection	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP+ module slots quantity	4
Console port	RJ-45
USB Type-C ports quantity	1
USB 2.0 ports quantity	1
Security
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
IP-MAC-Port binding	Y
Password protection	Y
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging data
Cables included	AC
Quick start guide	Y
Rack mount kit	Y
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	893.6 W
Surge protection	Y
Surge protection voltage	6 kV
Multicast features
Multicast support	Y
Endurance
Mean time between failures (MTBF)	275.277 uur
Design
Rack mounting	Y
Stackable	Y
Product colour	Black
LED indicators	Y
Number of fans	3 ventilator(en)
Operational conditions
Heat dissipation	3047.18 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 procent
Performance
Physical stacking (units)	4
Built-in processor	Y
Processor manufacturer	ARM
Processor frequency	1200 MHz
Memory type	DRAM
Internal memory	2000 MB
Flash memory	512 MB
Firmware upgradeable	Y
Telnet	Y
Noise level	58.5 dB
Fanless	Y
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity	40
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Total Power over Ethernet (PoE) budget	770 W
Other features
Management level	4
Bandwidth	88 Gbit/s
