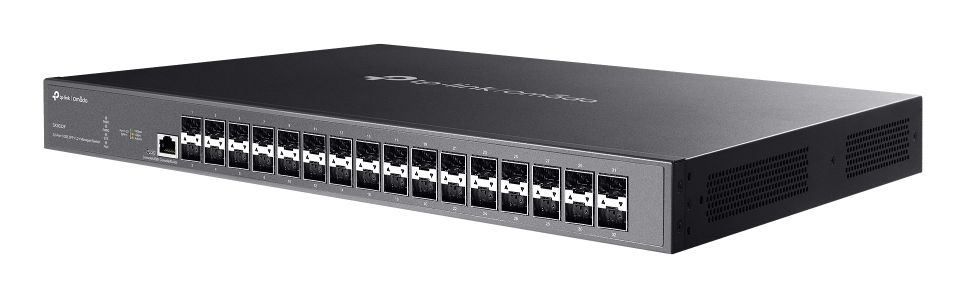

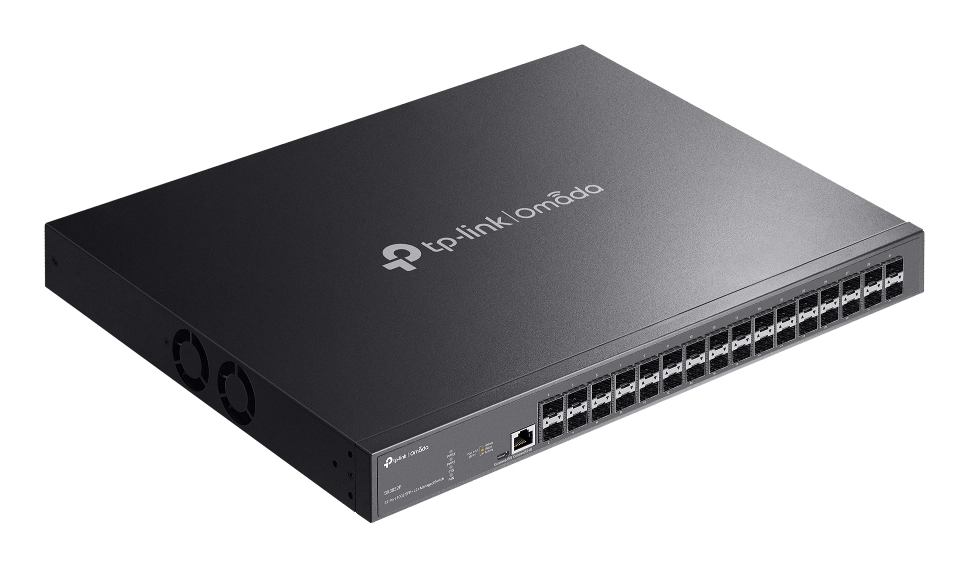

Omada 32-Port 10GE SFP+ L2+ Managed Switch

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specification

Product
Product id	983026
Brand	TP-Link
Partnr	SX3032F
EAN/UPC code	4895252504477
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Forwarding rate	240 Mpps
Number of queues	8
Static route	Y
Number of static routes	128
Number of IP interfaces	128
Jumbo frames support	Y
Jumbo frames	9
Packet buffer memory	24 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Port mirroring	Y
IPv4 routes	48
Flow control support	Y
Spanning tree protocol	Y
Rate limiting	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes	48
Number of VLANs	30
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Cloud-managed	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Protocols
GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
IP Source Guard (IPSG)	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	1
Installed SFP+ modules quantity	32
Console port	RJ-45/Micro-USB
Security
DHCP features	DHCP relay, DHCP server, DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Queue scheduling algorithms	Priority queuing (PQ), SP, Weighted Round Robin (WRR)
Authentication type	AAA, TACACS+
Static port security	Y
SSH/SSL support	Y
Loop protection	Y
IP-MAC-Port binding	Y
Authentication	MAC-based authentication, Port-based authentication
Password protection	Y
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging data
Cables included	Power
Quick start guide	Y
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	49.4 W
Multicast features
Multicast support	Y
Number of multicast groups filtered	4000
Multicast Listener Discovery (MLD) snooping	Yes
Design
Rack mounting	Y
Product colour	Black
Redundant fans support	Y
Number of fans	2 ventilator(en)
Operational conditions
Storage temperature (T-T)	40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 procent
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
