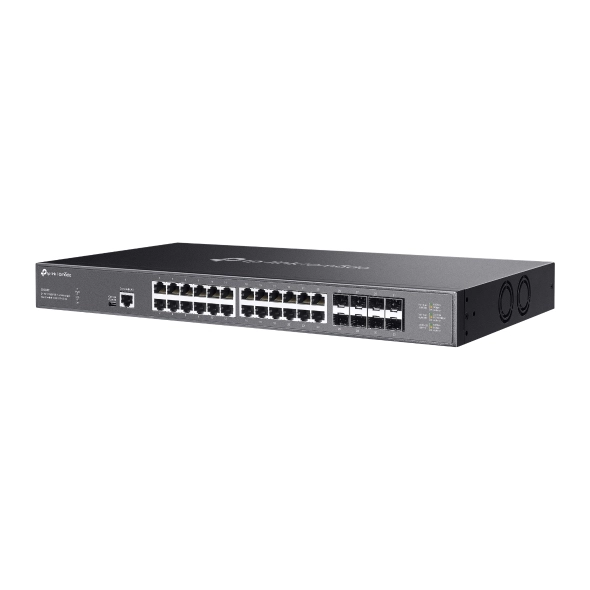

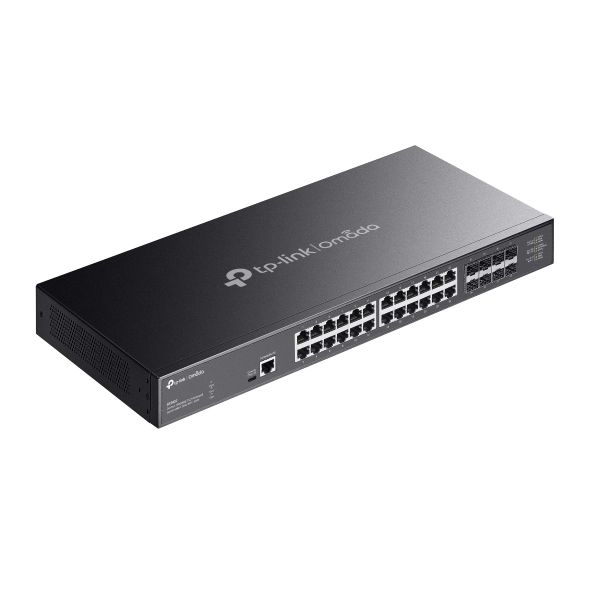

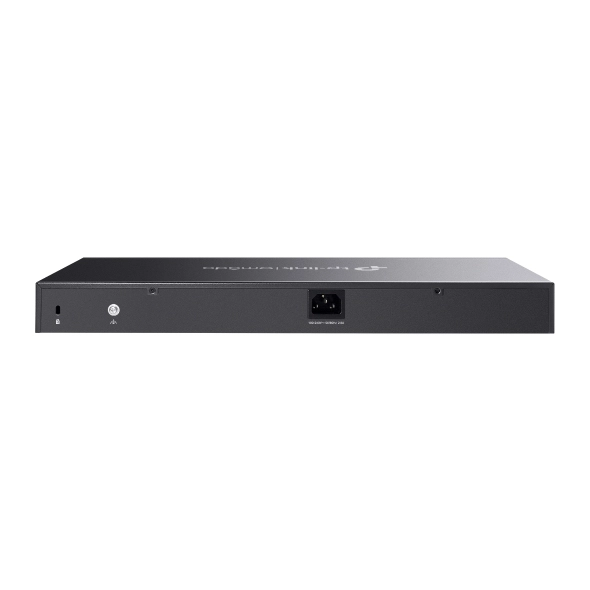

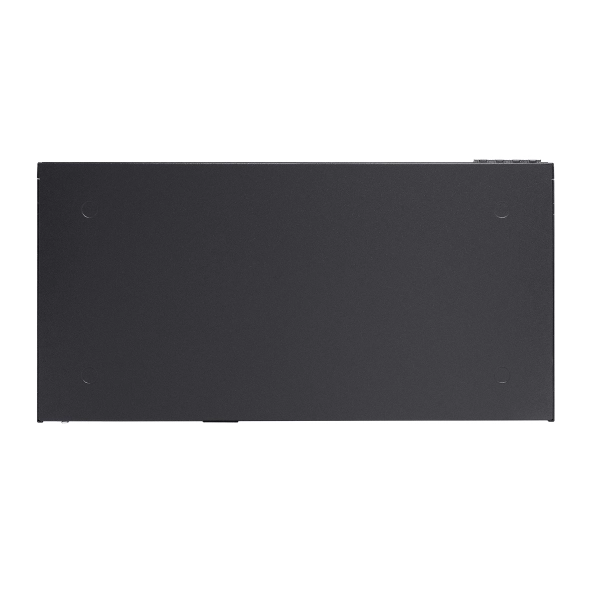

TP-Link Omada SX3832. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.3az. Rack mounting, Form factor: 1U

Specification

Product
Product id	978688
Brand	TP-Link
Partnr	SX3832
EAN/UPC code	8885020622652
Data transmission
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Forwarding rate	240 Mpps
Static route	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	24 MB
Network
Networking standards	IEEE 802.3az
10G support	Y
Port mirroring	Y
IP routing	Y
Flow control support	Y
Spanning tree protocol	Y
Rate limiting	Y
Broadcast storm control	Y
Ethernet LAN data rates	10, 100 Mbit/s
VLAN support	Y
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Y
Cloud-managed	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
System event log	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	8
Console port	RJ-45/USB Type-C
USB Type-C ports quantity	1
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Authentication type	AAA, RADIUS, TACACS+
SSH/SSL support	Y
Loop protection	Y
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging data
Cables included	AC, LAN (RJ-45)
Quick start guide	Y
Rack mount kit	Y
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	106.5 W
Multicast features
Multicast support	Y
Design
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	2 ventilator(en)
Operational conditions
Heat dissipation	363.23 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
