Wide View, Sharp Zoom, Full Protection

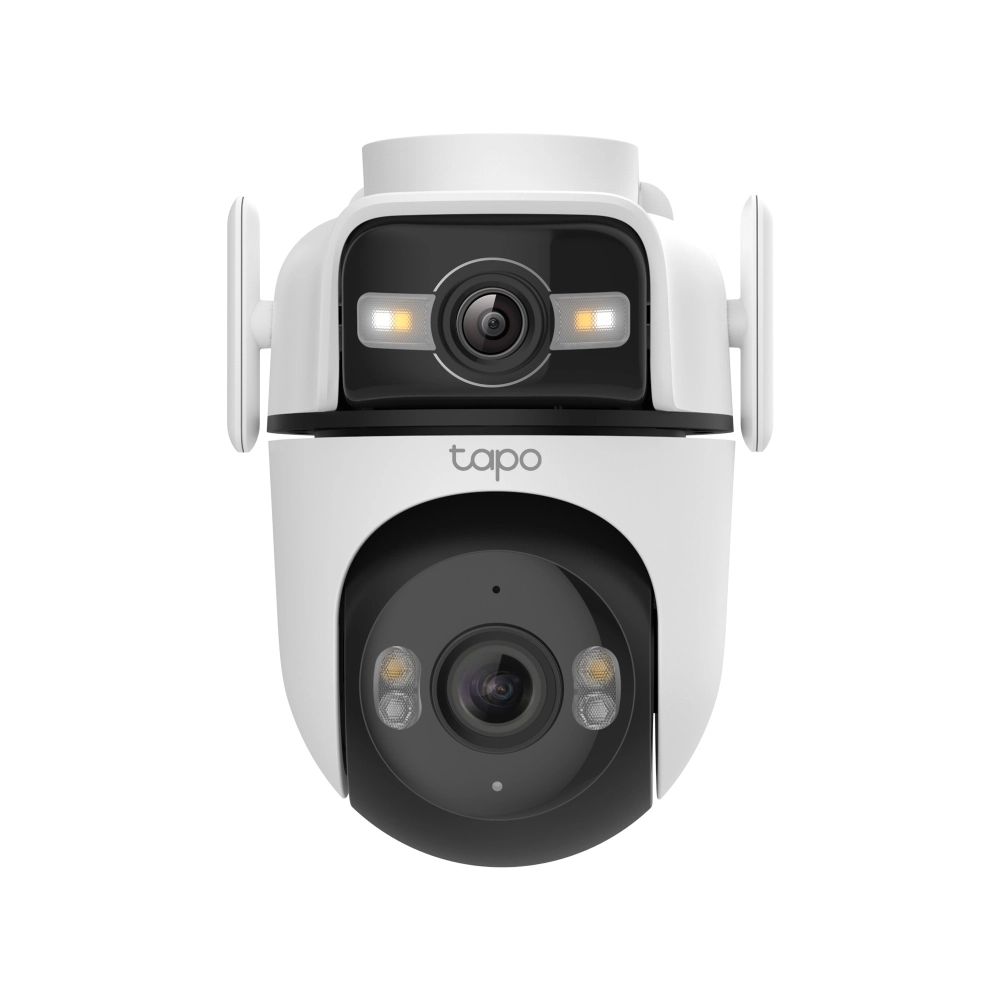

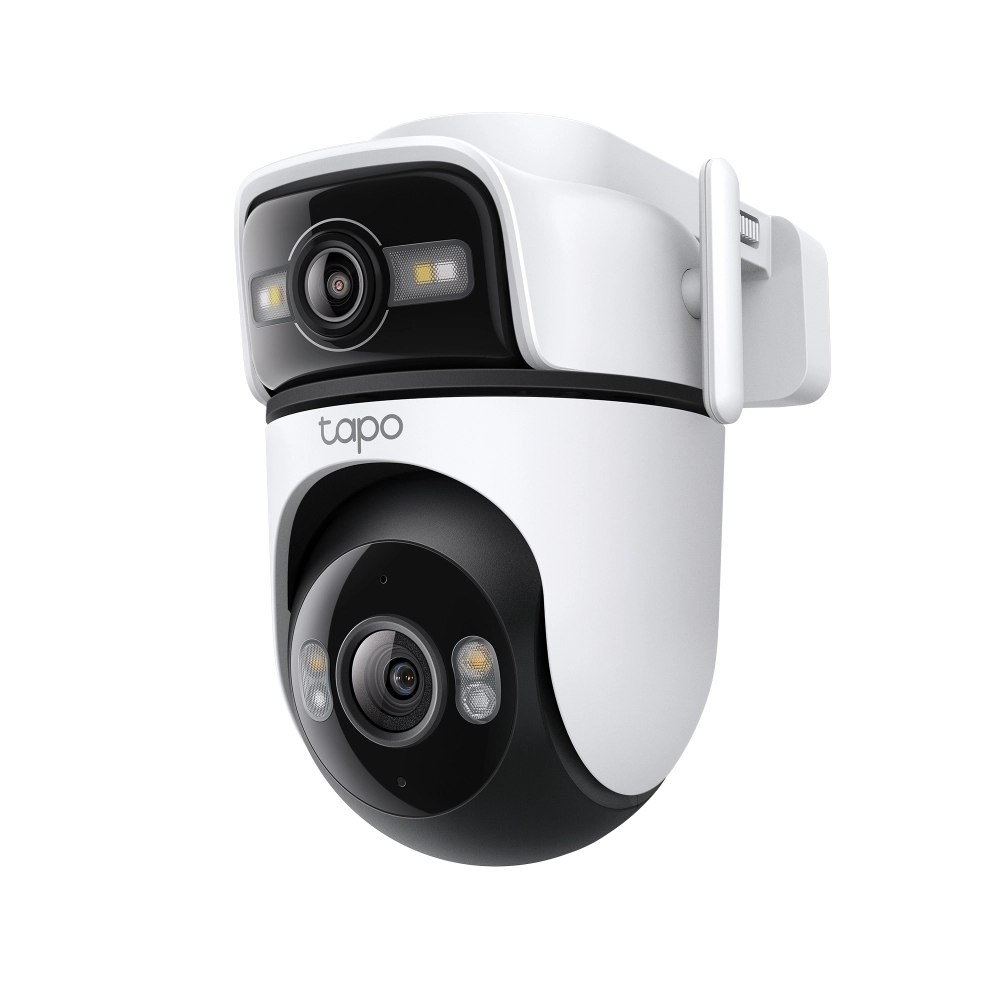

Outdoor Dual Lens Pan/Tilt Security Camera

Pan, Tilt, and Capture It All
The top wide-angle lens is fixed in place but supports manual Pan (270°) and Tilt (-30° to -10°) adjustment for the best viewing angle. The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed.

Synchronised Smart Tracking
The two cameras dynamically work together to seamlessly follow movement–when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.

Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.

Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.

Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.

Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognises and notifies you of people, pets, and vehicles – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.

Smart & Versatile Night Vision Modes
Choose from vibrant full-colour with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.

Reliable Connectivity with Ethernet Support
Ensure a more stable and consistent connection for your camera with Ethernet support. Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.

Patrol Mode
Set the camera to automatically move between up to 8 preset viewing points at set times.

Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.

Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.

Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.

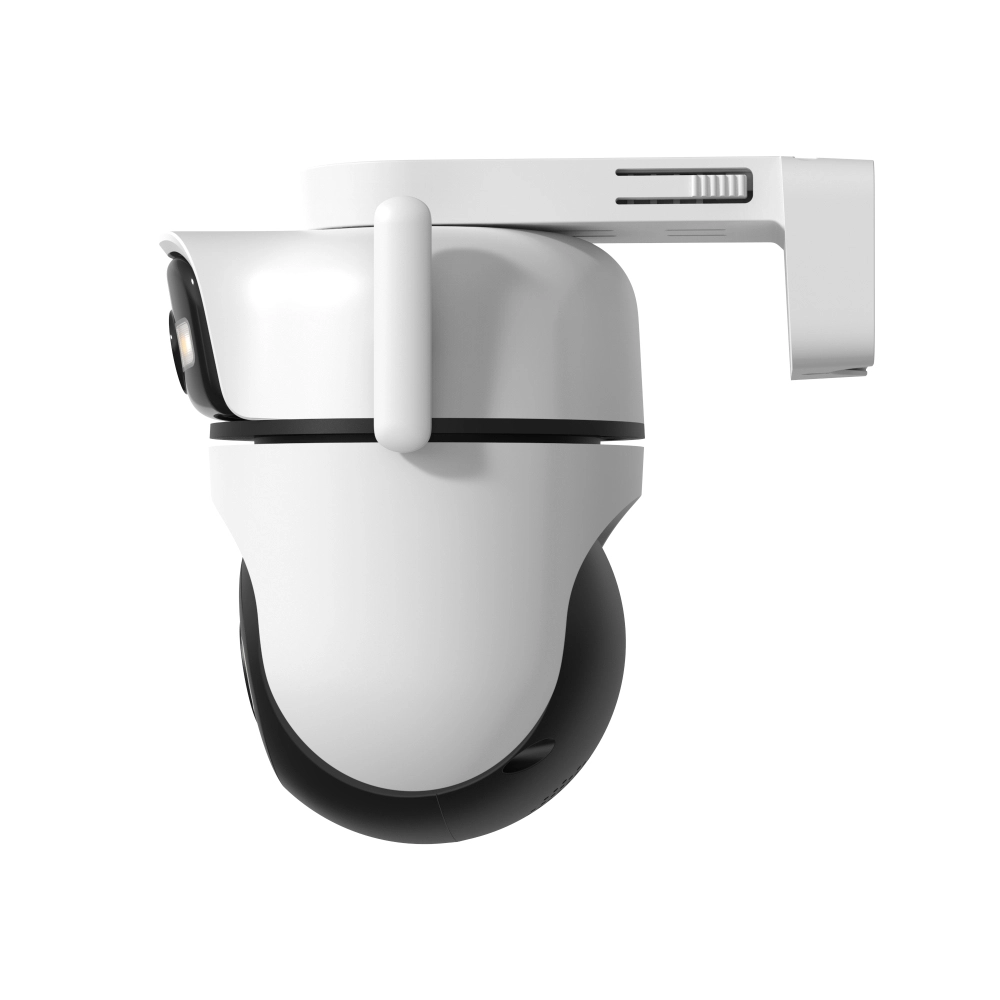

Adaptable Installation Options
Tapo C545D can be securely mounted on a wall, affixed to the celling, or even held by a rod - designed to withstand the elements and deliver dependable monitoring across diverse outdoor settings.

Specification

Product
Product id	1002987
Brand	TP-Link
Partnr	TAPO C545D
EAN/UPC code	8885020629255
Warranty (months)	2 Years
Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Auto-tracking	Y
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Design
Form factor	Spherical
Mounting type	Ceiling/Wall/Pole
Product colour	White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP66
Camera
Lens viewing angle, horizontal	57.3 - 137.6 °
Lens viewing angle, vertical	31.7 - 73 °
Lens viewing angle, diagonal	66.5 - 165.1 °
Image sensor
Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Y
Lens system
Number of lenses	2
Maximum aperture number	1.6
Focal length range	2.53 - 6 mm
Night vision
Night vision	Y
LED type	IR
Colour night vision distance	29.9 m
Infra-red wavelength	850 nm
Video
Maximum resolution	2304 x 1296 Pixels
Total megapixels	3 MP
Video compression formats	H.264
Noise reduction	Y
Noise reduction technology	3D noise reduction
Frame rate	15 fps
Audio
Built-in speaker(s)	Y
Audio system	2-way
Built-in microphone	Y
Network
Ethernet LAN	Y
Wi-Fi	Y
Bluetooth	N
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	144 Mbit/s
Frequency band	2.4 GHz
Live view	Y
Works with the Google Assistant	Y
Works with Amazon Alexa	Y
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Built-in siren	Y
Siren noise level	99 dB
Video motion detection	Y
Intelligent Video Surveillance (IVS) system features	Human detection, Line crossing detection, Pet detection, Vehicle detection
Privacy protection	Y
Alert notification type	Snapshot alert message
Active tampering alarm	Y
Security algorithms	128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Management features
Reset button	Y
Power
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Power consumption (max)	11.2 W
DC output voltage	12
DC output current	1 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Width	114.57 mm
Depth	152.1 mm
Height	159.55 mm
Weight	491 g
Cable length	3 m
Package width	196 mm
Package depth	235 mm
Package height	136 mm
Package weight	890 g
Packaging content
Number of cameras	1
Mounting kit	Y
Screws included	Y
Drilling template included	Y
AC adapter included	Y
Anchors included	Y
Quick start guide	Y
Waterproof connector	Y
