Simple, Reliable
Network Expansion!

Ideal for HD Streaming

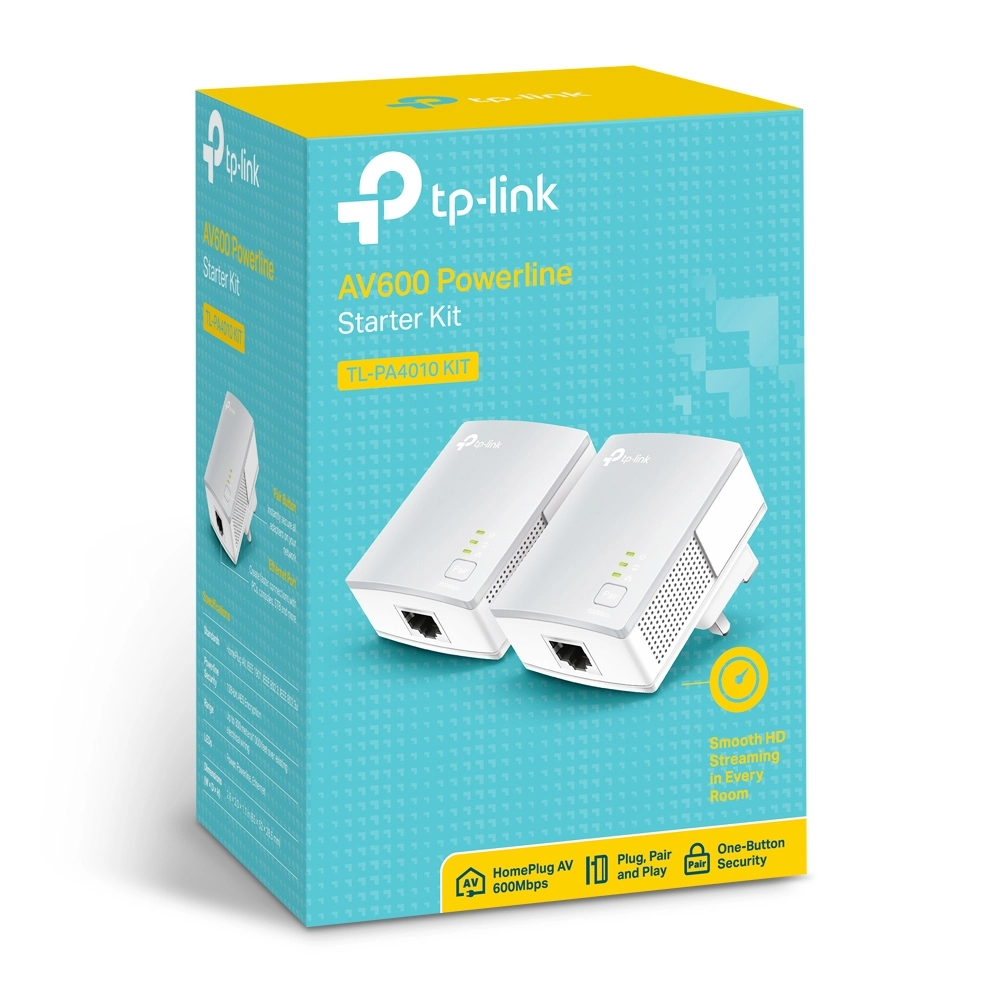

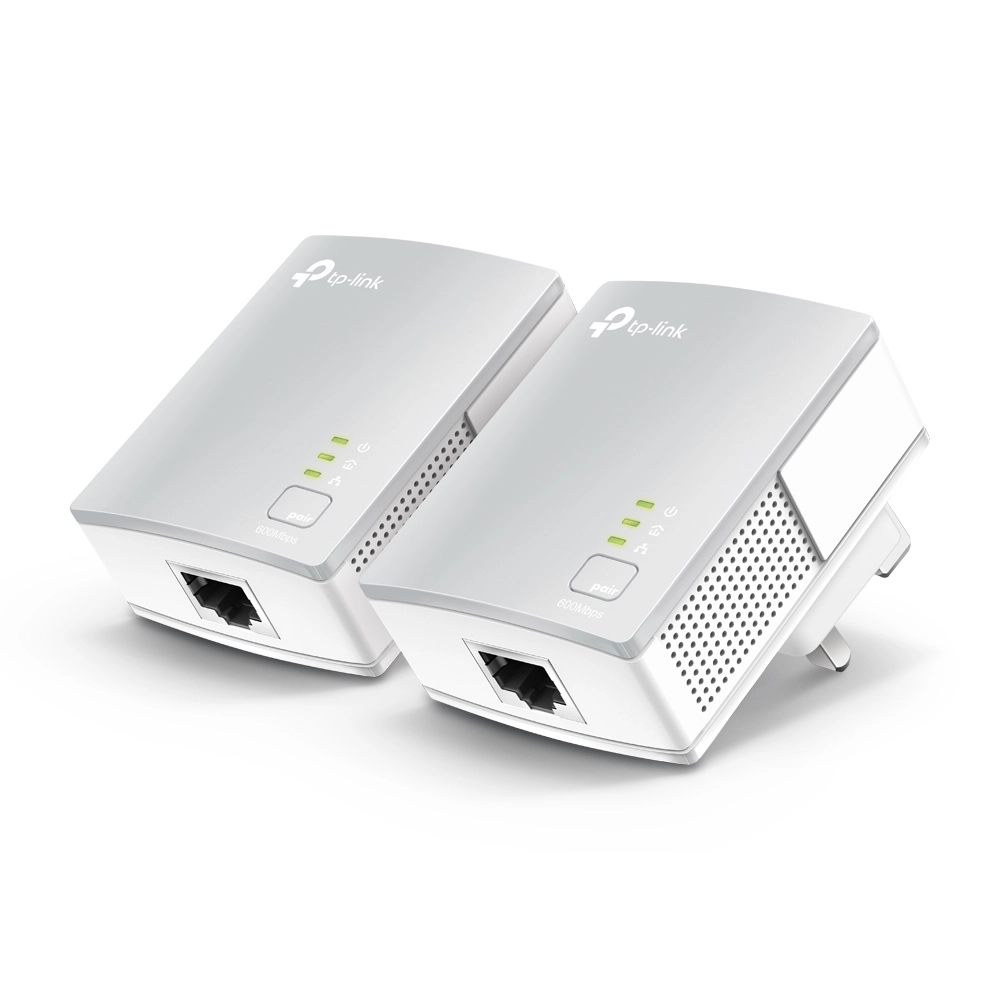

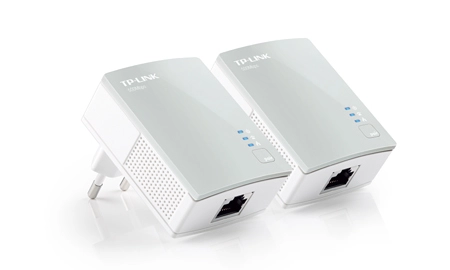

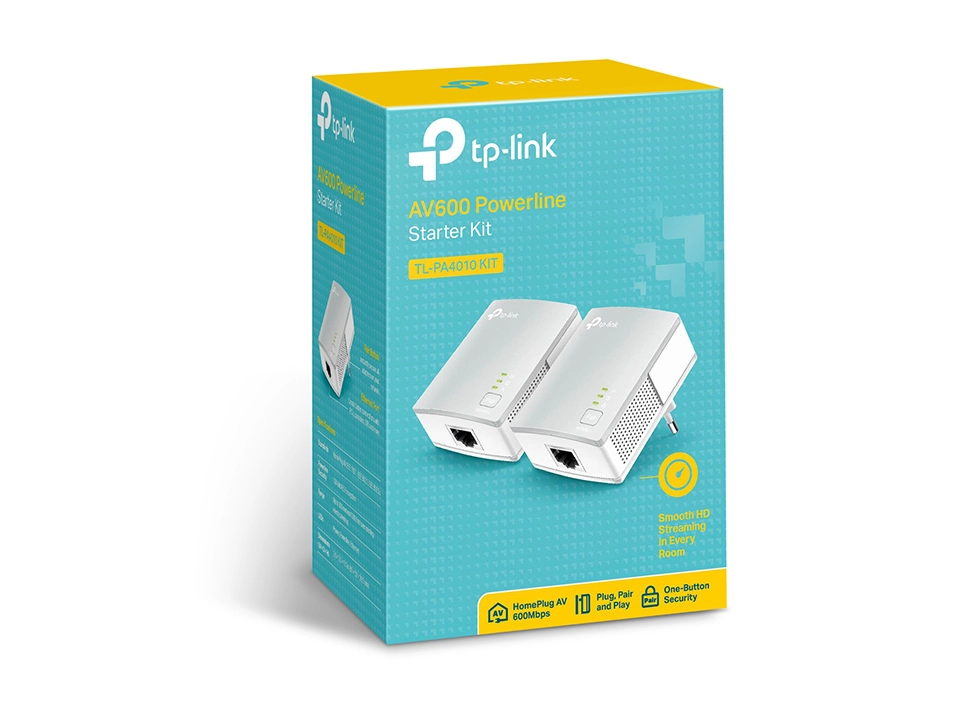

Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates over a household electric circuit for up to 300 meters. The TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.

Miniature Design
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.

Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.

It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the pair buttons—and you're done!

Specification

Product
Product id	405259
Brand	TP-Link
Partnr	TL-PA4010KIT
EAN/UPC code	6935364031985
Performance
Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Networking standards	IEEE 802.3, IEEE 802.3u
Built-in power socket	N
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	128-bit AES
Encryption button	Y
Technical details
Maximum operating distance	300 m
Harmonized System (HS) code	85171800
Power
Power consumption (typical)	4.26 W
Power consumption (standby)	0.88 W
Design
LED indicators	Y
Product colour	White
Certification	CE, FCC
System requirements
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Y
Mac compatibility	Y
Mac operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	65 mm
Depth	52 mm
Height	28.5 mm
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	420 g
Certificates
Compliance certificates	RoHS
Packaging content
Quick installation guide	Y
Manual	Y
Cables included	LAN (RJ-45)
