Perfect for Bandwidth Demanding Activities

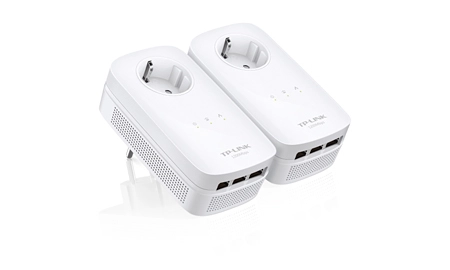

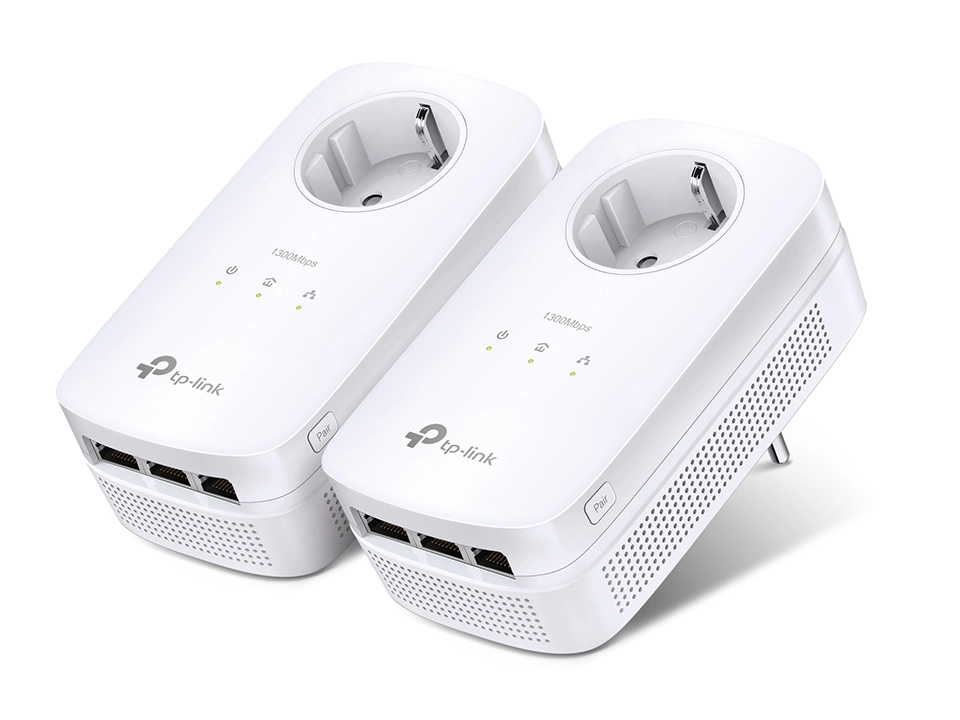

The TL-PA8030P KIT utilizes MIMO technology and Powerline Beamforming to expand coverage throughout the home. Ideal for bandwidth demanding activities like 4K Ultra-HD streaming, online gaming and large file transferring.

2 x 2 MIMO with Beamforming

Wider Coverage

MIMO technology with Beamforming maximizes the performance on each independent stream to improve coverage throughout the home, particularly for previously hard to reach outlets.

Higher Transmission Capacity with More Stability

MIMO transmits two independent data streams on three wire pairs, live, neutral and ground increasing total throughput. Powerline Beamforming optimizes overall performance and reduces interference to maximize data transfer rates.

3 Gigabit Ports for Maximum Connectivity

The TL-PA8030P KIT transmits data over gigabit Ethernet ports, creating secure wired networks for true gigabit-class broadband speeds. This makes the TL-PA8030P KIT well suited for audio and video streaming, online gaming, multi-room IPTV and other high-demand networking uses. It also provides five extra Gigabit ports so users simultaneously connect wired devices like smart TVs, media streaming devices, game consoles, external hard drives, or desktop computers to ensure maximum connectivity.

Plug and Play

Users can get their powerline network up and running by plugging the Powerline adapters into any available power outlet, eliminating the need for time-consuming and expensive renovations previously required to establish a whole-home or office wired Ethernet network.

Save Power Outlets for Other Uses

No longer will you need to sacrifice a power outlet for your Powerline devices. The TL-PA8030P KIT features an integrated power outlet with output of up to 16A*, so users can safely plug their high-power electrical appliances directly into the front of the Powerline unit. The built-in noise filter blocks out electrical signals and other noise, preventing any performance interference from external devices.

Conserve Power by Up to 85%

Its sophisticated Power-Saving mode automatically switches from regular “Working” mode to “Power-Saving” mode when no data activity is being transferred on the Ethernet cable, greatly reducing energy consumption by up to 85%.

Specification

Product
Product id	485945
Brand	TP-Link
Partnr	TL-PA8030P KIT
EAN/UPC code	6935364033156
Performance
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports	3
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Built-in power socket	Y
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Encryption button	Y
MIMO	Y
Quality of Service (QoS) support	Y
Plug and Play	Y
Technical details
Maximum operating distance	300 m
Power
Power consumption (typical)	5.32 W
Power consumption (standby)	1.36 W
Current	16 A
Design
LED indicators	Y
Product colour	White
Certification	FCC
System requirements
Windows operating systems supported	Y
Linux operating systems supported	Y
Mac compatibility	Y
Mac operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	71 mm
Depth	42 mm
Height	131 mm
Package width	230 mm
Package depth	190 mm
Package height	100 mm
Package weight	900 g
Certificates
Compliance certificates	RoHS
Packaging content
Quantity per pack	2 stuk(s)
Quick installation guide	Y
Cables included	LAN (RJ-45)
