Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy

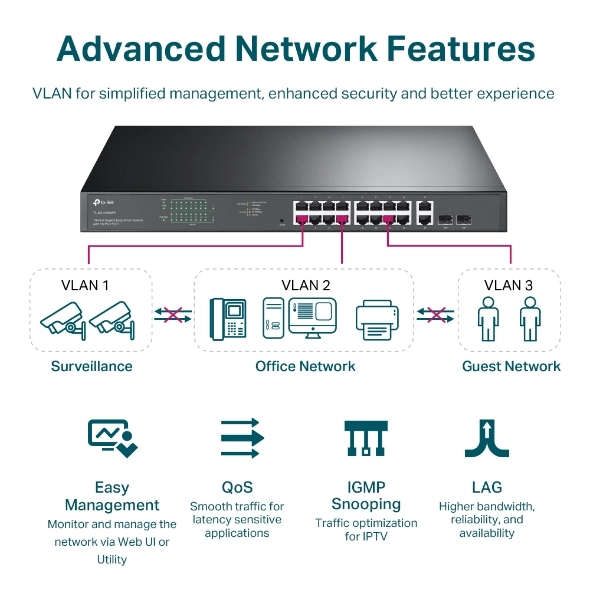

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Specification

Product
Product id	663759
Brand	TP-Link
Partnr	TL-SG1218MPE
EAN/UPC code	6935364086923
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Forwarding rate	23.8 Mpps
Store-and-forward	Y
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	4.1 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Rate limiting	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	32
Management features
Switch type	Managed
Web-based management	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Security
IGMP snooping	Y
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging data
Cables included	AC
Rack mount kit	Y
Package weight	2910 g
User guide	Y
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Power
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	217.22 W
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Design
Rack mounting	Y
Product colour	Black
Number of fans	2 ventilator(en)
Certification	CE, FCC, RoHS
Operational conditions
Heat dissipation	741.15 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	192 W
