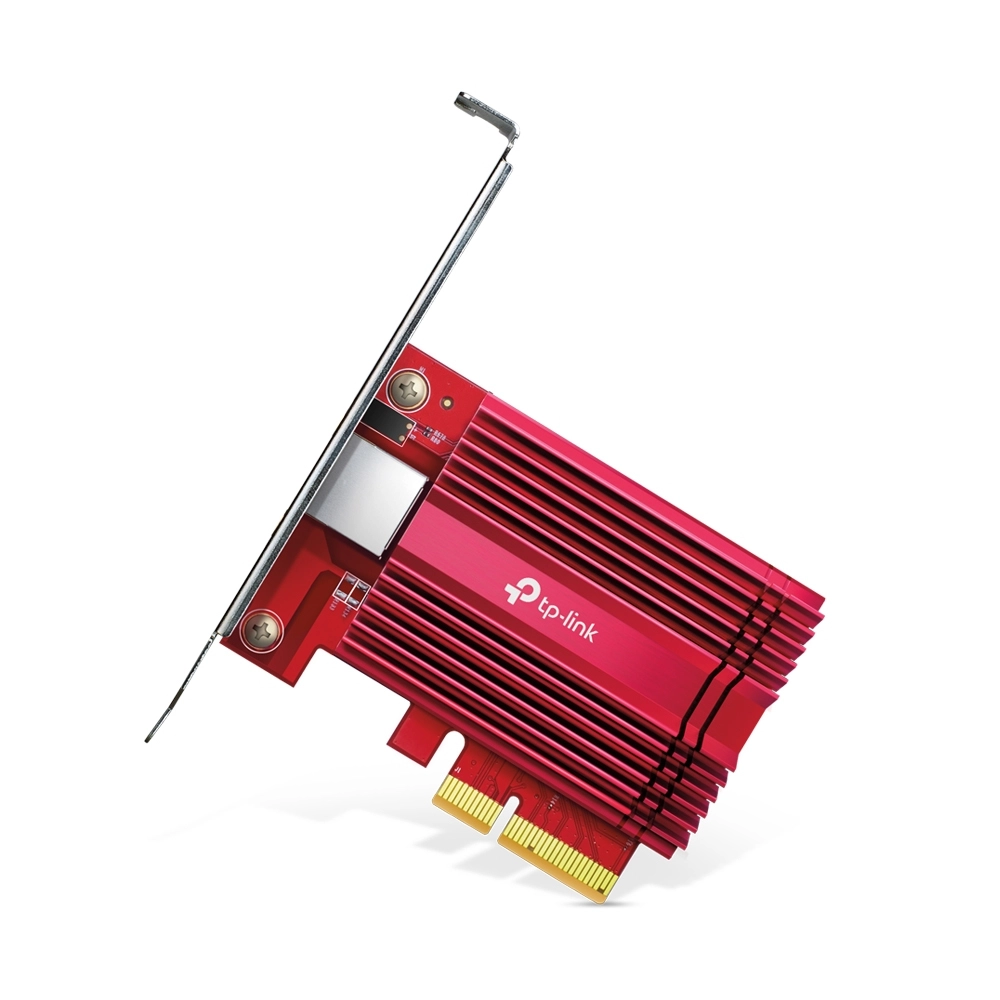

10 Gigabit PCI Express Network Adapter SPEC: PCIe 3. 0 x4 Include CAT6A Ethernet Cable FATURE: Support 10/5/2.5/1 Gbps and 100 Mbps Network Standards



TP-Link
Not in stock
€ 76,42
€ 92,46 incl 21% VAT
Arm Your PC with the Latest 10G SpeedsArm Your PC with the Latest 10G Speeds
PCIe 3.0 Slot to 10 Gigabit Ethernet

Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

10 Gbps Internet Access
Make Full Use of Your High-Speed Internet Access

10 Gbps NAS Connection
Lightning-Fast Local Data Transmissions

10 Gbps Host Server Building
High Hardware Configuration for a Powerful Server

Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Local Data Transmissions in Seconds
For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

Versatile, Multi-Speed Compatibility
10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.

QoS Support
A Bandwidth Buff for Gaming
Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.

Strengthened PCI Express 3.0 ×4
Supports PCI Express Gen3 ×4 for more efficient data transmissions

Easy Setup
Simple software installation with the intuitive Utility on the provided CD

Comprehensive System Support
Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux, and macOS.

Specification

Product
Product id 696037
Brand TP-Link
Partnr TX401
EAN/UPC code 6935364072827
Warranty (months) 3 year limited warranty
Technical details
Sustainability certificates RoHS
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Network
Maximum data transfer rate 10000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 100, 1000, 2500, 5000, 10000 Mbit/s
Design
Internal Y
Component for PC
Product colour Red
Certification FCC, CE
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 5 - 90 procent
Packaging content
Cables included LAN (RJ-45)
Mounting brackets included Y
Resource CD Y
Quick installation guide Y
System requirements
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported Y
Server operating systems supported Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width 120.8 mm
Depth 98.2 mm
Height 21.5 mm
