Security Never Shuts Down

Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time. †

Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for Every Hour and Every Day
27/4 Continuous Recording
Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.

Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specification

Product
Product id	953140
Brand	TP-Link
Partnr	VIGI NVR2016H
EAN/UPC code	4897098683880
Performance
Video input channels	16 kanalen
Number of simultaneously playbacked channels	16 kanalen
Video recording modes	720p, 1080p
Maximum resolution	3840 x 2160 Pixels
Video motion detection	Y
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Input bandwidth	80 Mbit/s
Playback modes	Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Output bandwidth	60 Mbit/s
Playback controls	Y
Maximum frame rate	30 fps
Recording modes	Manual, Schedule
Wireless LAN features
Wi-Fi	N
Storage
Number of HDDs supported	2
Maximum storage capacity	10 TB
HDD interface	SATA

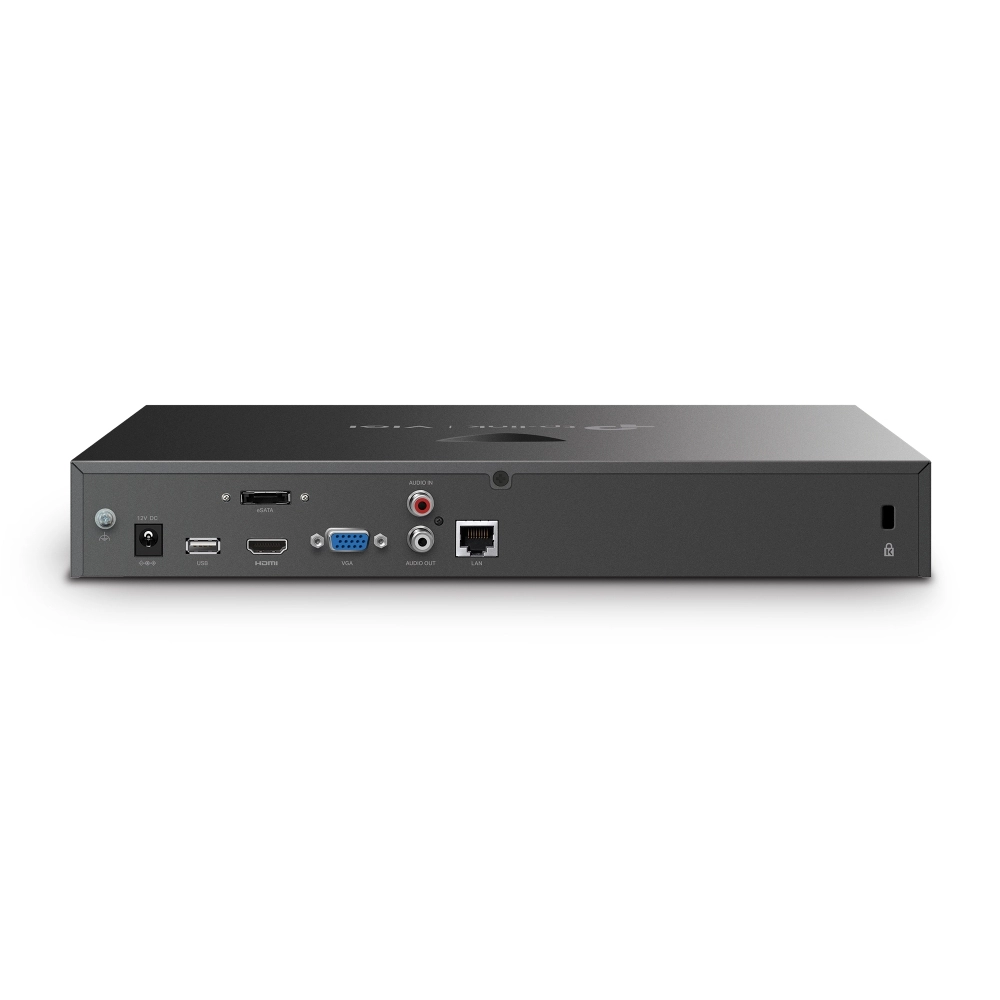

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100 Mbit/s
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
eSATA ports quantity	1
Internal SATA ports quantity	2
Audio output	1
Line-in	Y
eSATA	Y
Supported network protocols	UPnP (Plug and Play), NTP (Network Timing)
DC-in jack	Y
Features
Reset button	Y
Product colour	Black
Certification	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Power
Power consumption (max)	24.16 W
Output voltage	12 V
Output current	3.3 A
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	330 mm
Depth	285 mm
Height	45 mm
Weight	1900 g
Package weight	3200 g
