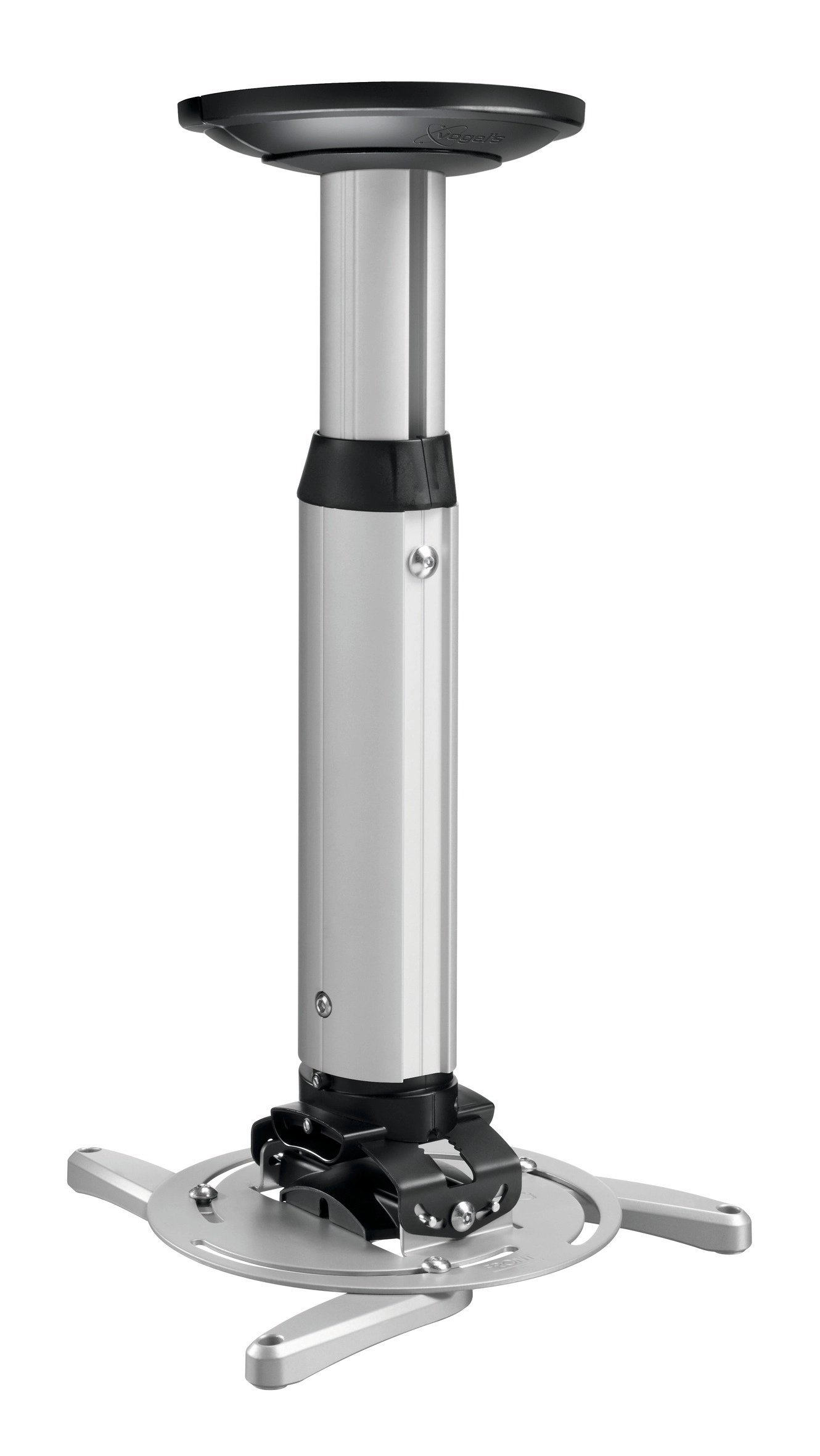

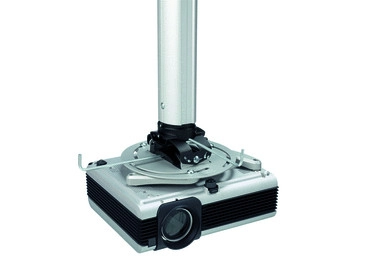

The PPC 1030 is a height adjustable projector mount especially designed for the new generation projectors up to 15 kg. This projector interface is equipped with a unique fine tune adjustability for precise alignment with the projection surface. Once aligned, the projector stays in position. Additional fixation features are provided to secure the desired position.
The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted. These mounts come in 3 lengths offering variable height adjustment from 300 to 1350 mm. The CIS® Cable Inlay System over the full length of the pole makes it even possible to insert cables after installation. The CIS® offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.

Specification

Product
Product id	417730
Brand	Vogels
Partnr	7010304
EAN/UPC code	8712285318986
Warranty (months)	5 years
Performance
Mounting type	ceiling
Product colour	Silver
Height adjustment	300 - 450mm
Angle of rotation	360 °
Maximum distance to ceiling	450 mm
Weight & dimensions
Weight	3000 g
Technical details
Maximum weight capacity	15 kg
Tilt angle range	-7.5 - 7.5 °
Mounting
Minimum distance to ceiling	300 mm
