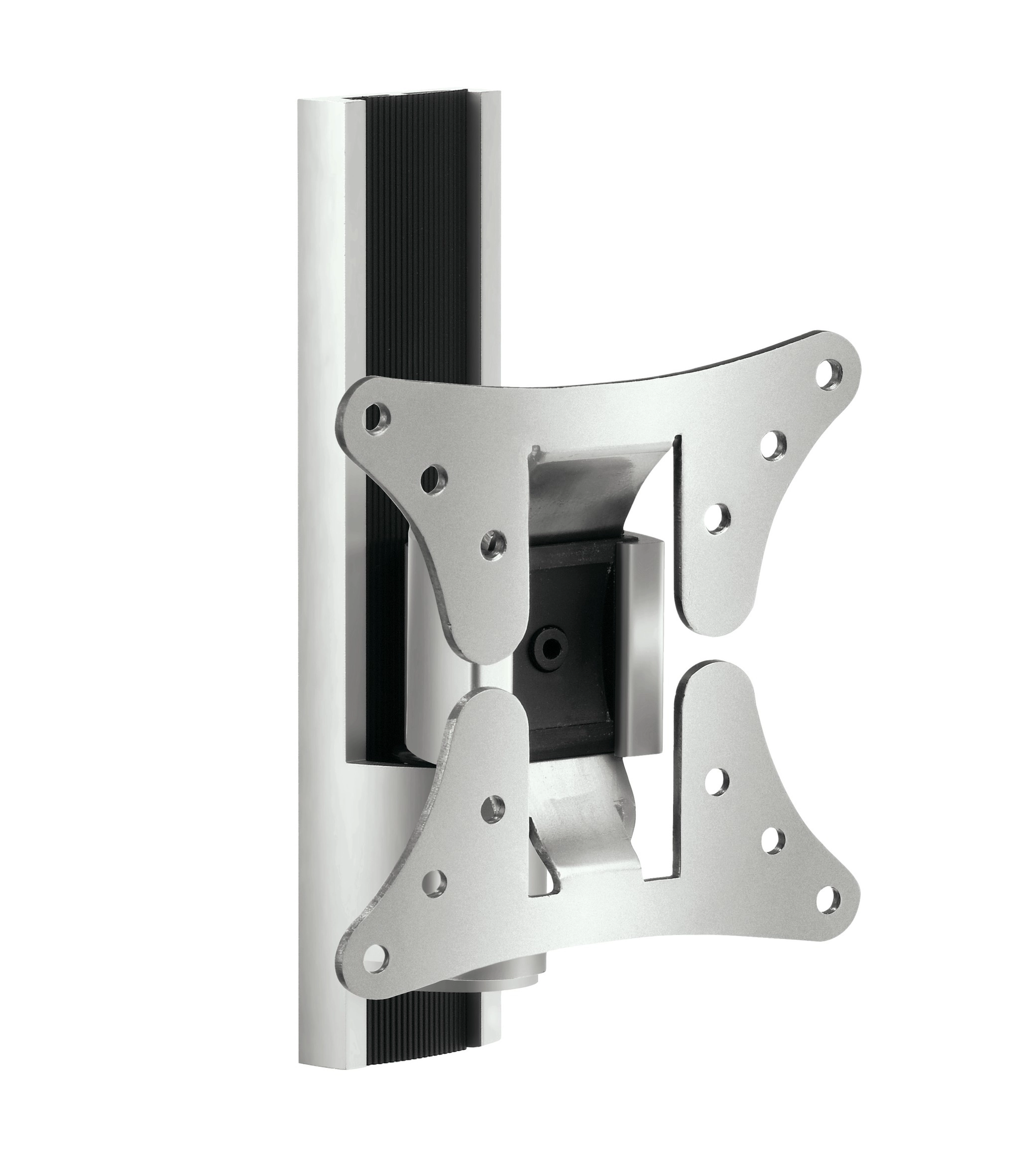

VFW226 Support LCD



Vogels
Not in stock
€ 31,69
€ 38,34 incl 21% VAT
The VFW 226 is a very high quality mount although it seems to be at odds with the supplied fixing screws which seemed lower in quality than I would expect. I did actually use the supplied screws (x 3) and although I was not as confident in their quality they did fix the mount, but it was an effort (and care was taken) towards the last 10mm of turns to get the screws tight and not to shear them off. The drill holes have to be 60mm+ holes so not for the faint hearted perhaps!

I would have given this mount a higher rating if it was not for the unworkable tilt feature of the VFM 226. It just did not work for me (Sony 26inch TV). The mechanism had to be adjusted/tightened before fitting to the TV. Once the TV was fitted the tilt unit just let the TV drop to it's stop position. So no actual adjustment to the tilt was possible for me. I guess if you really tightened the device it may have worked but as it was made of plastic I was not taking any chances! My high-tech solution was to wedge something in between the mount and the tilt unit, that seemed to do the trick. The rotate feature worked well however you are limited to the movement here due to the distance between wall and TV only being 75mm but it is a compact mount as a result.

Specification

Product
Product id 1029398
Brand Vogels
Partnr 8301014
EAN/UPC code
Mounting
Maximum weight capacity 15 kg
Mounting type Desk
Minimum screen size compatibility 14 "
Maximum screen size 26
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 200 x 200 mm
Panel mounting interface 75 x 75, 100 x 100, 200 x 200 mm
Ergonomics
Turn angle 140 °
Tilt angle range 0 - 10 °
Technical details
Product colour Silver
Number of pivot points 1
Number of displays supported 1
Distance to the wall (max) 70 mm
Distance to the wall (min) 70 mm
Weight & dimensions
Width 200 mm
Depth 65 mm
Height 290 mm
Weight 998 g
Packaging data
Package weight 1400 g
Other features
Interface width 116 mm
Interface height 116 mm
