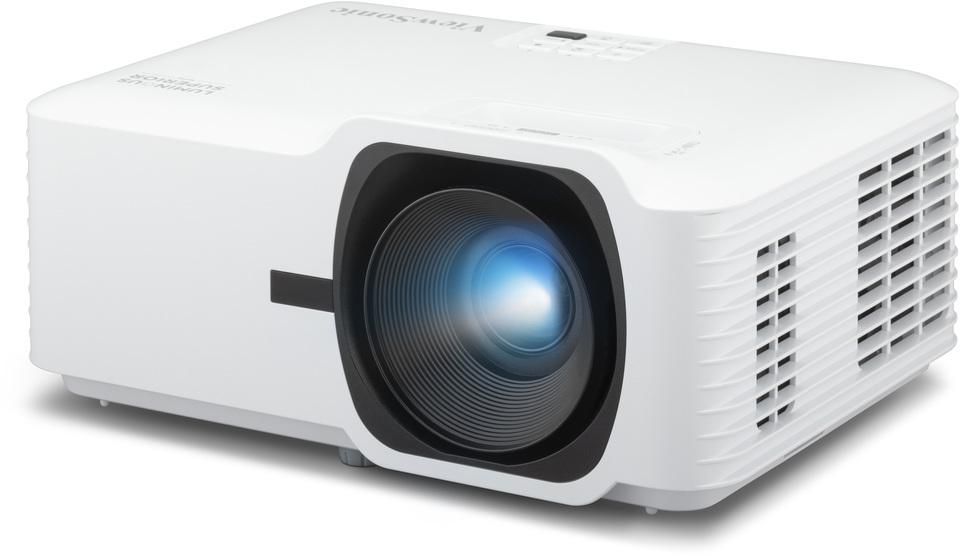

The LSD400WE is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4, 000 ANSI Lumens of brightness and an impressive lifespan of up to 30, 000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 49% power consumption than comparable lamp projectors. Delivering ultra-large projections up to 300” in WXGA resolution, this projector leverages high native contrast from a 0.65” DMD chip with DLP technology. Equipped with a 1.1x optical zoom, H/V keystone & 4 corner correction, and 360° projection, the LSD400WE supports flexible installation options, making it an excellent choice for meeting rooms, classrooms, and golf simulation setups.

Bright, Compact, Durable
The LSD400WE incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30, 000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Clear Visuals for Business and Education Environments
Thanks to the latest laser technology, the LSD400WE achieves high brightness of 4, 000 ANSI Lumens. With WXGA resolution​, the projector ensures bright and detailed images in dim or lit environments.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD400WE, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays. ​

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400WE offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.

Reliable Long-Term Performance with DLP Projection Technology​
With DLP technology, the LSD400WE maintains consistent colour performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Application​s
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Brilliant Colours for an Authentic Golf Experience
Powered by ViewSonic’s advanced colour-tuning technology, the projector features a dedicated Golf Mode that enhances colours, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle. Learn more: https://youtu. be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.

Specification

Product
Product id	1003341
Brand	Viewsonic
Partnr	LSD400WE
EAN/UPC code	766907038385
Projector
Projector brightness	4000 ANSI lumens
Projection technology	DLP
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	3000000:1
Screen size compatibility	30 - 300 "
Smart projector	N
Projection distance	1 - 11.11 m
Number of colours	1.07 billion colours
Keystone correction, horizontal	+-30 °
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.024 kHz
Horizontal synchronization (max)	102 kHz
Horizontal synchronization (min)	15 kHz
Keystone correction, vertical	+-30 °
Matrix type	DMD
Matrix size	0.65 "
Screen size (max)	300 "
Light source
Light source type	Laser
Service life of light source	20000 uur
Service life of light source (economic mode)	30000 uur
Light source brightness	4800 lm
Lens system
Focus	Manual
Focal length range	21.85 - 24 mm
Aperture range (F-F)	2.4 - 2.53
Zoom capability	Y
Digital zoom	2 x
Optical zoom	1.1 x
Throw ratio	1.544 - 1.72
Offset	124 procent
Video
Full HD	Y
3D	N
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1200 (WUXGA)
Ports & interfaces
HDMI ports quantity	2
HDMI connector type	Full-size
HDMI version	1.4
DVI port	N
USB 2.0 Type-A ports quantity	1
Serial interface type	RS-232
PC Audio out	Y
Network
Smart TV	N
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Storage
Card reader integrated	N
Technical details
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	Multi
Image lag time	16.7 ms
Features
Noise level	30 dB
Noise level (economic mode)	25 dB
HDCP	Y
HDCP version	1.4
International Protection (IP) code	IP6X
Multimedia
Built-in speaker(s)	Y
RMS rated power	3 W
Design
Product type	Standard throw projector
Product colour	White
Cable lock slot	Y
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	114 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC adapter output voltage	19.5 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	3100 g
Width	286 mm
Depth	216 mm
Height	129 mm
Package width	400 mm
Package depth	280 mm
Package height	155 mm
Package weight	4600 g
Packaging content
Handheld remote control	Y
Warranty card	Y
AC adapter included	Y
Cables included	AC
Logistics data
Quantity per pack	1 stuk(s)
