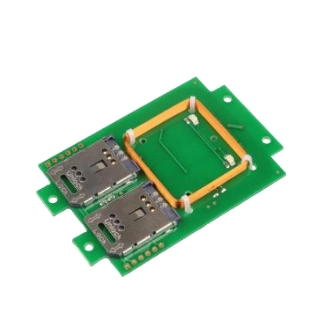

Elatec’s TWN4 Family allows users to read and write to almost any 125kHz/134.2kHz and 13.56MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, INSIDE etc. and ISO standards like ISO14443A/B including layer 4 (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC).

The new generation is a direct enhancement to the successful TWN3 family as it comes in the same mechanical dimensions (OEM PCB and Desktop Housing). All host communication can be done via USB, RS232 or serial TTL interface, the RF Frontend (e. g. Legic) can directly be accessed.

Specification

Product
Product id	586838
Brand	Xerox
Partnr	497N04032
EAN/UPC code	095205829945
Technical details
Working distance	100 mm
Certification	WEEE, RoHS, R&TTE, CE
Logistics data
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	20 g
Operational conditions
Operating temperature (T-T)	-25 - 80 °C
Operating relative humidity (H-H)	-45 - 85 procent
Country of origin	Germany
Compatibility	Xerox AltaLink B8100 Series Multifunction Printers Xerox AltaLink C8000 Series Colour Multifunction Printers Xerox AltaLink C8100 Series Colour Multifunction Printers Xerox Colour C60/C70 Xerox PrimeLink B9100 Series Production Press Xerox PrimeLink C9065/C9070 Colour Printer Xerox VersaLink B7100 Series Multifunction Printers Xerox VersaLink C405 Colour Multifunction Printer Xerox VersaLink C7000 Colour Printer Xerox VersaLink C7000 Series Colour Multifunction Printers Xerox VersaLink C7100 Series Colour Multifunction Printers Xerox VersaLink C8000 Colour Printer Xerox VersaLink C9000 Colour Printer WorkCentre 6655i
