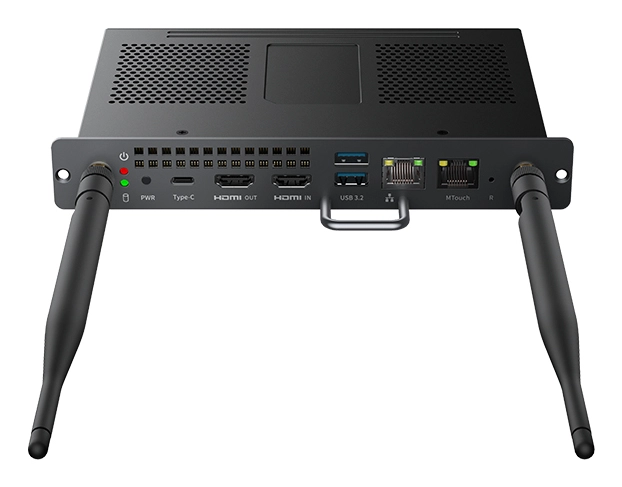

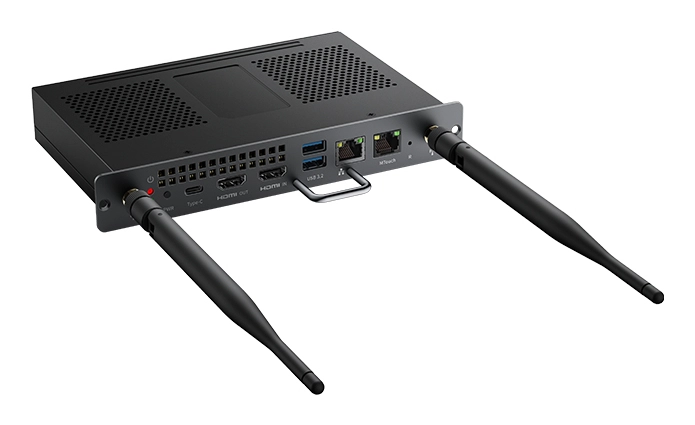

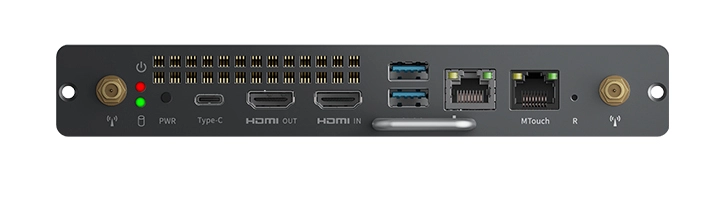

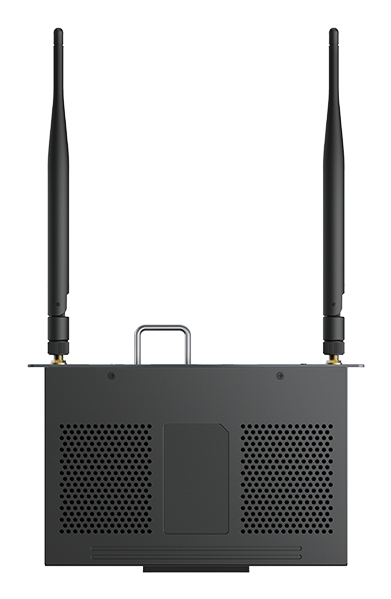

Yealink MCore-OPS-G2/MCore-OPS-G2T is the latest modular computing solution designed for Yealink MeetingBoard/MeetingBoard Pro Series.  With Intel Core Ultra 5, upgraded memory, and a lightning-fast SSD, it delivers the power you need for smooth multitasking, large-file handling, and audio-video meetings.

Specification

Product
Product id	1009110
Brand	Yealink Network Technology
Partnr	MCORE-OPS-G2T
EAN/UPC code
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 1)
Processor model	125H
Processor cores	12
Performance cores	4
Efficient cores	8
Processor cache	18 MB
Processor cache type	Smart Cache
Performance-core base frequency	4.5 GHz
Processor threads	18
Efficient-core base frequency	0.7 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Number of processors installed	1
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Storage
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc Graphics
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Rack-mounted chassis
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 IoT Enterprise
Operating system architecture	64-bit
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	180 mm
Depth	119 mm
Height	30 mm
Weight	700 g
Packaging content
Display included	N
