VC40 E2
Smarter Meetings, One Device.

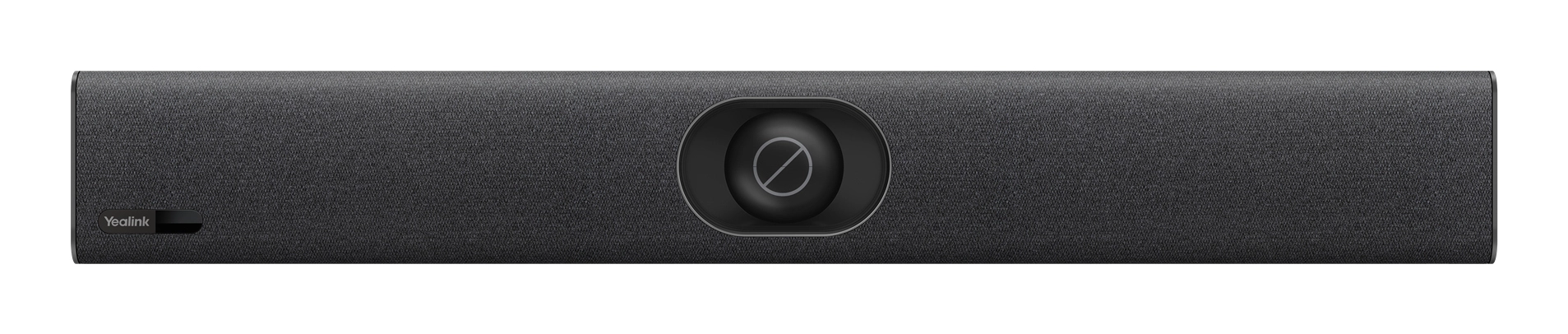

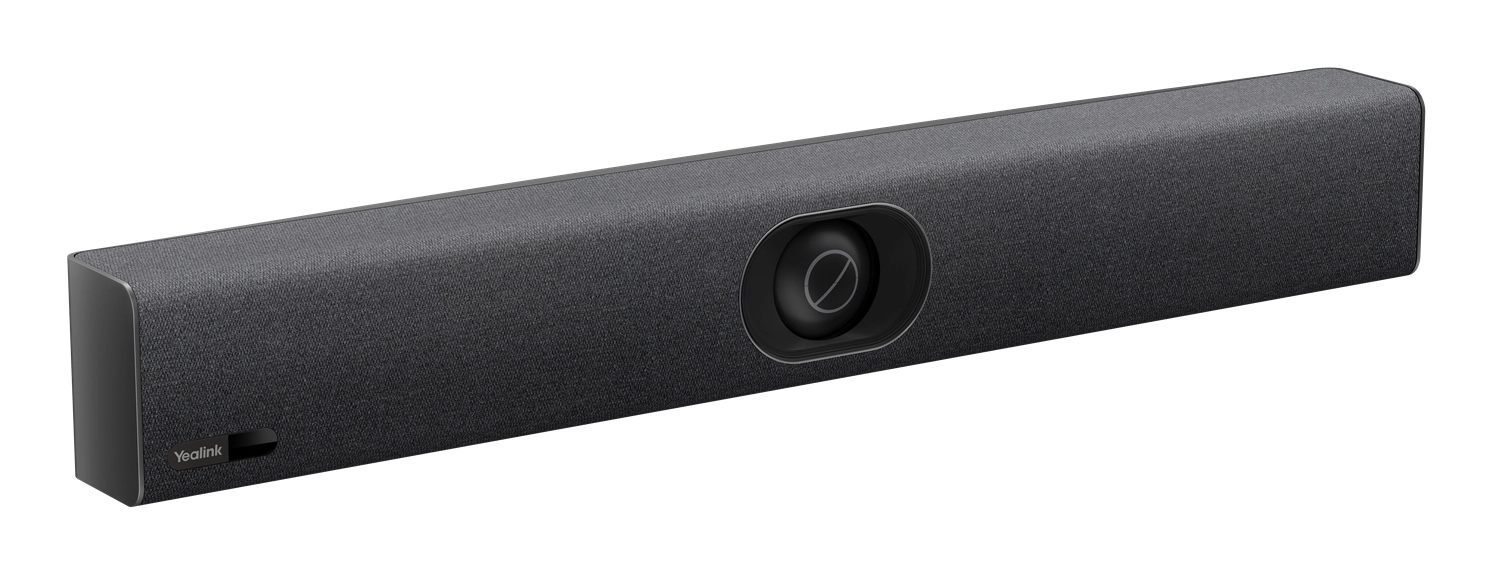

All-in-One Intelligent USB Conference Camera for Small and Huddle Rooms

MAKE YOUR MEETINGS SMARTER

With 4K ultra-HD imaging, a 120° super-wide-angle lens and Smart Area Exposure technology, the UVC40 E2 ensures exceptional video quality. AI features like Auto Framing and Speaker Tracking enhance conferencing, while 8 MEMS microphones and a high-fidelity speaker ensure excellent call quality. Manageable via Yealink Device Management Platform, UVC40 E2 is your choice for seamless collaboration.

SMART AI, CLEAR FOCUS.

With advanced AI technology such as Auto Framing and Speaker Tracking, the UVC40 E2 automatically adjusts framing based on participant count and positions, seamlessly zooms in on speakers without manual intervention, ensuring enhanced conference focus during meetings.

SMART VISION, WIDE VIEW.

Featuring a ultra-HD 4K lens, the UVC40 E2 ensures clear and smooth video calls, delivering vivid and detailed presentations. Its 120° ultra-wide view effortlessly covers every corner of the meeting room, capturing all participants. Smart Area Exposure* enhances overall brightness through AI image algorithms, ensuring optimal face and picture presentation.

Smart Sound,
Superior Clarity.
8 MEMS microphone arrays for superior noise reduction and echo cancellation. Enhanced by an upgraded beamforming algorithm and advanced acoustic processing technology, the UVC40 E2 delivers high-quality full-duplex calls with precise voice pickup.

Specification

Product
Product id	975668
Brand	Yealink Network Technology
Partnr	UVC40 E2
EAN/UPC code	6938818320482
Technical details
Product type	Personal video conferencing system
Product colour	Black
Performance
Number of cameras	1
Auto framing	Y
Signal-to-Noise Ratio (SNR)	72 dB
Video
Megapixel	8 MP
HD type	4K Ultra HD
Maximum frame rate	30 fps
Audio
Frequency range	50 - 20000 Hz
Audio system full duplex	Y
Line-out impedance	4 Ohm
Echo cancellation	Y
Built-in speaker(s)	Y
Noise reduction	Y
Audio Lip synchronization	Y
Automatic gain control	Y
Speaker power	5 W

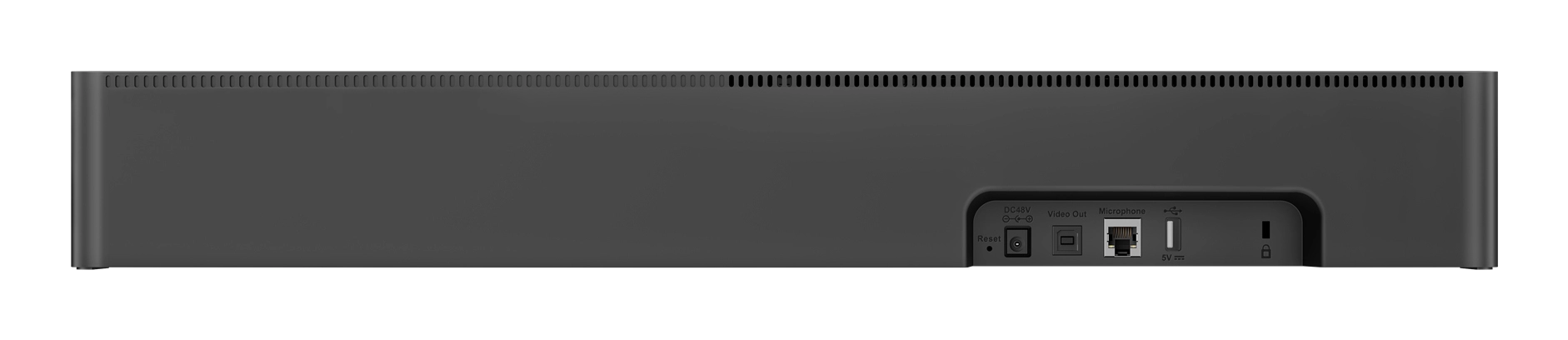

Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
DC-in jack	Y
Microphone in	Y
Reset slot	Y
Network
Wi-Fi	Y
Camera
Camera type	Single camera
Sensor type	CMOS
Field of view (FOV) angle	120 °
Image sensor size	1/1.8 "
Microphone
Microphone sensitivity	-38 dB
Number of microphones	8
Number of microphone arrays	1
Computer system
Windows operating systems supported	Y
Mac operating systems supported	Y
Features
Cable lock slot	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 procent
Storage temperature (T-T)	-30 - 70 °C
Power
Power source type	AC
AC input voltage	100 - 240 V
DC output voltage	48 V
DC output current	0.7 A
Weight & dimensions
Width	600 mm
Depth	68 mm
Height	82 mm
Weight	1370 g
Packaging content
Cables included	USB
AC adapter included	Y
Mounting kit	Y
Handheld remote control	Y
Quick start guide	Y
