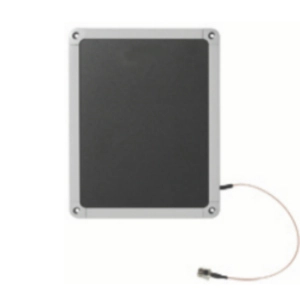

The AN610 is space-saving and stylish. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.

Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.

Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.

Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.

Specification

Product
Product id	713903
Brand	Zebra
Partnr	AN610-SCL71128EU
EAN/UPC code
Features
Connector gender	Female connector
Front to back ratio	18 dB
Isolation	38 dB
Technical details
Antenna gain level (max)	1 dBi
Frequency band	0.864 - 0.868 GHz
Harmonized System (HS) code	85177100
Antenna type	Omni-directional antenna
Mounting	Ceiling/wall
Purpose	Indoor & outdoor
Antenna connector type	N-type
Polarization	Circular polarization
Voltage Standing Wave Ratio (VSWR)	1.4:1
Operational conditions
Operating temperature (T-T)	-30 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Colour
Product colour	Black
Power
Power consumption (max)	6 W
Weight & dimensions
Weight	600 g
Width	214 mm
Depth	12 mm
Height	275 mm
Packaging content
Quantity per pack	1 stuk(s)
