Put plug-and-play high quality scanning wherever you need it
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

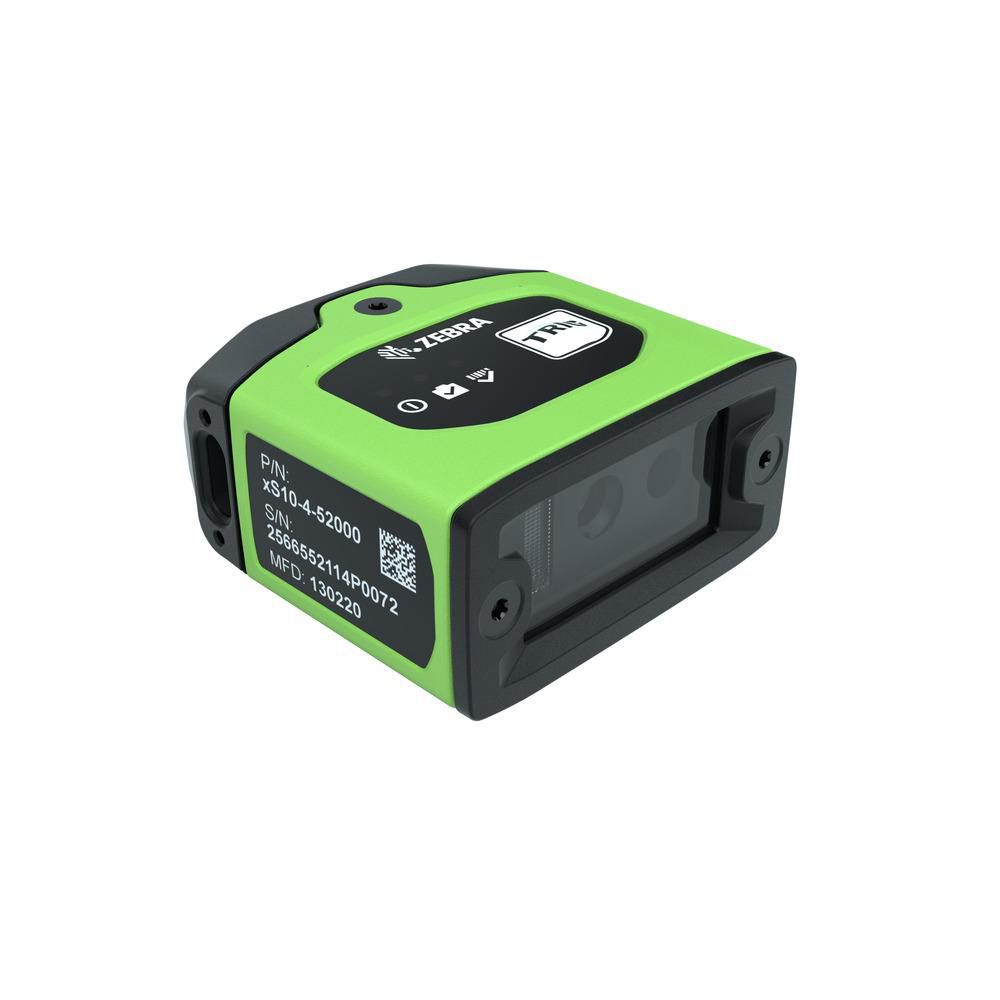

Now, you can address it all with the compact Zebra FS10 Fixed Industrial Scanner.1 With a slim profile, the FS10 easily fits everywhere you need scanning. Just plug the FS10 into the USB port of a workstation, laptop, tablet or any other host device to dependably capture barcode data, from assembly to storage and fulfillment.

Specification

Product
Product id	858145
Brand	Zebra
Partnr	FS10-SR10Z1-1C00W
EAN/UPC code	5715063459034
Scanning
Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, MSI-Plessey, U. P. C.
Optical sensor resolution (W x H)	1280 x 800 Pixels
Horizontal field of view	35 °
Vertical field of view	26 °
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
USB version	2.0
USB 2.0 ports quantity	1
Performance
Product colour	Black, Green
Housing material	Aluminium
International Protection (IP) code	IP65, IP67
Protection features	Shock resistant, Vibration proof
LED indicators	Y
Power
Power source type	DC
Power consumption (typical)	5 W
Input voltage	5 V
Input current	1 A
Weight & dimensions
Width	43 mm
Depth	51 mm
Height	25.4 mm
Weight	120 g
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
