THE NEXT GENERATION IN 1D SCANNING

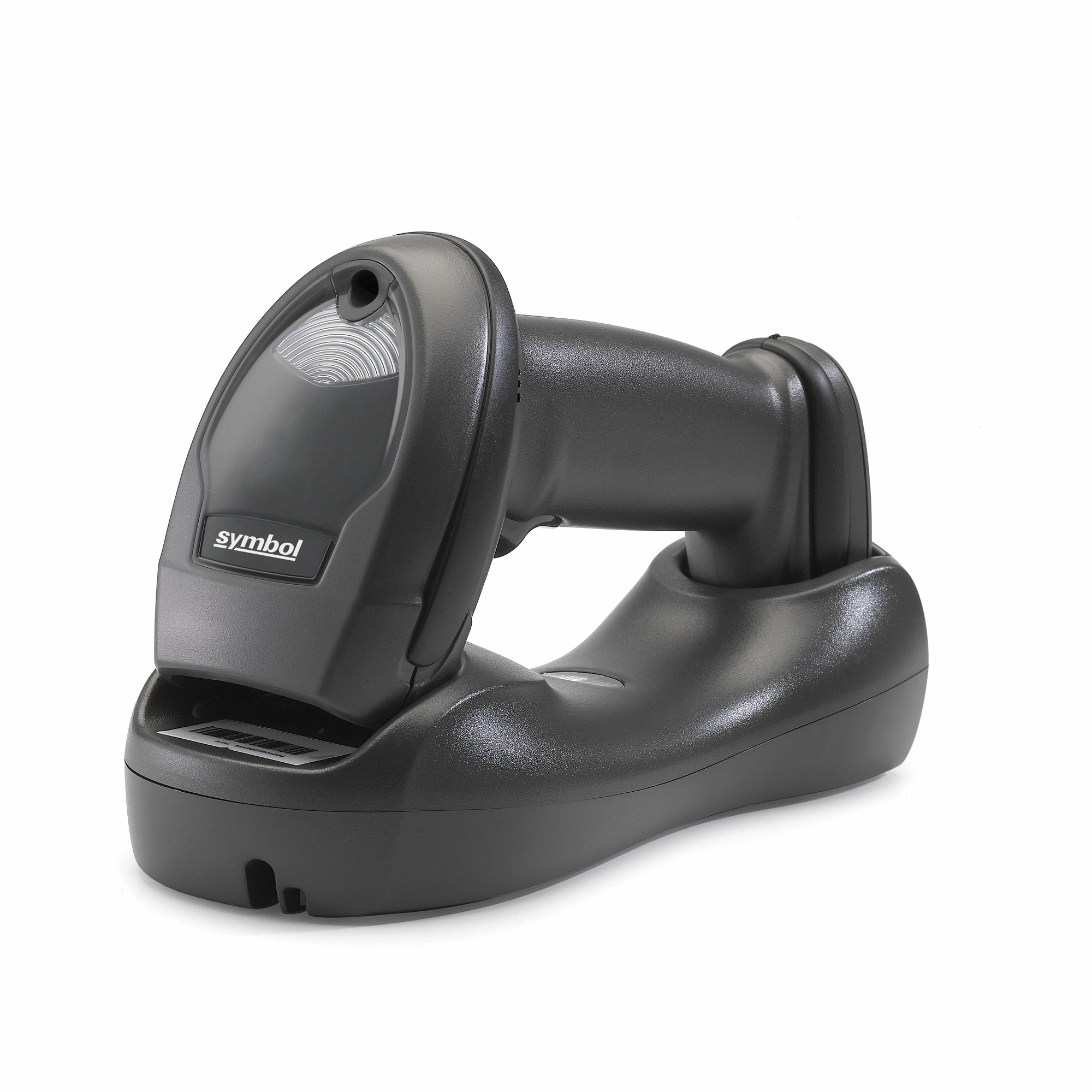

Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.

The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.

Specification

Product
Product id	519526
Brand	Zebra
Partnr	LI4278-TRBU0100ZER
EAN/UPC code	5711045427138
Warranty (months)	3 year
Scanning
Read rate (max)	547 lezingen/s
Light levels (direct sunlight)	0 - 108 Lux
Wavelength	612 nm
Tilt reading angle	0 - 45 °
Pitch reading angle	0 - 65 °
Yaw reading angle	0 - 65 °
Maximum scan width	100 mm
Tilt angle range	0 - 35 °
Maximum range	6 m
Decoding standards	UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1
Ports & interfaces
Standard interfaces	RS-232, RS-485, USB, Keyboard wedge
Bluetooth	Y
Cable length	1.8 m
Performance
Product colour	Black
Housing material	Plastic
International Protection (IP) code	IP54
LED indicators	Charging, Power
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC
Power
Battery technology	Lithium Polymer (LiPo)
Weight & dimensions
Weight	224 g
Technical details
Dimensions (WxDxH)	70 x 186 x 98 mm
Light source	LED
Harmonized System (HS) code	84716070
Safety	C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1
Packaging data
Cables included	RS-232
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85 procent
Other features
Shockproof	N
