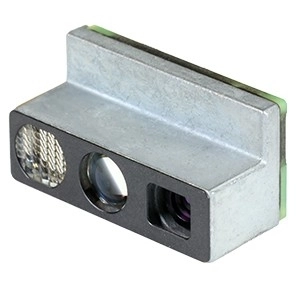

COST-EFFECTIVE, ENTERPRISE-CLASS DECODED AND UNDECODED IMAGERS

With the SE4100 undecoded and SE4107 decoded scan engines, you can afford to add enterprise-class 1D/2D scanning into mobile computers, payment terminals, mobile point-of-sale (POS), scanning sleds, access control systems, kiosks and more. Whether you are designing new products or upgrading existing product from 1D to 2D, both engines require less space to accommodate slimmer designs or new features, less development and integration time, and less cost.

EASY INTEGRATION WITH A WIDE RANGE OF DESIGNS AND DEVICES

The SE4100 supports parallel or MIPI interaces for easy integration with a wide range of host platforms. The SE4107 supports serial and USB, plus SSI for easy upgrading from other Zebra scan engines.

EASY INTUITIVE FIRST-TIME AIMING

The bright, rectangular illumination field and green LED aiming spot enables accurate aiming for exceptional ease of use. White illumination increases scanning flexibility by enabling the easy capture of any colour barcode. The micro-lens array delivers the uniform light required to produce superior images for dependable scanning.

HIGH QUALITY OPTICAL COMPONENTS

Whether you choose the decoded or undecoded engine, there no compromise on performance — both engines have the same high-quality optical systems, unlike some competitors.

EASY DEVELOPMENT, UPGRADES AND UPDATES

Reduce development time and cost with this decoded engine. There no integration or programming required to accommodate an extra decoder board. No OS or high-end processor is required in the host device, allowing you to add enterprise-class scanning to more types of products.

Specification

Product
Product id	706268
Brand	Zebra
Partnr	SE4107-LS000R
EAN/UPC code
Warranty (months)	15 months
Features
Harmonized System (HS) code	84715000
Power
AC input voltage	5 V
AC adapter output current	0.28 A
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-4 - 122 °F
Scanning
Scanner type	1D/2D
Optical sensor resolution (W x H)	1280 x 960 Pixels
Weight & dimensions
Width	22.3 mm
Depth	13.7 mm
Height	11.5 mm
Weight	5.5 g
Technical details
Compliance certificates	RoHS
