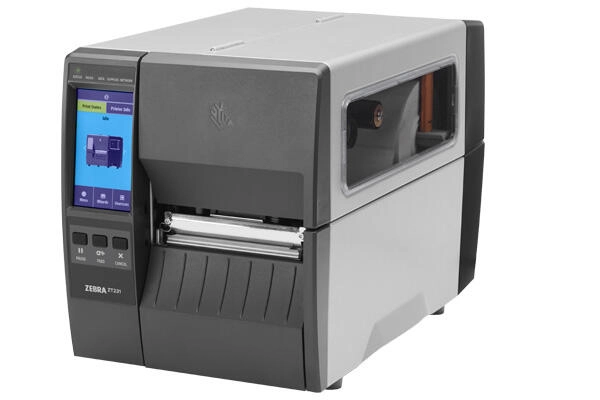

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up – without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more – all in one space-saving footprint. Plus, add optional capabilities like RFID, wireless connectivity and media handling features when you need them. But that’s not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That’s how Zebra defines value.

Make It Easy for Your IT Team
Take advantage of Zebra’s robust, ever growing Print DNATM software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later
The benefits of buying a ZT231 don’t end at the point of purchase. Expand your printer’s capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.

Get More Value with Zebra
Simple Operation with Smart Features
Reduce training time with the ZT231’s easy-to-use 4.3” full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Built to Perform. Engineered to Endure.
Don’t Compromise on Quality
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you’re backed by Zebra, the #1 leader in barcode printing.

Specification

Product
Product id	903154
Brand	Zebra
Partnr	ZT23143-T0E00CFZ
EAN/UPC code
Printing
Print technology	Direct thermal / thermal transfer
Colour	N
Maximum resolution	300 x 300 pixels
Maximum printing width	104 mm
Paper handling
Ribbon length	450 m
Ribbon width	110 mm
Maximum media length	1854 mm
Media thickness	0.076 - 0.010 mm
Core diameter	25.4 mm
Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	Y
Bluetooth Low Energy (BLE)	Y
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Page description languages	EPL, EPL2, ZPL, ZPL II
Internal memory	256 MB
Flash memory	256 MB
Built-in barcodes	Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 Databar (RSS-14), MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E
Design
Product colour	Black
Display	LCD
Display diagonal	4.3 inch
Built-in display	Y
Colour display	Y
Control type	Touch
Power
AC input voltage	100-240 V
AC input frequency	50-60 Hz
System requirements
Mobile operating systems supported	Android, iOS
Mac operating systems supported	Y
Windows operating systems supported	Y
Operational conditions
Operating relative humidity (H-H)	20 - 85 procent
Storage relative humidity (H-H)	5 - 85 procent
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Weight & dimensions
Width	241 mm
Depth	432 mm
Height	279 mm
Weight	9100 g
