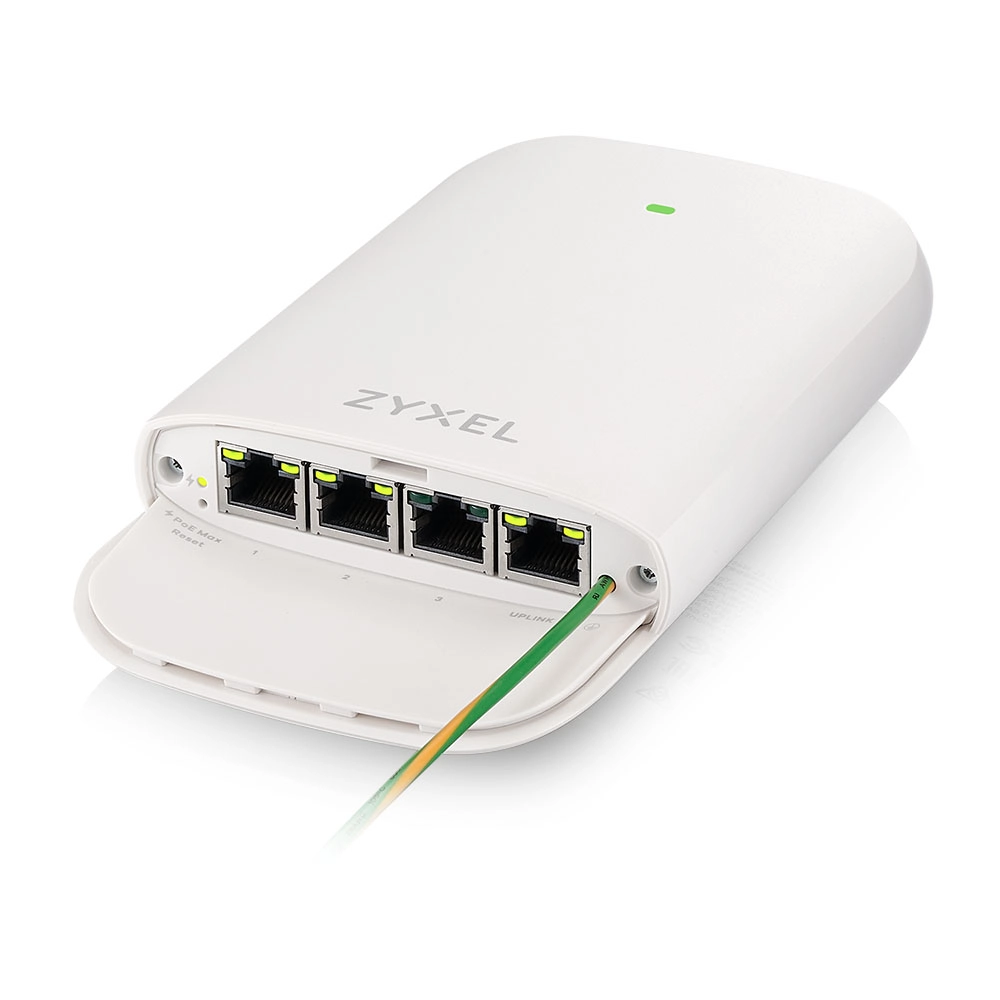

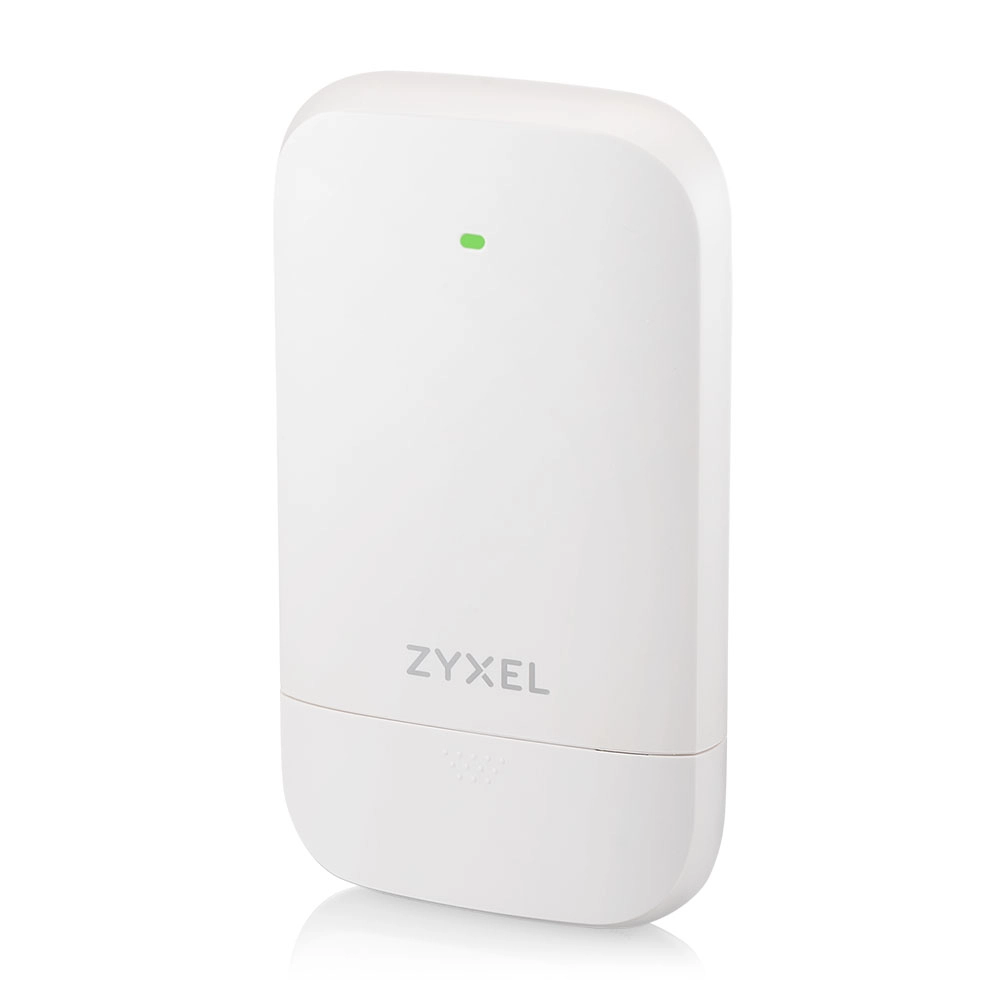

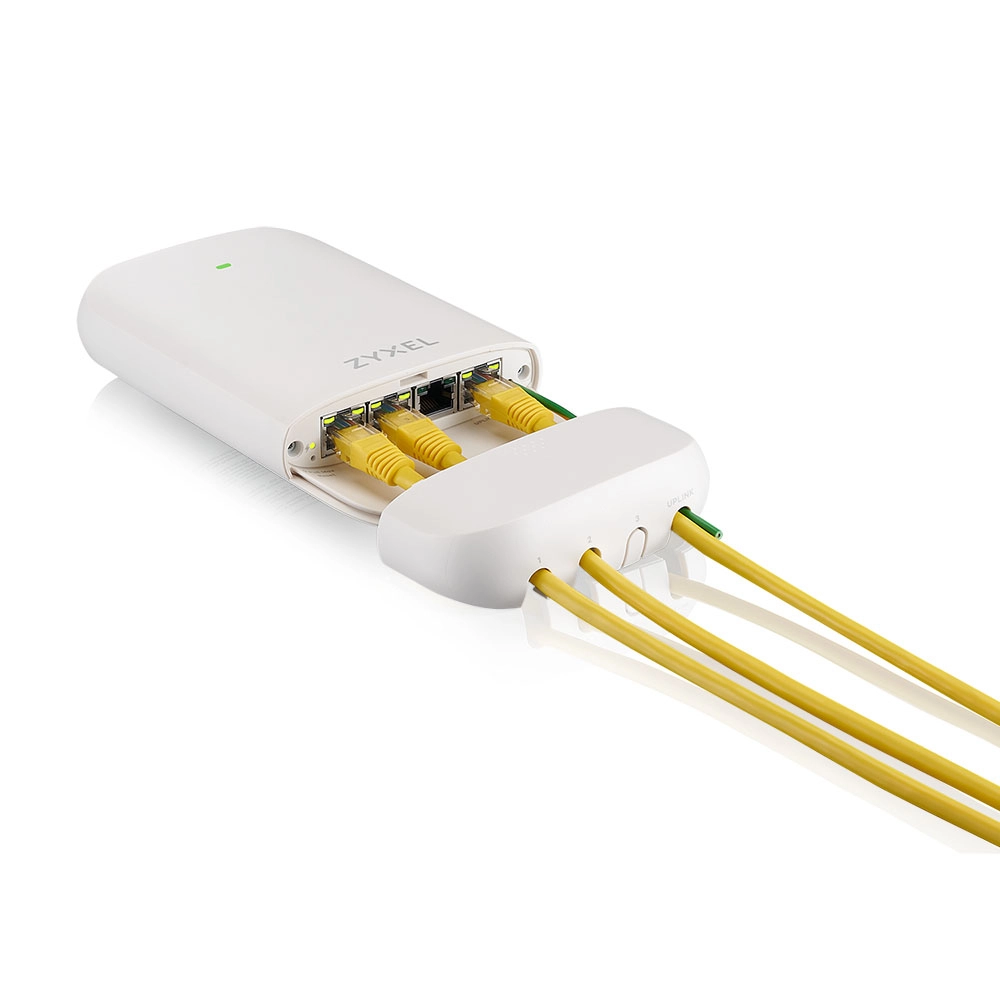

The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint
PoE applications, which effortlessly extend the range of power and data
connectivity when your devices are located at a distance that far away from
power source or connection to a PoE Switch. It features four RJ-45 Gigabit
Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power
input and three PoE output to your devices. Instead of connecting to an AC
adapter, connecting via a PoE switch enables better visibility for network
management to cover the edge of your network. It features three PoE+ ports
to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT
device, Sensors, PoE switches and wireless access points. PoE12-3PD is good
for residential and commercial network environment

Specification

Product
Product id	969271
Brand	ZyXEL
Partnr	POE12-3PD-ZZ0101F
EAN/UPC code	4718937635955
Warranty (months)	2
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Power over Ethernet (PoE)	Y
Transmission method	tcp
Networking standards	IEEE 802.3at, IEEE 802.3bt
Cabling technology	10/100/1000
Syslog	N
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e
Web-based management	Y
Auto MDI/MDI-X	Y
Forwarding rate	8000 Mpps
MAC address table	2000 entries
Duplex system	Full
Packet buffer memory	128 MB
Supported network protocols	ip
Firmware upgradeable	Y
Compliance industry standards	• IEEE802.3 10Base-T Ethernet • IEEE 802.3u 100Base-Tx Ethernet • IEEE 802.3ab 1000Base-T Ethernet • IEEE 802.3z 1000 Base-X • IEEE 802.3x flow control • IEEE 802.3af PoE • IEEE 802.3at PoE plus • IEEE 802.3bt (60 W) PoE over 4 pair
Technical details
Warranty period	2 jaar
Compliance certificates	BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
Operational conditions
Operating temperature (T-T)	-4 - 122 °F
Operating relative humidity (H-H)	10 - 95 procent
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95 procent
Weight & dimensions
Width	180 mm
Depth	99 mm
Height	36 mm
Weight	257 g
Packaging data
Packaging length	214 mm
Package width	125 mm
Package depth	47 mm
Package weight	114 g
Package type	Box
Package volume	1257 cm³
Packaging content
Number of products included	24 stuk(s)
Wall mounting kit	Y
AC adapter included	N
Power cord included	N
Quick installation guide	Y
Manual	N
Packaging content	• PoE extender • Safety warning and doc
Logistics data
Shipping (inner) case weight	43153 g
Number of cartons per pallet (air)	42
Quantity per pallet (air)	1008 stuk(s)
Pallet length	1220 mm
Pallet width	1040 mm
Pallet height (air)	1863 mm
Pallet gross weight (sea)	43153 g
Number of cartons per pallet (sea)	42
Quantity per pallet (sea)	1008 stuk(s)
Pallet height (sea)	1863 mm
Customs product code (TARIC)	85176200
Master (outer) case width	370 mm
Master (outer) case length	391 mm
Master (outer) case height	247 mm
Master (outer) case weight	9560 g
