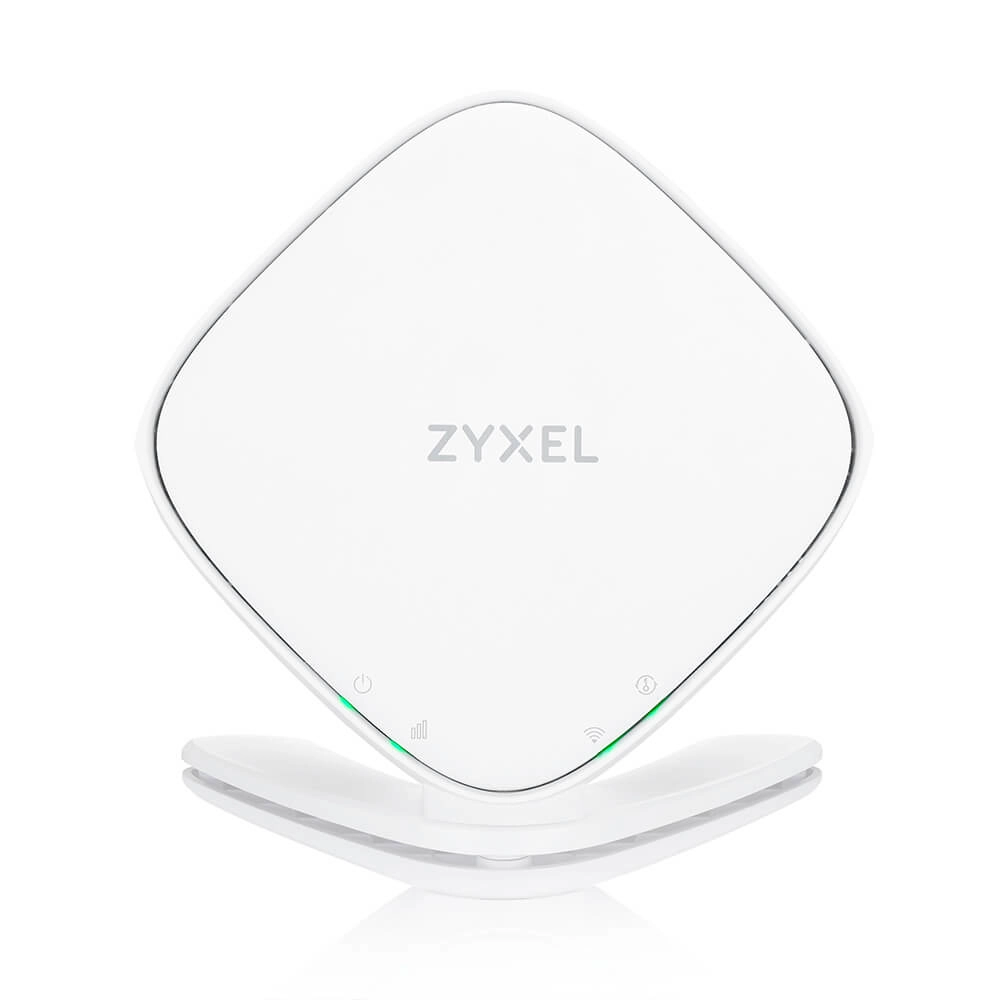

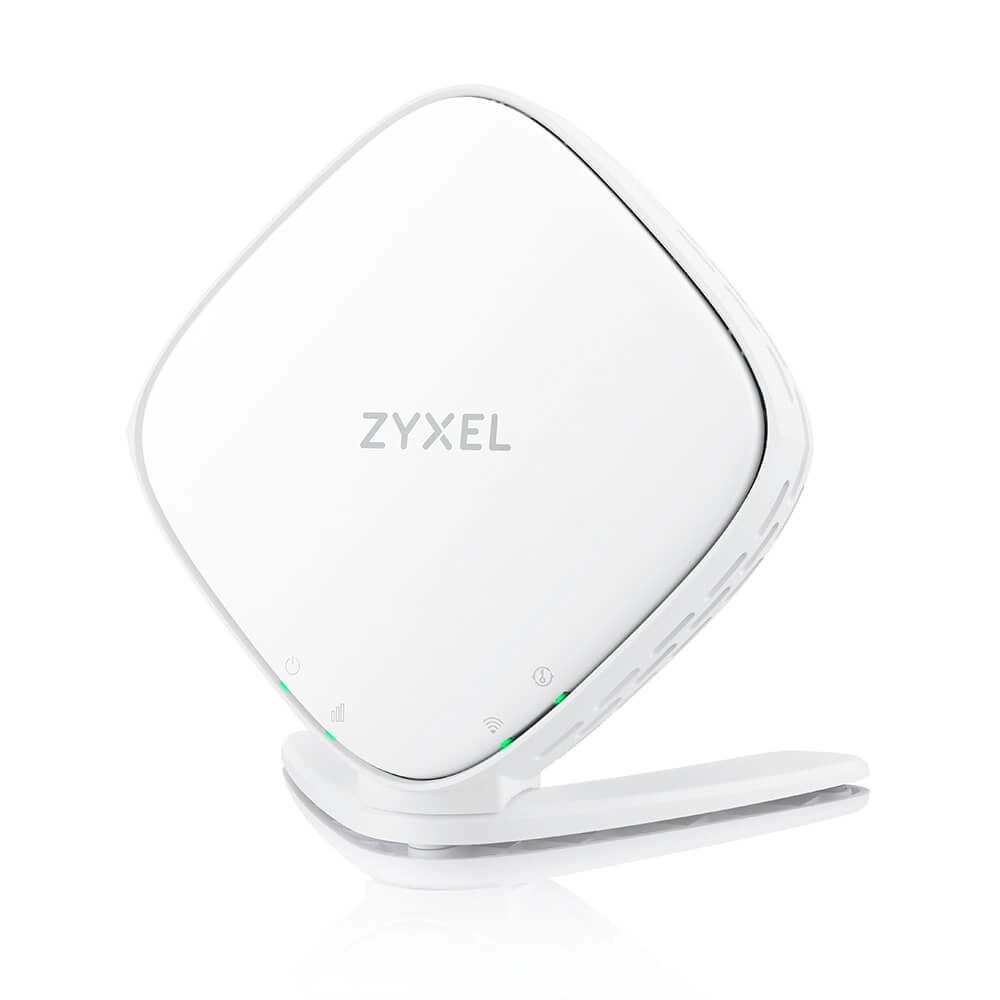

The Zyxel WX3100-T0 Dual-Band Wireless AX1800 Gigabit Access Point/Extender enables carrier-grade performance. As a key component of the Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 delivers smooth Ultra HD and IPTV streaming and seamless roaming for the whole-home WiFi coverage.

WiFi 6 technology for superior lag-free performance

Supporting the latest WiFi 6 (11ax) standard, the Zyxel WX3100-T0 offers speeds of up to 1200 Mbps* with 5G 2x2 802.11ax and 600 Mbps* with 2.4G 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), high-power amplifier and beamforming technologies empower the WX3100-T0 to deliver premium speed for multi-streaming data access and optimal WiFi experience without dead zones.

Remote management through TR-069 and TR-181 issue-2

Supporting TR-069 for simplified remote configuration, firmware upgrades, diagnosis and TR-181 issue-2 for enhanced visibility on the LAN network, the Zyxel WX3100-T0 enables superior customer service with the lowest possible OPEX.

Premium MPro Mesh® for whole-home WiFi coverage

Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 enhances your subscribers' experience by providing self-adapting, easy-to-manage whole-home WiFi coverage while reducing your service OPEX.

Specification

Product
Product id	840770
Brand	ZyXEL
Partnr	WX3100-T0-EU01V2F
EAN/UPC code	4718937616848
Management features
Web-based management	Y
Packaging data
Package width	279 mm
Package depth	137 mm
Package height	44 mm
Package weight	532 g
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1200 Mbit/s
6 GHz	N
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security
Security algorithms	WMM, WPA2, WPA2-PSK, WPA3-SAE
IGMP snooping	Y
Protocols
DHCP client	Y

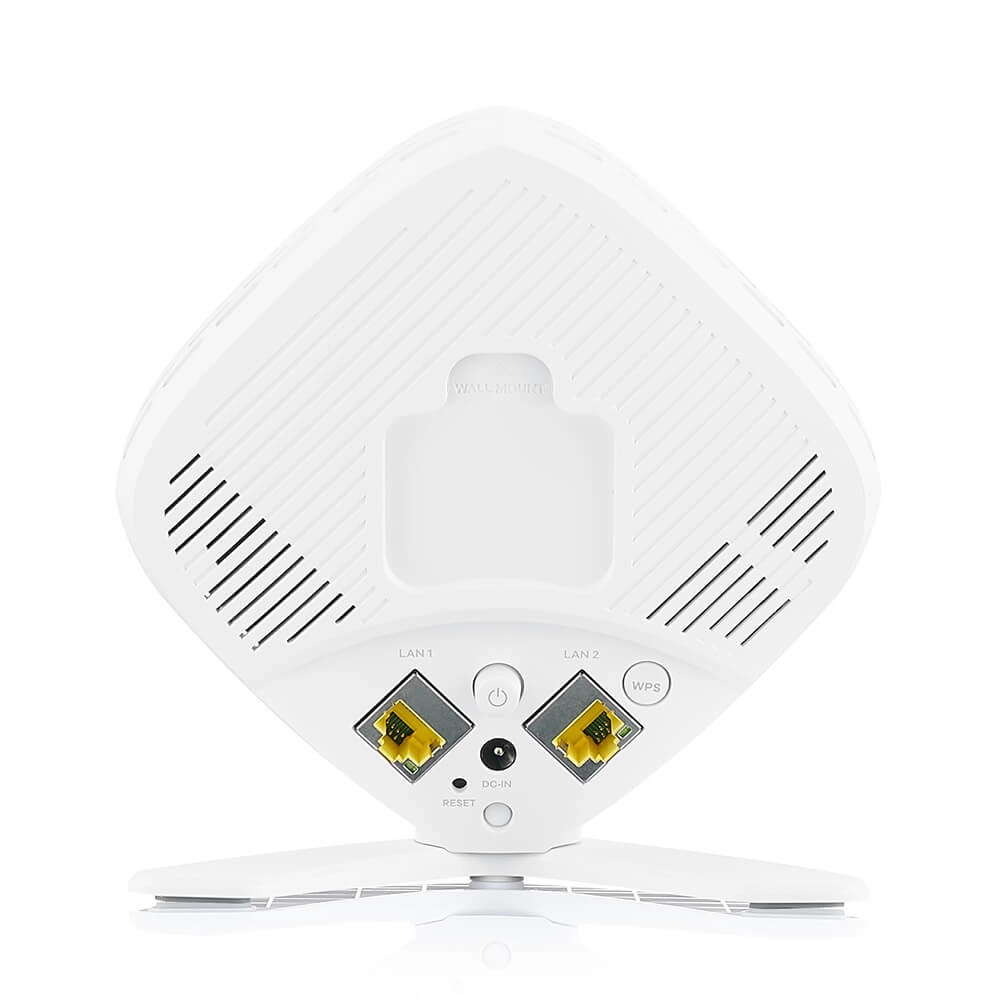

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Power
DC voltage range	12 V
Input current	1 A
Design
Product colour	White
On/off switch	Y
Reset button	Y
WPS push button	Y
LED indicators	Y
Antenna
Antenna type	Internal
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 95 procent
Weight & dimensions
Width	128 mm
Depth	40 mm
Height	128 mm
Weight	314 g
