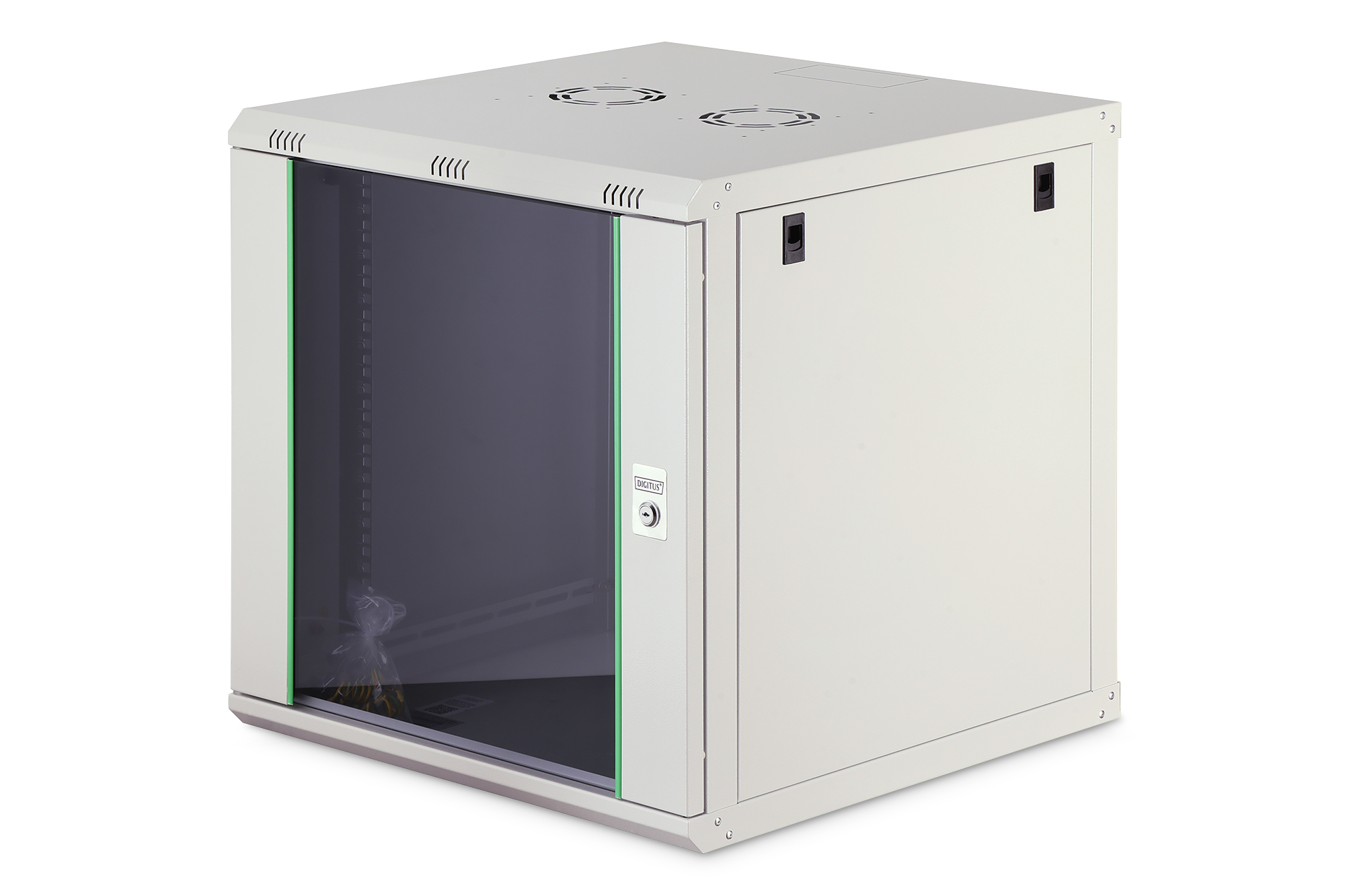

12U wall mounting cabinet, Dynamic Basic 607x600x600 mm, color grey (RAL 7035)



Digitus
Niet op voorraad
€ 174,30
€ 210,90 incl 21% BTW
Heeft u een vraag over dit product?
Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)

483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

- 450 mm depth offers space-saving installation
- Optimum ventilation and air extraction

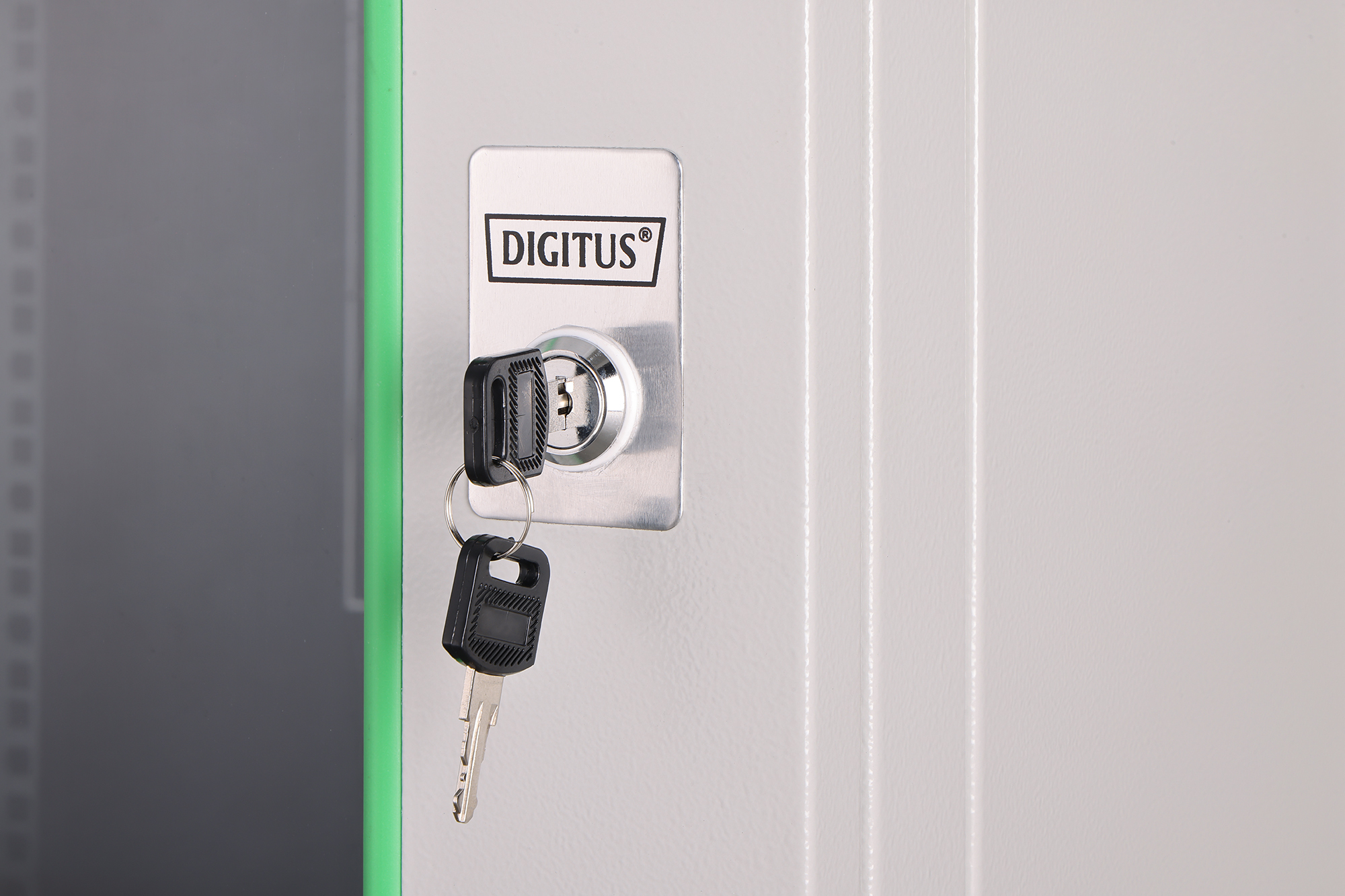

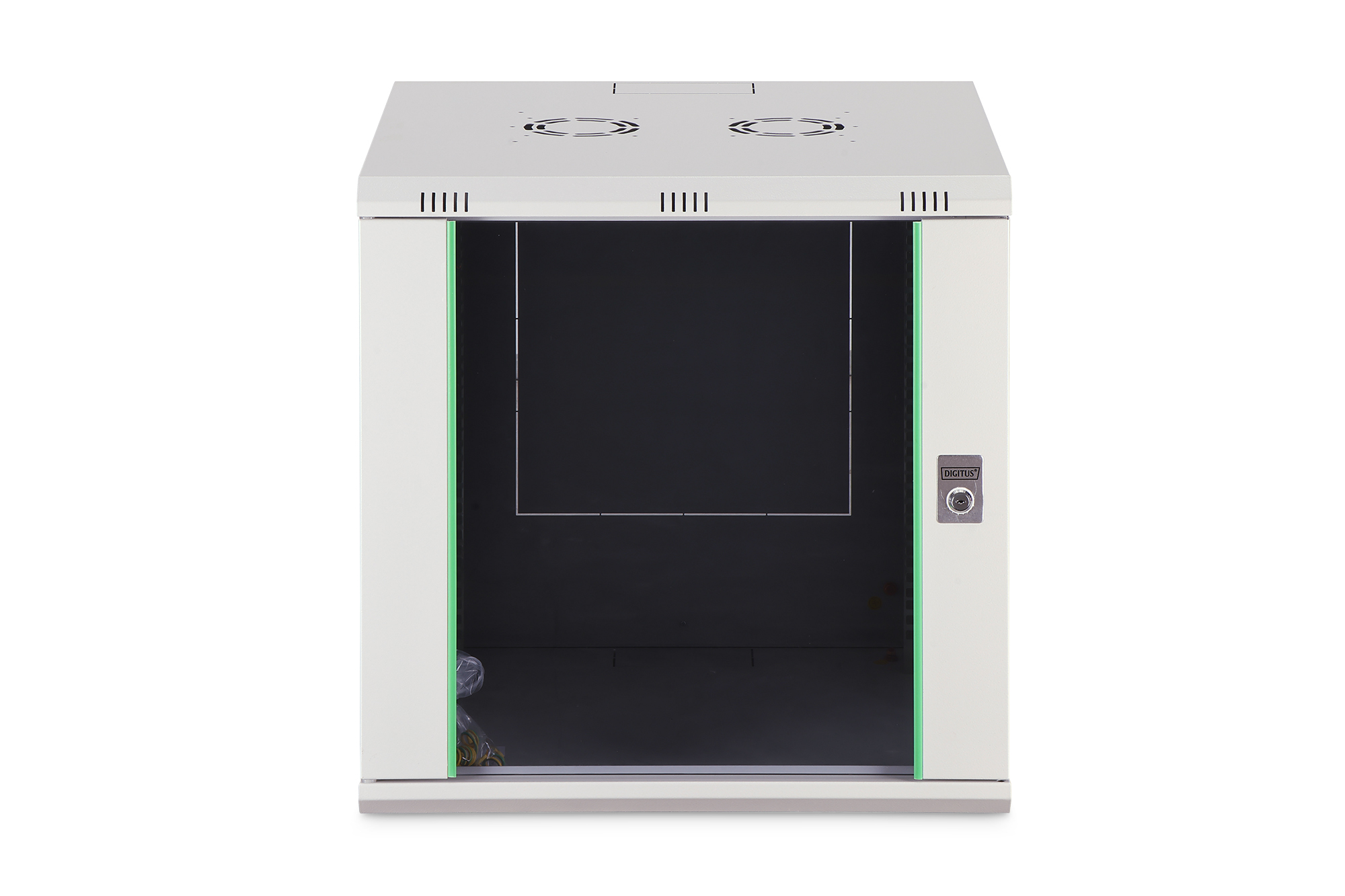

- Lockable safety glass door with steel frame

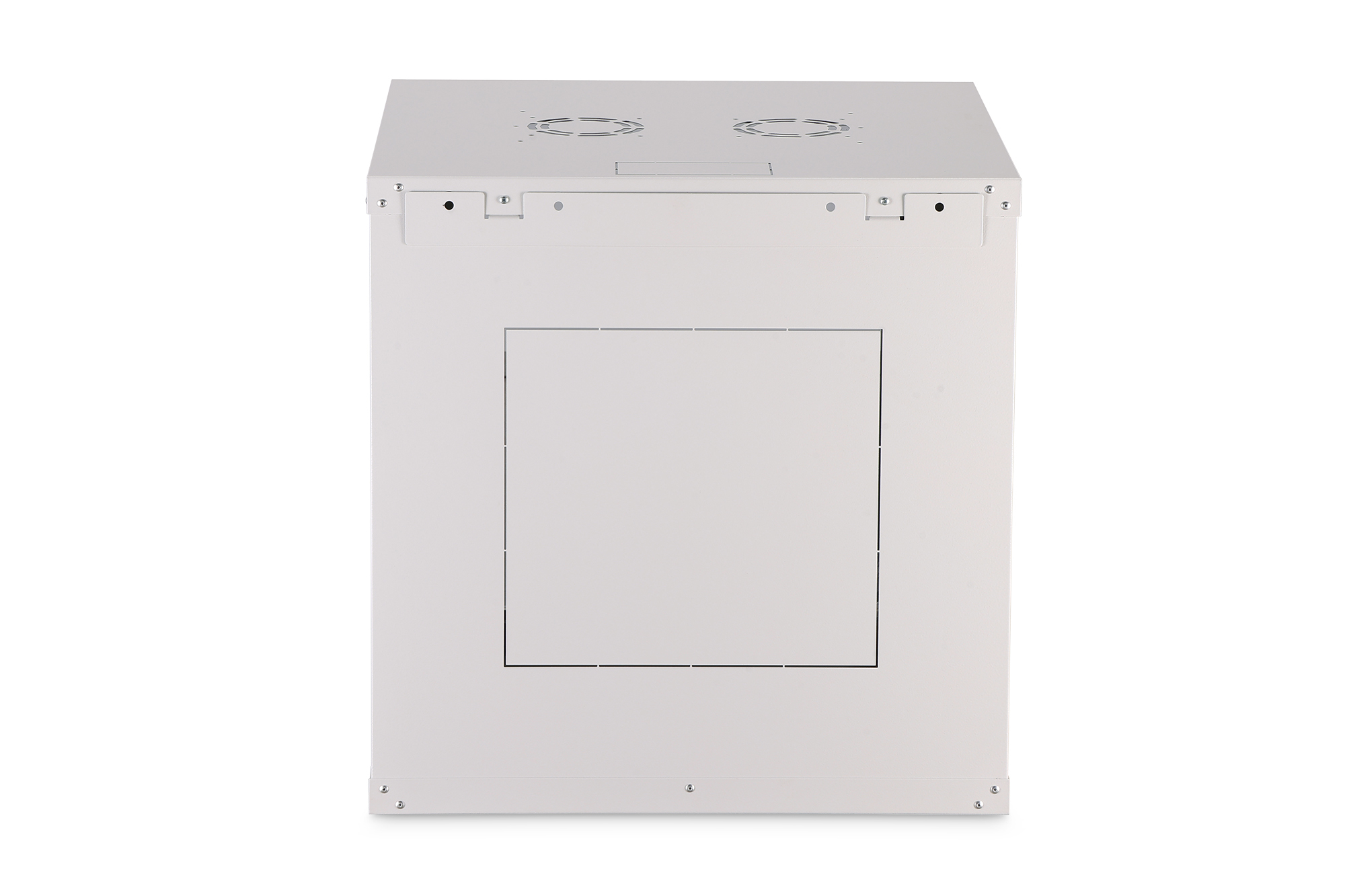

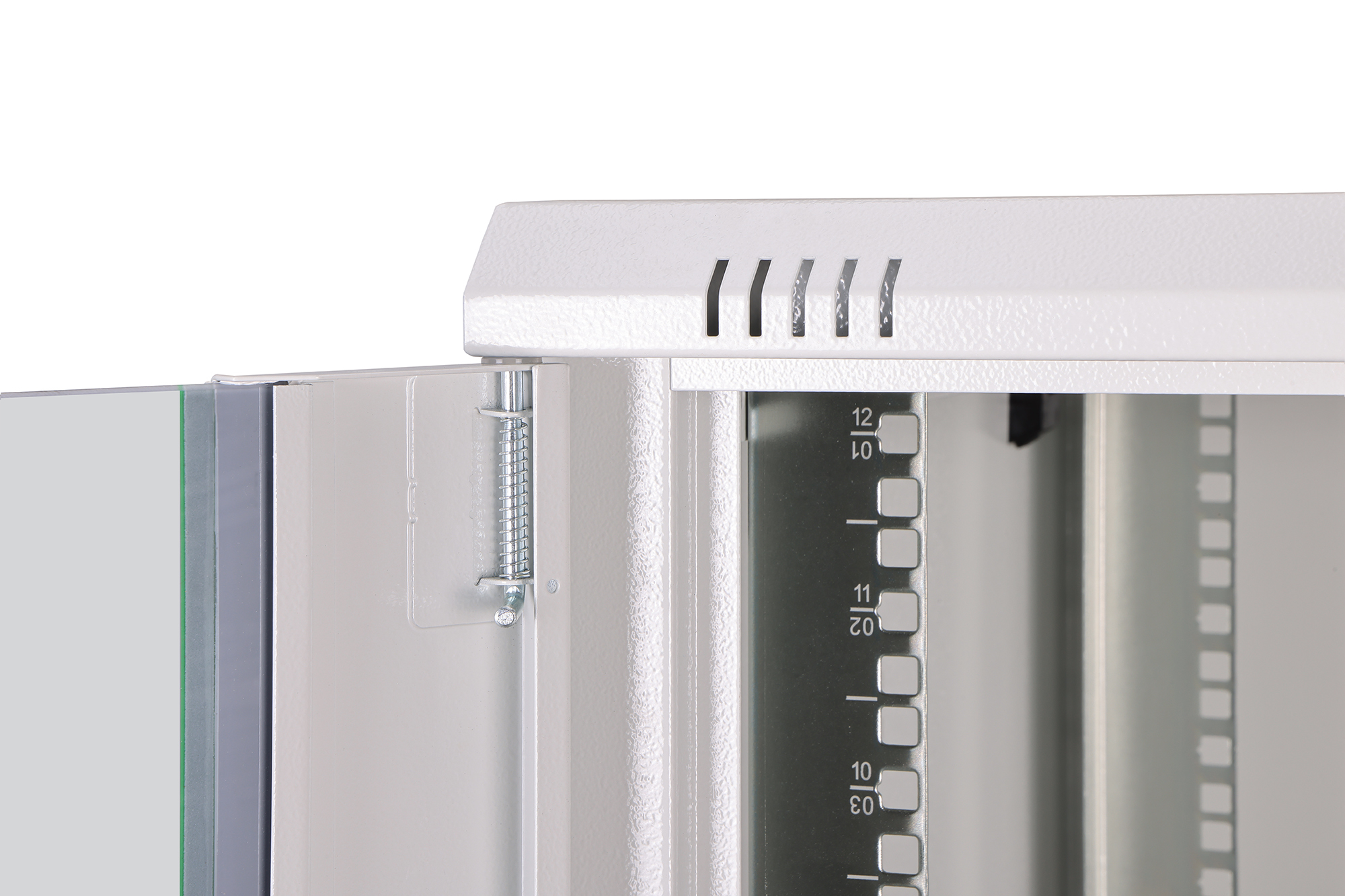

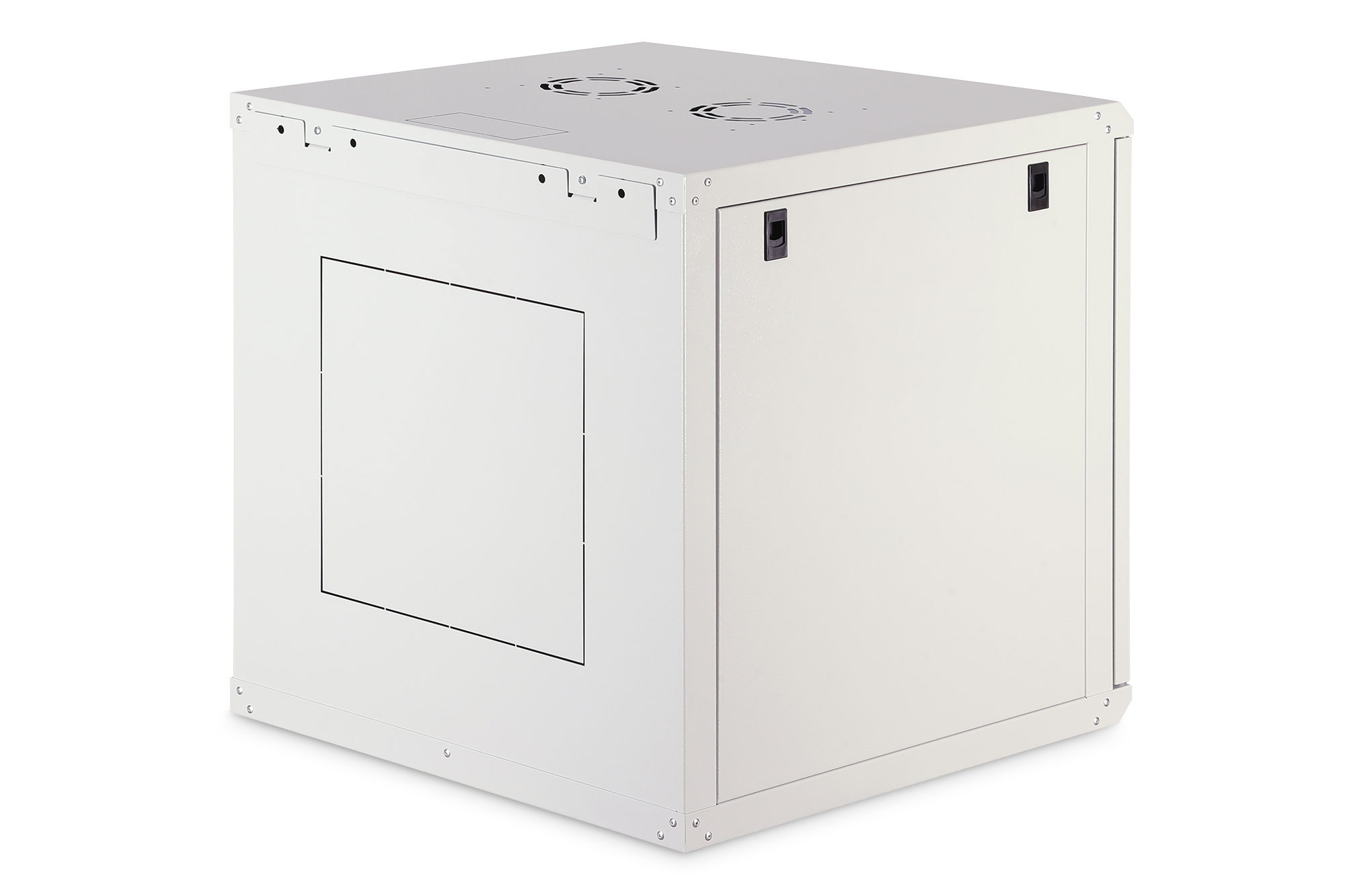

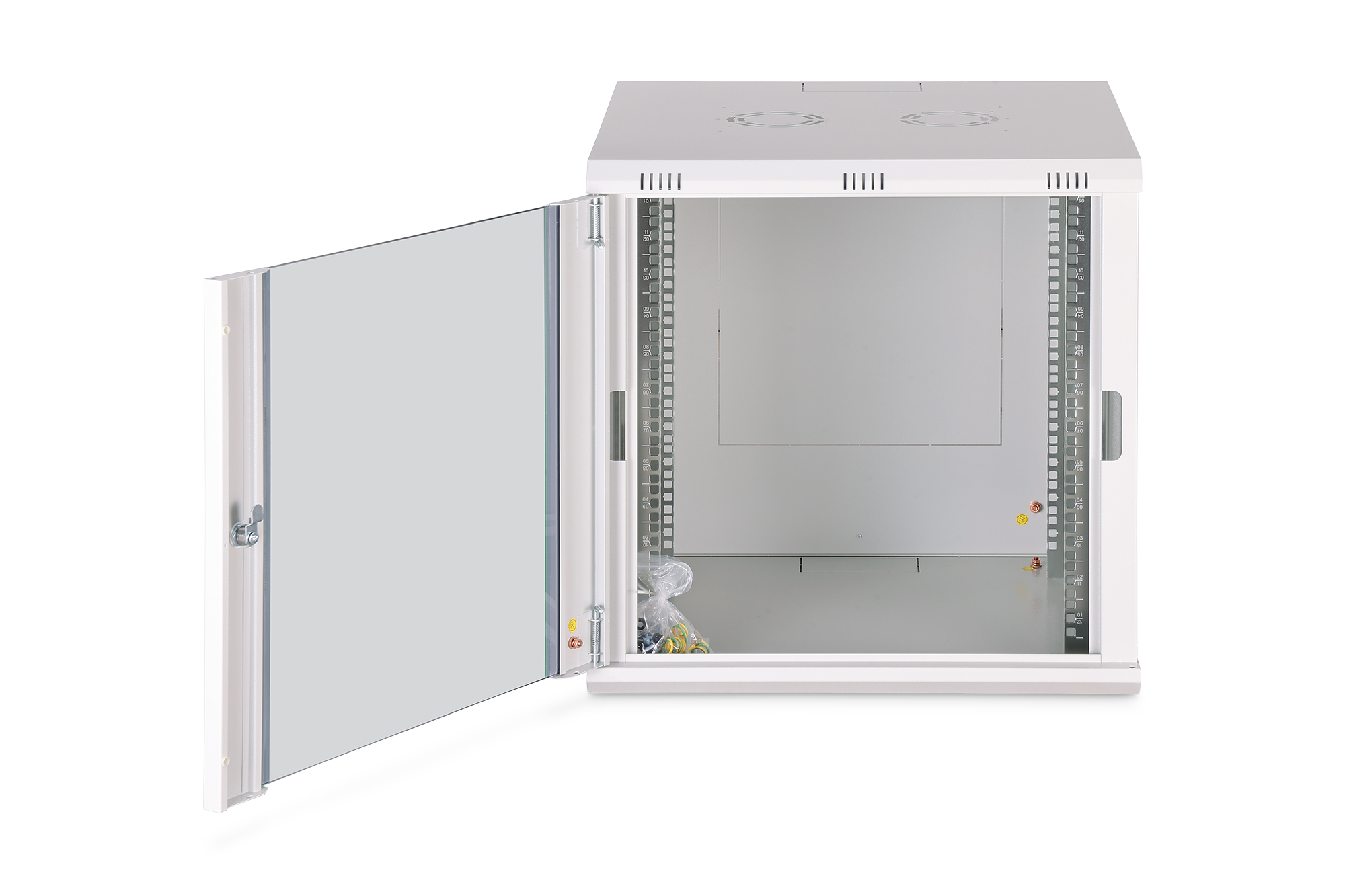

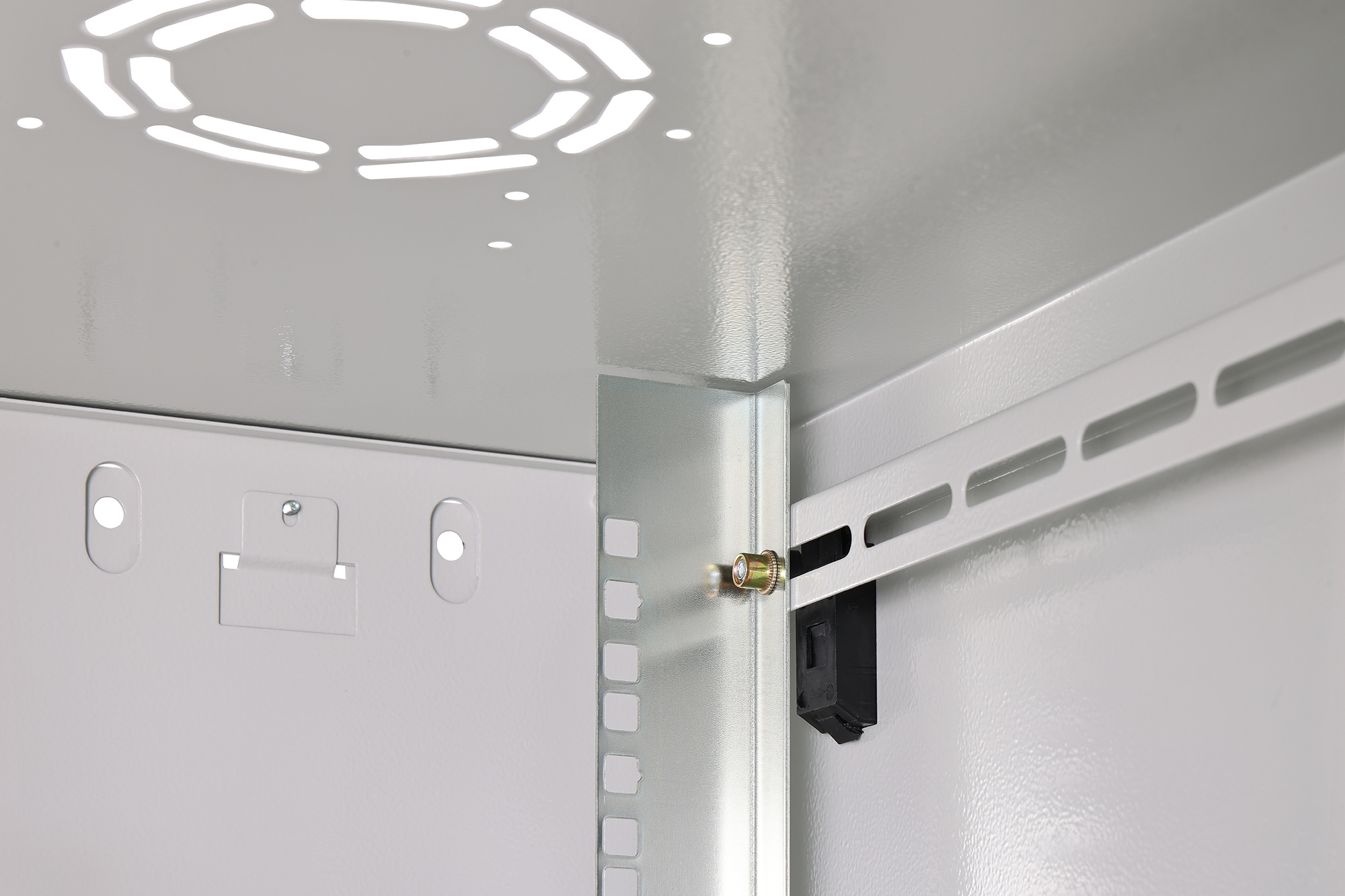

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specificaties

Product
Product id 584926
Merk Digitus
Partnr DN-19 12U-6/6-EC
EAN/UPC code 4016032221753
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front side
Type of profile rail L-shape
Number of doors 1
Type of ventilation Passive
Width 600 mm
Height 607 mm
Depth 600 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 12
Max. load capacity 60 kg
With roof plate true
With earthing false
With front door true
Material front door Glass
Front door locking system 1-point
With rear door false
Material rear door Steel
Rear door locking system None
With glazed door true
With sidewall true
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model With permanent frame
RAL-number 7035
Demountable false
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
