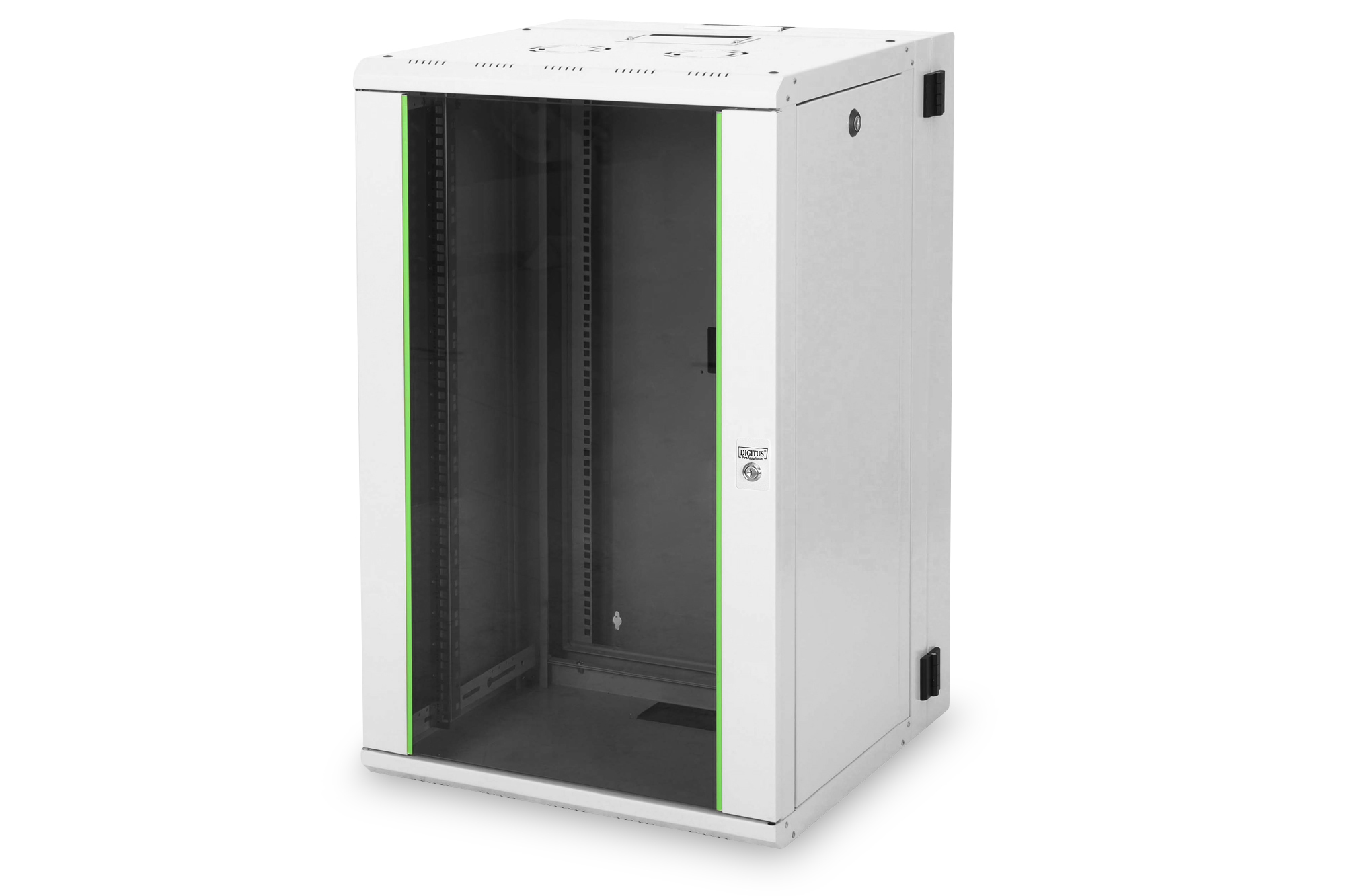

20U wall mounting cabinet, Unique, 998x600x600 mm double sectioned, pivotable, grey (RAL 7035)



Digitus
Beperkt op voorraad
€ 392,16
€ 474,51 incl 21% BTW
Heeft u een vraag over dit product?
Wall Mounting Cabinet Unique Series - double sectioned, pivoted

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Robust steel construction for sturdy wall mounting
- Lockable safety-glass door with steel frame
- Side panels are lockable and removable

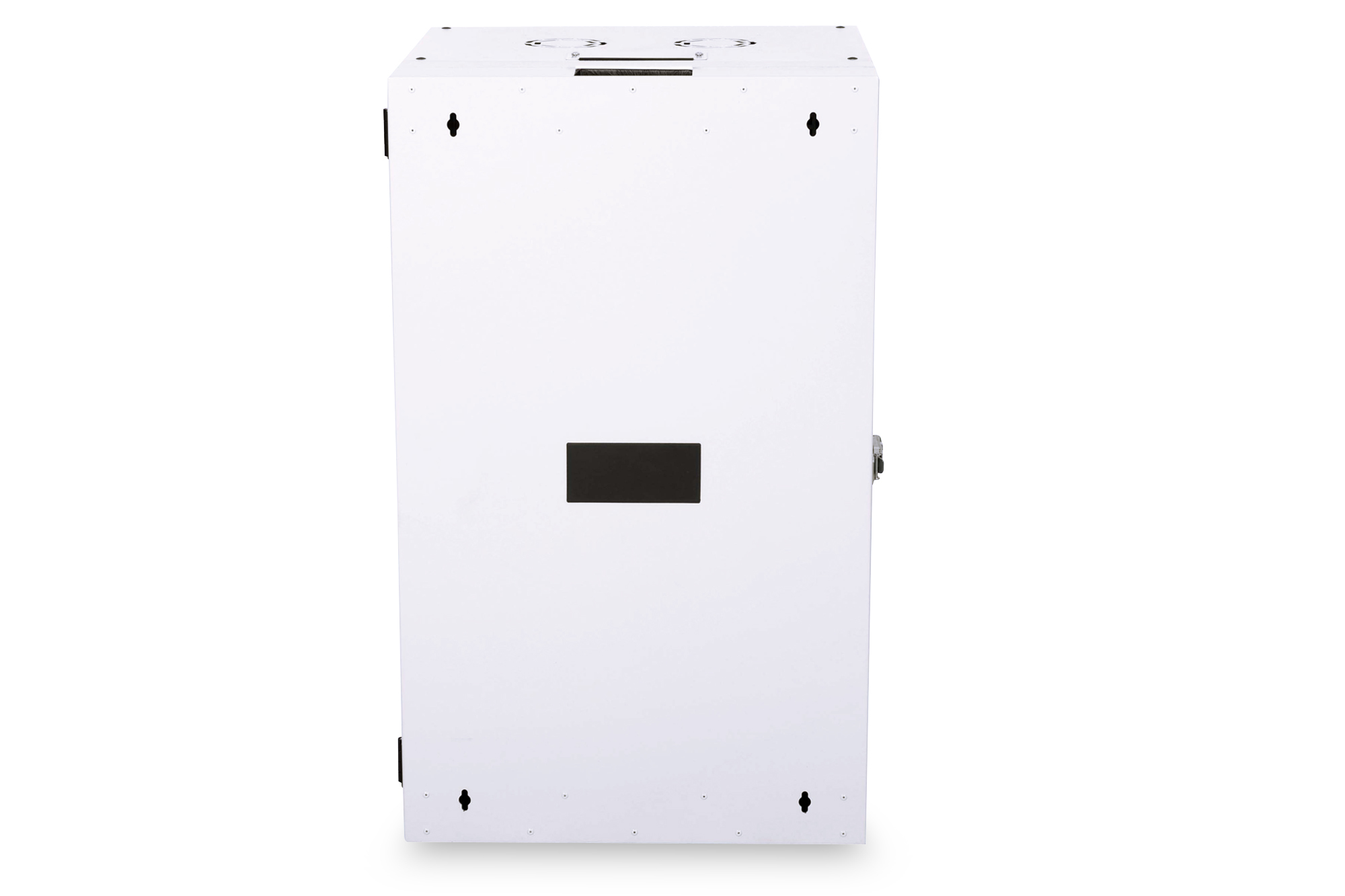

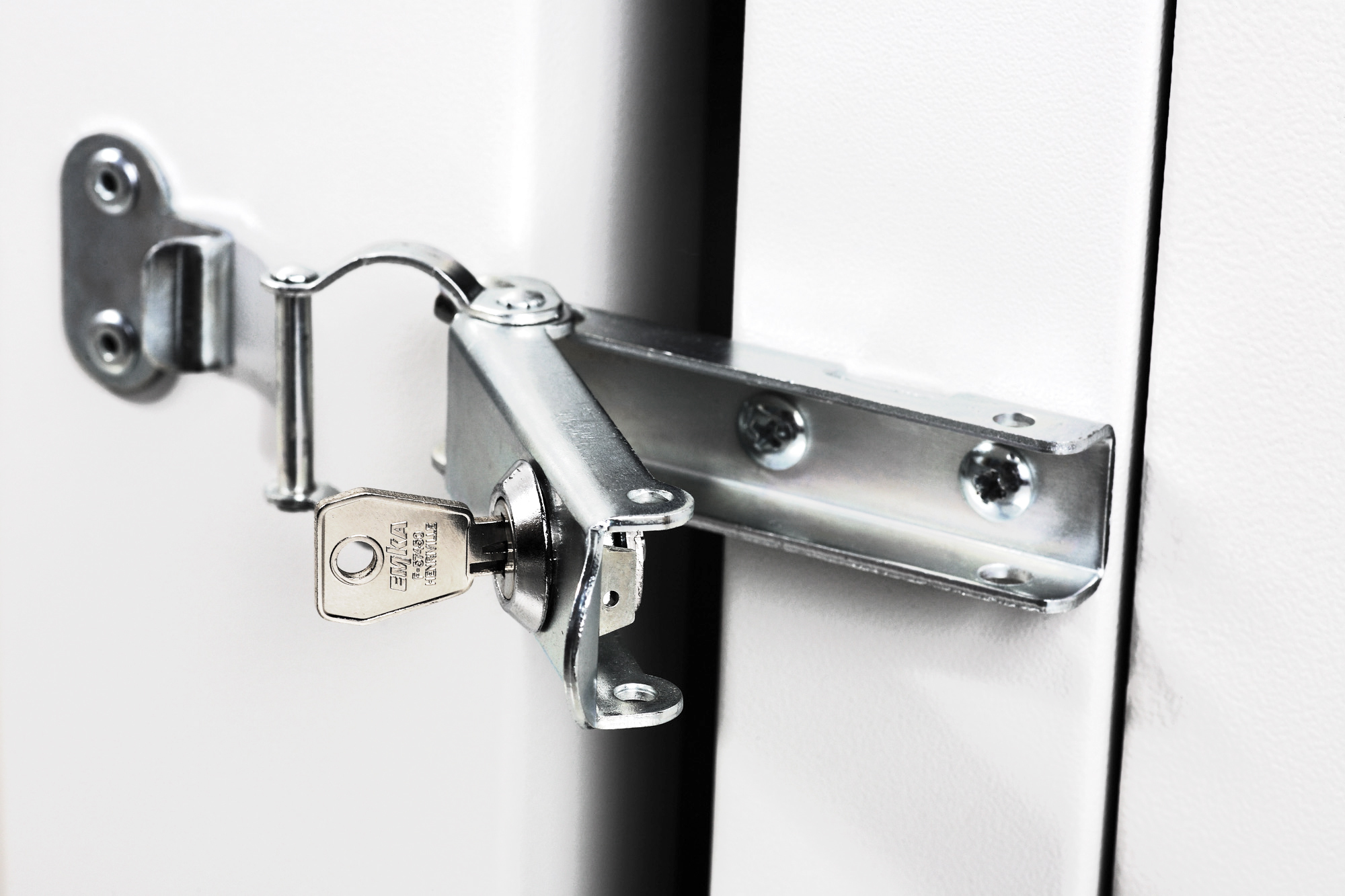

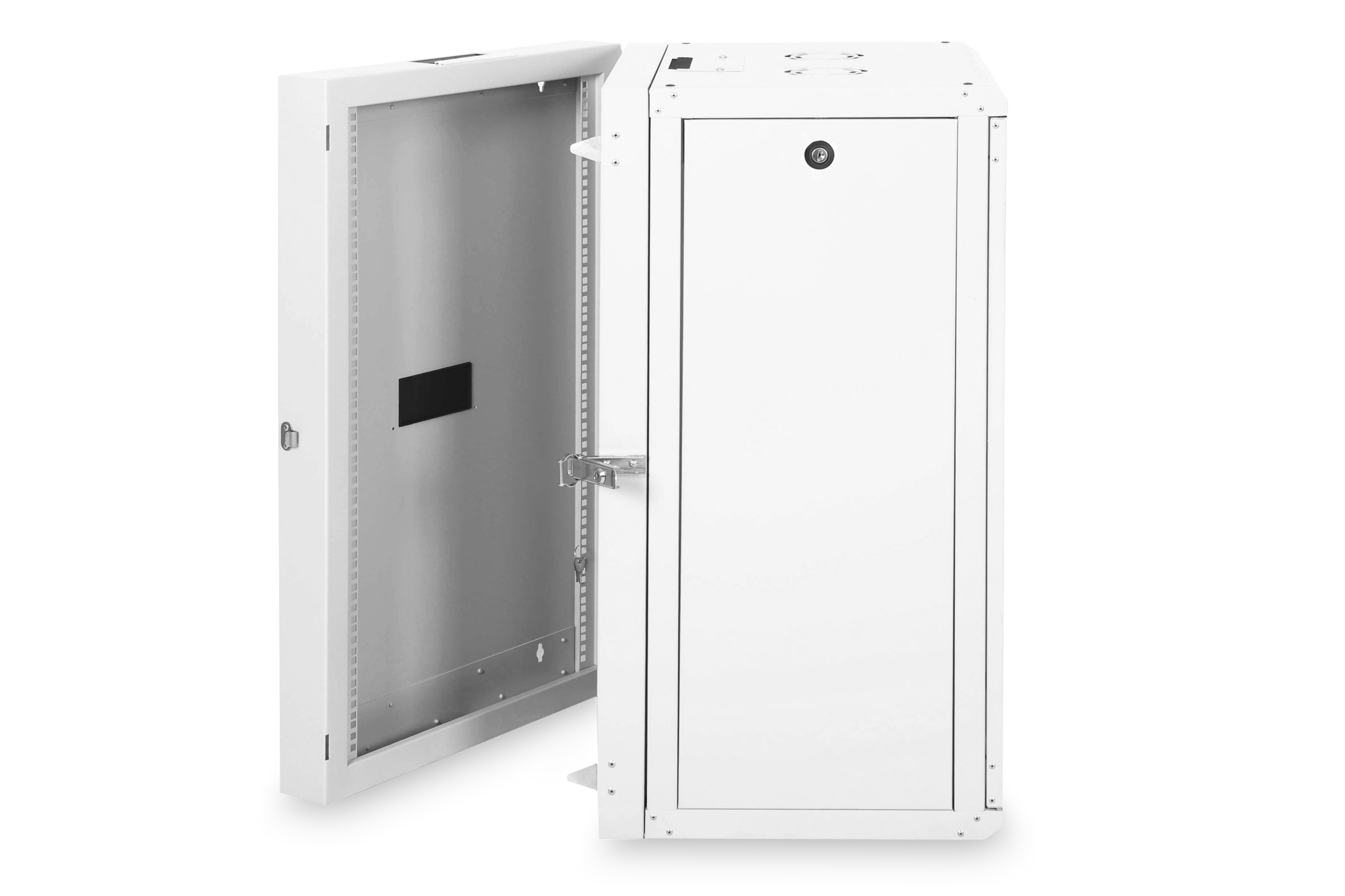

The network cabinets for wall installation from the Unique series were developed for especially convenient and flexible network cabling. Thanks to the integrated hinge in the back frame, the housing can be folded to the side if needed, for example in order to easily carry out assembly work in the back area of the cabinet. There is a sliding cable inlet with foam rubber seal in the roof of each cabinet. The back wall and floor plate are equipped with pre-cut cable inlets with a plastic cover. In addition, the back frame is equipped with brush management panels on the top and bottom. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. One pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. The back frame also has a 483 mm (19”) perforation. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable and lockable side walls in a modular design as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The housing frame plate is bolted on the wall to open in either direction and then connected with the housing. With optionally available levelling feet or casters, the wall housings from the Unique series can also be used as a free-standing unit.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specificaties

Product
Product id 547709
Merk Digitus
Partnr DN-19 20-U-3
EAN/UPC code 4016032190820
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front and rear
Type of profile rail Crank
Number of doors 1
Type of ventilation Passive
Width 600 mm
Height 998 mm
Depth 600 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 20
Max. load capacity 100 kg
With roof plate true
With earthing false
With front door true
Material front door Glass
Front door locking system 1-point
With rear door false
Material rear door Steel
Rear door locking system None
With glazed door true
With sidewall true
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model With permanent frame
RAL-number 7035
Demountable false
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
