DVR wall mounting cabinet 550x580x160 mm, grey (RAL 7035)



Digitus
Niet op voorraad
€ 84,94
€ 102,78 incl 21% BTW
Heeft u een vraag over dit product?
Wall Mounting Cabinet for DVR

Perfect for housing a video surveillance system and protecting it against unauthorized access.

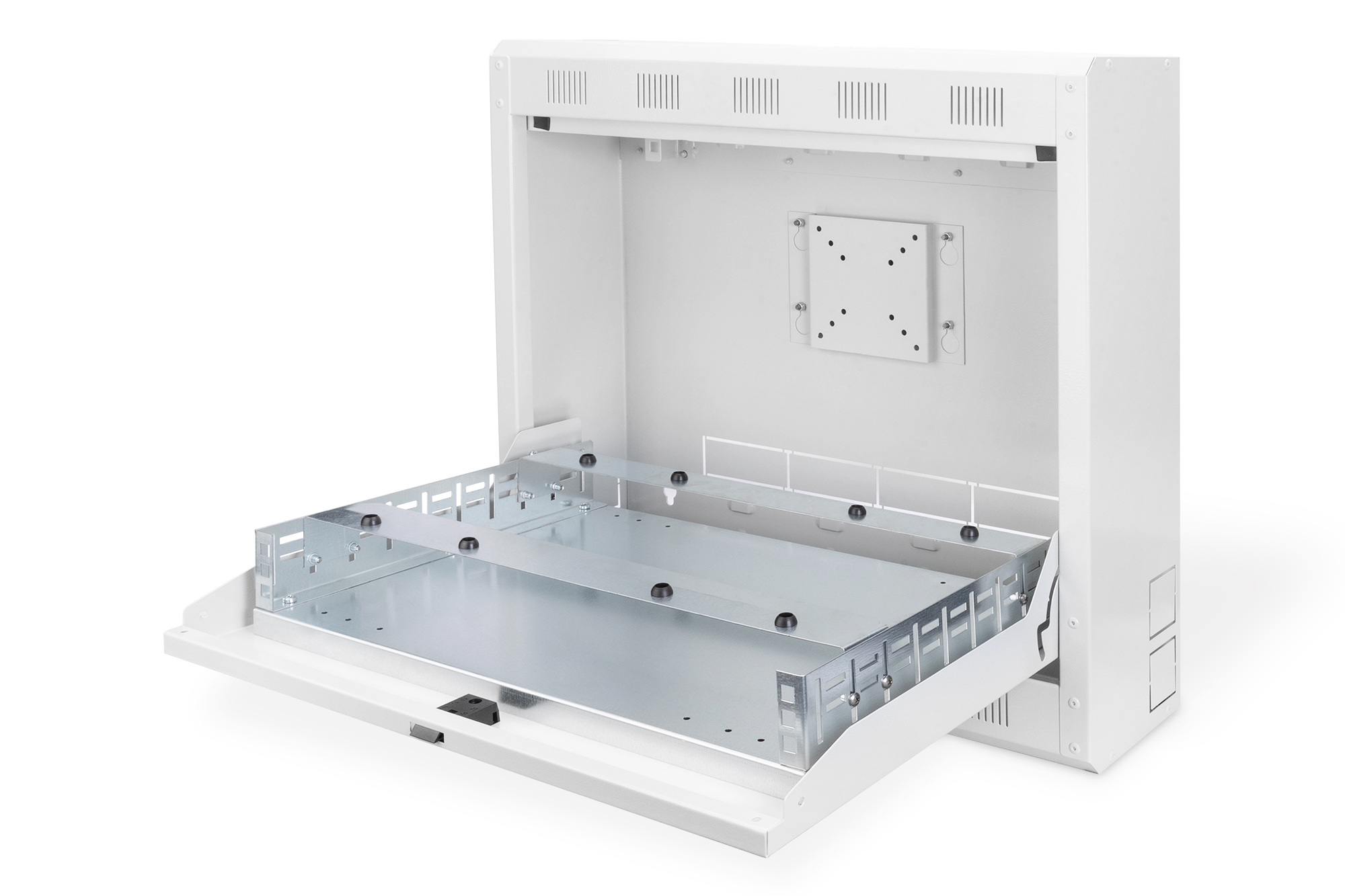

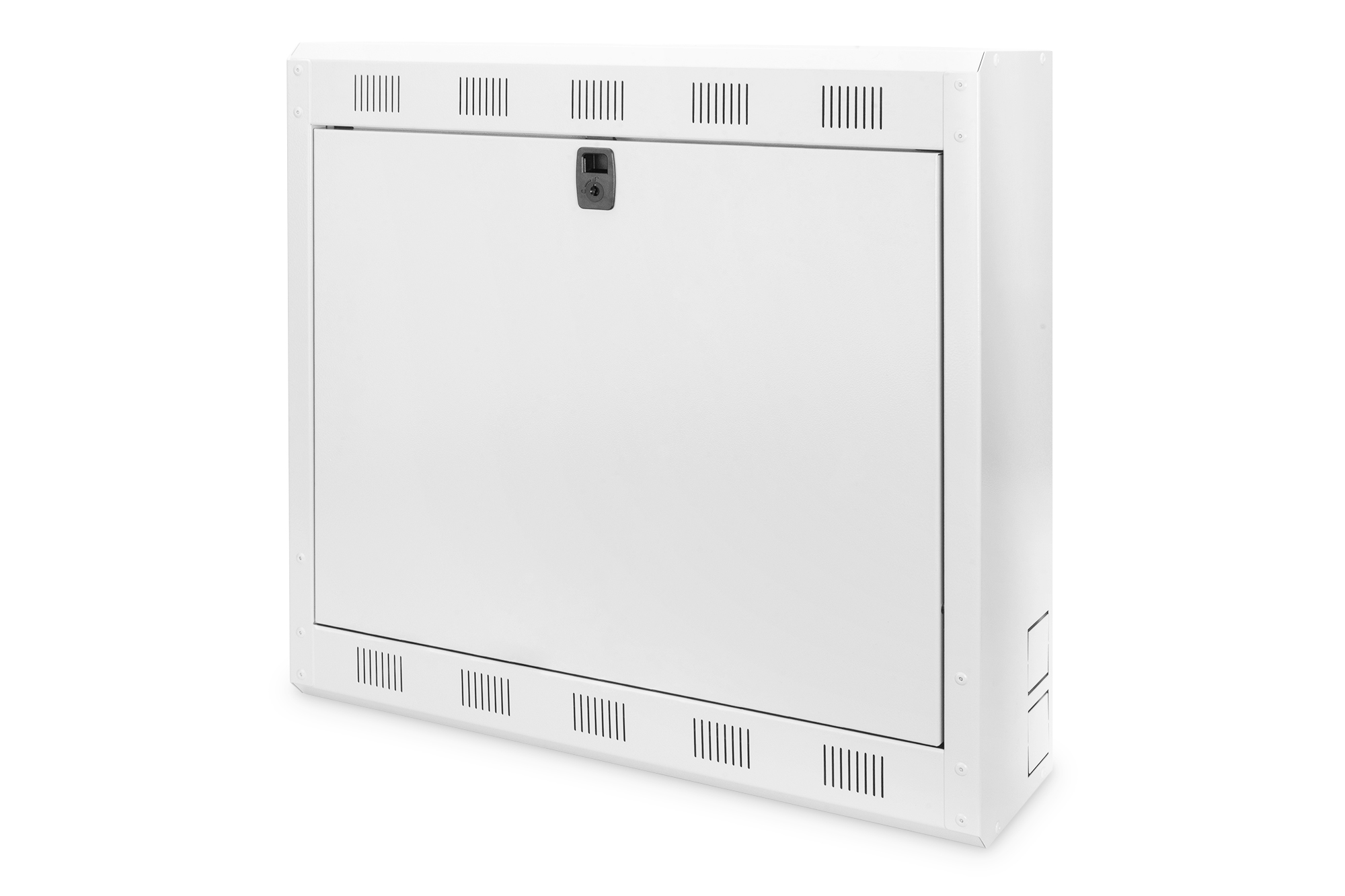

- Lockable, swiveling front door with 90° doorstop mechanism

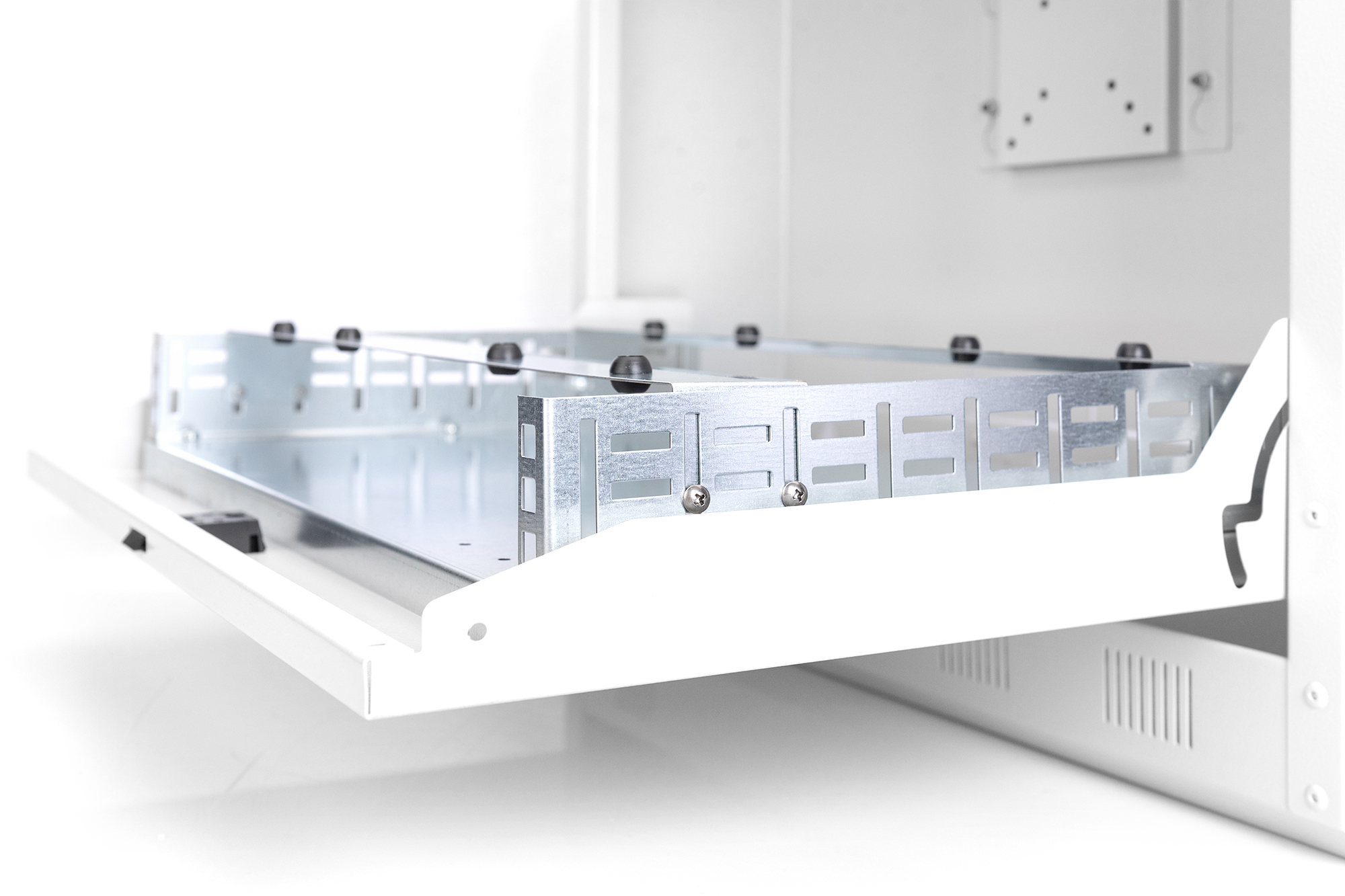

- 482.6 mm (19”) mounting bracket inside door for DVR device

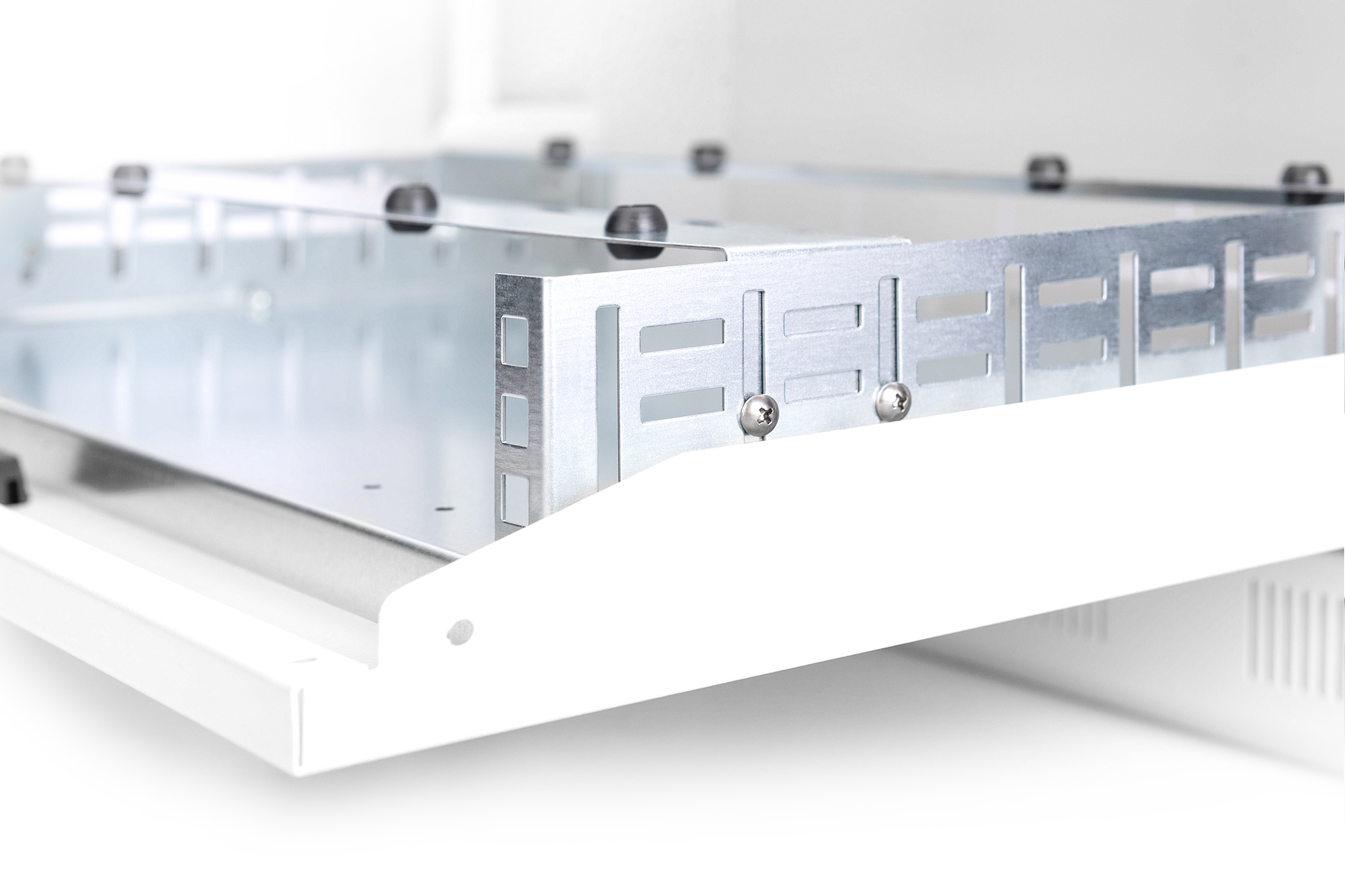

- Additionally adjustable mounting with rubber dampers for DVR devices that are not 482.6 mm (19”) installable

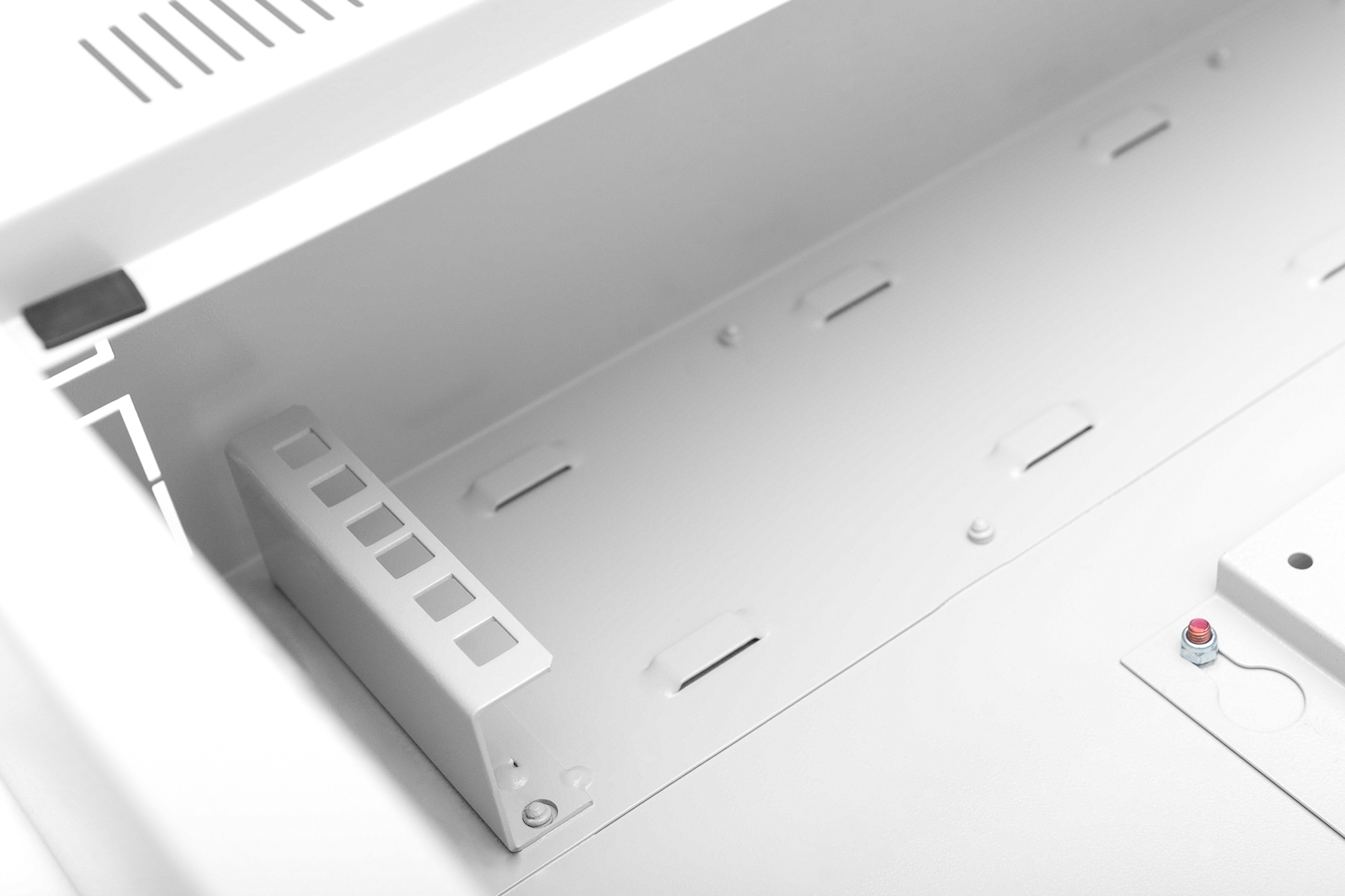

- 482.6 mm (19”) 2U holder for socket strip mounting (PDU) on the upper inside

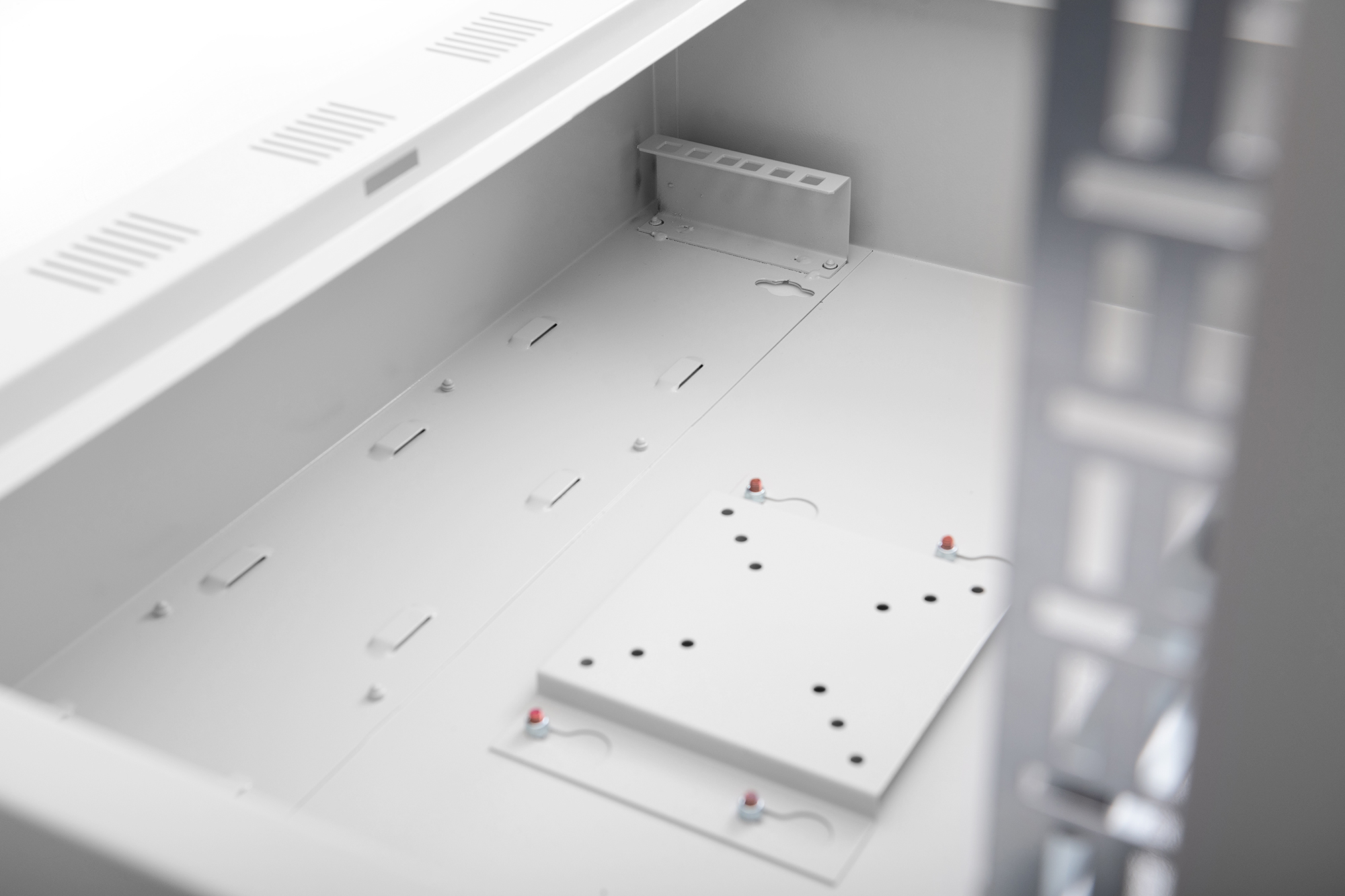

- 12” screen fixation on the inner rear wall

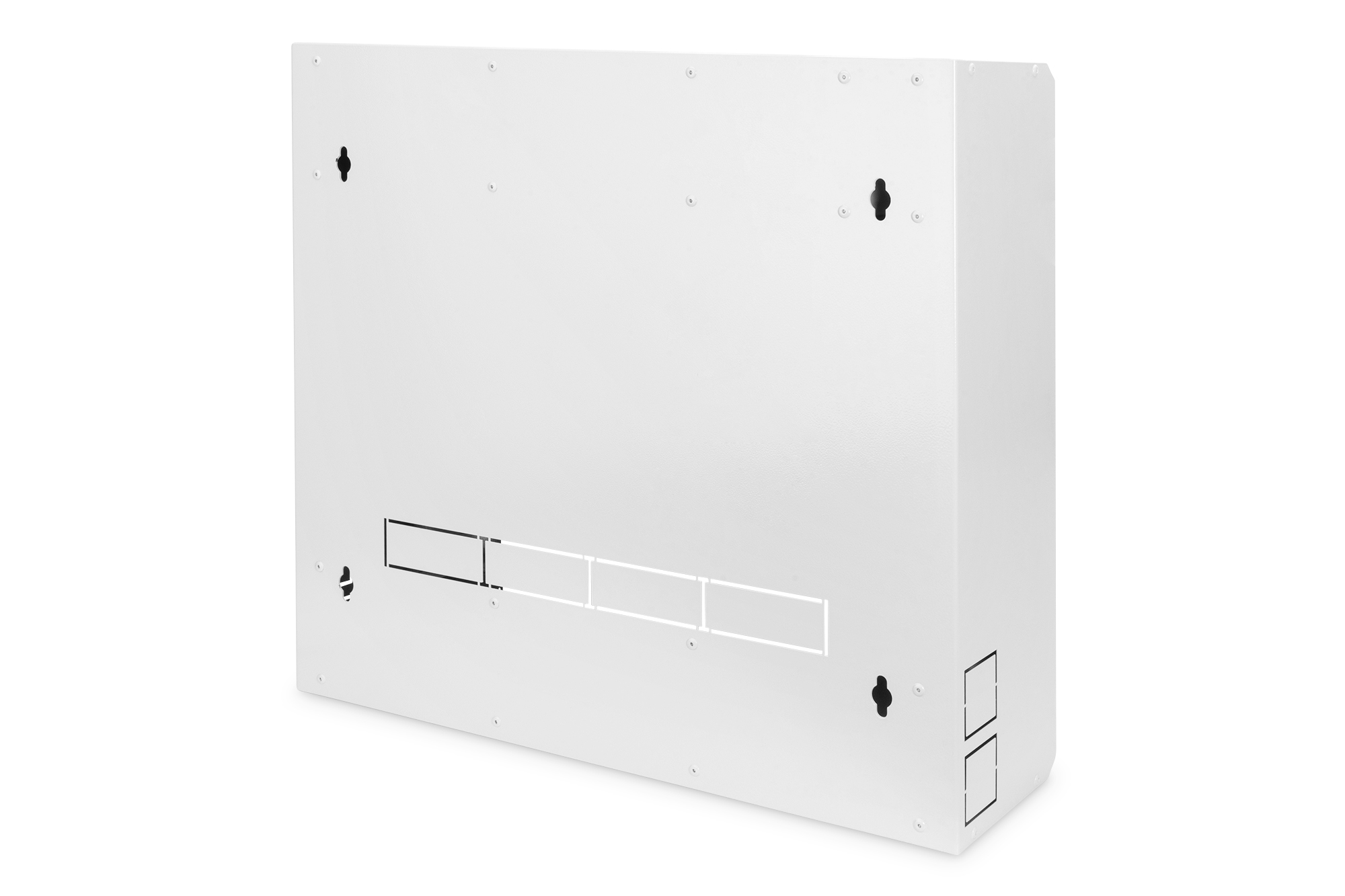

- Various pre-cut cable entries on each side
- Ventilation slots for passive cooling of the devices

The DIGITUS® wall mounting cabinet protects your video surveillance system from unauthorized access. Can be used for all applications in areas such as network, safety, DVR, sound, radio or cabling. The mounting bracket makes mounting your device easy, whether it is 482.6 mm (19”) compatible or not. Rubber dampers on the adjustable mounting keep the device in the exact position and protect it from damage when the door is opened or closed. The 12” bracket on the inside back also allow mounting of a monitor. To power your components there is a 482.6 mm (19”) 2U bracket for attachment of a socket strip on the inside at the top. Multiple cable entries on each side made organized cable management possible.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specificaties

Product
Product id 877040
Merk Digitus
Partnr DN-DVR-1
EAN/UPC code 4016032460671
Product informatie blad(en)
Class Network/server enclosure
Mounting level Front side
Type of profile rail None
Number of doors 1
Type of ventilation None
Width 580 mm
Height 550 mm
Depth 160 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 1
Max. load capacity 50 kg
With roof plate false
With earthing false
With front door false
Material front door Steel
Front door locking system Other
With rear door false
Material rear door Steel
Rear door locking system None
With glazed door false
With sidewall false
With base false
With vertical cable management false
Material Steel
Surface finishing Powder coating
Colour Grey
Model Other
RAL-number 7035
Demountable false
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
