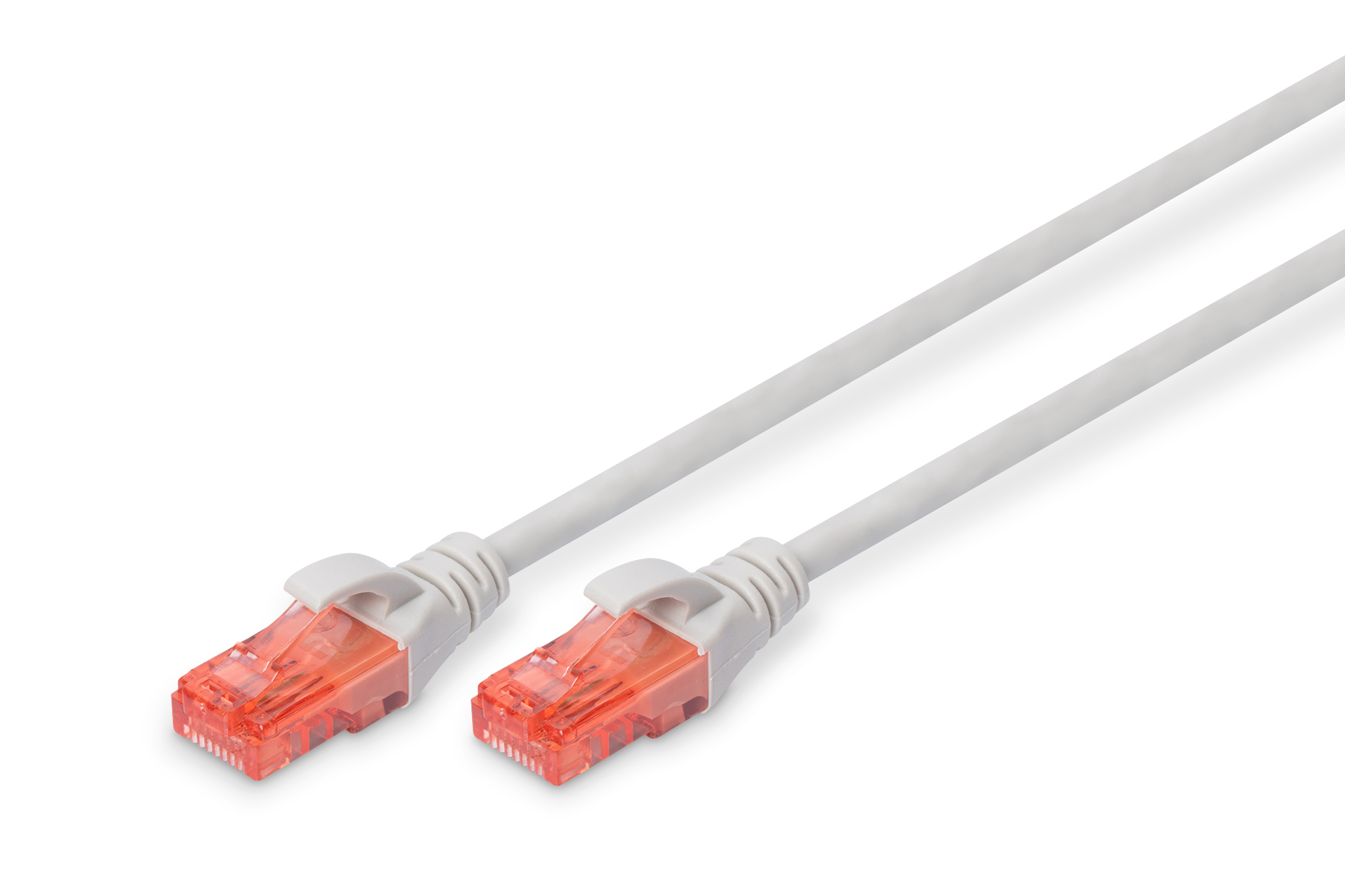

CAT 6 U/UTP patch cord

Future-oriented standards and high-end quality for your network.

- Transparent red colored plug for easy identification of Category 6 (250 MHz)

The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	631590
Brand	Digitus
Partnr	DK-1612-050
EAN/UPC code	4016032372042
Product information sheet(s)
Cable length	5 m
Class	Patch cord copper (twisted pair)
Cable type	U/UTP
Category	6
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Grey
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Grey
Fire retardant version	false
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	26
Pin assignment	1:1
NVP value	69 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
