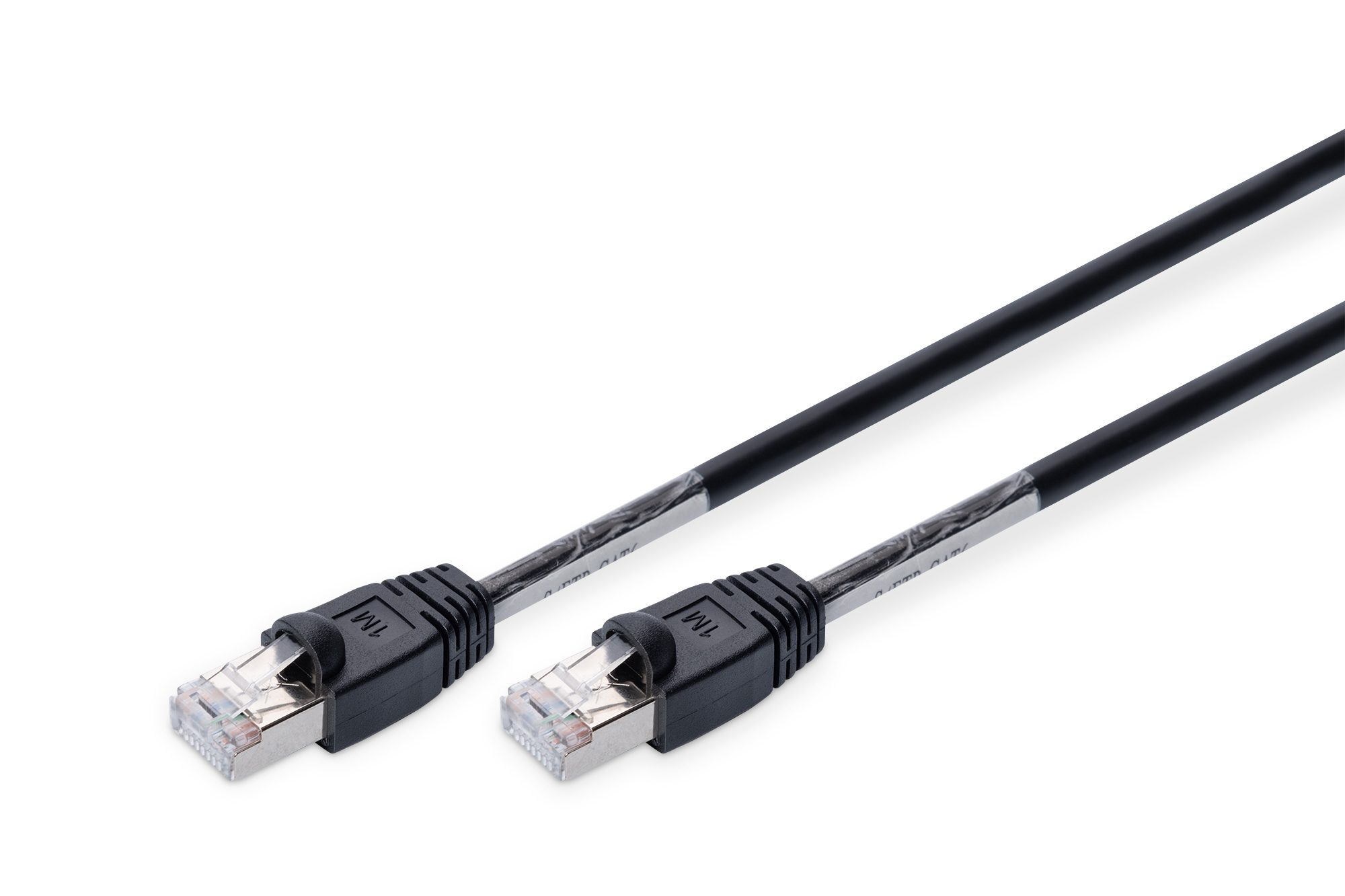

CAT 6 S/FTP outdoor patch cable, PE

Outstanding performance and connection quality for your network with UV resistance.

- UV resistant due to the LDPE outer jacket
- Hoods with bend protection, strain relief and latching lever protection
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)

The DIGITUS® Category 6 Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6 cabling. The performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from snagging and the latching lever from breaking off the plug. With the UV-resistant PE outer sheath, this outdoor patch cable enables safe installation in areas with strong temperature fluctuations and which are exposed to the sun.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	558882
Brand	Digitus
Partnr	DK-1644-010/BL-OD
EAN/UPC code	4016032371311
Product information sheet(s)
Cable length	1 m
Class	Patch cord copper (twisted pair)
Cable type	S/FTP
Category	6
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Black
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Black
Fire retardant version	false
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	27
Pin assignment	1:1
NVP value	69 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
