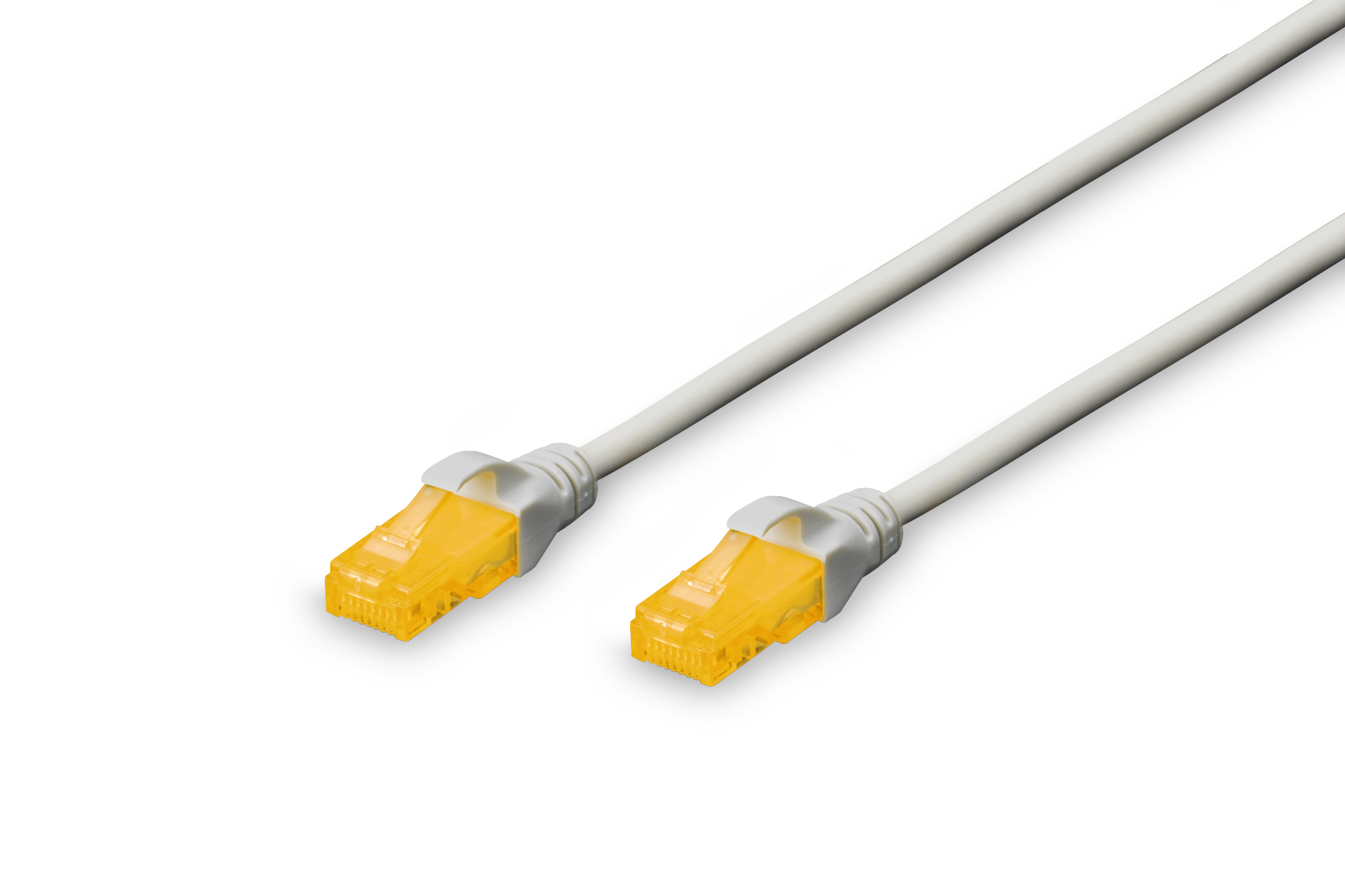

CAT 6A U/UTP Patch Cables

Future-oriented standards and high-end quality for your network.

- With an LSZH (Low Smoke Zero Halogen) outer jacket for optimal fire performance and low smoke emissions.
- Transparent yellow plug for easy identification of Category 6A (500 MHz)
- Inner conductor: Copper (Cu)
- PoE+, PoE++ (IEEE 802.3af; 3at; bt) compatible

DIGITUS® Category 6A Class EA patch cables are manufactured and tested in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6A standards. They guarantee that the cable installation complies with the ISO & EN channel specifications and deliver outstanding performance in DIGITUS® CAT 6A cabling. Performance has been tested up to 500 MHz, including performance characteristics such as near-end crosstalk (NEXT). The DIGITUS® patch cables have been specially developed to fully meet all requirements across various application areas. Each cable is equipped with an injection-molded kink-protection sleeve with strain relief. In addition, the sleeve features a latch protection mechanism that prevents the cables from getting caught and the latch from breaking off the connector. The yellow color of the connectors makes it easy to identify Category 6A cables.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	550163
Brand	Digitus
Partnr	DK-1613-A-100
EAN/UPC code	4016032371489
Product information sheet(s)
Cable length	10 m
Class	Patch cord copper (twisted pair)
Cable type	U/UTP
Category	6A (IEC)
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Grey
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Grey
Fire retardant version	true
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	26
Pin assignment	1:1
NVP value	68.2 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
