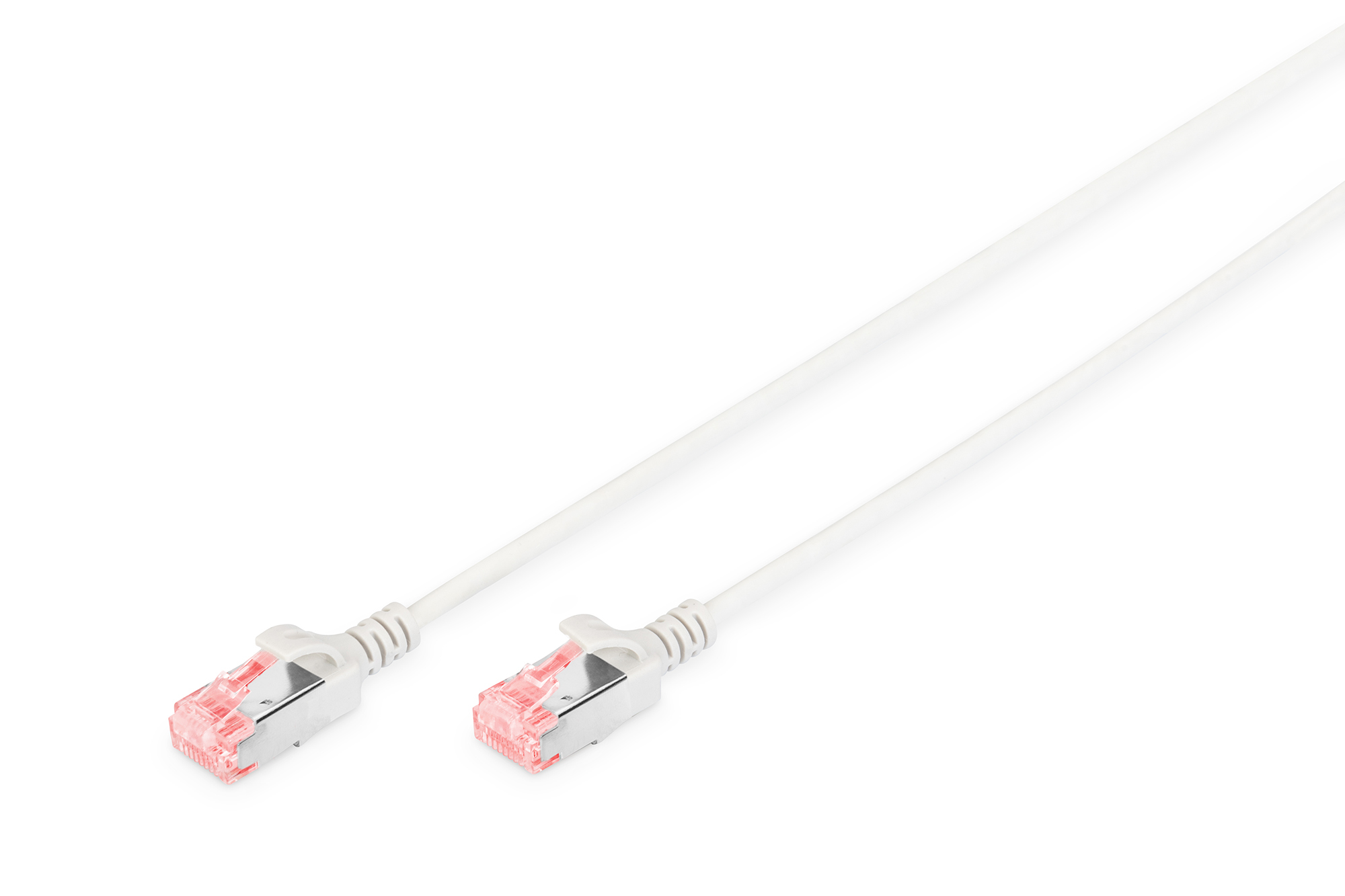

CAT 6 U/FTP Slim patch cord

Enables flexible and space-saving cabling in your network

- Small outer diameter of 3.65 mm is suitable for flexible use
- With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission
- Transparent red coloured connector for easy identification of Category 6 (250 MHz)
- Inner conductors: Copper (Cu)

DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, the DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	689081
Brand	Digitus
Partnr	DK-1624-100S
EAN/UPC code	4016032464815
Product information sheet(s)
Cable length	10 m
Class	Patch cord copper (twisted pair)
Cable type	U/FTP
Category	6
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Grey
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Grey
Fire retardant version	true
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	28
Pin assignment	1:1
NVP value	76 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
