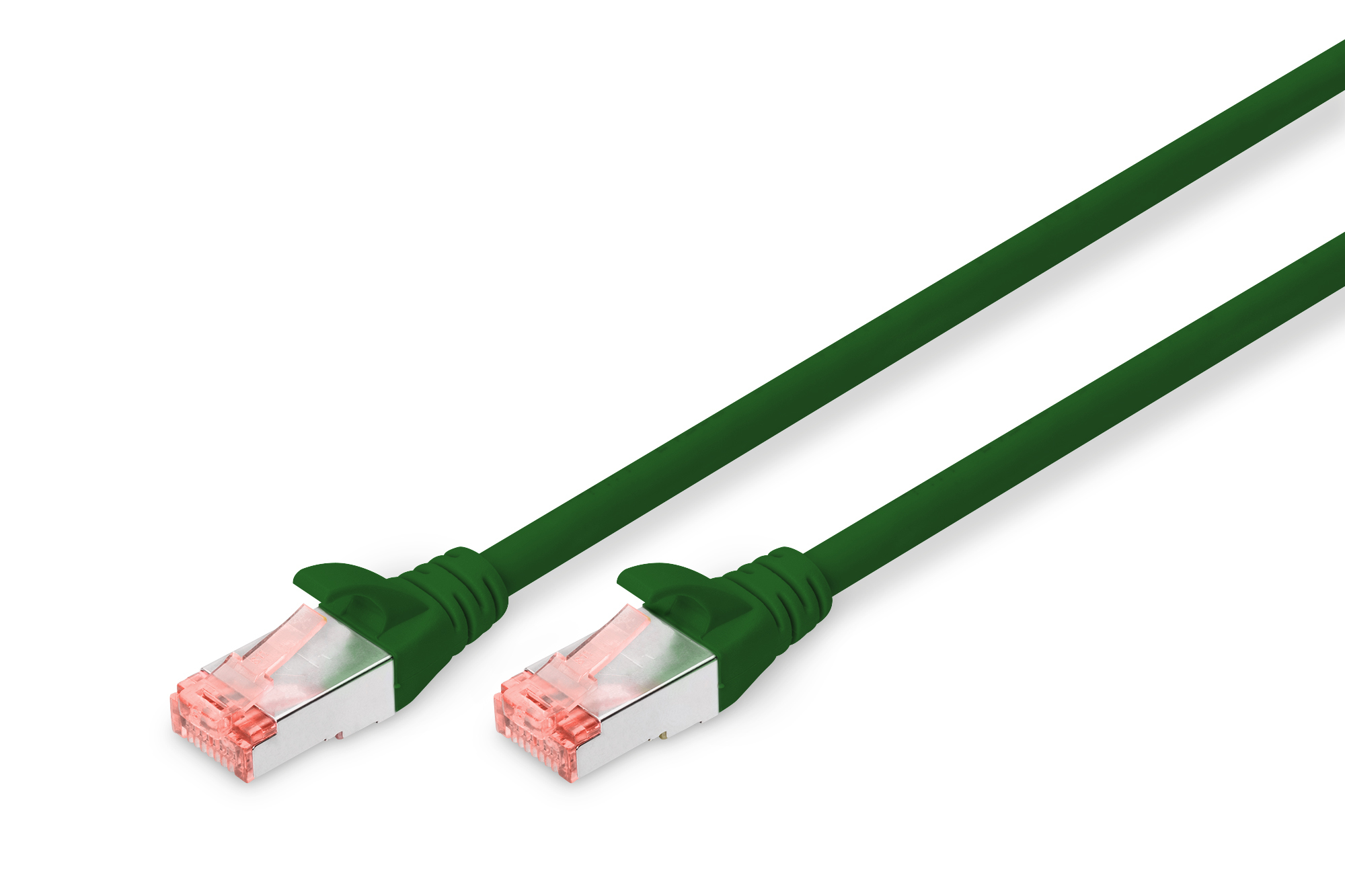

CAT 6 S/FTP patch cable

Future-oriented standards and high-end quality for your network.

- With LSZH outer casing (Low Smoke Zero Halogen) for the best fire behavior and low smoke emission.
- Transparent red colored plug with metal shielding for easy identification of category 6 (250 Mhz)
- Inner conductor: Copper (Cu)
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)

The DIGITUS® Category 6 Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. The DIGITUS® patch cables guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6 cabling. The new anti-kink sleeve with latching lever protection prevents the cables from snagging and at the same time protects the latching lever from breaking off. The red coloring of the plugs makes it easy to identify the Category 6.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	550201
Brand	Digitus
Partnr	DK-1644-005/G
EAN/UPC code	4016032321583
Product information sheet(s)
Cable length	0.5 m
Class	Patch cord copper (twisted pair)
Cable type	S/FTP
Category	6
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Green
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Green
Fire retardant version	true
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	27
Pin assignment	1:1
NVP value	76 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
