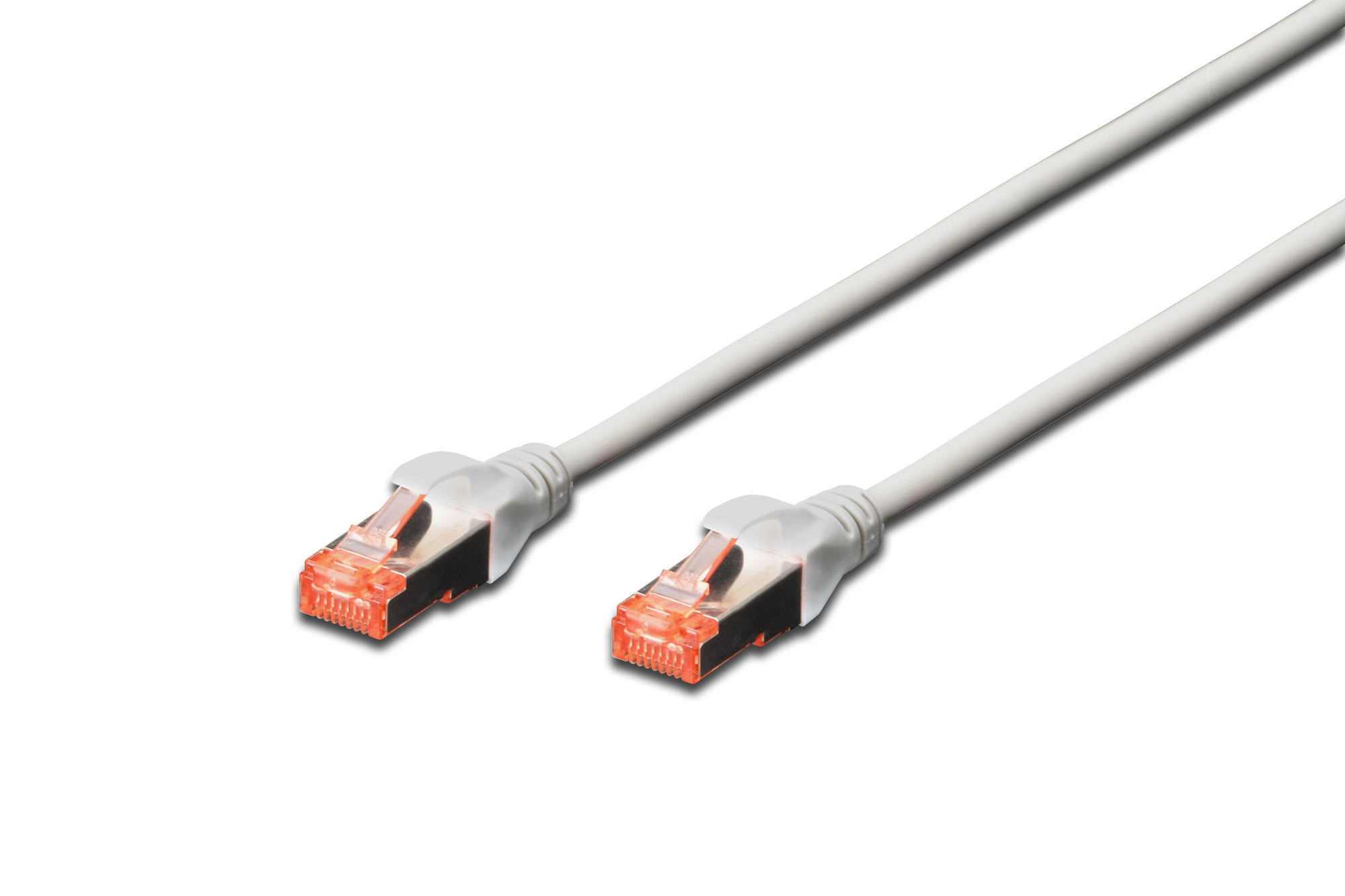

CAT 6 S/FTP Patch Cable, 5 m, Gray

Future-oriented standards and high-end quality for your network.

- With an LSZH (Low Smoke Zero Halogen) outer jacket for optimal fire resistance and low smoke emission.
- Transparent red connector for easy identification of Category 6 (250 MHz)
- Inner conductor: Copper (Cu)
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)

DIGITUS® Category 6 Class E patch cables are manufactured and tested in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They ensure that the cable installation complies with the ISO & EN channel specifications and deliver outstanding performance in DIGITUS® CAT 6 cabling. Performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk (NEXT). DIGITUS® patch cables have been specially developed to fully meet all requirements across various application areas. Each cable is equipped with an injection-molded kink-protection sleeve with strain relief. In addition, the sleeve features a latch protection mechanism that prevents the cables from getting snagged and the latch from breaking off the connector. The red color of the connectors makes it easy to identify Category 6 cables.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	549667
Brand	Digitus
Partnr	DK-1644-050
EAN/UPC code	4016032321996
Product information sheet(s)
Features
Cable length	5 m
Cable standard	Cat6
Class	Patch cord copper (twisted pair)
Cable type	S/FTP
Category	6
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Grey
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Grey
Fire retardant version	true
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	27
Pin assignment	1:1
NVP value	76 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
