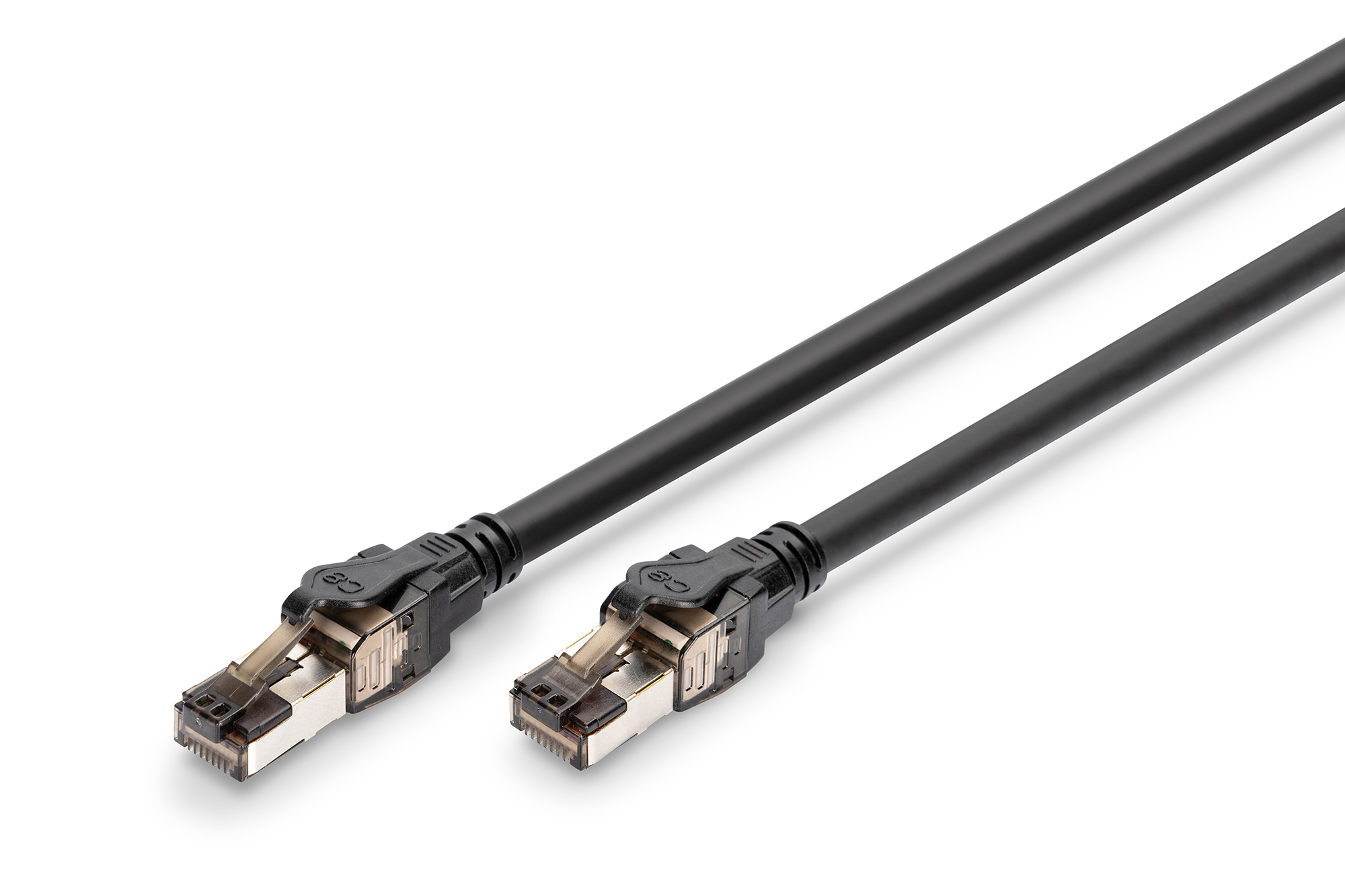

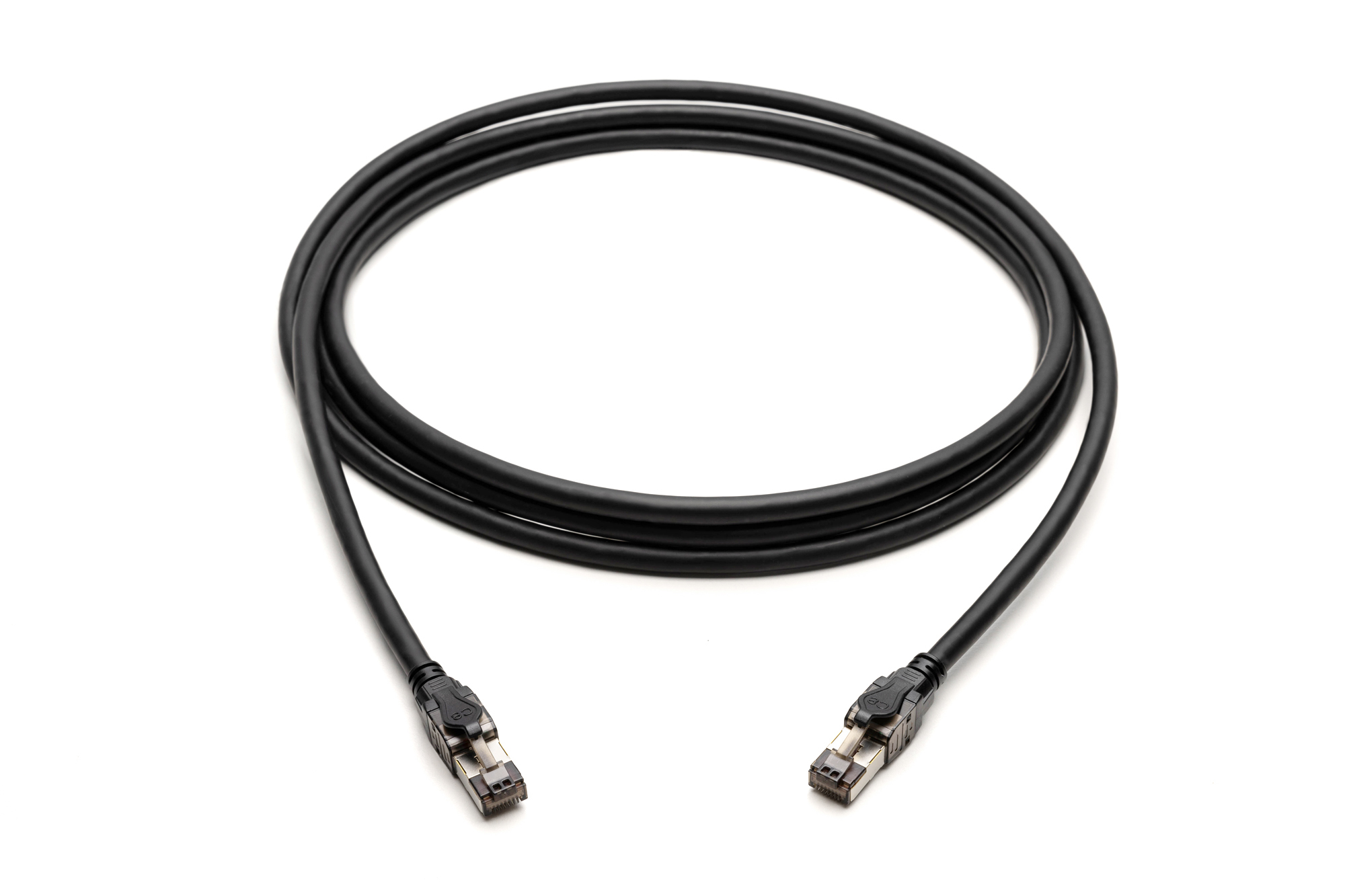

CAT 8.1 S/FTP patch cable, 3 m

The high-end network solution according to the CAT 8.1 standard

- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance

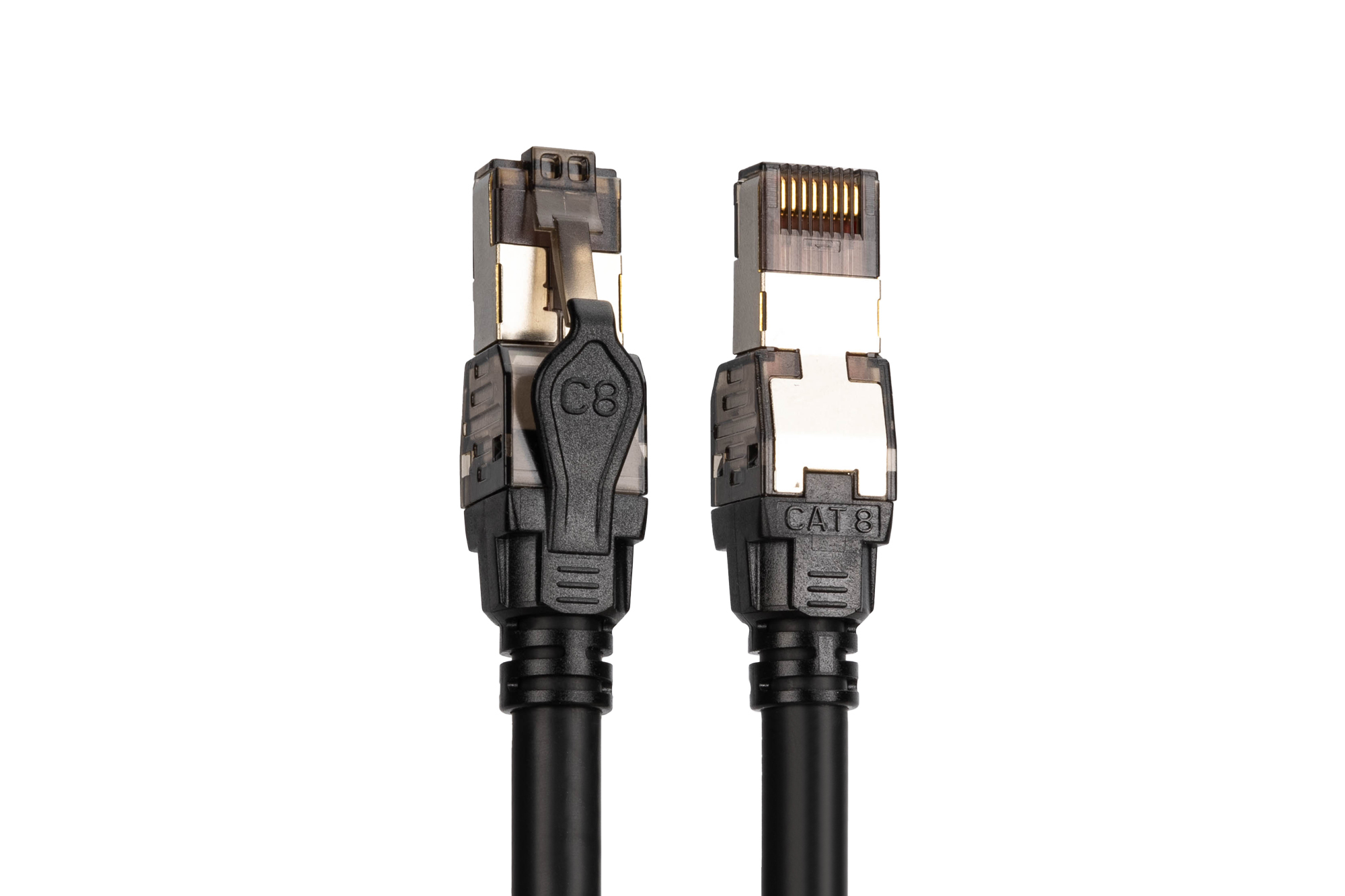

- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2, 000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	1010948
Brand	Digitus
Partnr	DK-1843-030
EAN/UPC code	4016032499244
Product information sheet(s)
Cable length	3 m
Class	Patch cord copper (twisted pair)
Cable type	S/FTP
Category	8.1 (IEC)
Type of connector connection 1	RJ45 8(8)
Type of connector connection 2	RJ45 8(8)
Colour outer sheath	Black
Anti-kink sleeve	Moulded-on
Locking lever	true
Colour anti-kink sleeve	Black
Fire retardant version	true
Halogen free according to EN IEC 60754-1	true
Halogen free according to EN IEC 60754-2	true
Halogen free according to EN IEC 60754-3	true
Oil resistant according to EN IEC 60811-404	false
Cable construction	4x2
AWG-size	24
Pin assignment	1:1
NVP value	72 %
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
