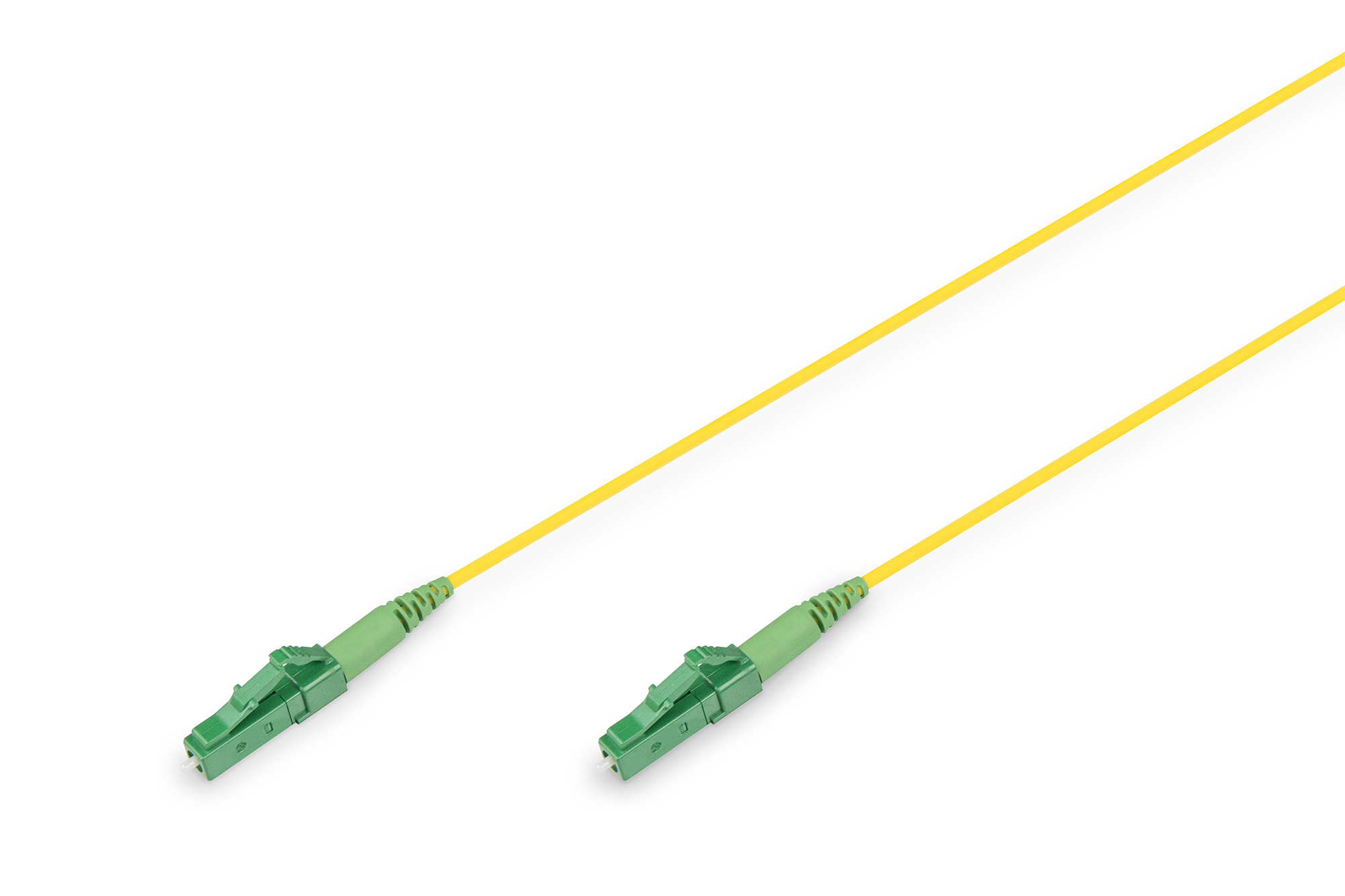

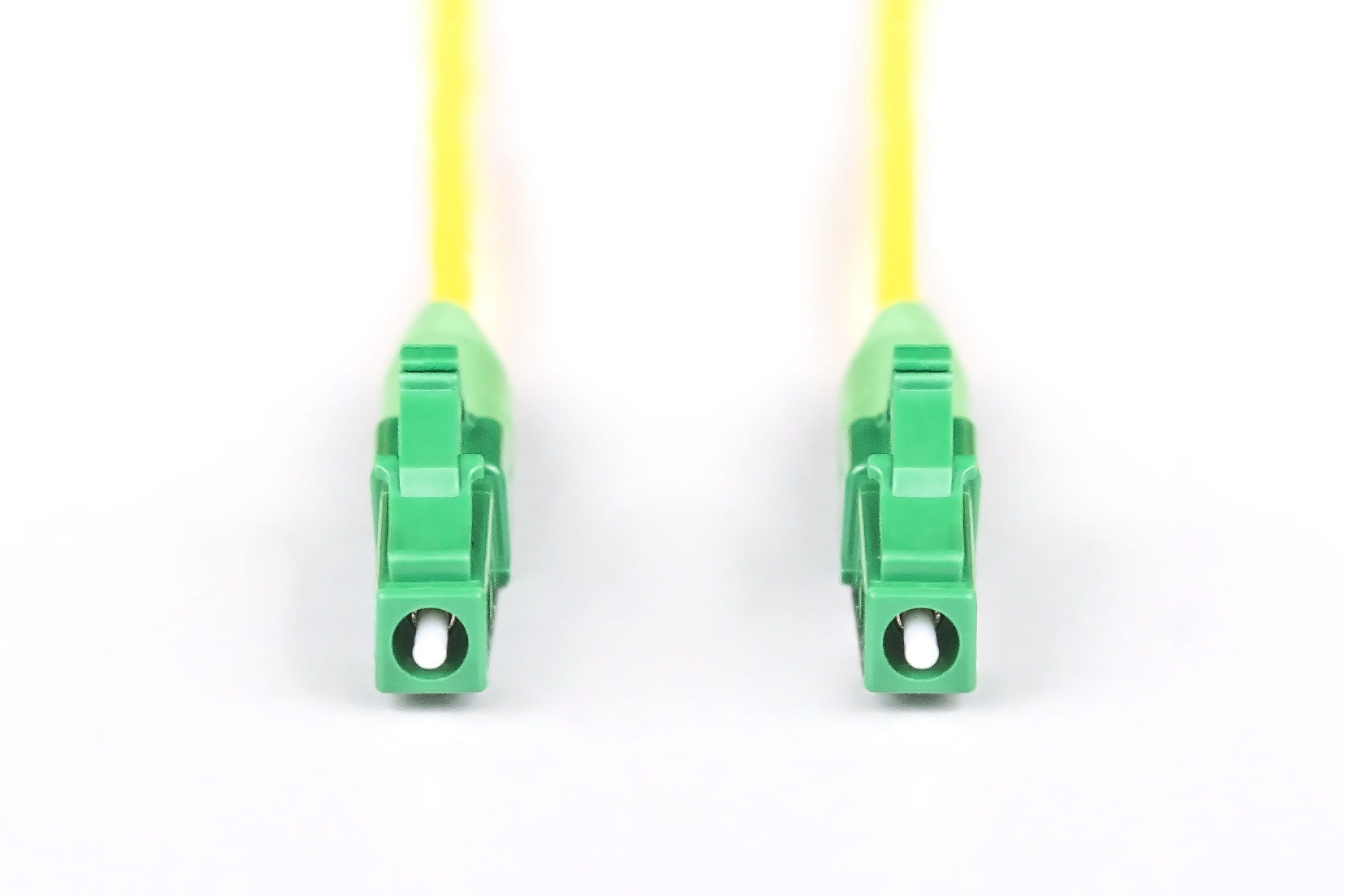

Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 1 m

High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.

- High flexibility
- Bend insensitive
- High precision and low insertion loss
- Compliant with G.657. A2

The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.

[Data Network Technology][Fiber Cabling]

Specification

Product
Product id	966263
Brand	Digitus
Partnr	DK-2933-01-APC-SX
EAN/UPC code	4016032492825
Product information sheet(s)
Cable length	1 m
Class	Fibre optic patch cord
Fibre type	Single mode
Category	OS2
Number of fibres	1
Outer diameter sheath single fibre	2 mm
Cable type	Simplex
Type of connector connection 1	LC
Type of connector connection 2	LC
APC-version connection 1	true
APC-version connection 2	true
Colour outer sheath	Yellow
Anti-kink sleeve	Put-on
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Flame retardant according to EN 50265-2-1	false
Flame retardant according to IEC 60332-1-2	false
Flame retardant according to IEC 60332-3-24 (Cat C)	false
Low smoke according to EN IEC 61034-2	false
Low smoke according to AS/NZS 1660.5.2	false
