NP01SW1 HDBase-T Transmitter



NEC
Not in stock
€ 439,85
€ 532,21 incl 21% VAT
Based upon HDBaseT technology, the NP01SW1 switcher is a cross-product solution allowing for an easy installation of a projector or public display through a single network cable connection. The ultimate flexibility of HDBaseT allows the transmission of uncompressed HD multimedia content over cable distances of up to 100 meters, overcoming the traditional limitations of current cable technologies, reducing installation cost and therefore making this the ultimate solution for larger meeting rooms, classrooms, rental & staging, etc.

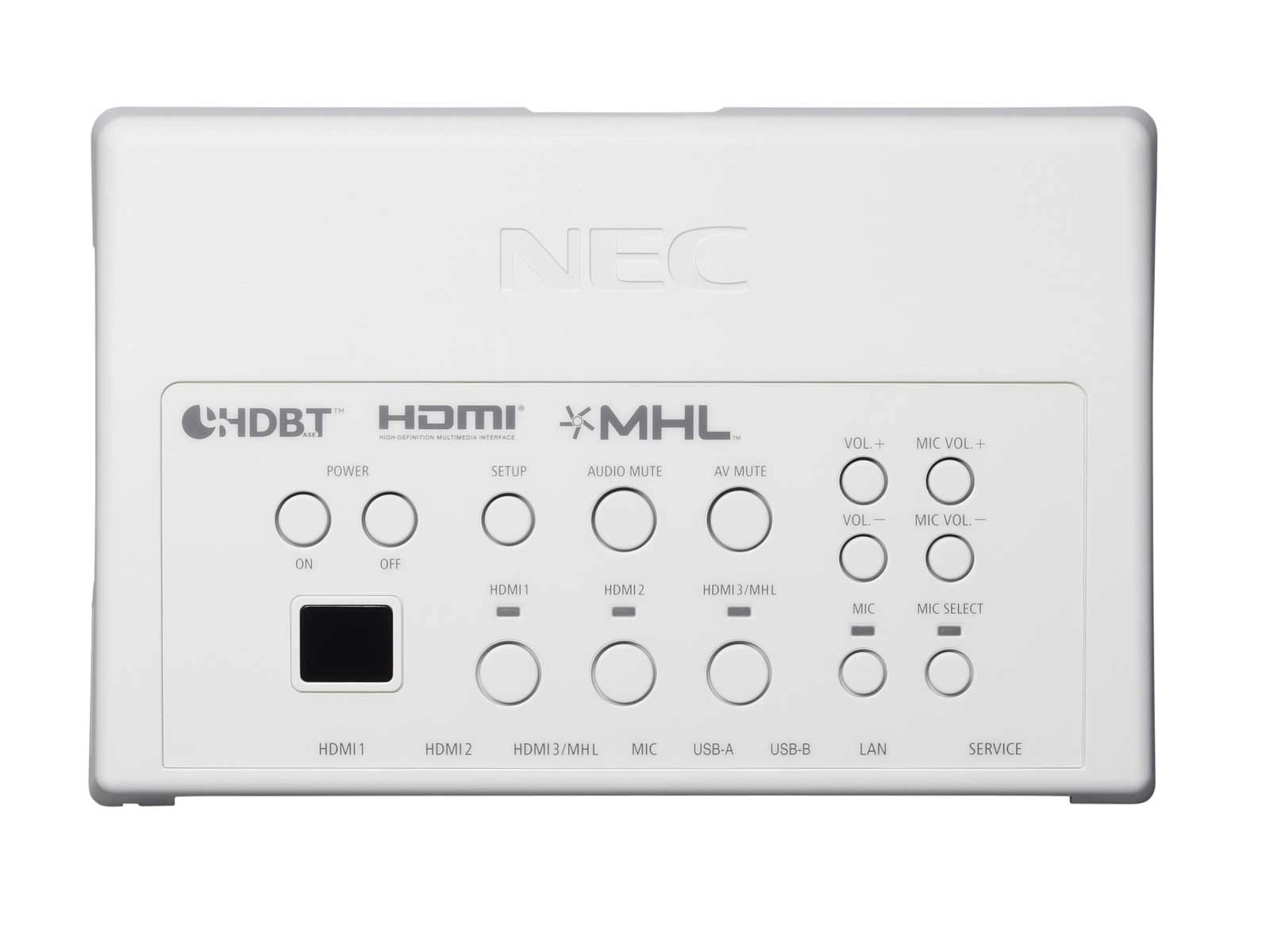

Additionally, with support for multiple input sources incl. HDMI, MHL and MIC, the NP01SW1 Switcher lets you switch between devices with the click of a button. A simple and clever plug & play solution which can be connected directly to HDBaseT enabled devices. Even non HDBaseT compliant devices can easily be upgraded via the optional SB-07BC receiver. Or you can choose the NP01SW2 Switcher/Receiver Solution which includes the receiver box already.

One cable solution for classrooms and meeting rooms

- Signal transmission via single HDBaseT connection
- Support for Picture, Video, Audio, Device control, and interactive whiteboards (USB backchannel) via HDBaseT

Easy to use

- Easy to connect teacher’s PC
- Easy to control the Projector

Cross product solution

- Direct connection with HDBaseT enabled Projector and Public Display models (up to 100m)
- Non HDBaseT enabled models can be connected via the optional SB-07BC OPS module

Specification

Product
Product id 532838
Brand NEC
Partnr 100014161
EAN/UPC code 5028695612372
Warranty (months) 3 Years

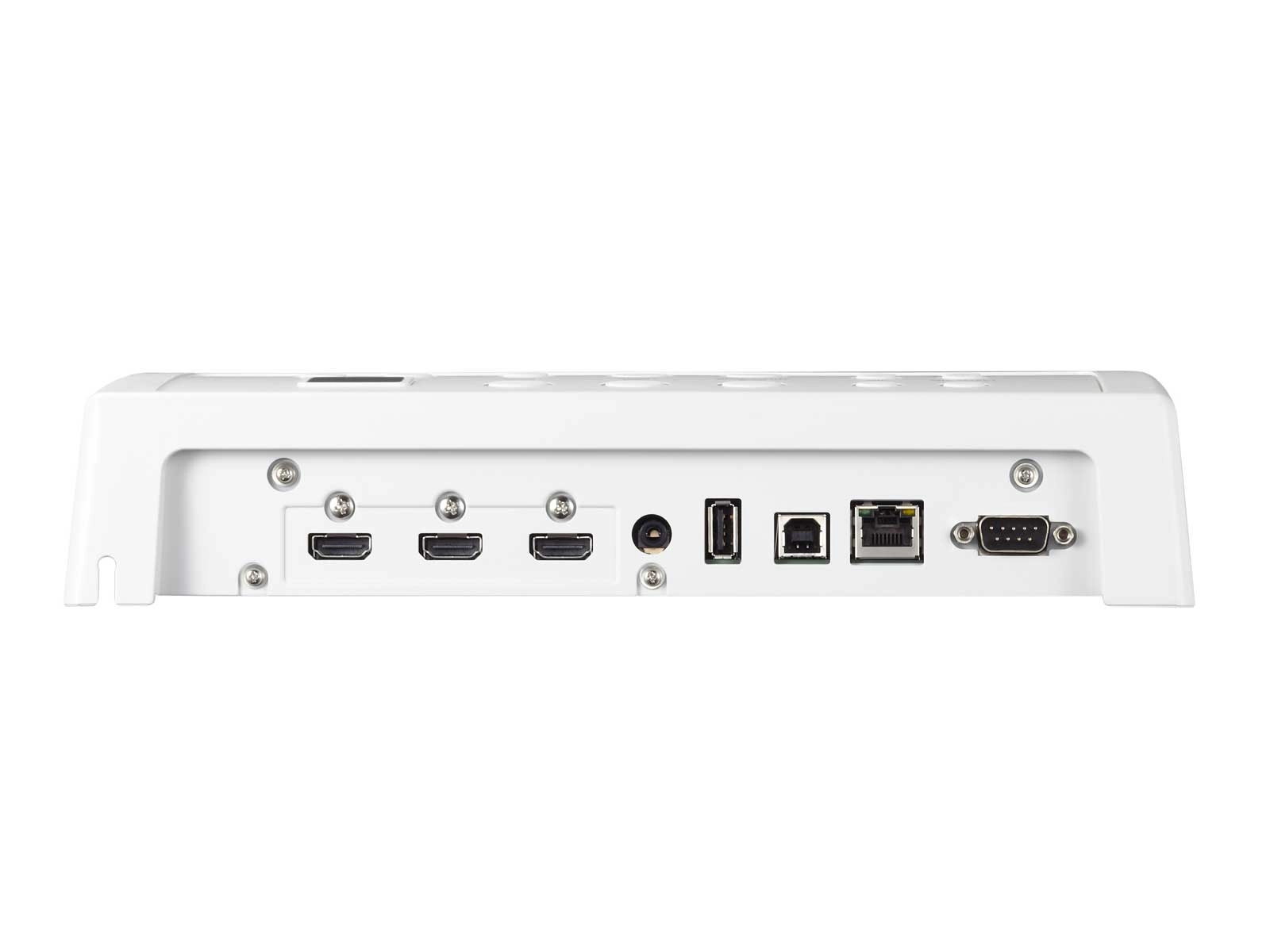

Ports & interfaces
Video port type HDMI
HDMI in 3
RJ-45 input ports 2
RS-232 ports 1
Features
Product colour White
External power adapter Y
HDCP Y
Supported graphics resolutions 640 x 480 (VGA), 720 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Power
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
AC adapter input current 1.4 A
Power consumption (typical) 21 W
Certificates
RoHS compliance Y
Certification CE, FCC, EAC, SASO
Weight & dimensions
Weight 1400 g
Dimensions (WxDxH) 285 x 187 x 64 mm
Packaging data
Package width 354 mm
Package depth 255 mm
Package height 175 mm
Package weight 2900 g
Packaging content
Manual Y
AC adapter included Y
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) 10 - 50 °C
Operating relative humidity (H-H) 20 - 80 procent
Technical details
Maximum operating distance 100 m
Colour depth 12 Bit
