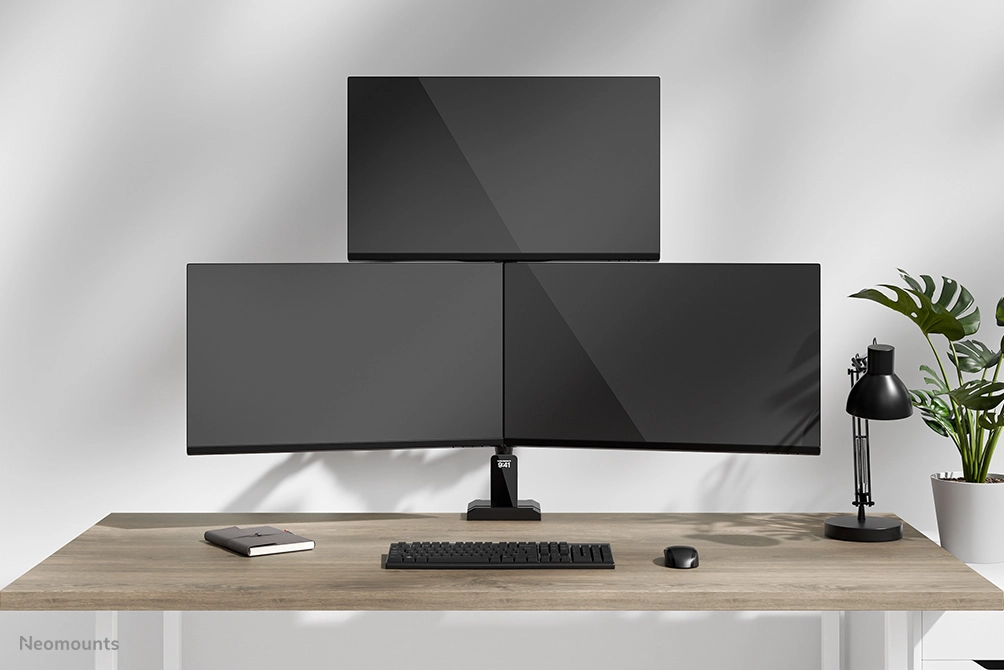

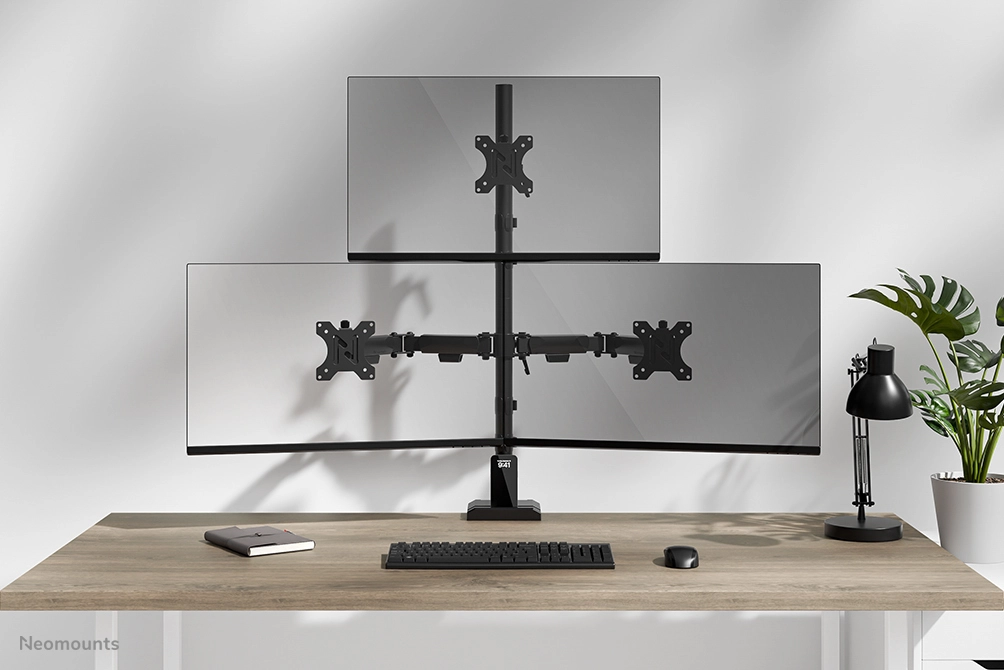

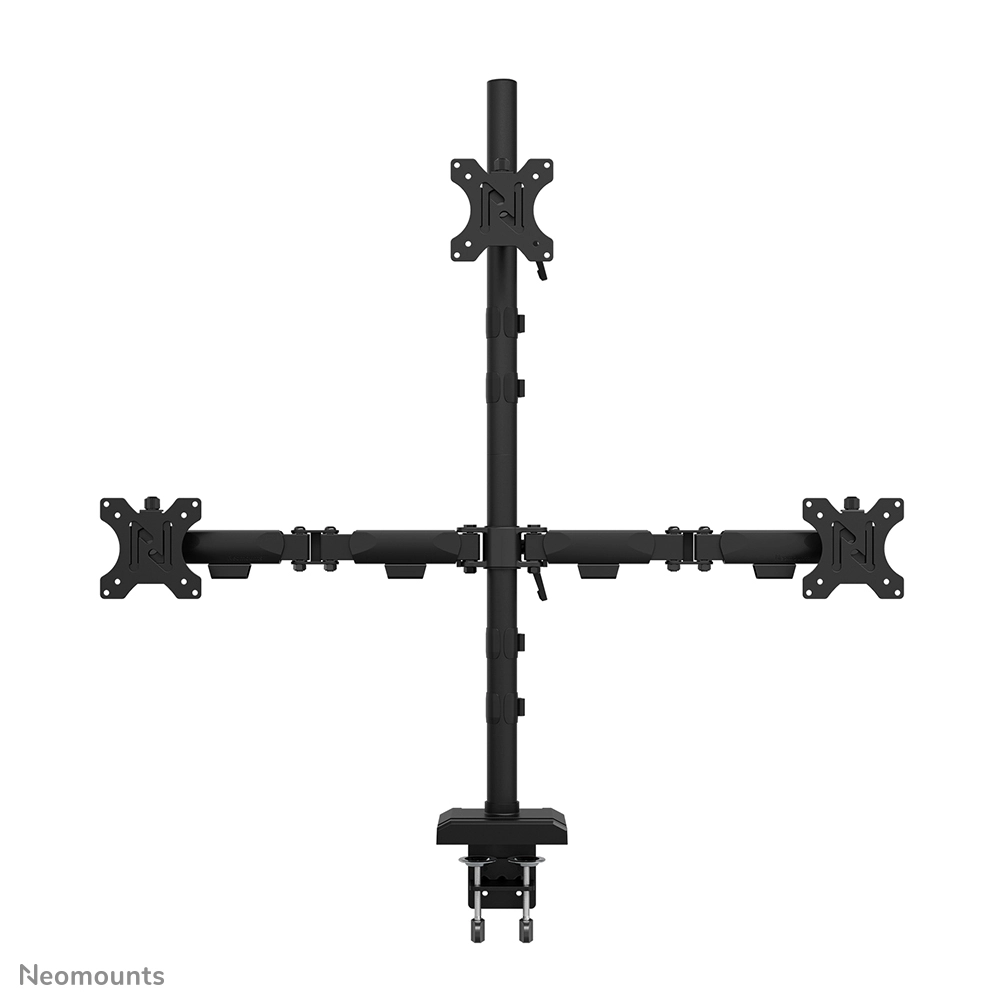

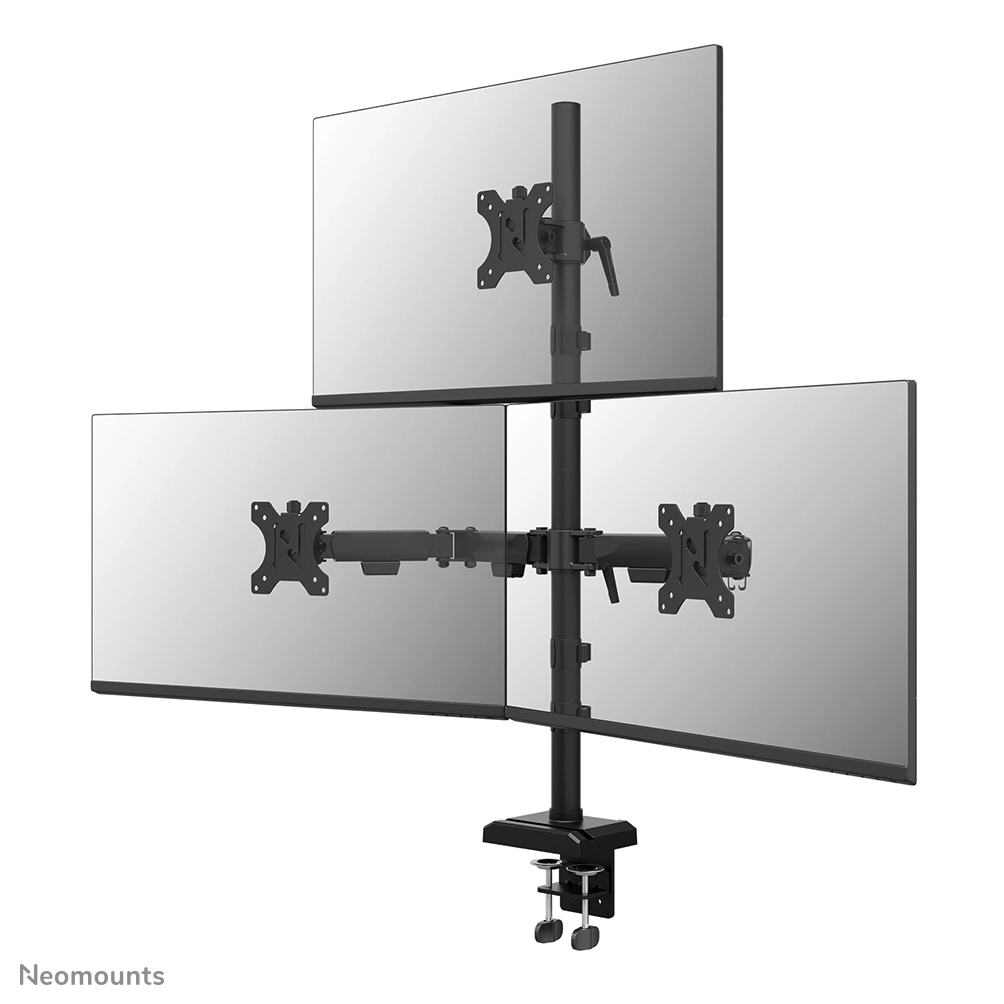

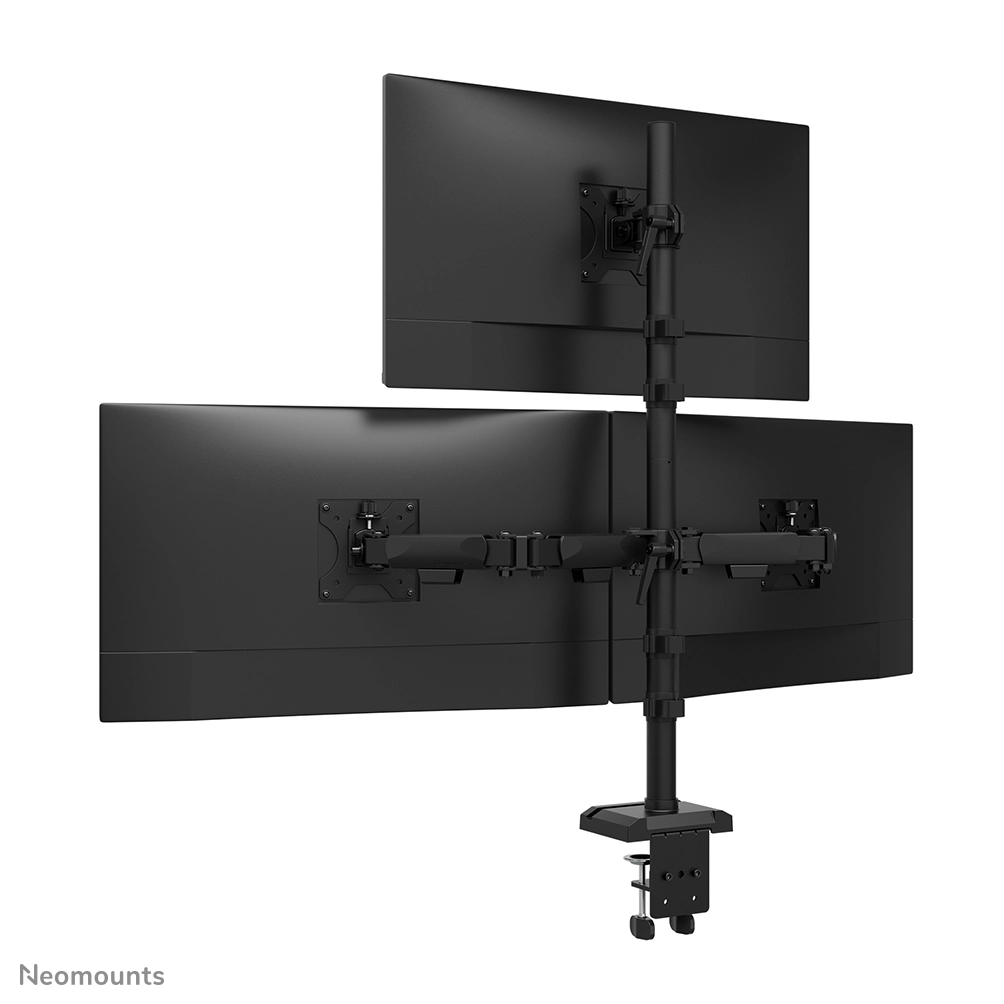

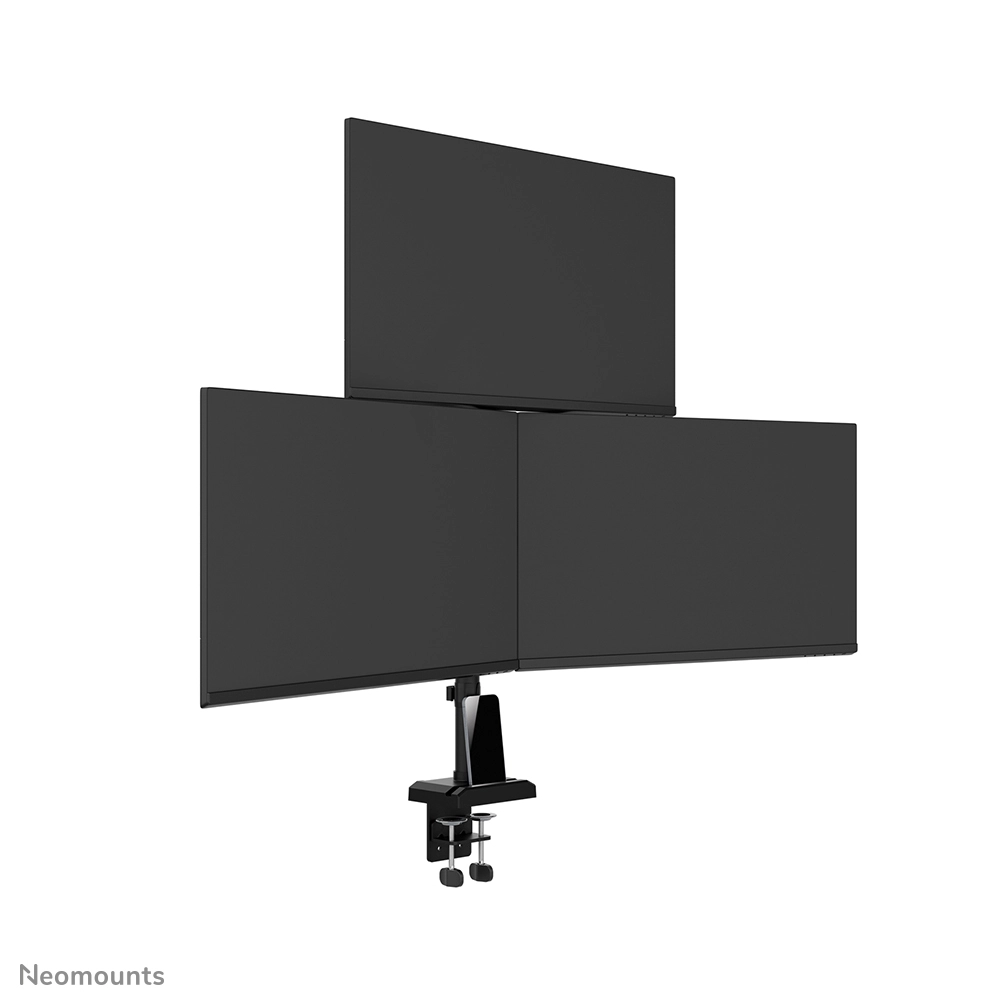

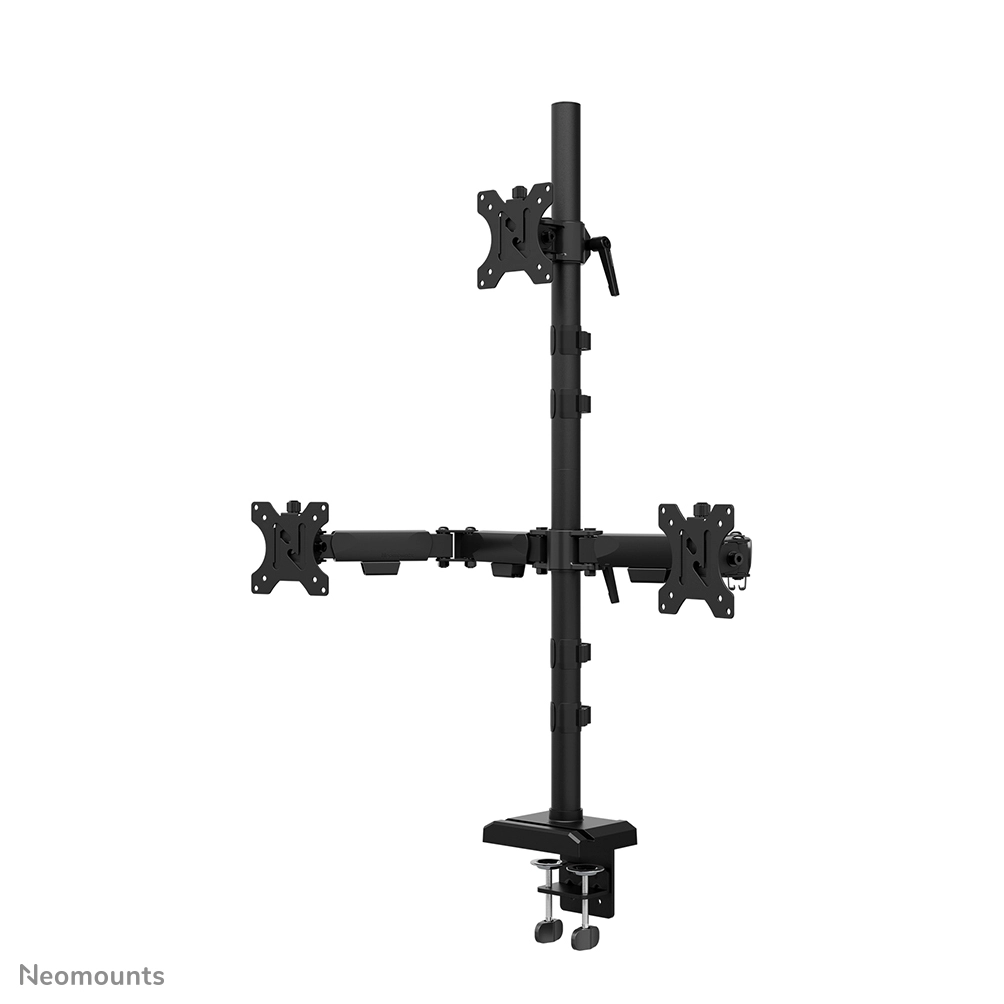

The Neomounts DS60-600BL2-1 provides a professional and durable solution for a panoramic three-screen configuration. This triple monitor arm is constructed with a solid vertical pole, supporting monitors up to 32" with a weight capacity of 9 kg per screen. The full motion technology allows for precise adjustments in tilt, rotation, and swivel, ensuring a correct ergonomic posture and optimal workflow efficiency.

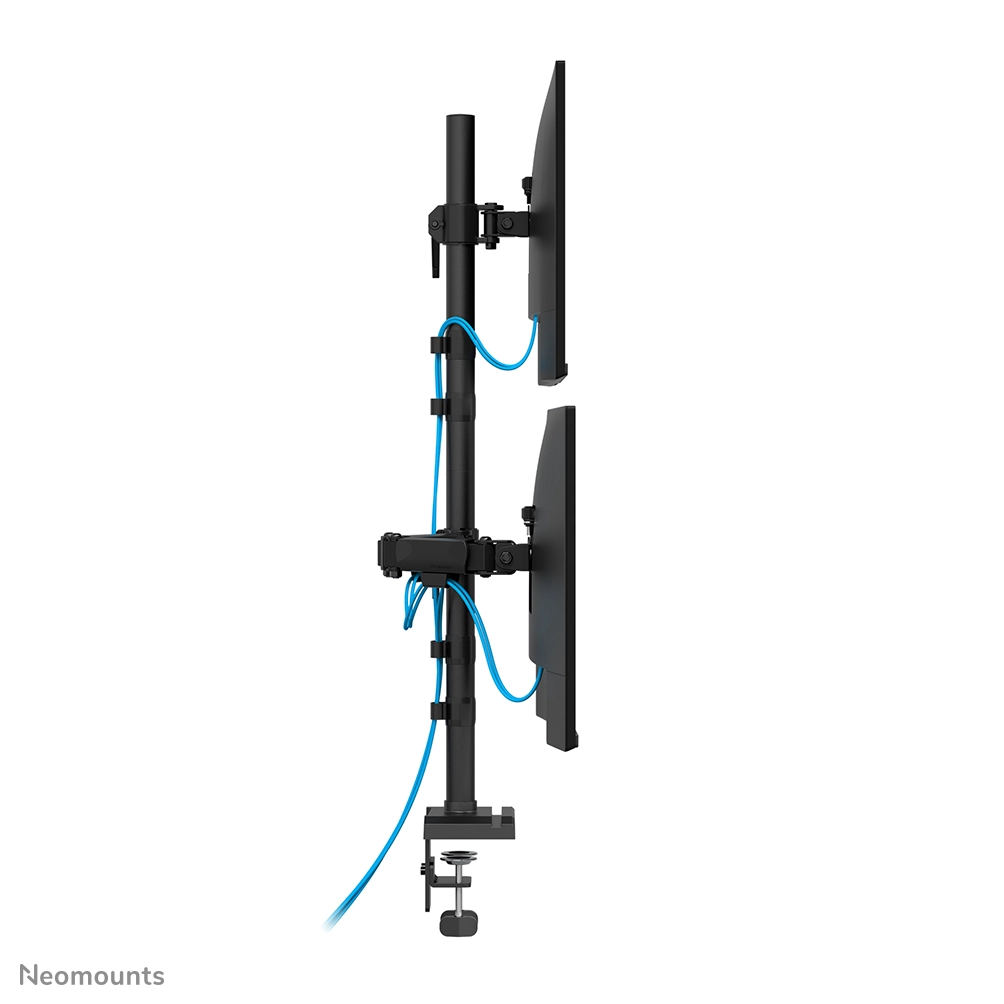

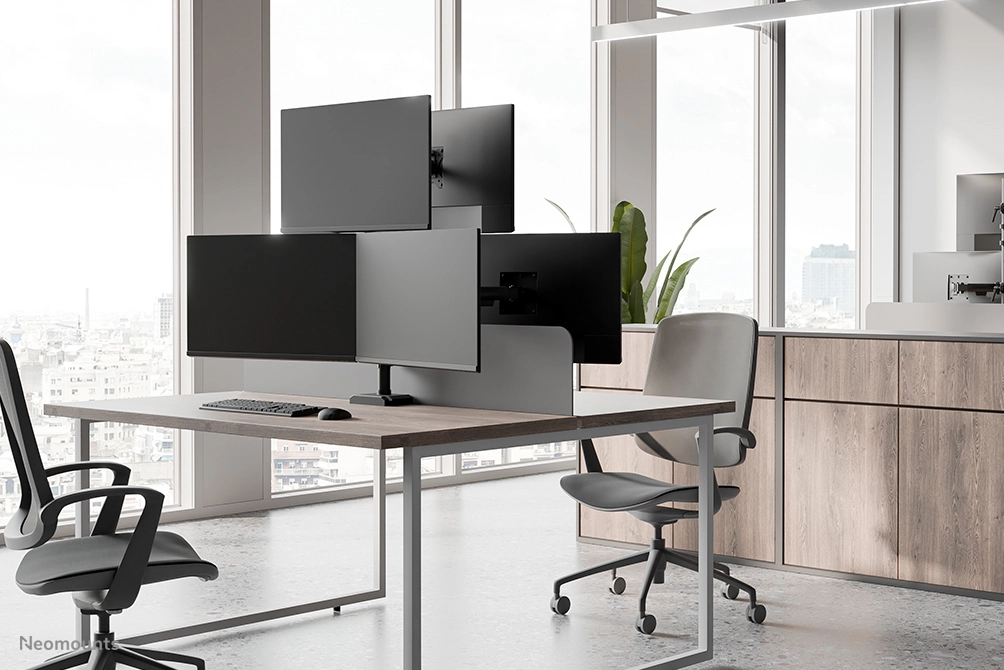

This model is specifically suited for financial institutions, control rooms, and corporate offices where the management of large amounts of data across multiple screens is essential. The robust construction guarantees maximum stability, while the integrated 180° lock mechanism protects the surrounding environment by preventing the arms from making contact with walls or partitions. The design features a subtle phone slot in the base and an integrated cable management system to maintain a professional workspace.

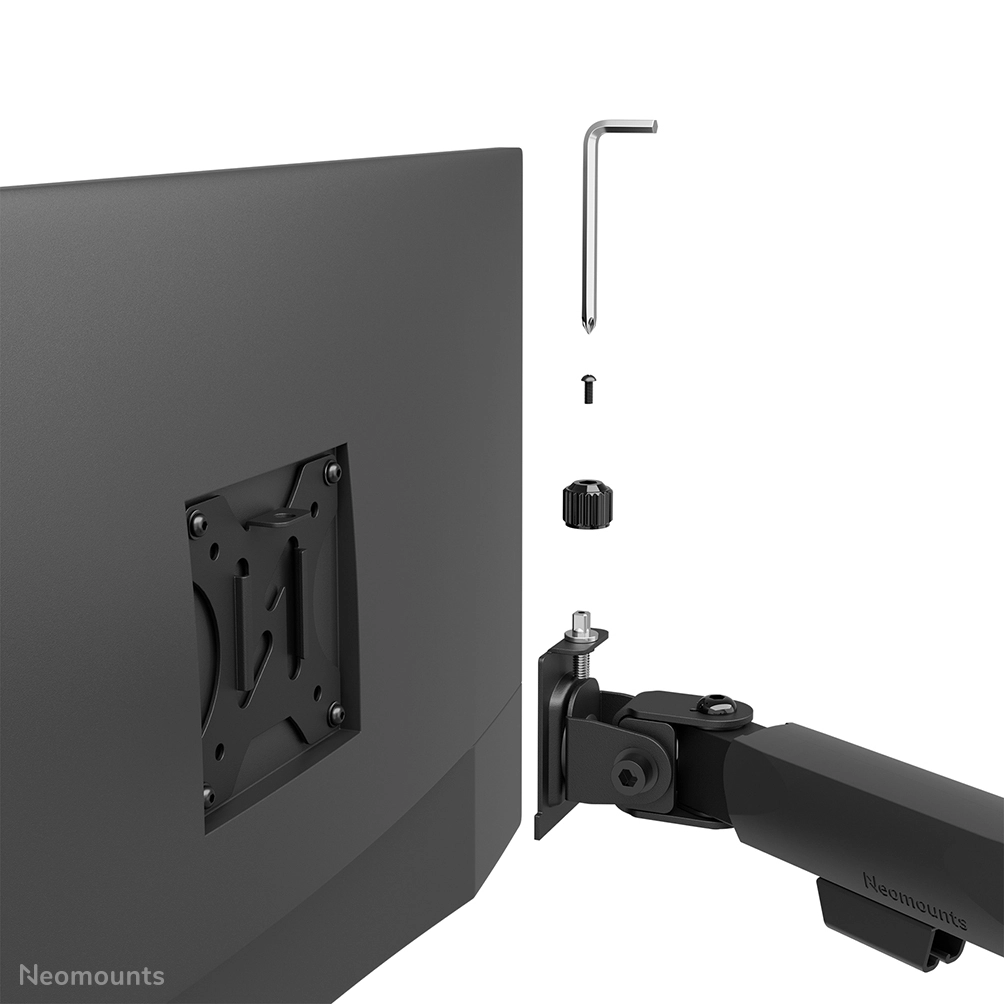

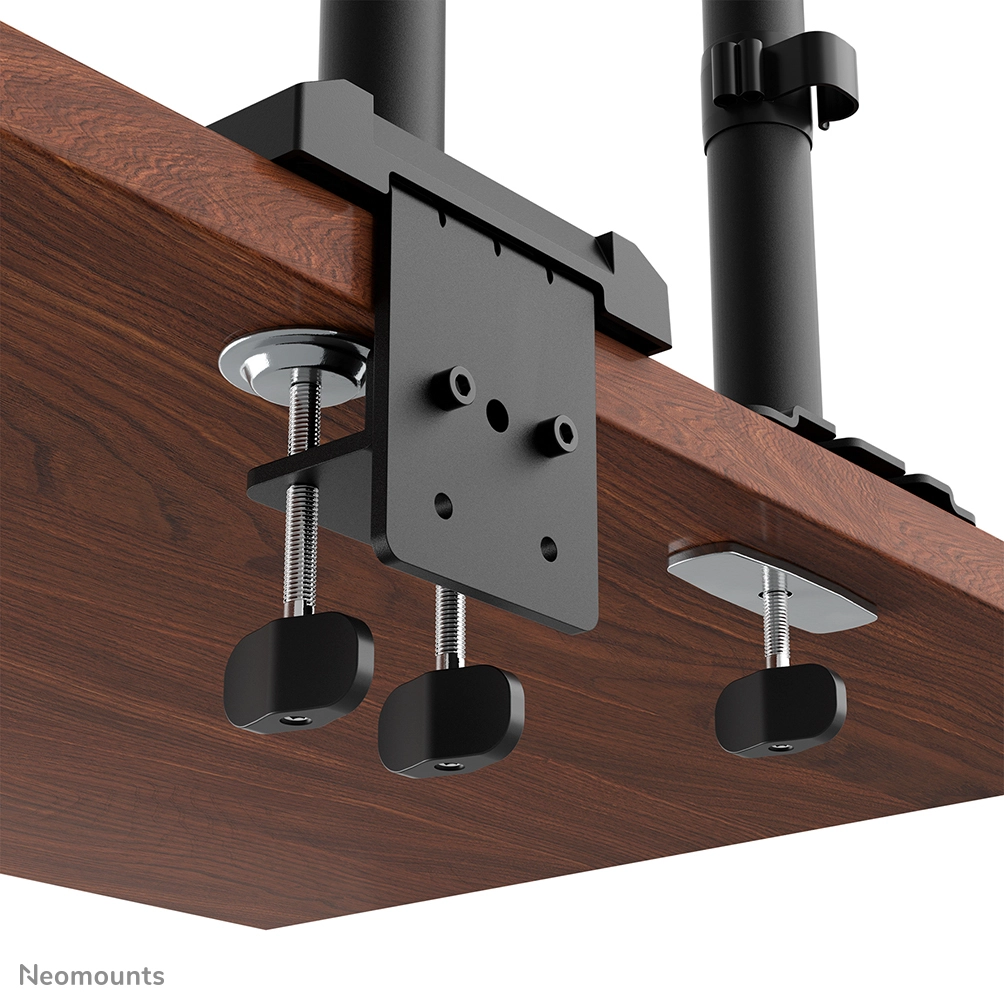

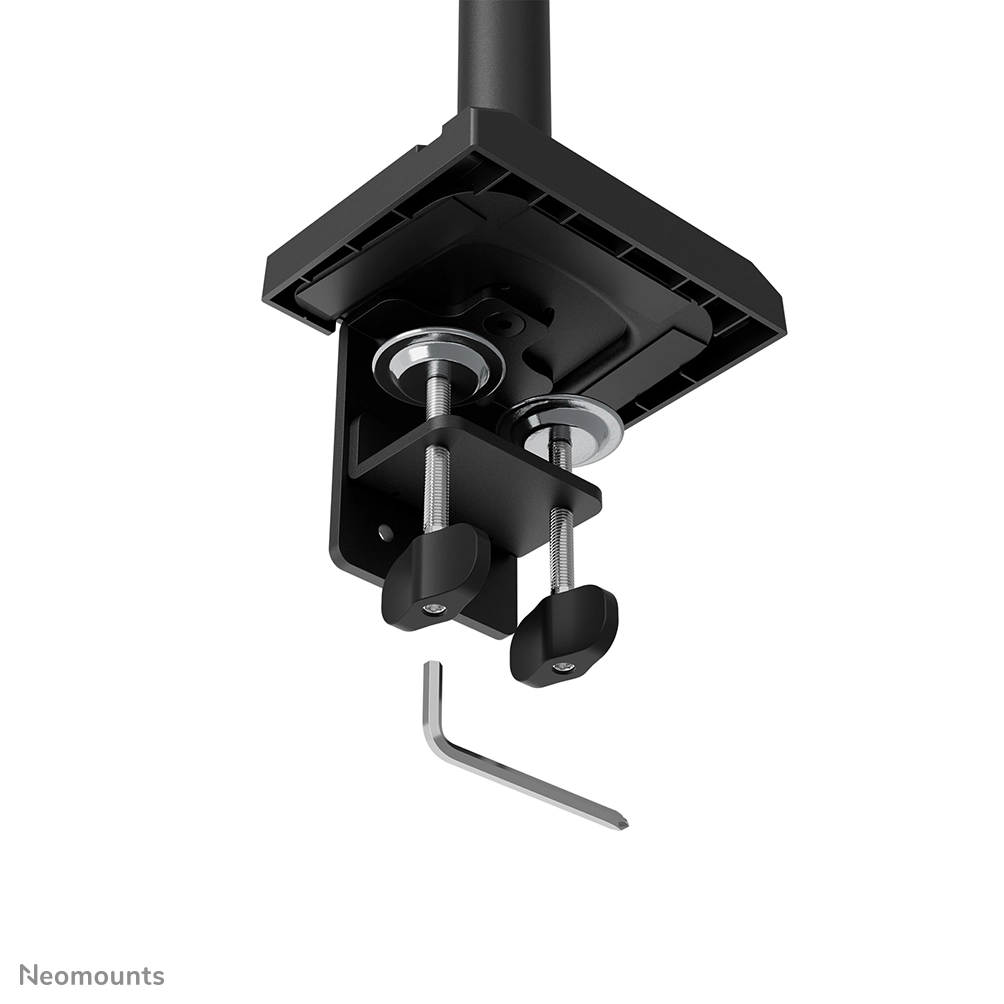

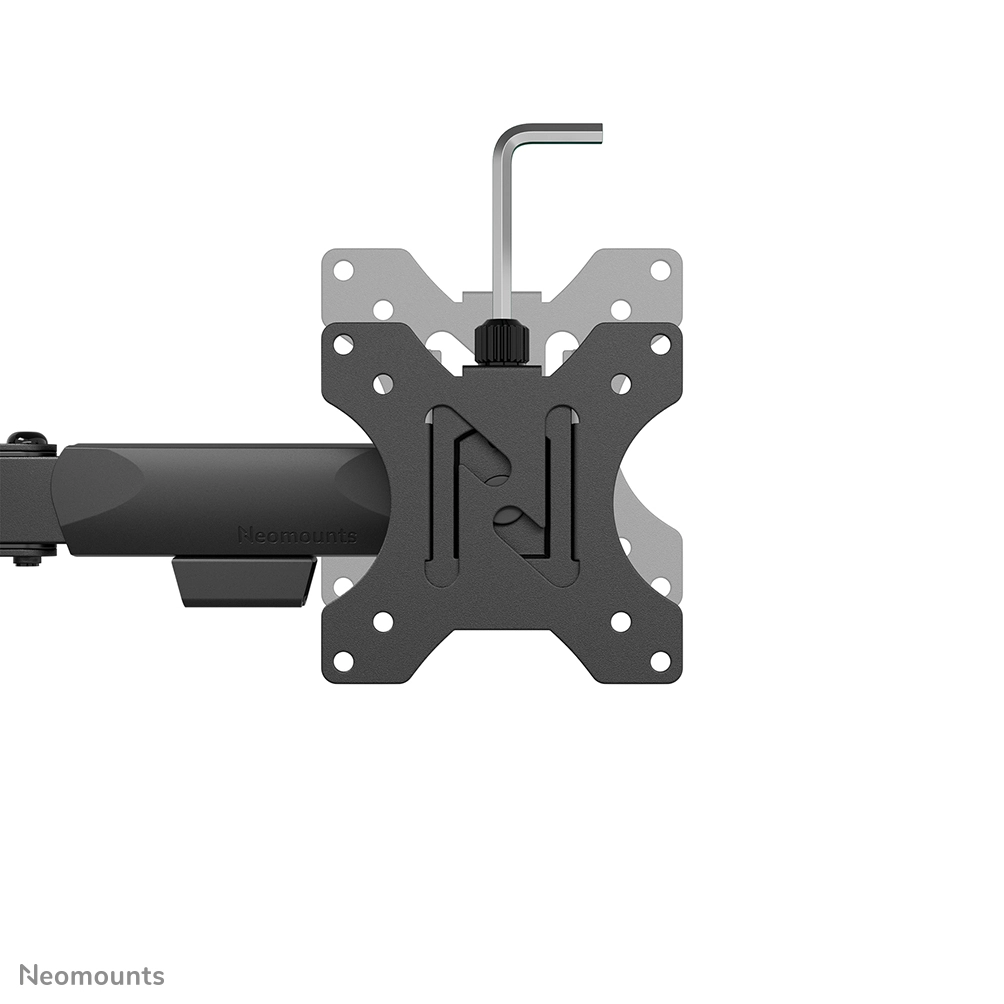

The arm is VESA compatible (75x75 & 100x100 mm) and includes an Easy-release system for efficient screen mounting. The DS60-600BL2-1 comes with both desk clamp and grommet mounting options, making it a versatile high-quality investment for any professional work environment.

Specification

Product
Product id	1017662
Brand	Neomounts
Partnr	DS60-600BL2-1
EAN/UPC code	8721246340683
Warranty (months)	5 year
Mounting
Maximum weight capacity	27 kg
Maximum weight capacity (per display)	9 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100, 75 x 75 mm
Number of displays supported	3
Desk thickness (min)	80 mm
Desk thickness (max)	10 mm
Distance to the wall (max)	141 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Manual

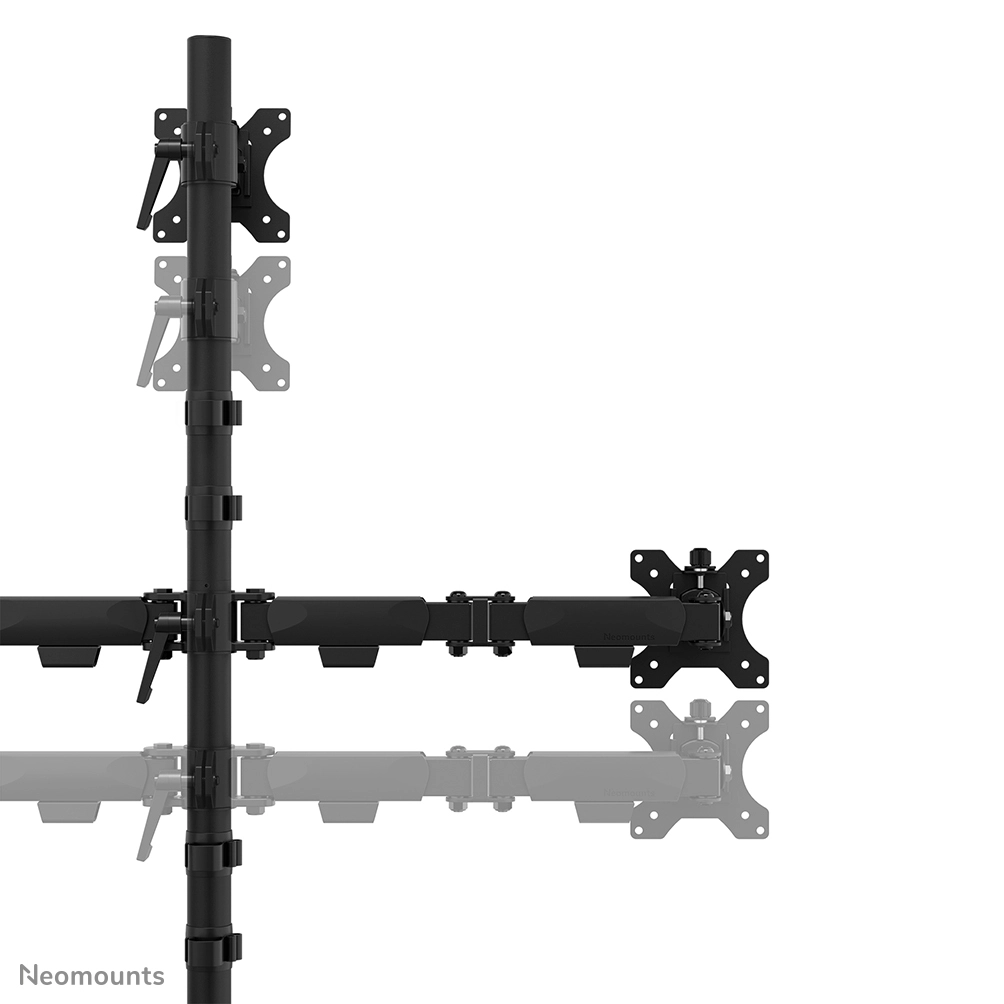

Height adjustment range	140 - 830 mm
Adjustable depth	Y
Depth adjustment range	141 - 463 mm
Width adjustment	397 mm
Tilt angle range	0 - 90 °
Swivelling	Y
Swivel angle	180 °
Swivel angle range	0 - 180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Technical details
Warranty period	5 jaar
Weight & dimensions

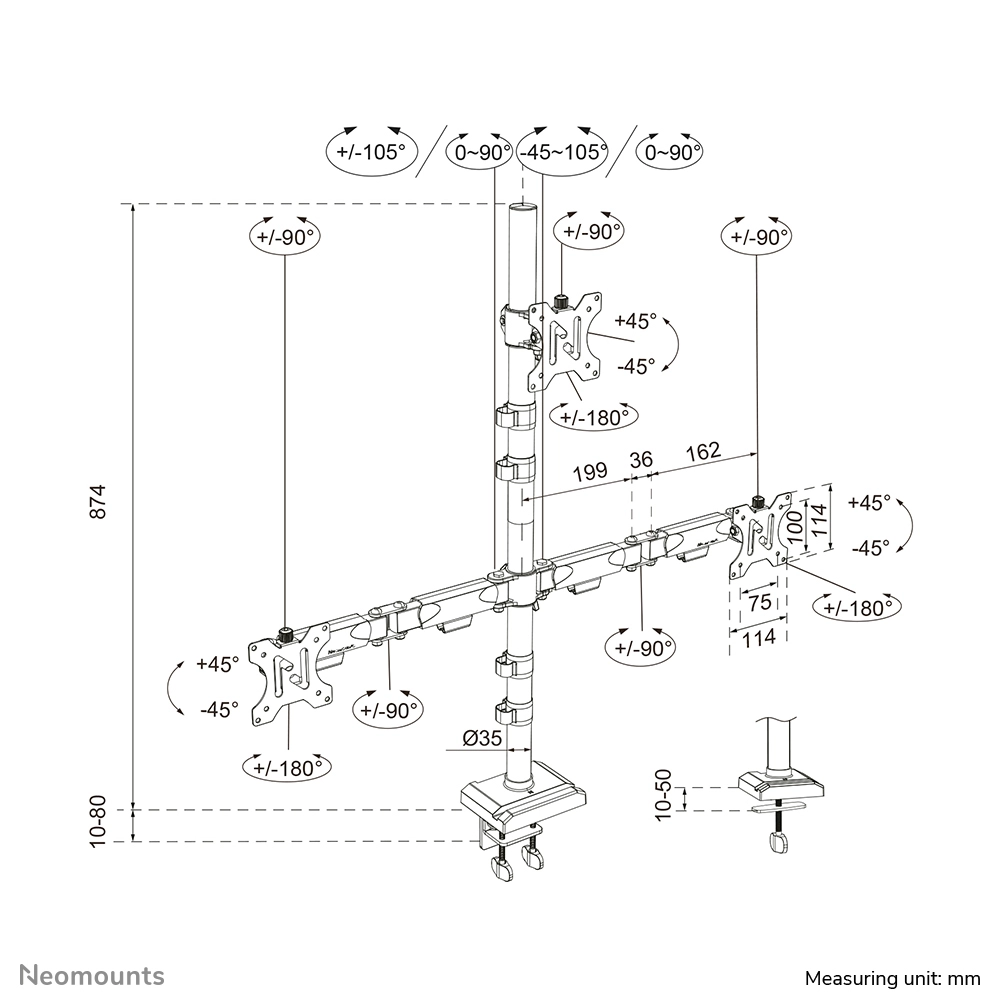

Width	908 mm
Depth	141 mm
Height	874 mm
Weight	4920 g
Package width	385 mm
Package depth	574 mm
Package height	139 mm
Package weight	6420 g
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	595 mm
Master (outer) case height	305 mm
Master (outer) case weight	13300 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	9800 g
Harmonized System (HS) code	7326909890
Other features
Width adjustment range	0 - 397 mm
Country of origin	China
