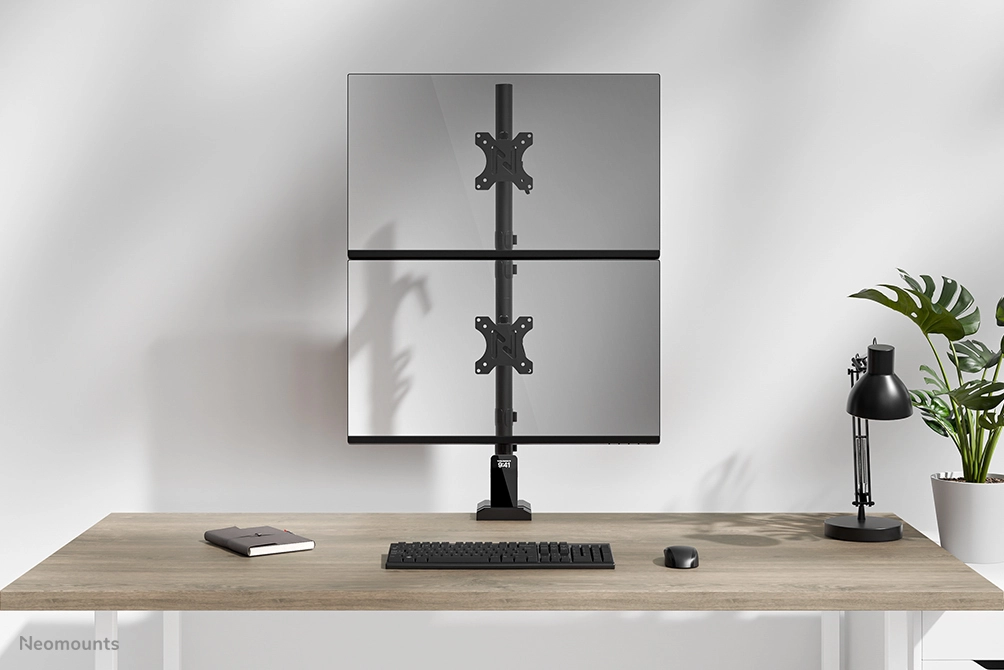

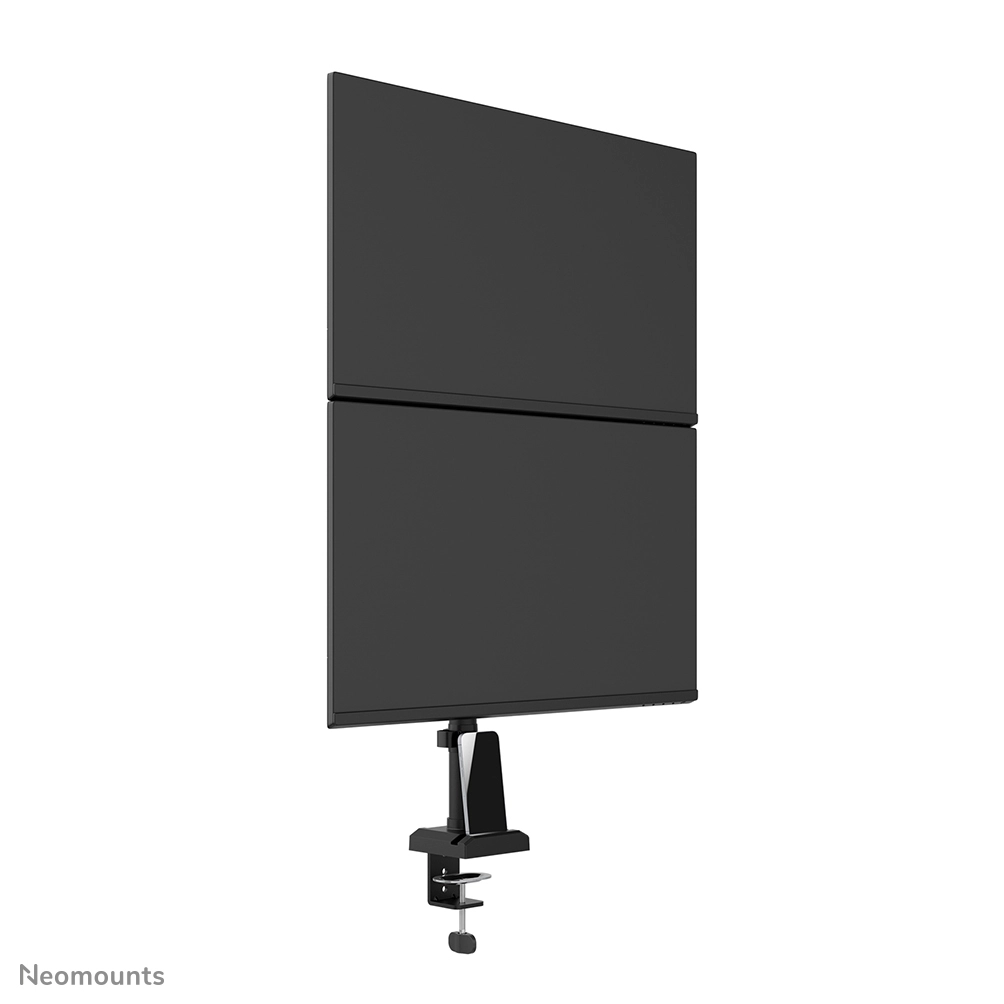

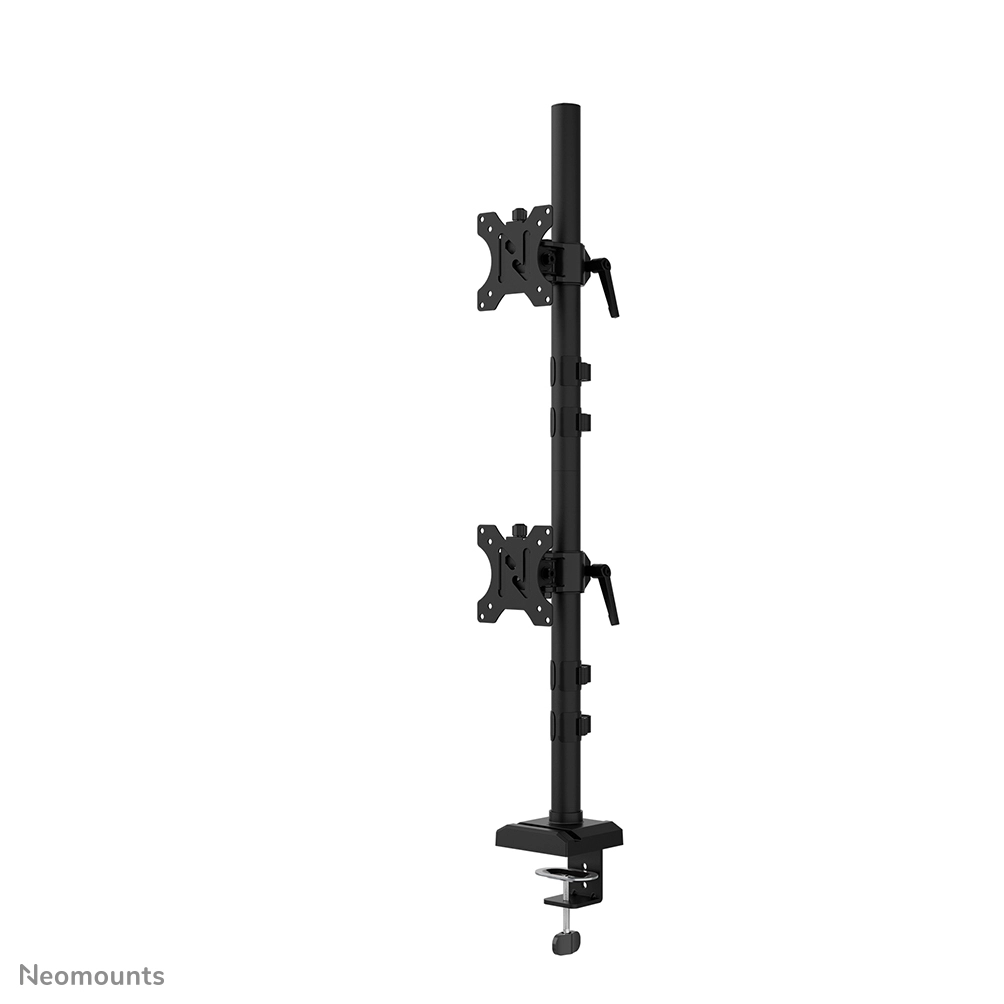

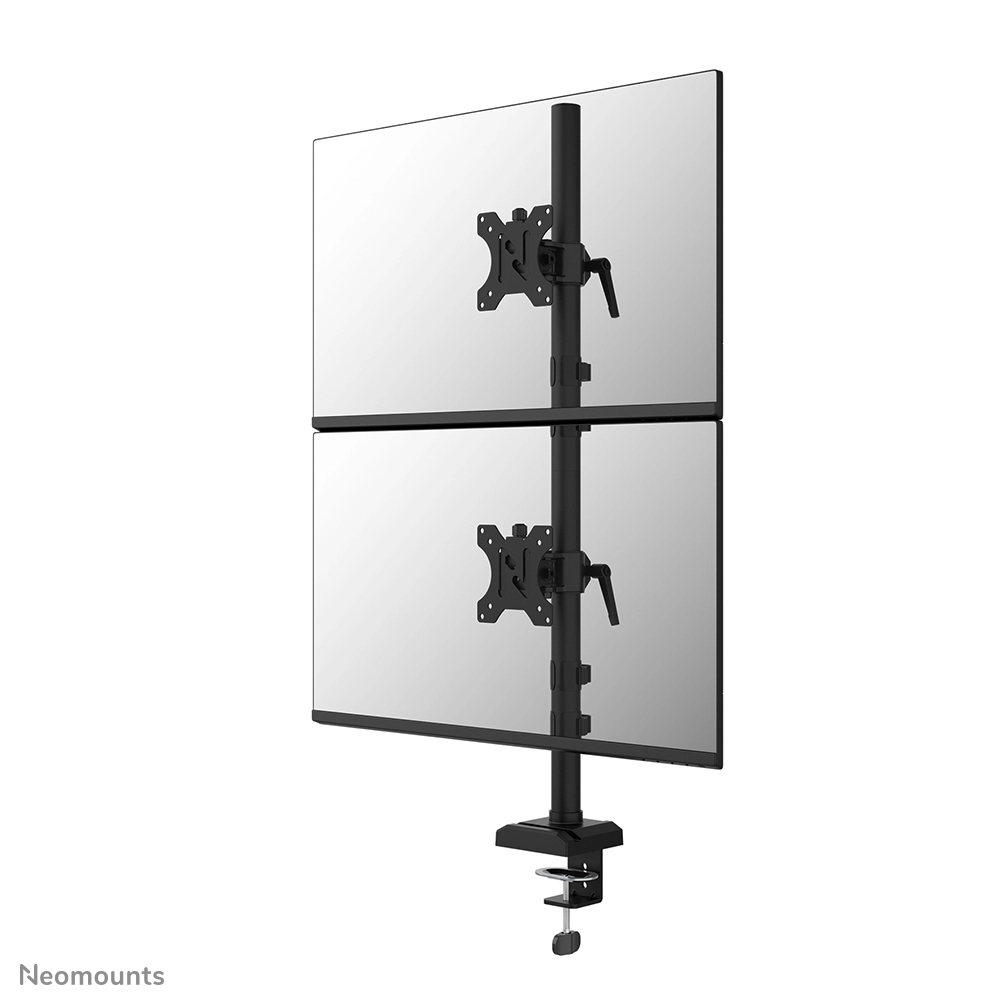

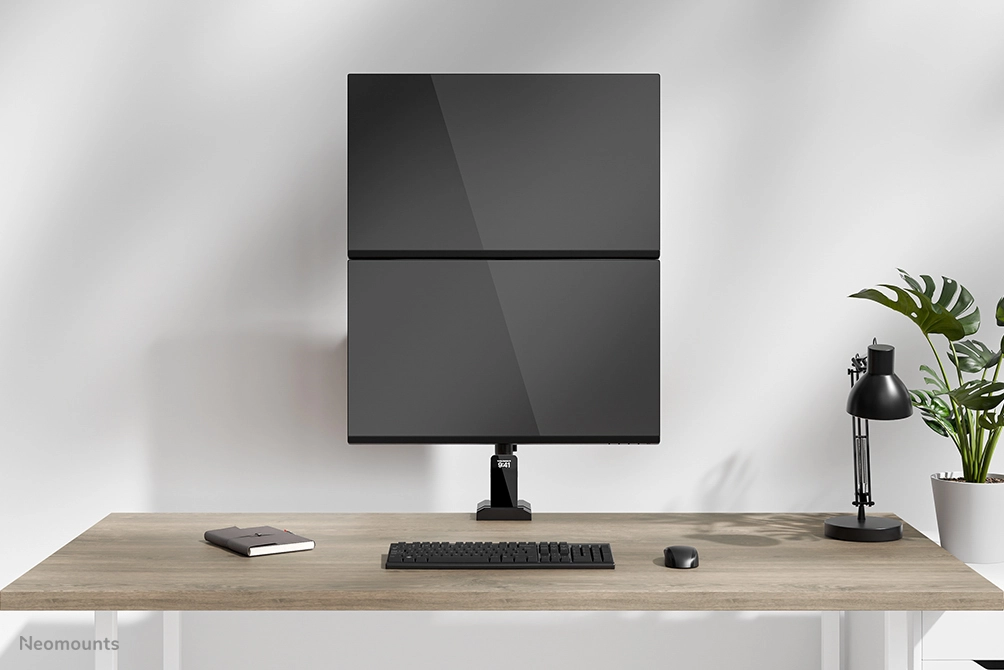

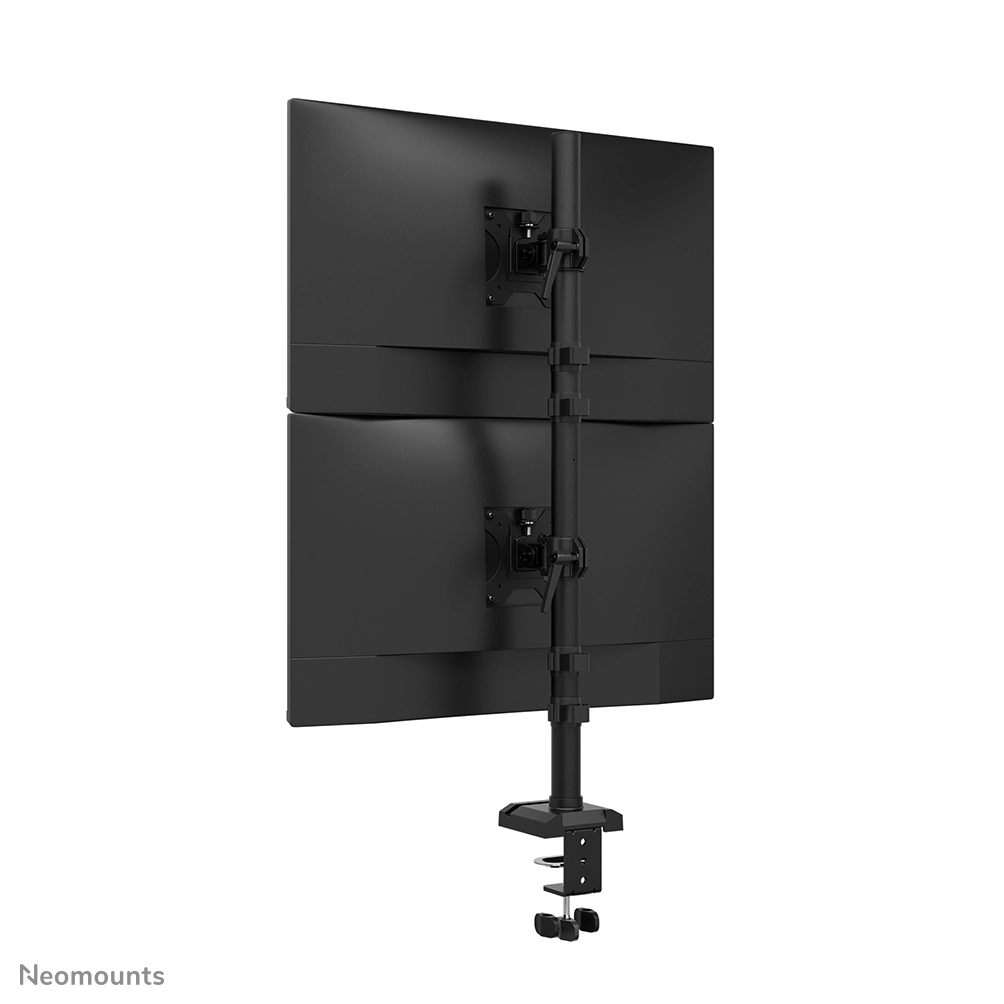

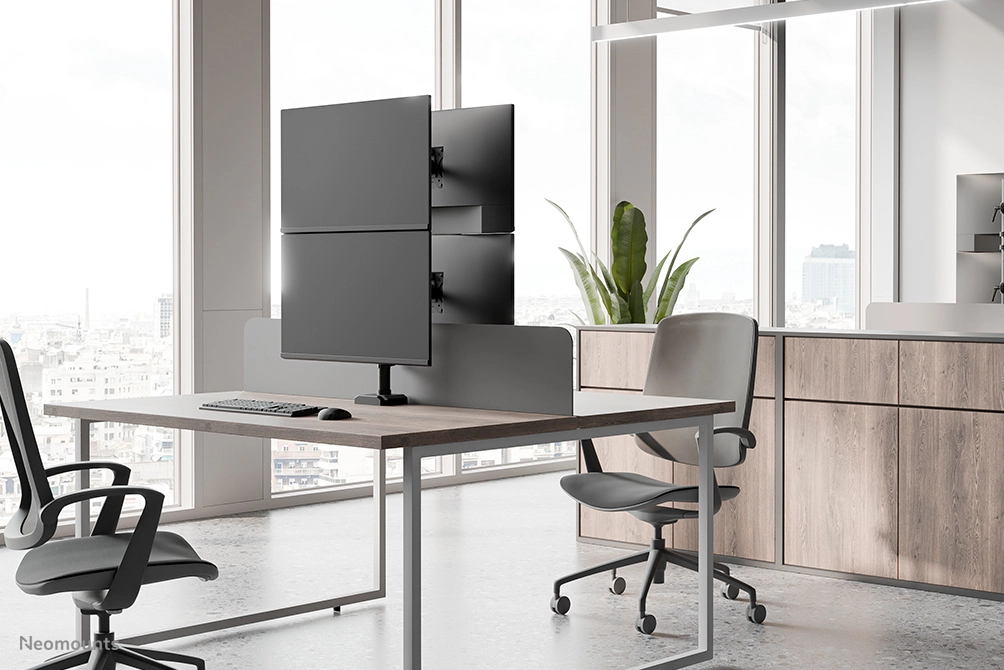

The Neomounts DS60-600BL2V is a professional dual monitor arm featuring a solid vertical pole, specifically designed for a stacked screen configuration. This full motion mount supports two monitors up to 32" (9 kg per screen) and offers an impressive height adjustment range of 14 to 83 cm. With versatile tilt (90°), rotate (360°), and swivel (160°) technology, you can effortlessly align your screens for an optimal ergonomic posture.

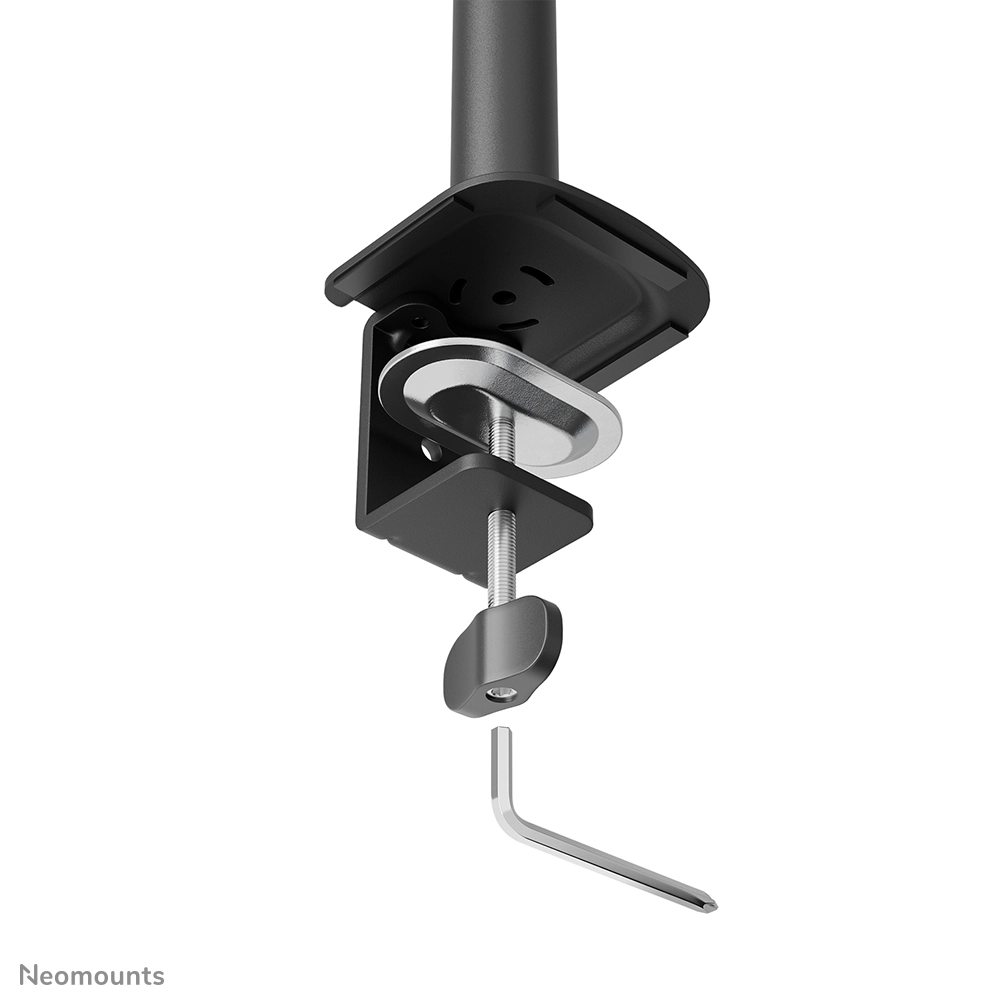

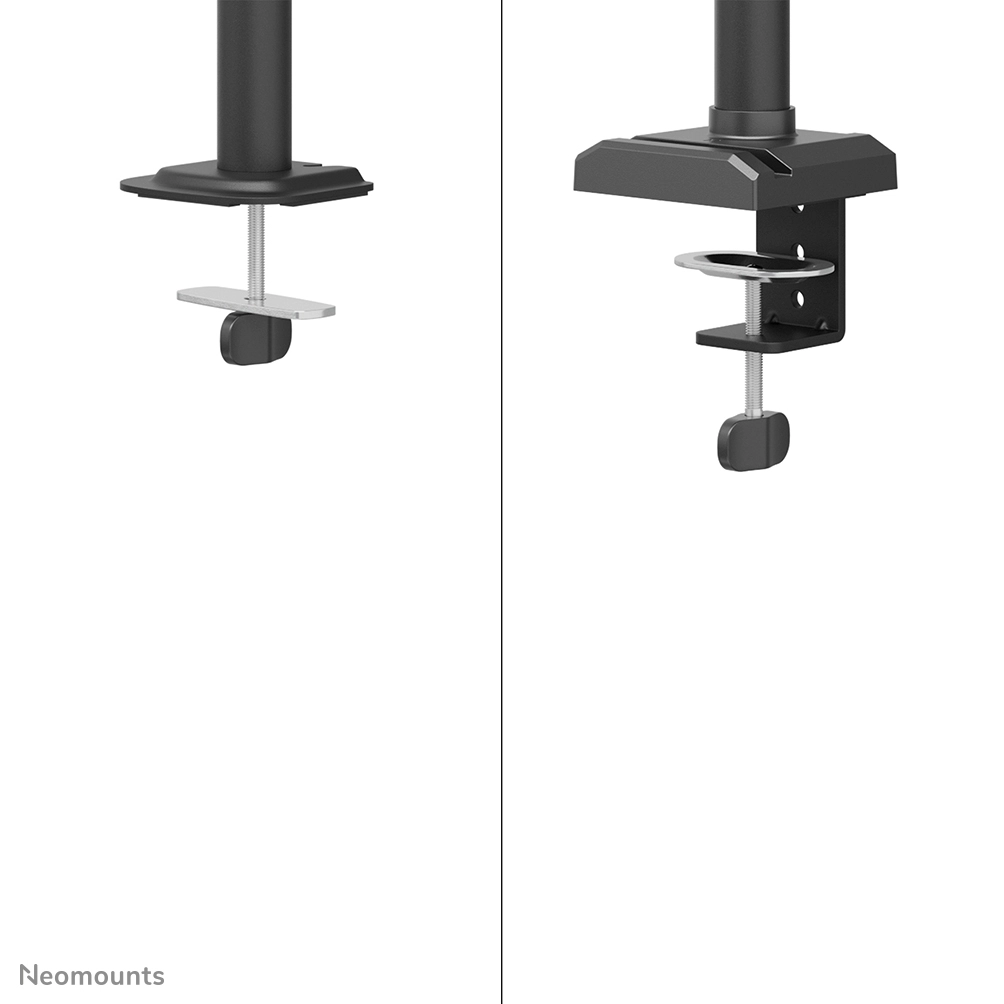

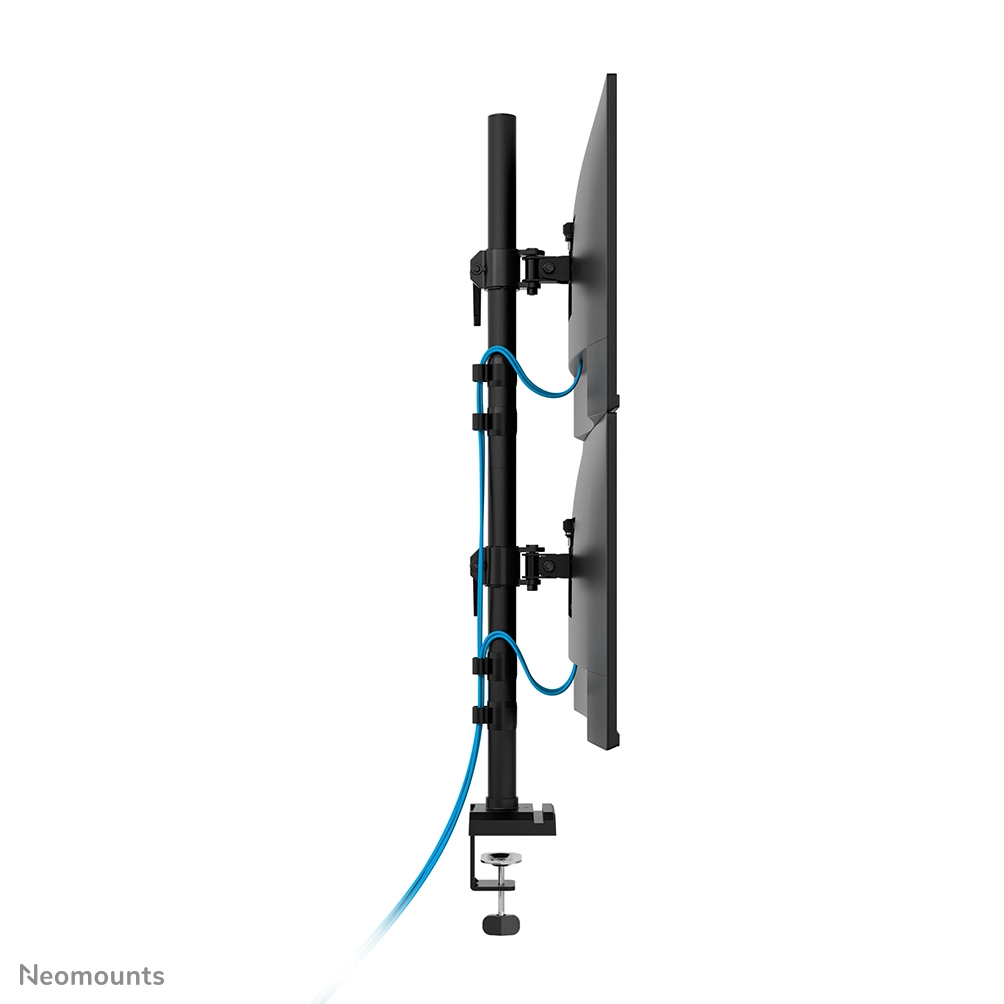

This model provides maximum installation flexibility, as it comes standard with both a quick-fix desk clamp for edge mounting and a grommet clamp for installation through the desktop. The robust construction ensures a stable base, while the integrated cable management system keeps your workspace tidy. Additionally, the base features a convenient phone slot to keep your smartphone within reach.

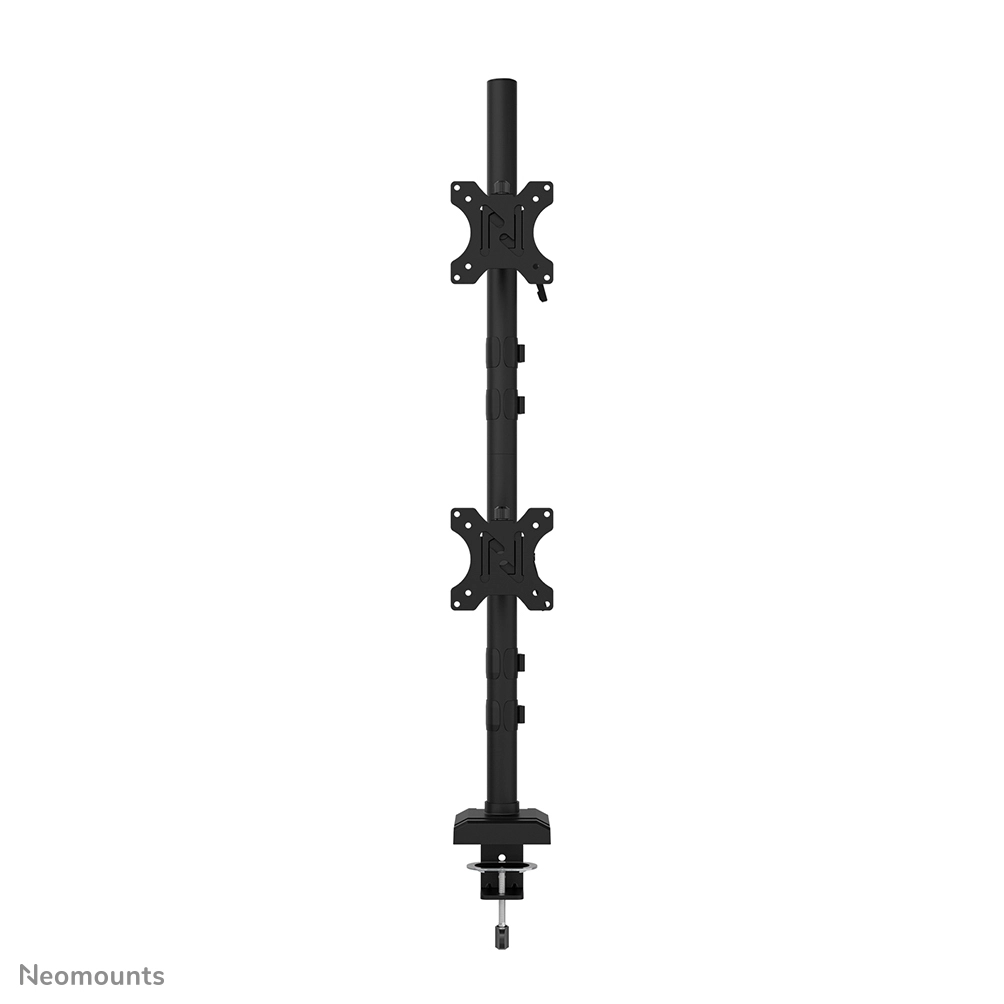

The arm is compatible with VESA patterns 75x75 and 100x100 mm. Thanks to the Easy-release VESA system, attaching or switching monitors is quick and simple. The DS60-600BL2V is a durable, high-quality solution for any professional environment or sophisticated home office.

Specification

Product
Product id	1017664
Brand	Neomounts
Partnr	DS60-600BL2V
EAN/UPC code	8721246340669
Warranty (months)	5 year
Mounting
Maximum weight capacity	9 kg
Maximum weight capacity (per display)	9 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100, 75 x 75 mm
Number of displays supported	1
Desk thickness (min)	50 mm
Desk thickness (max)	10 mm
Distance to the wall (max)	133 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Manual

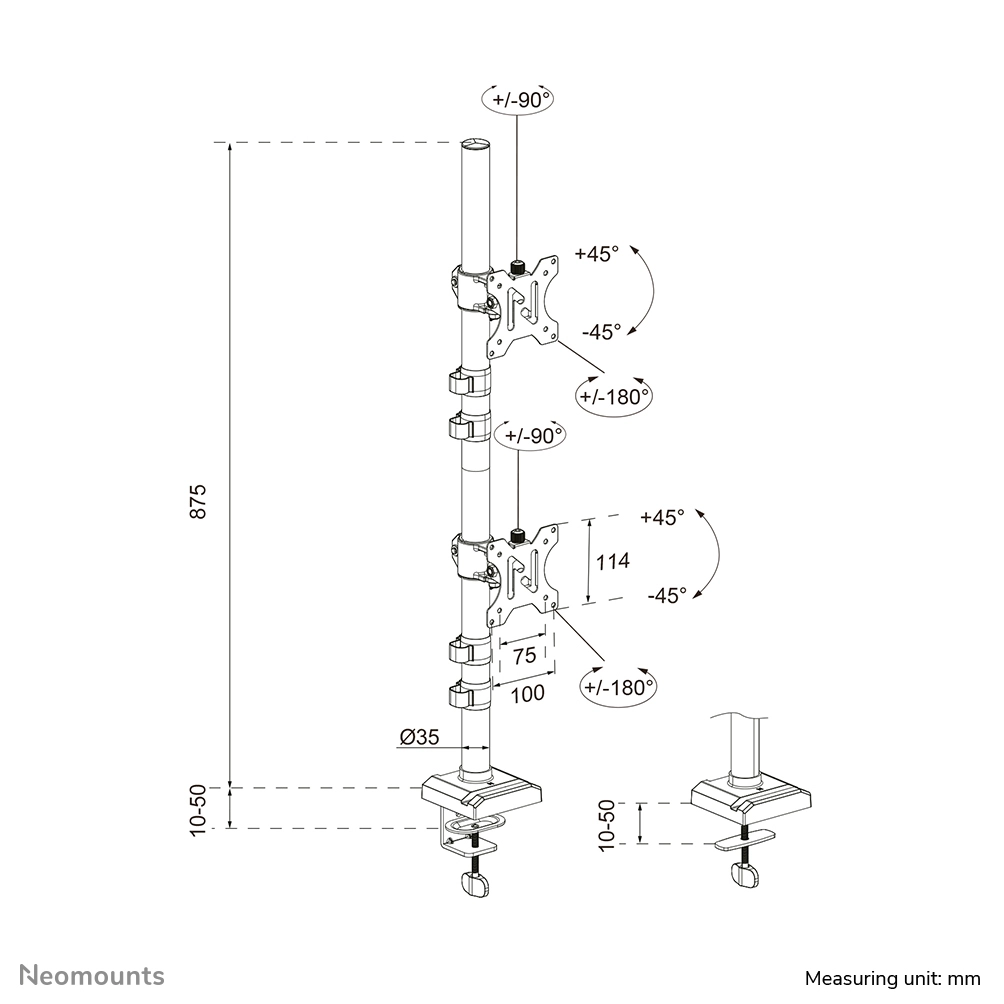

Height adjustment range	140 - 830 mm
Tilt angle range	0 - 90 °
Swivelling	Y
Swivel angle	180 °
Swivel angle range	0 - 180 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Technical details
Warranty period	5 jaar
Weight & dimensions
Width	110 mm
Depth	133 mm
Height	875 mm
Weight	3020 g
Package width	245 mm
Package depth	537 mm
Package height	138 mm
Package weight	4060 g
Logistics data
Master (outer) case width	265 mm
Master (outer) case length	560 mm
Master (outer) case height	305 mm
Master (outer) case weight	8300 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	6000 g
Harmonized System (HS) code	7326909890
Other features
Country of origin	China
