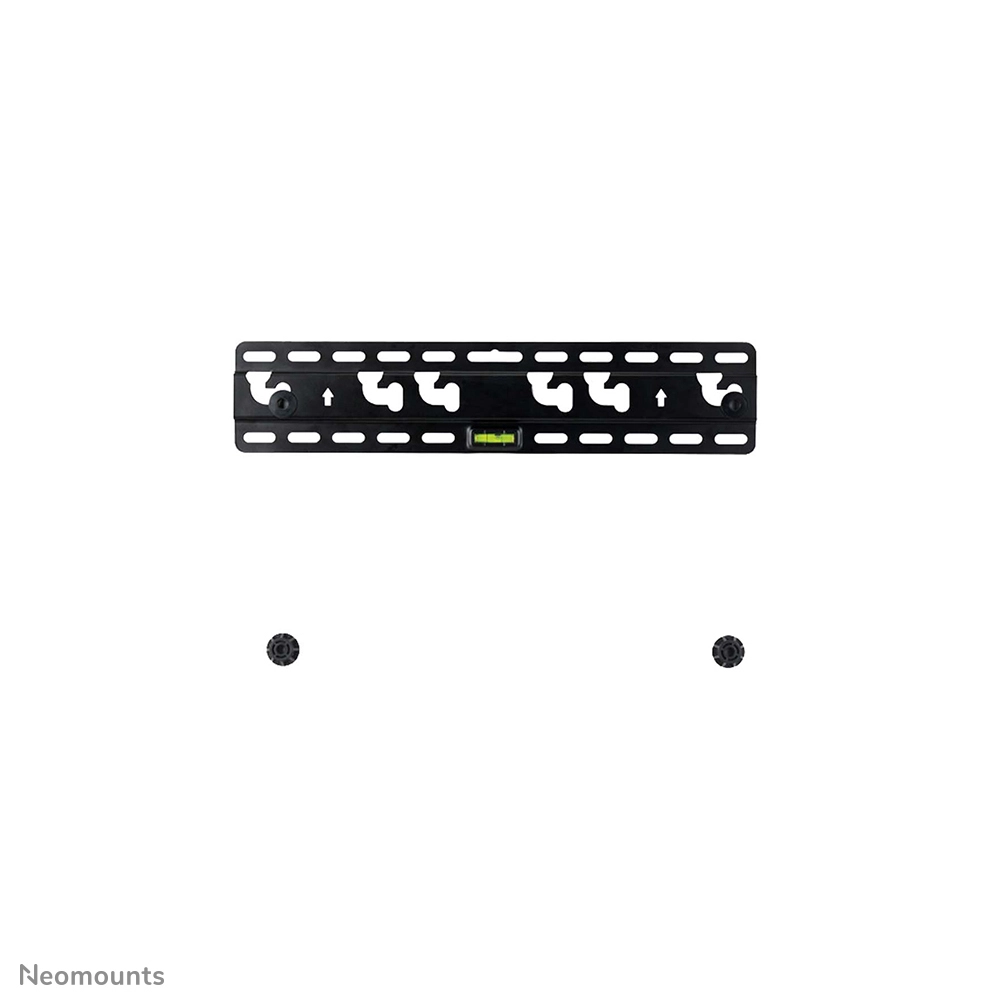

The Neomounts by Newstar wall mount, model LED-W040 is a fixed wall mount for flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 1, 5 to 3 centimetres.

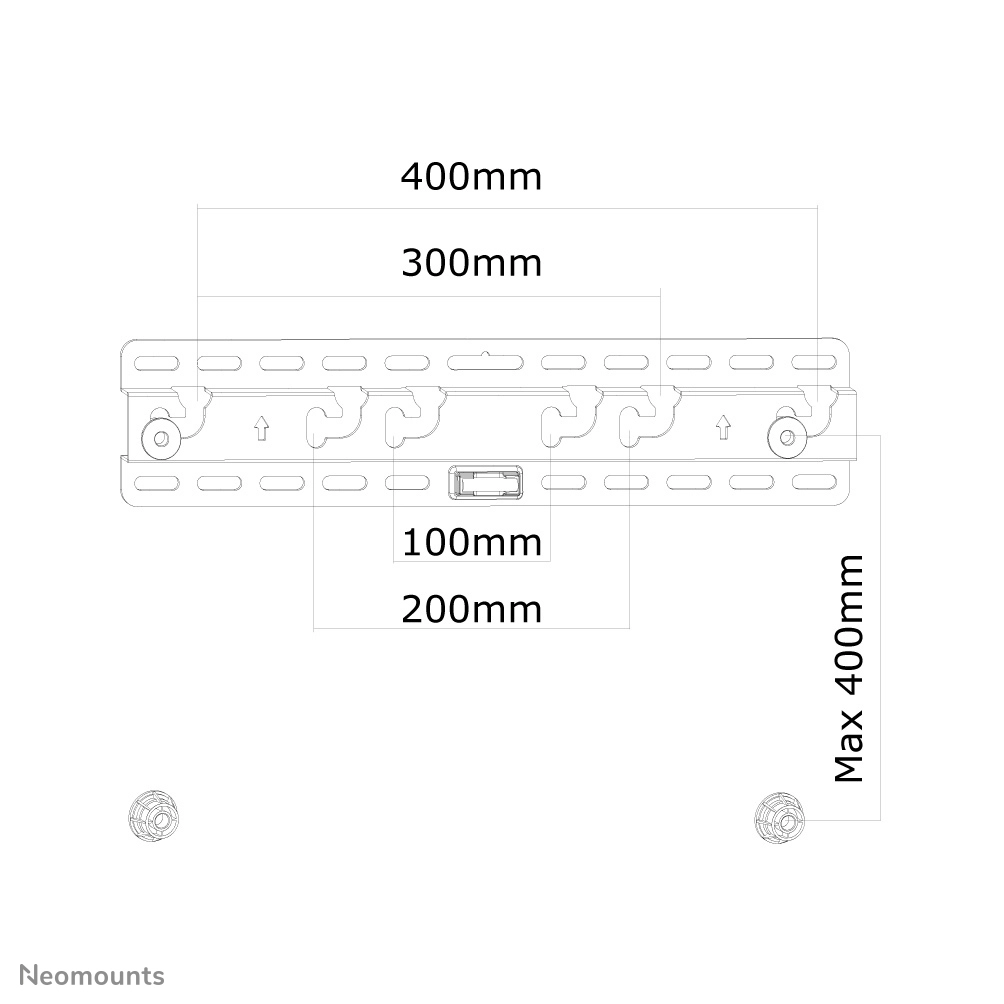

Neomounts by Newstar LED-W040 is suitable for screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Specification

Product
Product id	333009
Brand	Neomounts
Partnr	LED-W040
EAN/UPC code	8717371442941
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Maximum weight capacity (per display)	50 kg
Mounting type	Wall
Minimum screen size compatibility	23 "
Maximum screen size	52
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 200, 100 x 100, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400 mm
Ergonomics
Type	Fixed
Technical details
Product colour	Black
Number of displays supported	1
Distance to the wall (max)	30 mm
Package net weight	1300 g
Distance to the wall (min)	15 mm
Design
Housing material	Steel
Packaging data
Package width	490 mm
Package depth	30 mm
Package height	120 mm
Package weight	1300 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	270 mm
Master (outer) case length	500 mm
Master (outer) case height	150 mm
Master (outer) case weight	13500 g
Master (outer) case net weight	13000 g
Quantity per master (outer) case	10 stuk(s)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	490 stuk(s)
