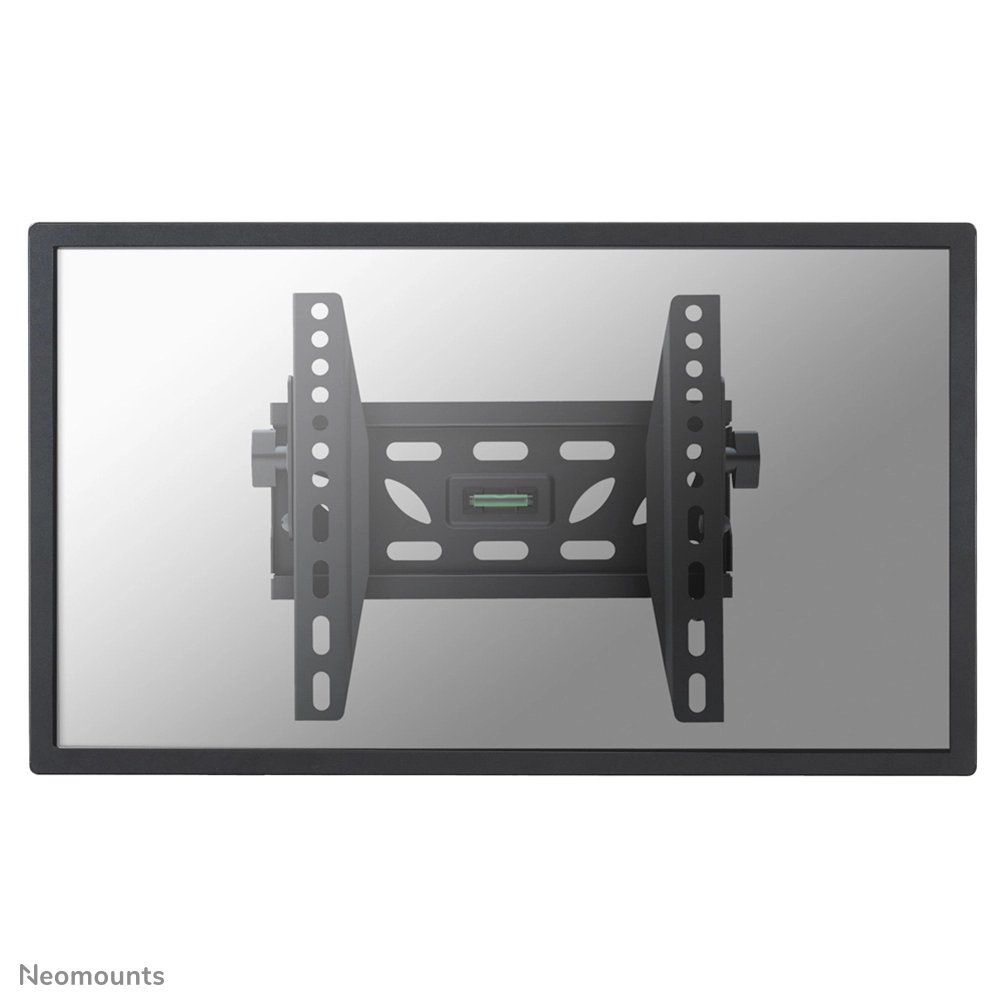

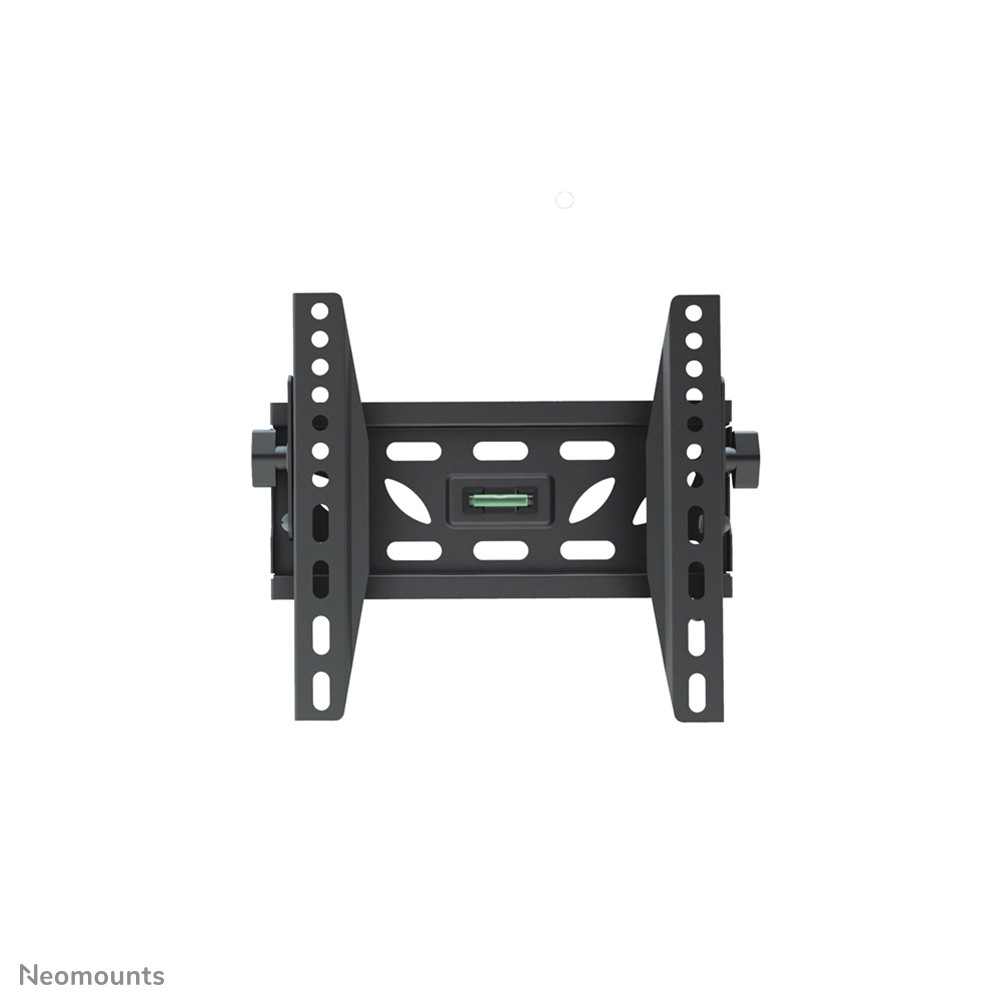

The Neomounts by Newstar wall mount, model LED-W220 is a tiltable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts by Newstars' tilt (10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 4 centimetres.

Neomounts by Newstar LED-W220 is suitable for screens up to 40" (102 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 200x200mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Specification

Product
Product id	333012
Brand	Neomounts
Partnr	LED-W220
EAN/UPC code	8717371442972
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Maximum weight capacity (per display)	50 kg
Mounting type	Wall
Minimum screen size compatibility	22 "
Maximum screen size	40

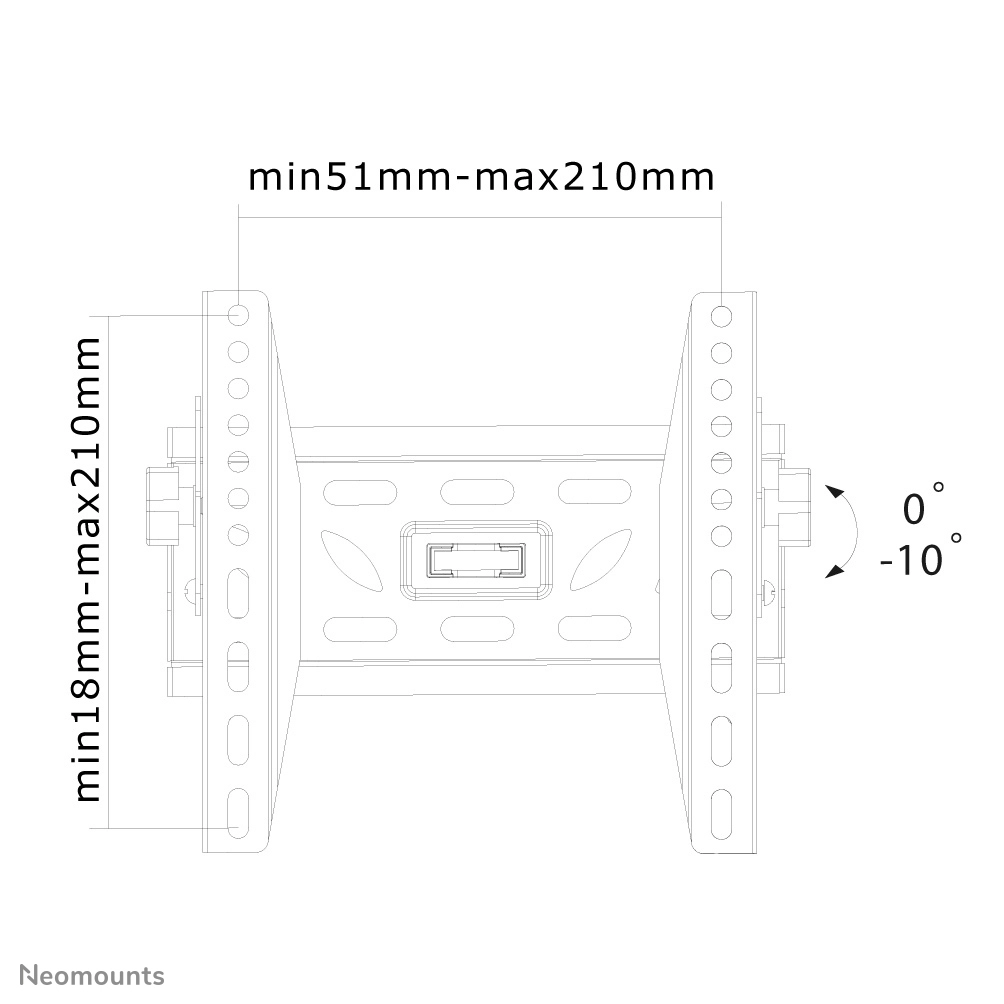

Minimum VESA mount	100 x 100 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200, 100 x 100, 100 x 150, 120 x 120, 200 x 100, 200 x 200 mm
Ergonomics
Tilt adjustment	Y
Tilt angle range	0 - 10 °
Technical details
Product colour	Black
Number of displays supported	1
Distance to the wall (max)	39 mm
Package net weight	840 g
Design
Housing material	Steel
Weight & dimensions
Weight	840 g
Packaging data
Package width	115 mm
Package depth	60 mm
Package height	270 mm
Package weight	800 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	485 mm
Master (outer) case length	250 mm
Master (outer) case height	390 mm
Master (outer) case weight	12640 g
Master (outer) case net weight	10080 g
Quantity per master (outer) case	12 stuk(s)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	288 stuk(s)
