The APPC-32SN (R26-7281), equipped with an advanced Rockchip RK3576 processor and ARM Mali-G52-MC3 GPU, is designed to elevate performance to new heights. With 4GB of RAM and 32GB of storage, multitasking is a breeze. Operating on Android 15, it offers one of the most flexible and secure operating systems in the market. The APPC-32SN (R26-7281) features a maximum brightness of 250 cd/m2. Paired with a 10-point touch-enabled panel treated for non-glare, this Android Panel PC ensures an optimal user experience. Designed for interactive kiosks, the APPC-32SN (R26-7281) comes with a VESA100 mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.

Specification

Product
Product id	1025059
Brand	ProDVX
Partnr	5032300
EAN/UPC code	5032300
Warranty (months)	3 years
Product information sheet(s)
Display
Display diagonal	32 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
LED backlight	Y
Display brightness	250 cd/m²
Panel type	IPS
Surface hardness	6H
Response time	8 ms
Anti-glare screen	Y
Display number of colours	16.7 million colours
Contrast ratio (typical)	1000:1
Multi-touch	Y
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	Rockchip RK3576
Processor frequency	2.2 GHz
Processor cores	4
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Graphics
On-board graphics adapter	Y
On-board graphics adapter model	Mali-G52 MC3
Audio
Built-in speaker(s)	Y
RMS rated power	10 W
Built-in microphone	Y
Audio formats supported	AAC, ASF, MP2, MP3, OGG, WAV, WMA
Camera
Built-in camera	N
Network
Wi-Fi	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Bluetooth	Y

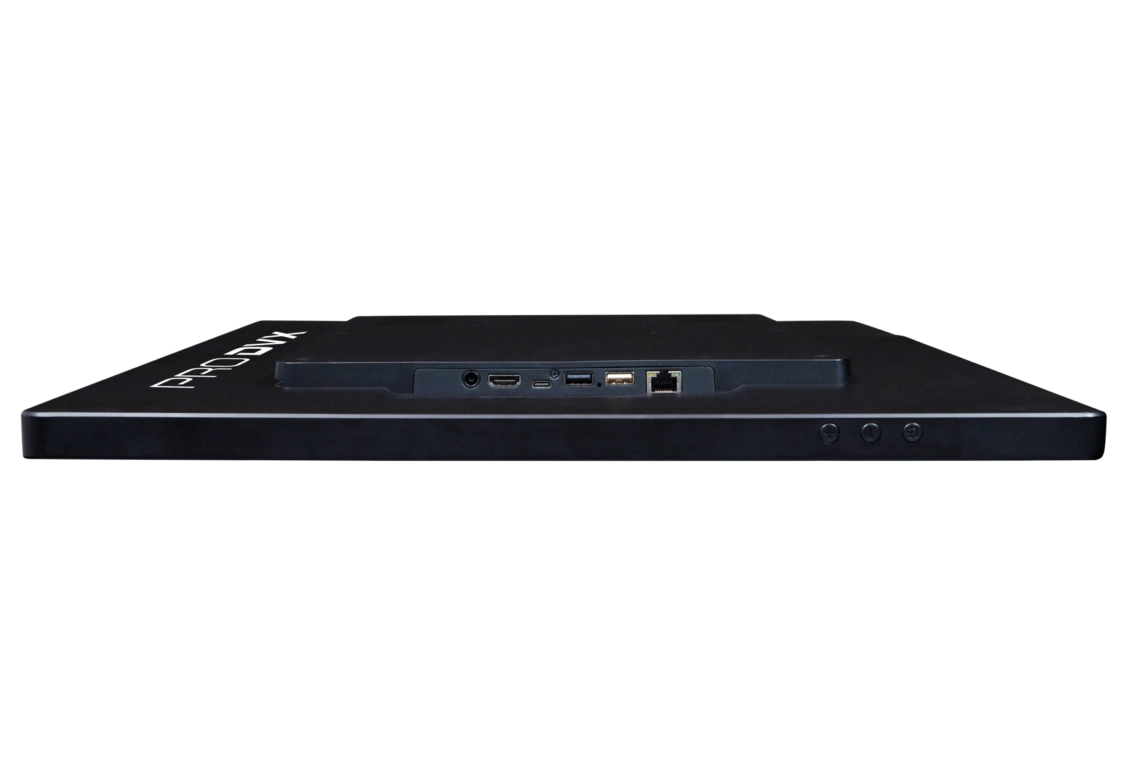

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI input ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Design
Product colour	Black
Housing material	Polycarbonate (PC)
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Software
Operating system installed	Android
Power
Power consumption (typical)	40 W
Weight & dimensions
Depth (without stand)	31.3 mm
Height (without stand)	436 mm
Width	753.3 mm
Depth	436 mm
Height	31.3 mm
Weight	7700 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Other features
Mean time between failures (MTBF)	35000 uur
Video formats supported	H.264, MP4, MPEG2, MPEG4, MPG, H.265
Backlight type	Edge LED
Input voltage	12 V
Number of built-in speakers	2
Image formats supported	JPG, JPEG, PNG, BMP, GIF
Power over Ethernet (PoE)	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	Multi
Operating system version	15
Built-in processor	Y
Glass thickness	1.55 mm
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Internal storage capacity	64 GB
LED backlighting type	Edge-LED
Display technology	LCD
USB ports quantity	3
USB port	Y
Operating hours (hours/days)	24/7
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Haze rate	8 procent
Touch response time	10 ms
Number of simultaneous touchpoints (Android)	10
