Extend and distribute a VGA signal to up to 4 displays over Cat5 cable

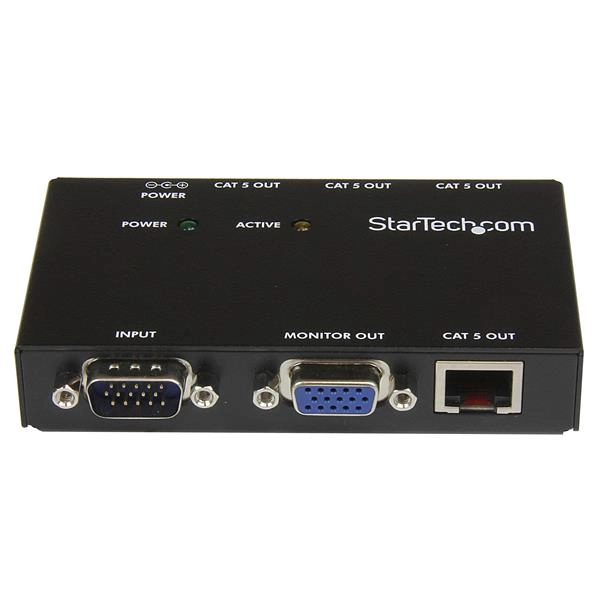

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing. Consisting of the transmitter unit only, this product requires a single ST121R receiver unit per remote display that you are connecting. If you are looking for an eight port transmitter solution, we offer our ST1218T 8 port VGA extender unit. For even more versatility, the ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units. Backed by a StarTech. com 2-year warranty and free lifetime technical support.

Specification

Product
Product id	356791
Brand	StarTech.com
Partnr	ST1214T
EAN/UPC code	065030824446
Warranty (months)	2 Year Warranty
Features
Type	AV transmitter & receiver
Maximum resolution	1600 x 1200 Pixels
Cable types supported	Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7
Maximum transfer distance	150 m
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA)
Material	Aluminium
Product colour	Black
Ports & interfaces
RJ-45 output ports	4
VGA (D-Sub) output ports	1
VGA (D-Sub) input ports	1
VGA (D-Sub) ports quantity	4
DC-in jack	Y
Power
AC input voltage	100-240 V
Operating voltage	9 V
Current	0.6 A
Weight & dimensions
Dimensions (WxDxH)	63.9 x 103 x 20.6 mm
Weight	246 g
Packaging data
Package width	104.00 mm
Package depth	101 mm
Package height	98.00 mm
Package weight	529 g
Technical details
Number of connectors	7
Power supply type	9V DC 0.6A
