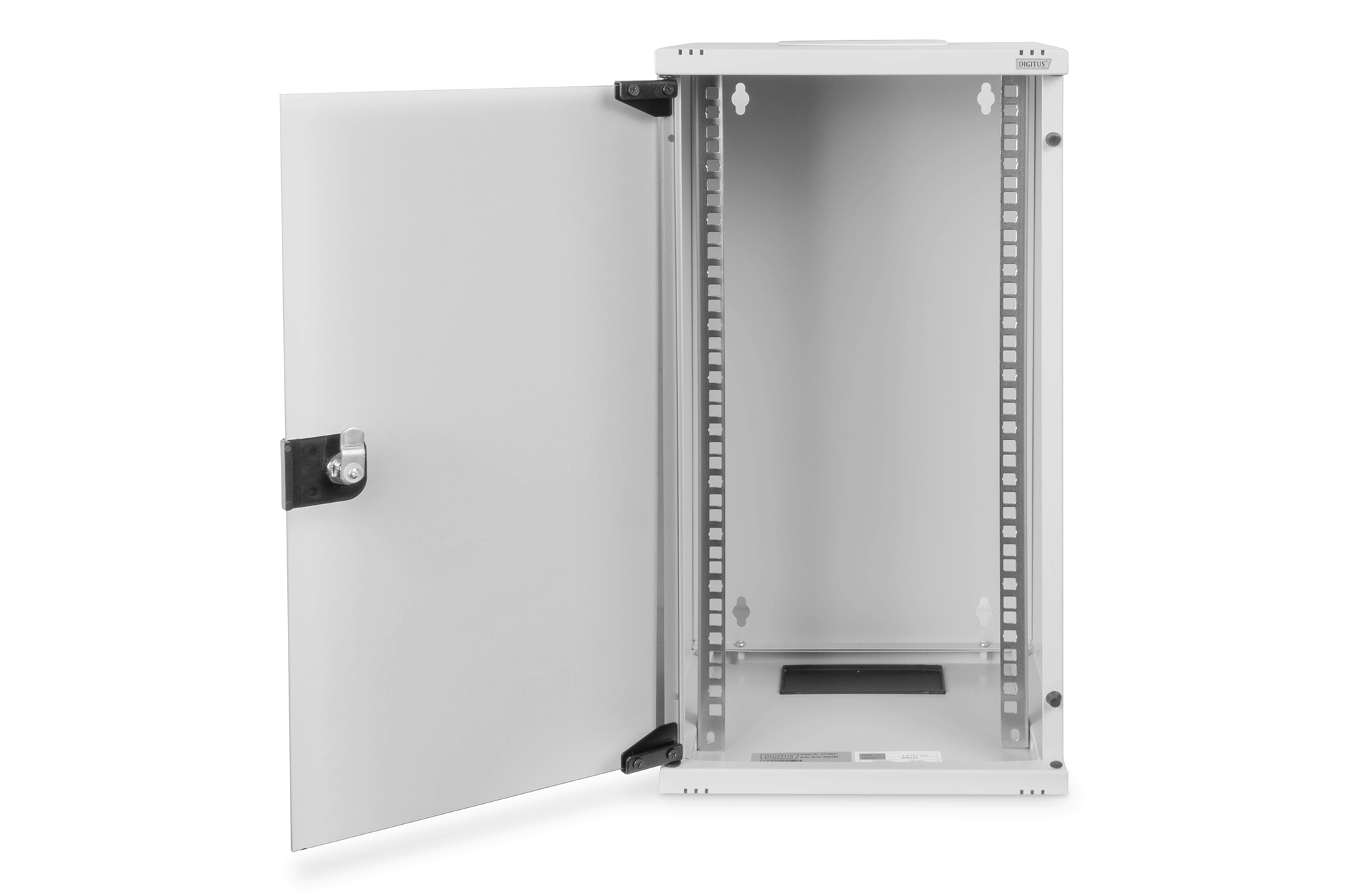

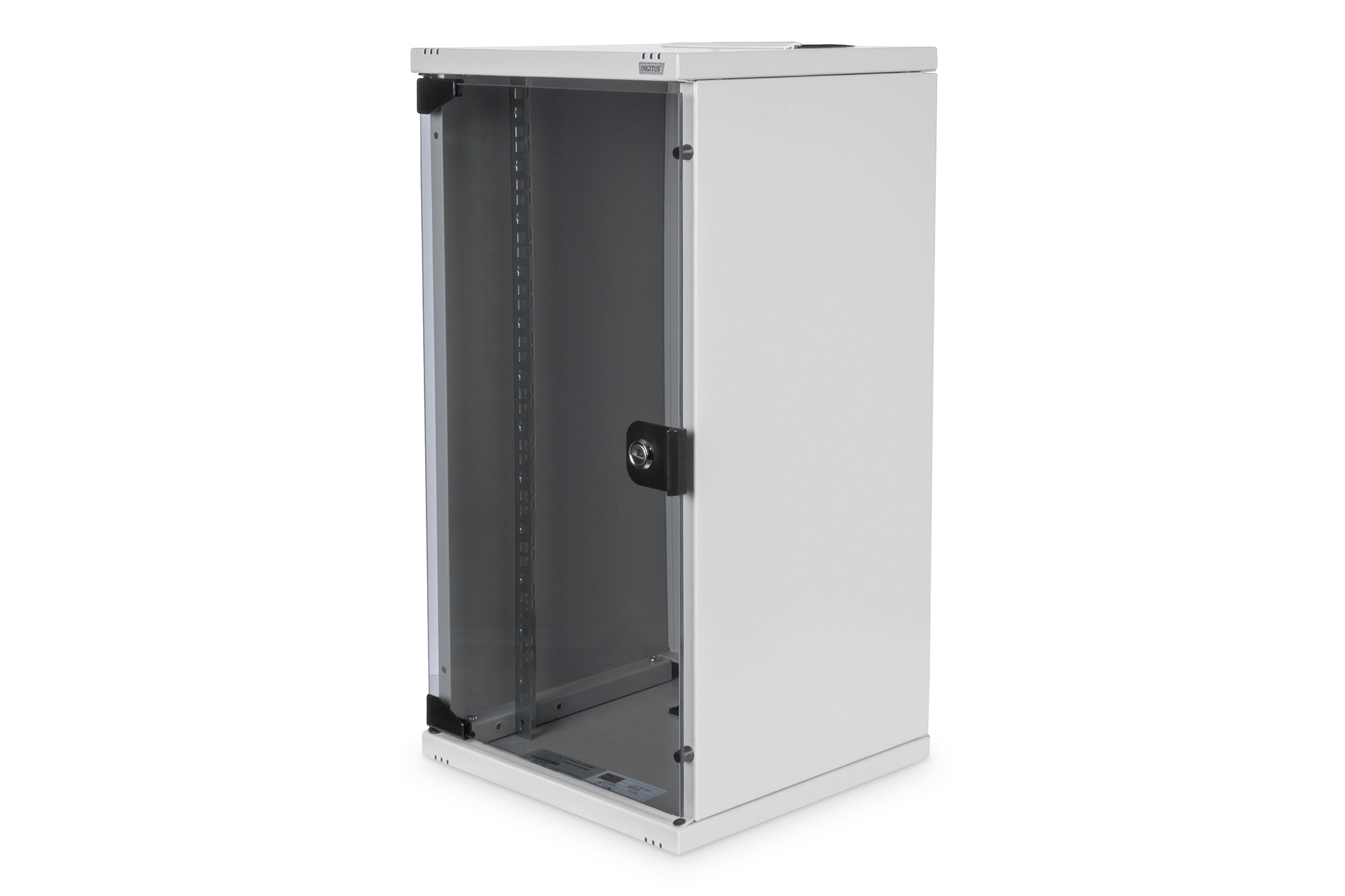

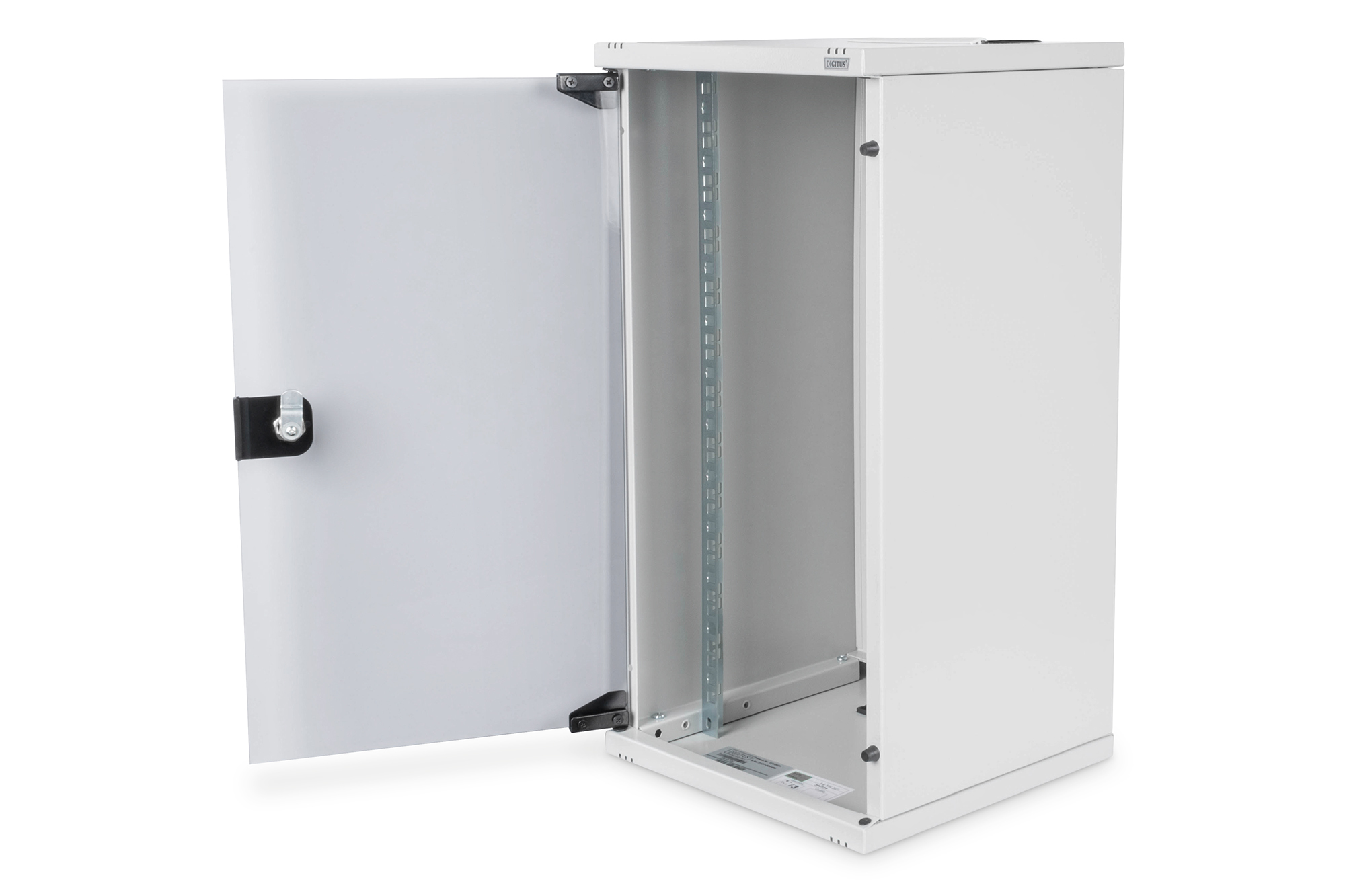

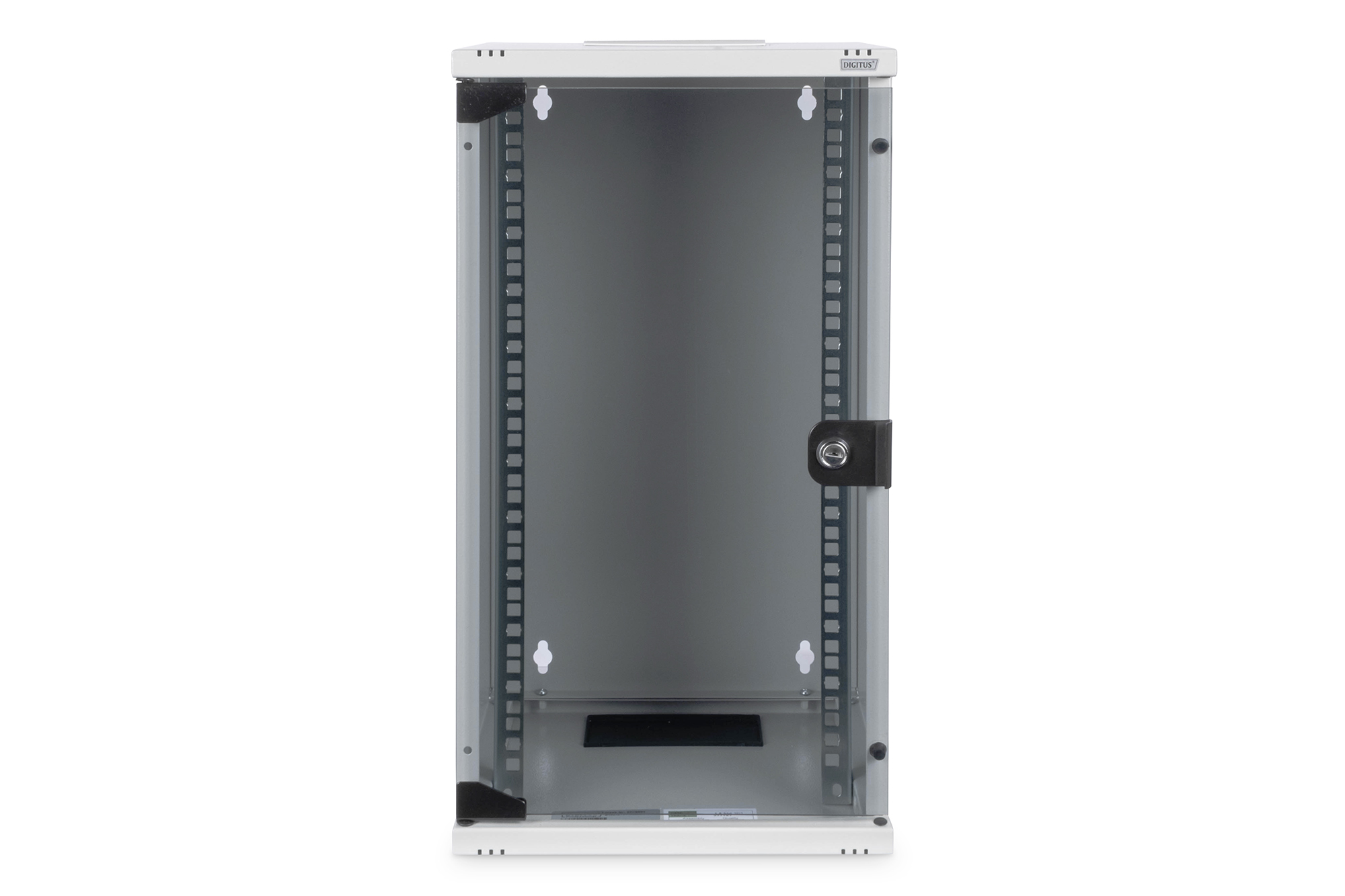

Wall-mounted housing 254 mm (10") - 312x300 mm (WxD)

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg

Whether at home, in the office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specification

Product
Product id	791118
Brand	Digitus
Partnr	DN-10-12U
EAN/UPC code	4016032474241
Product information sheet(s)
Class	Network/server enclosure
Mounting level	Front side
Type of profile rail	L-shape
Number of doors	1
Type of ventilation	Passive
Width	312 mm
Height	592 mm
Depth	200 mm
Modular spacing	254 mm (10 inch)
Number of height units	12
Max. load capacity	30 kg
With roof plate	true
With earthing	false
With front door	true
Material front door	Steel
Front door locking system	1-point
With rear door	false
Material rear door	Steel
Rear door locking system	None
With glazed door	true
With sidewall	true
With base	false
With vertical cable management	false
Material	Steel
Surface finishing	Powder coating
Colour	Grey
Model	With permanent frame
RAL-number	7035
Demountable	true
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
