Combination wall-mounted housing 254 mm (10") and 482.6 (19") mm

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Can be used for 254 mm (10") or 483 mm (19") applications
- Round profile frame: 254 mm (10") 10U horizontal or 482.6 mm (19") 5U vertical

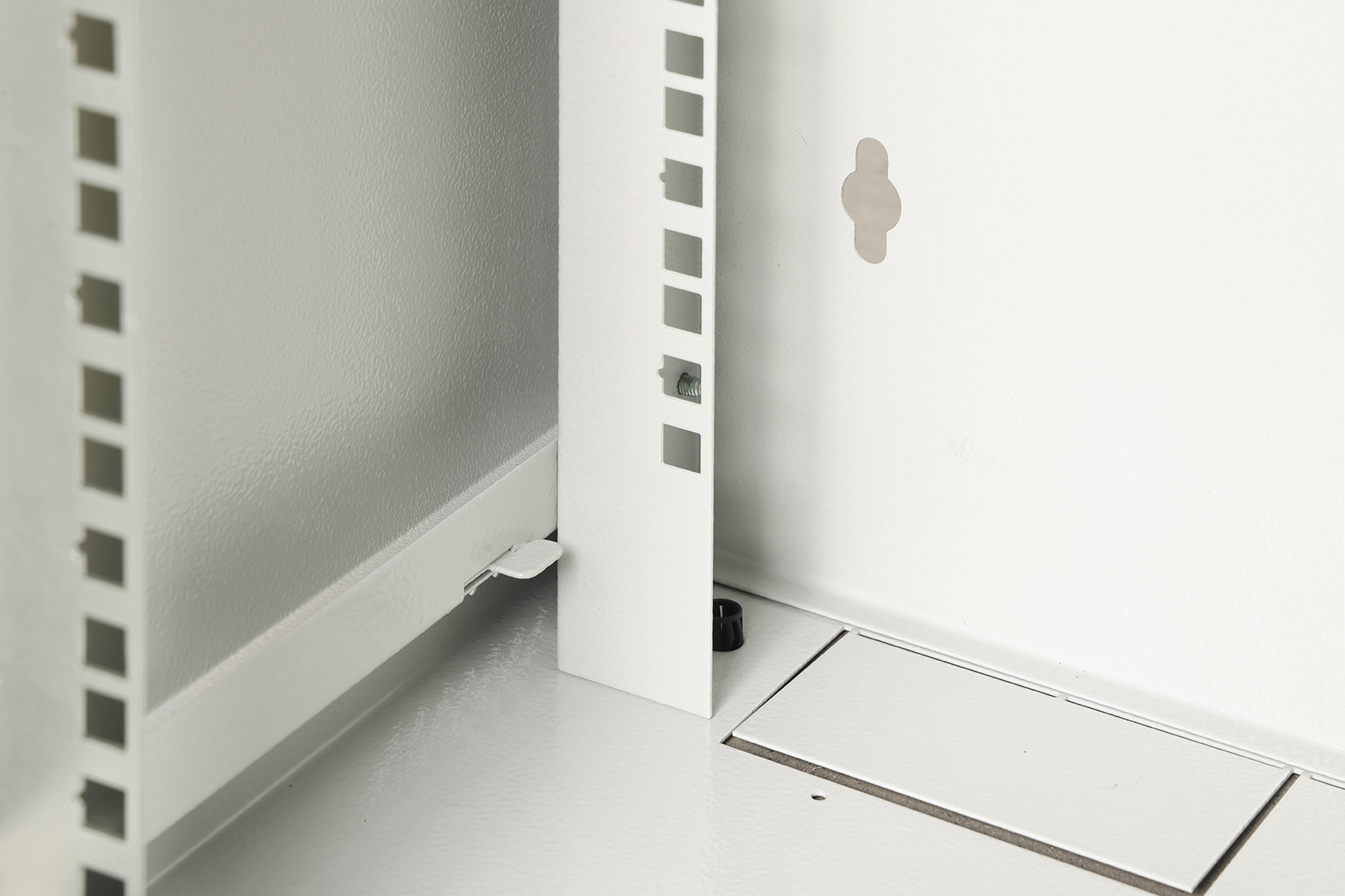

- Additional 254 mm (10") 10U profile perforation in the rear area
- Removable side panels from the inside
- Ready for immediate use: Delivery is assembled

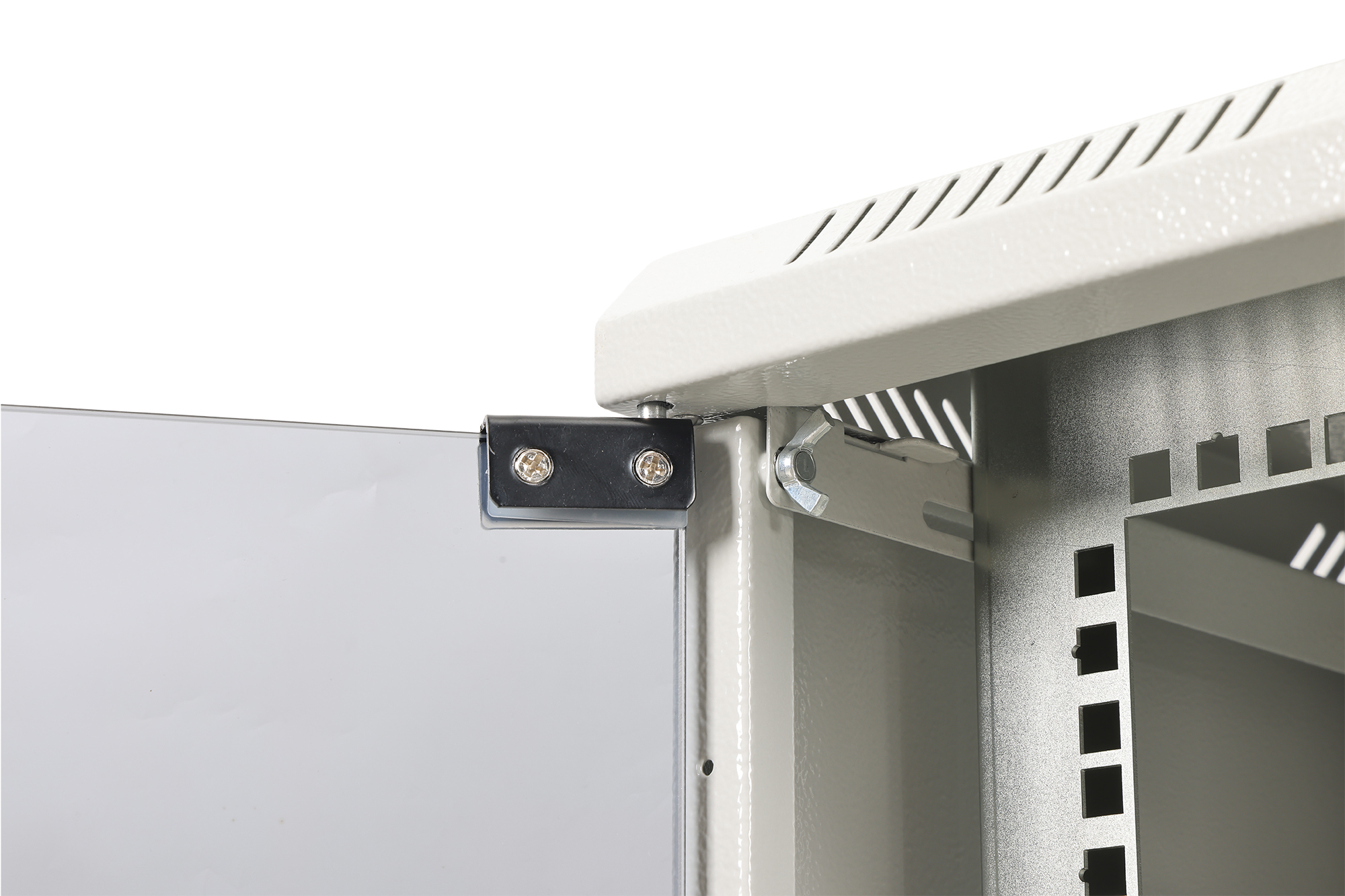

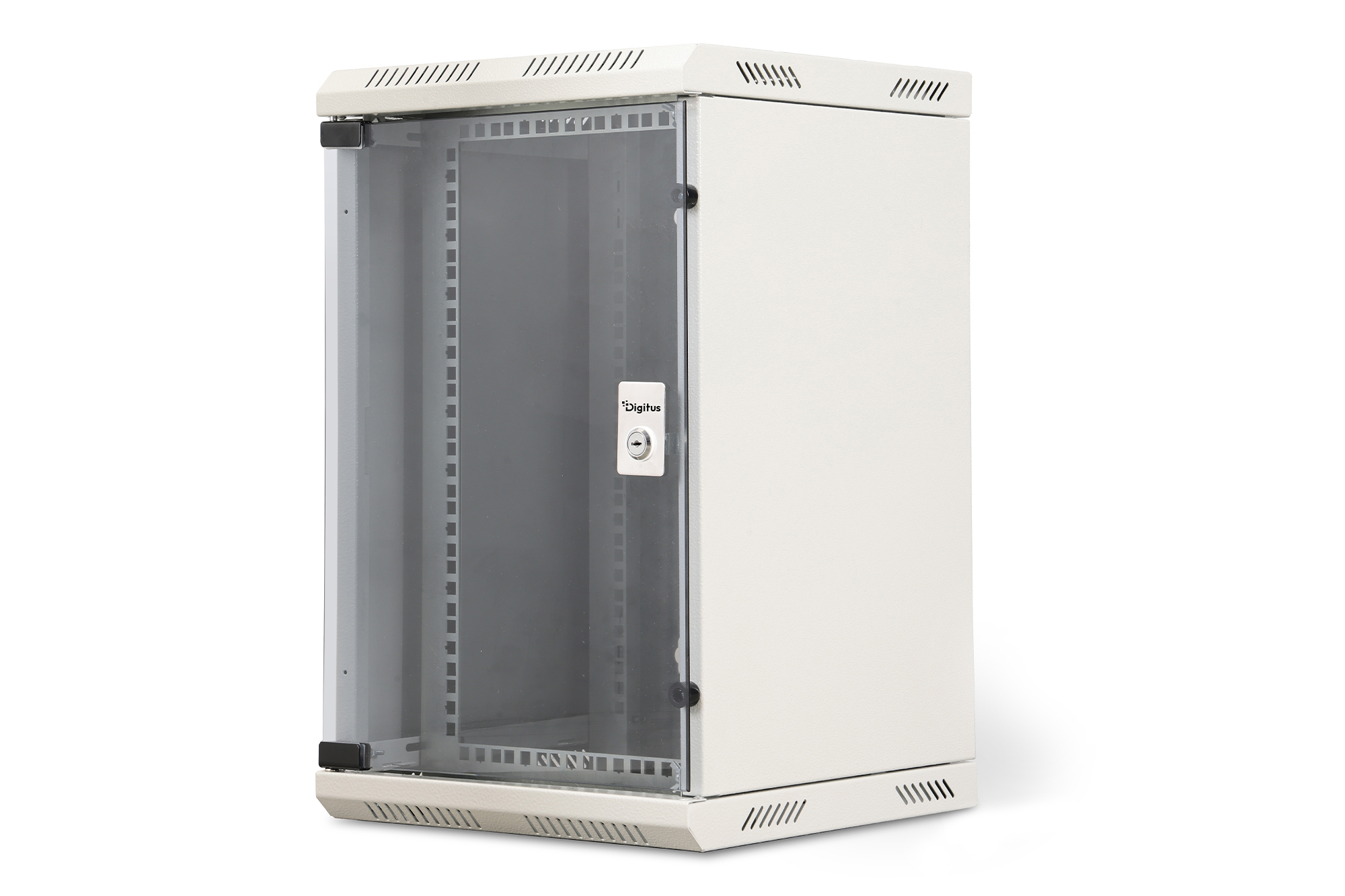

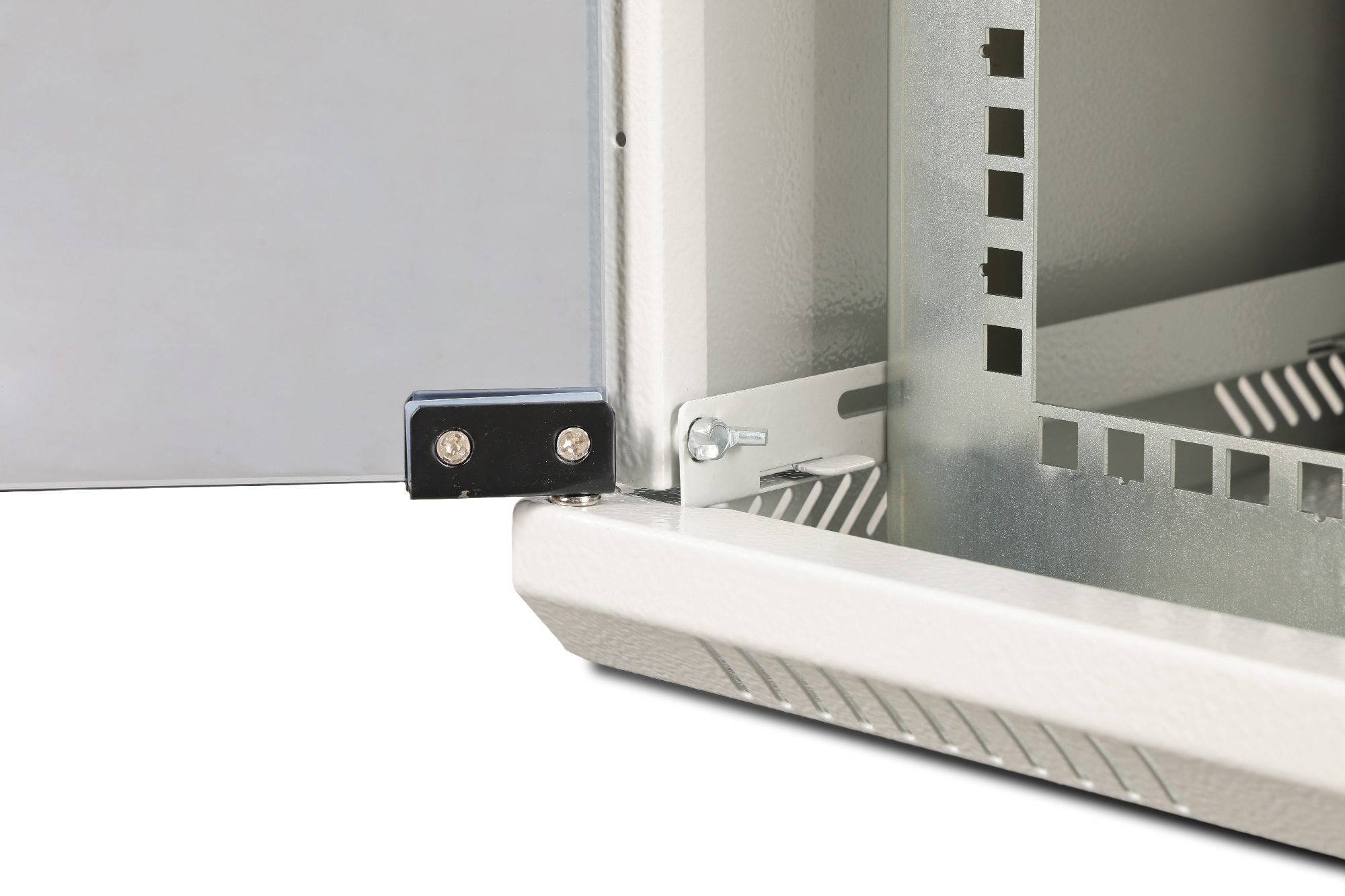

- Lockable safety glass door with 200° door opening angle

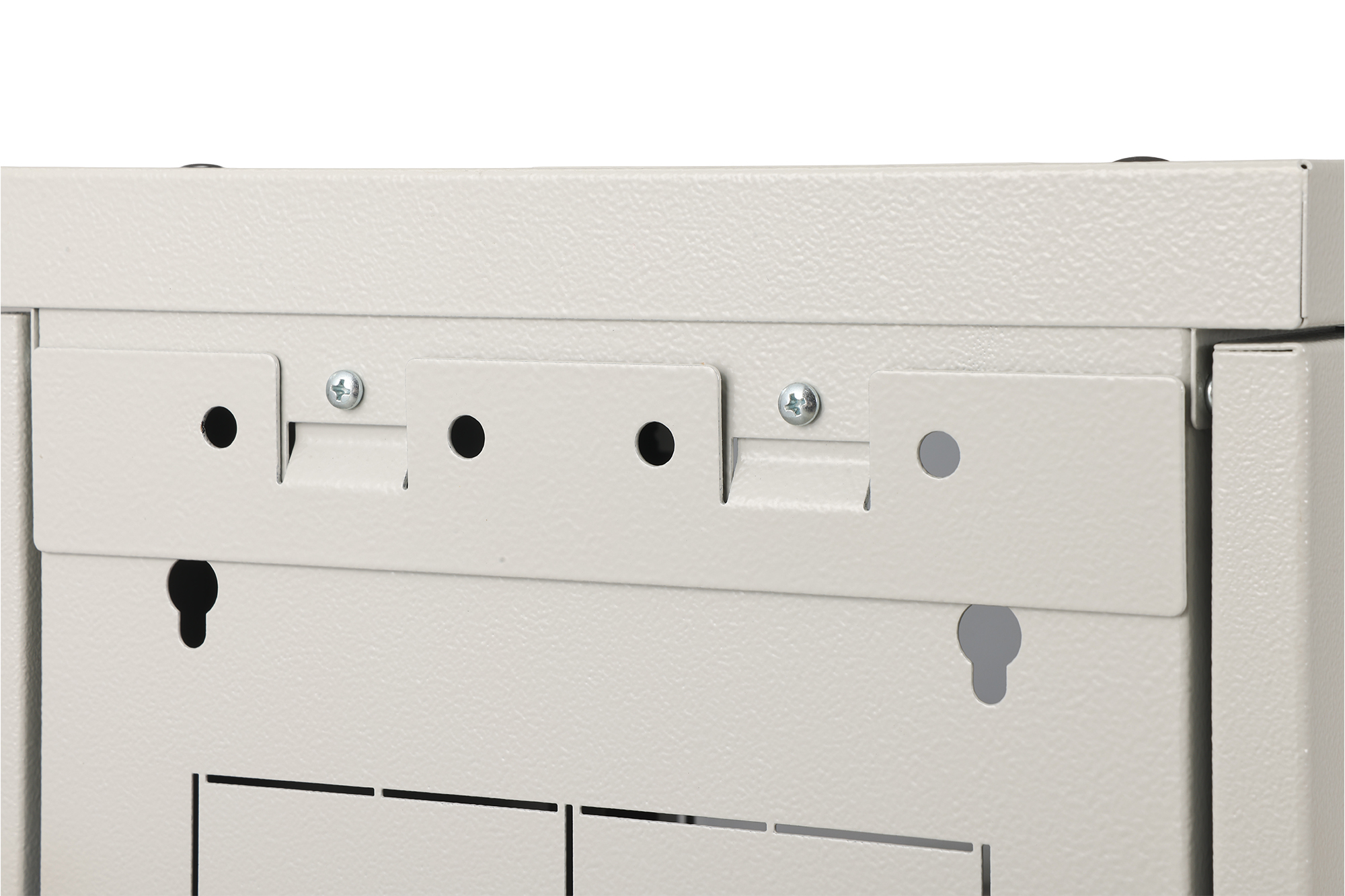

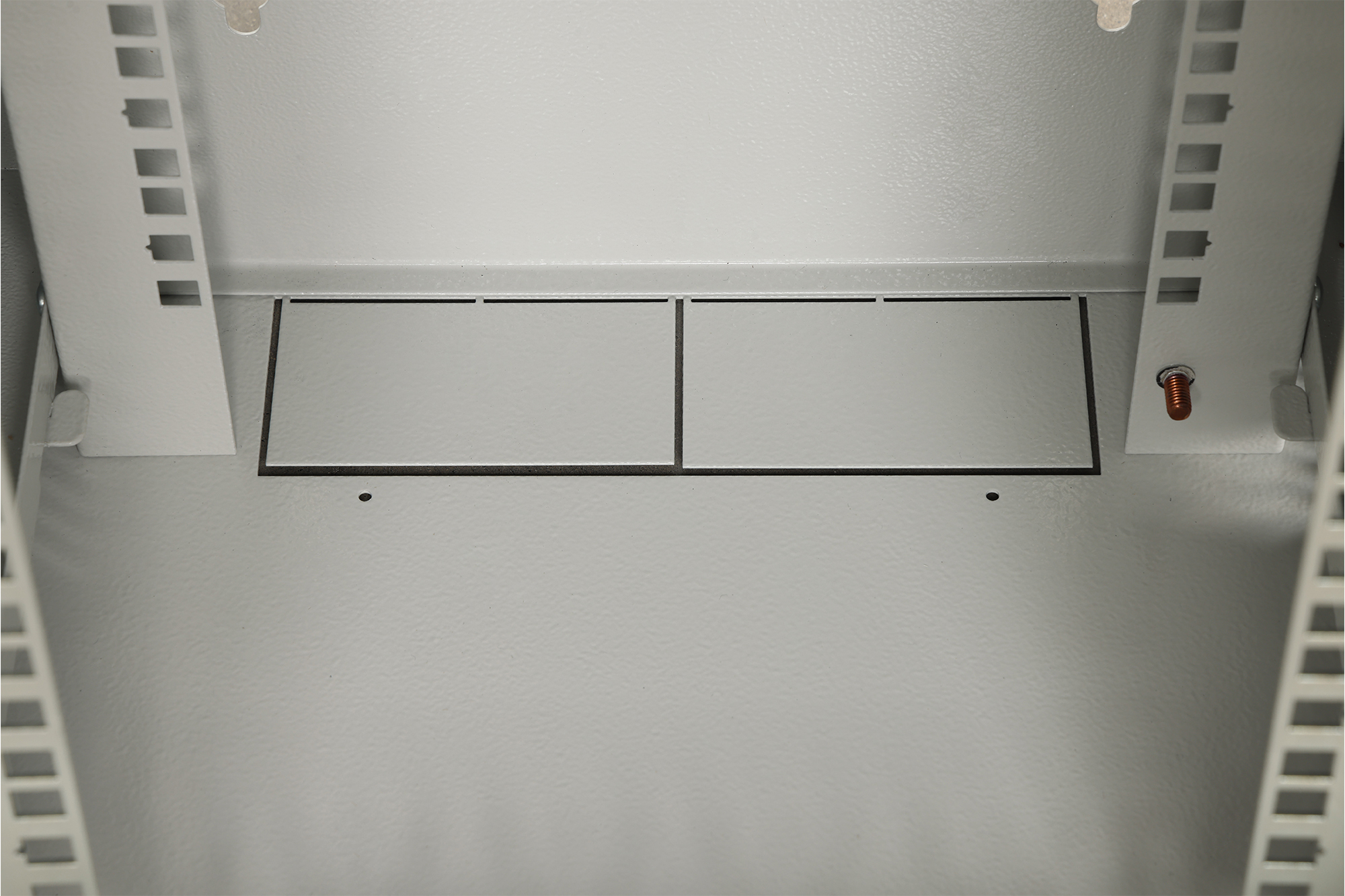

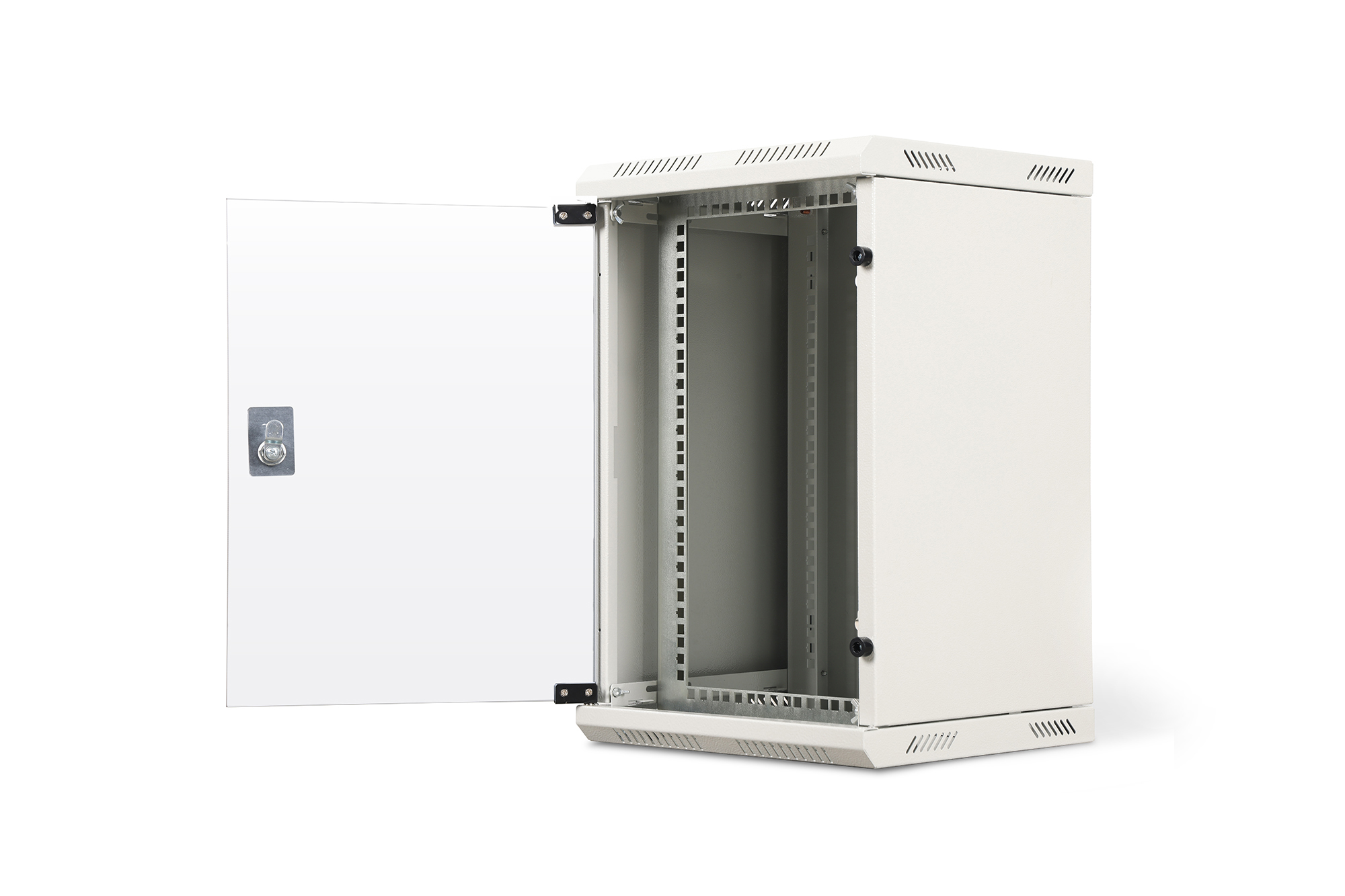

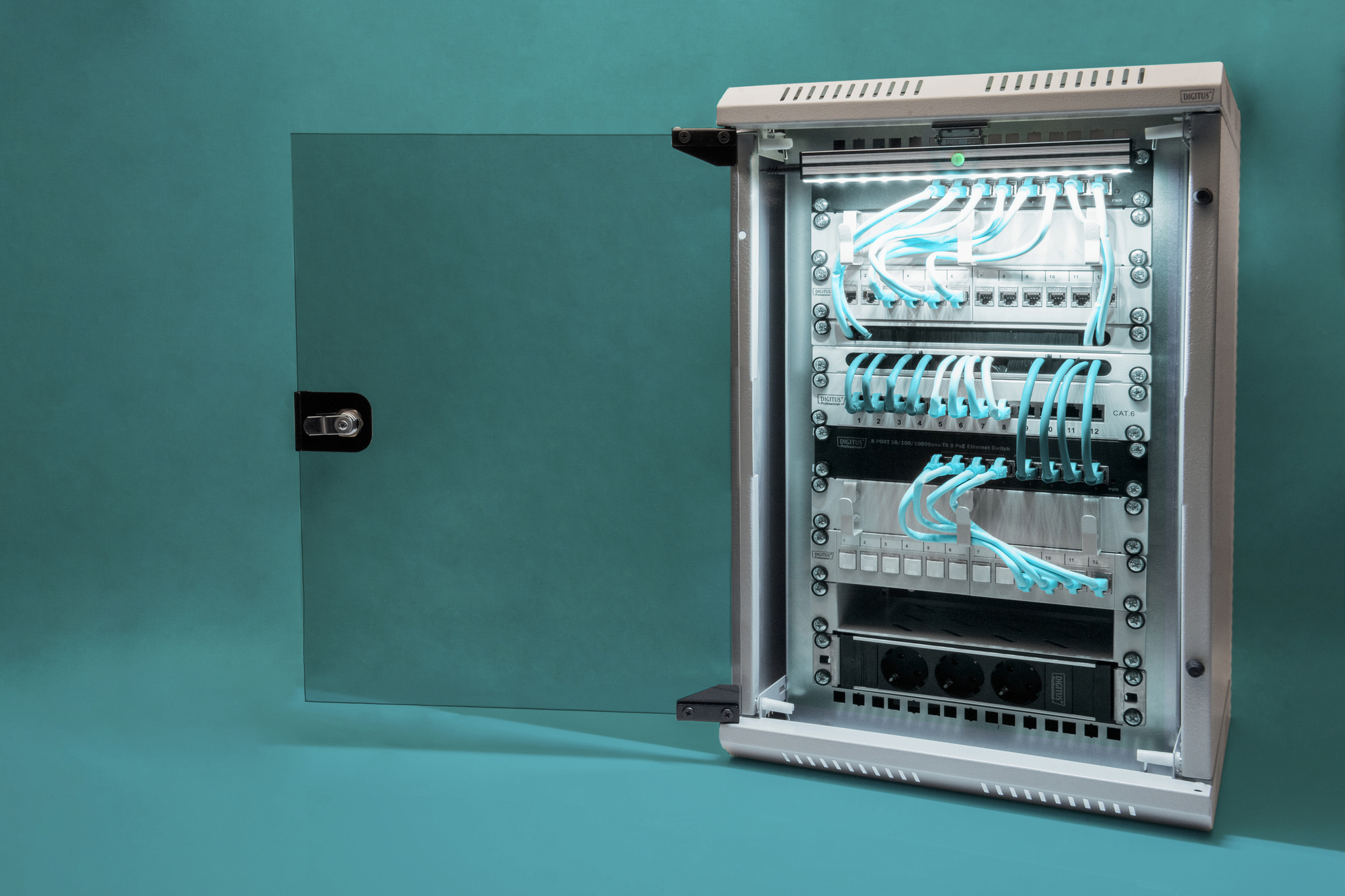

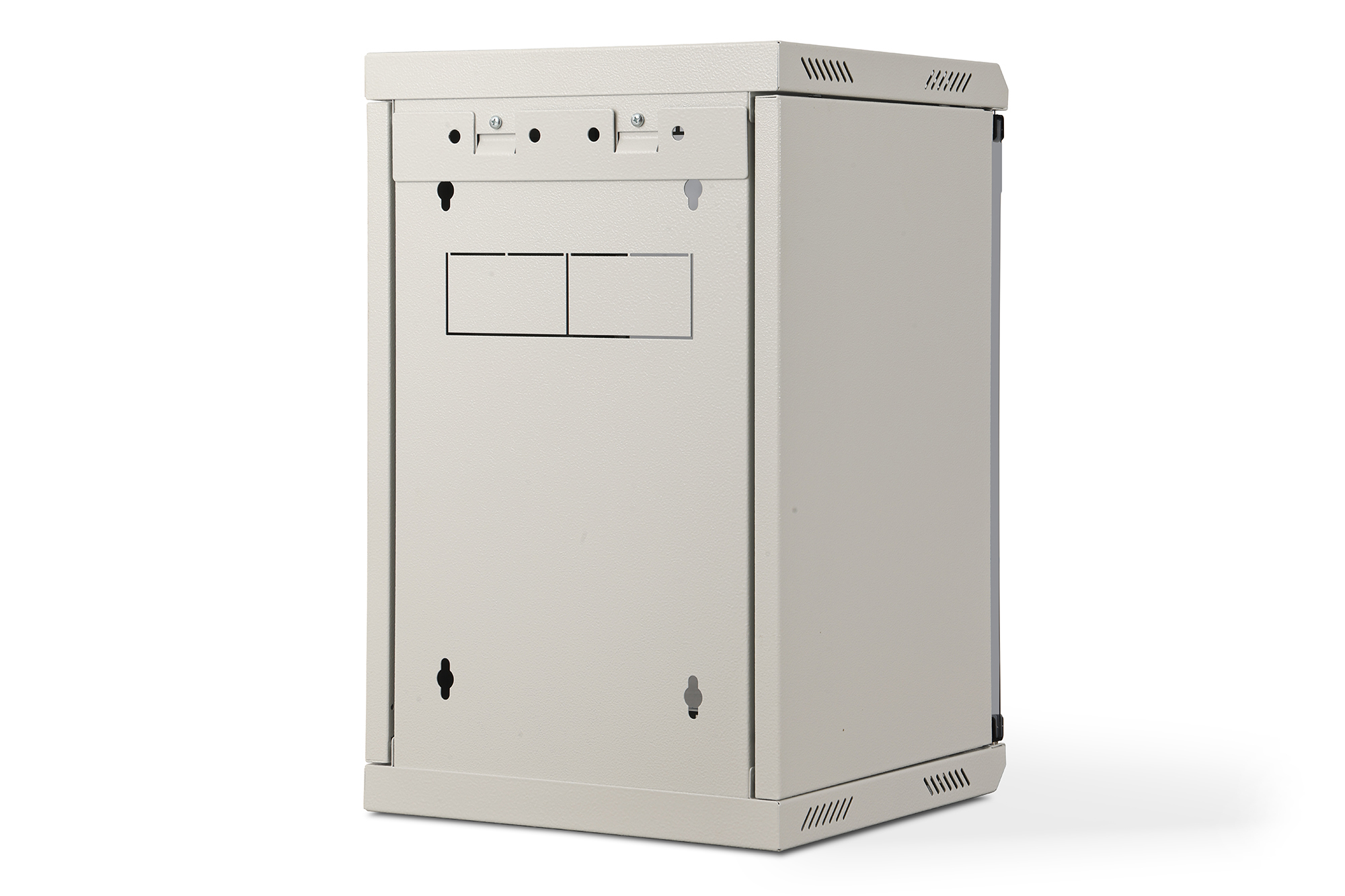

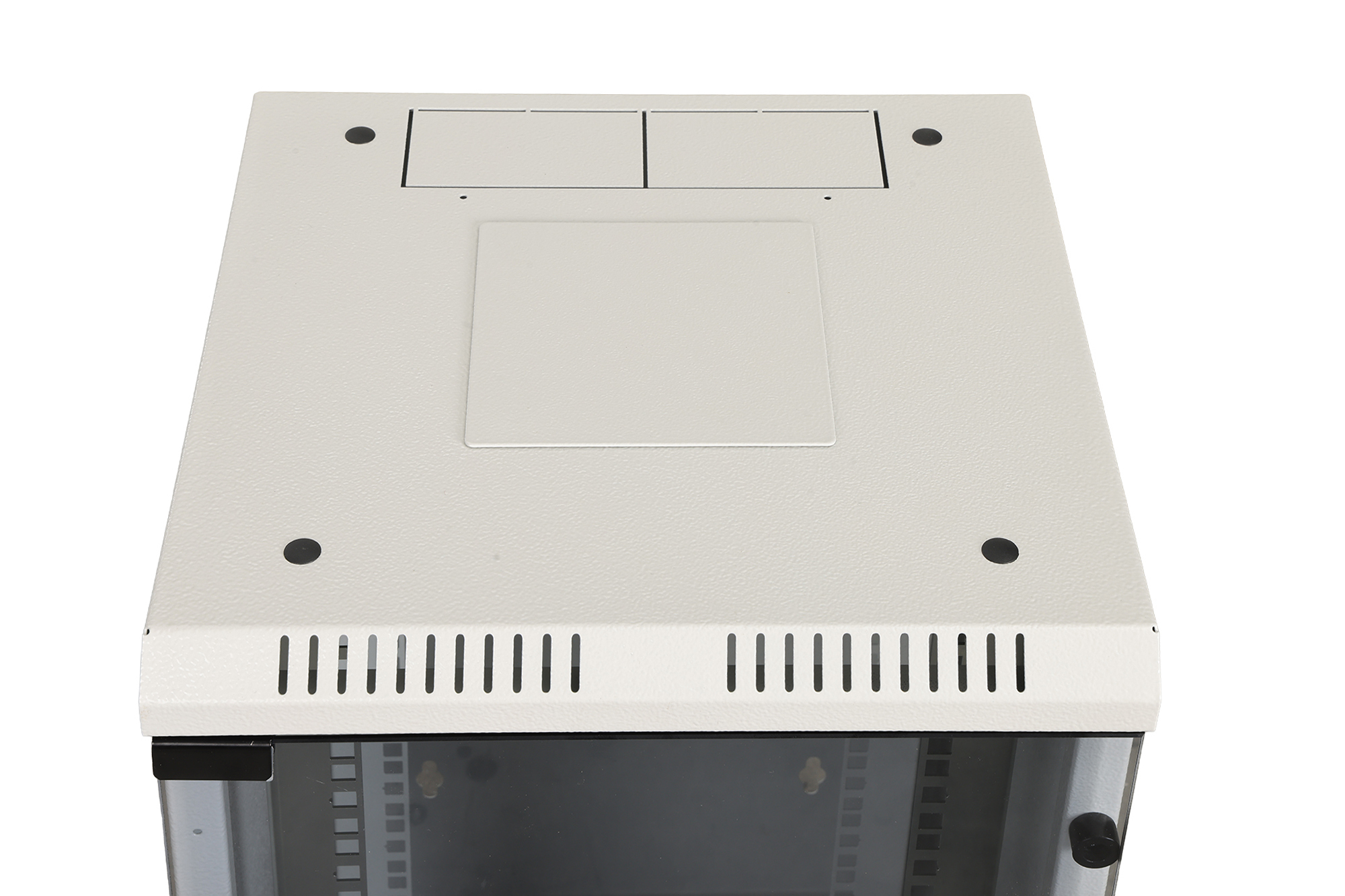

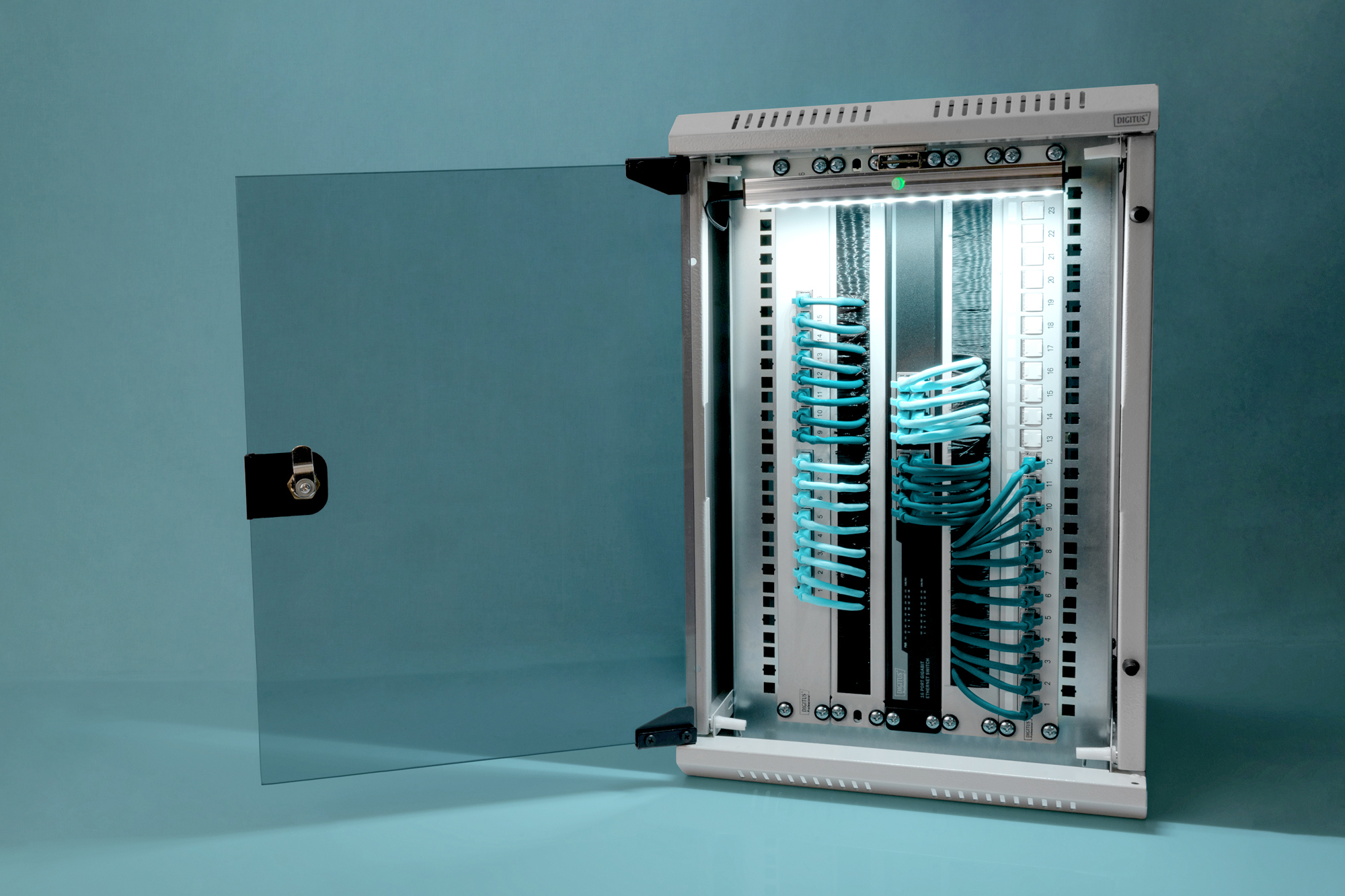

With a round profile frame installed at the front, the wall-mounted enclosure offers the option of horizontal mounting of 254 mm (10") components (10 height units) and, alternatively, vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is depth-adjustable. There is also a profile hole integrated into the rear section of the enclosure frame for mounting additional components with 254 mm (10") dimensions. The enclosure is made from a robust steel construction. The cable entry openings in the roof, base and rear provide the best options for tidy cable management. The compact enclosure is therefore ideal for all common IT and telecommunications applications, especially where space is limited and in private households.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specification

Product
Product id	669898
Brand	Digitus
Partnr	DN-1019
EAN/UPC code	4016032462811
Product information sheet(s)
Class	Network/server enclosure
Mounting level	Front and rear
Type of profile rail	Crank
Number of doors	1
Type of ventilation	Passive
Width	350 mm
Height	550 mm
Depth	350 mm
Modular spacing	254 mm (10 inch)
Number of height units	10
Max. load capacity	30 kg
With roof plate	true
With earthing	false
With front door	false
Material front door	Glass
Front door locking system	1-point
With rear door	true
Material rear door	Steel
Rear door locking system	Other
With glazed door	true
With sidewall	true
With base	false
With vertical cable management	false
Material	Steel
Surface finishing	Powder coating
Colour	Grey
Model	With permanent frame
RAL-number	7035
Demountable	false
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
