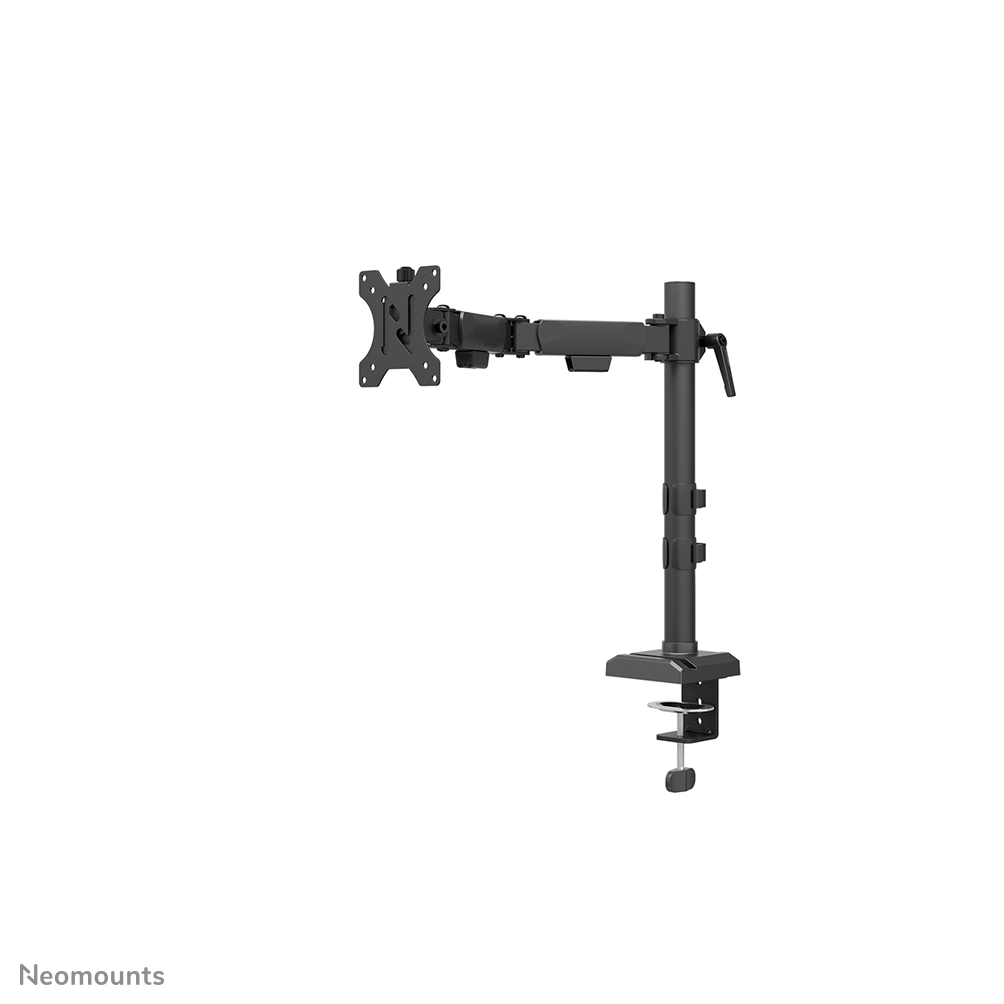

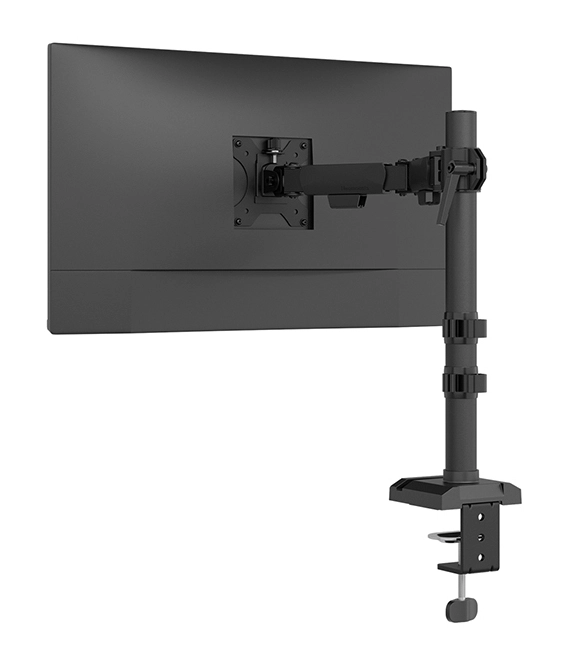

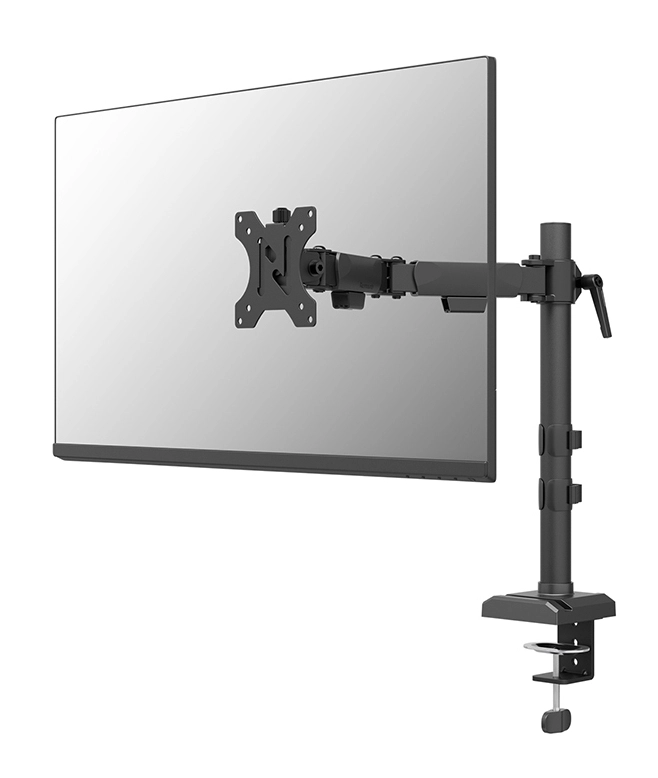

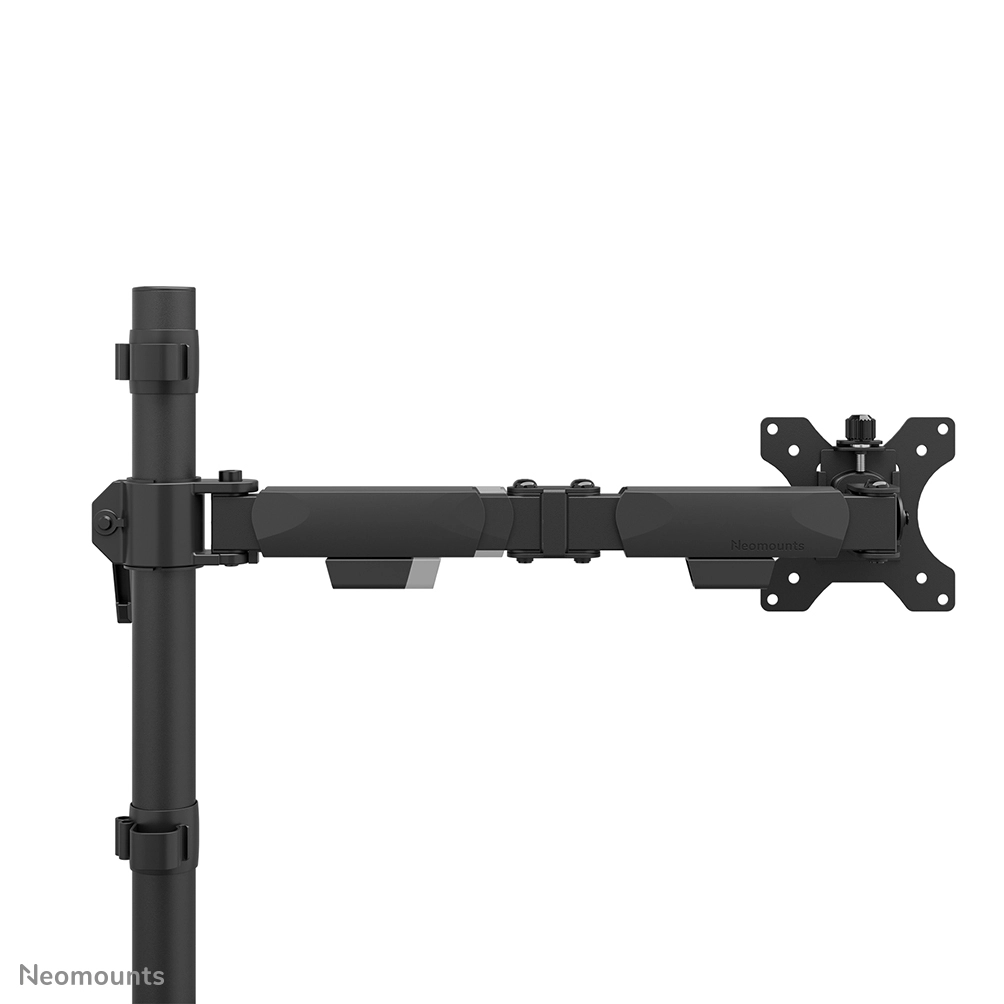

The Neomounts DS60-600BL1 NERO monitor arm is the perfect choice for those looking for a sturdy and versatile solution for monitors up to 32" with a weight capacity of 8 kg. This full motion monitor arm offers maximum flexibility thanks to its versatile tilt (90°), rotate (360°) and swivel (180°) technology, enabling you to always find the optimal viewing angle for an ergonomic working posture.

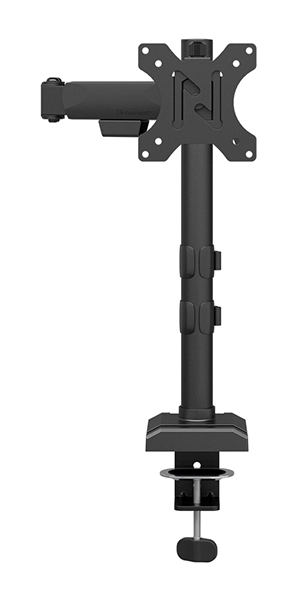

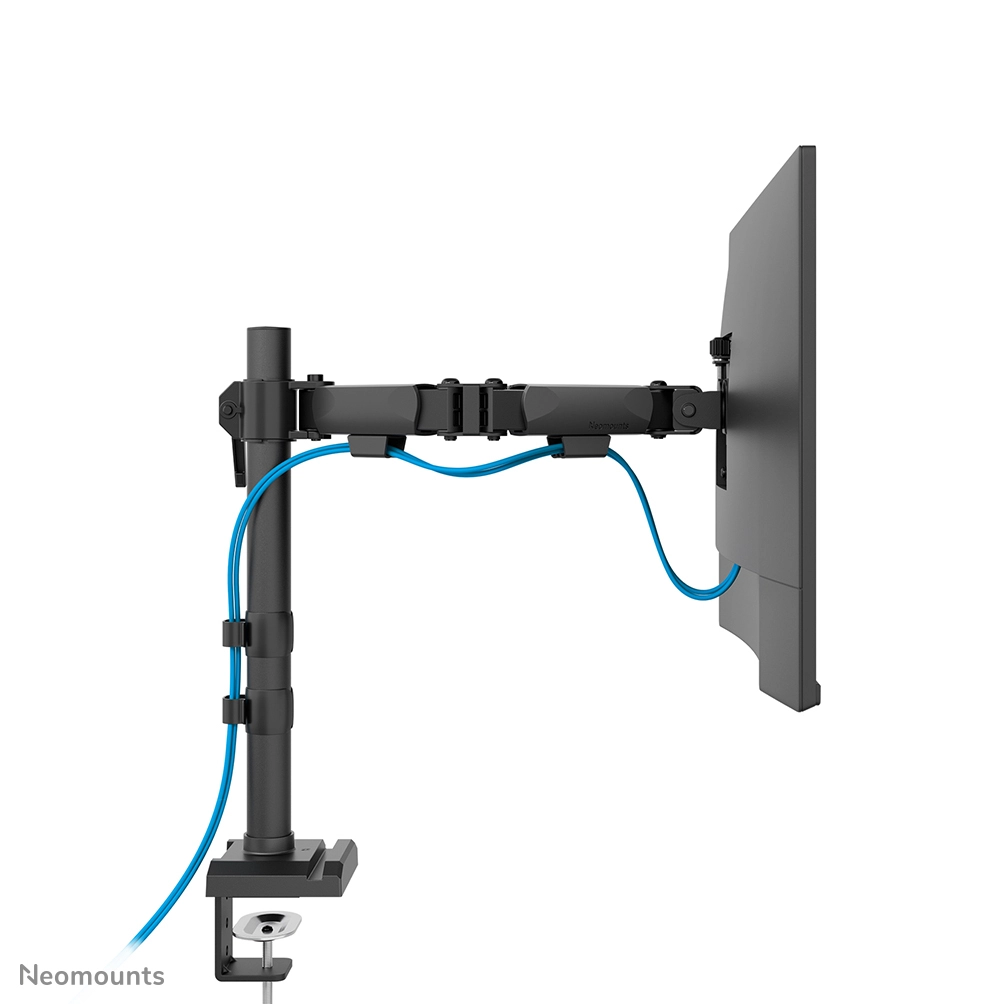

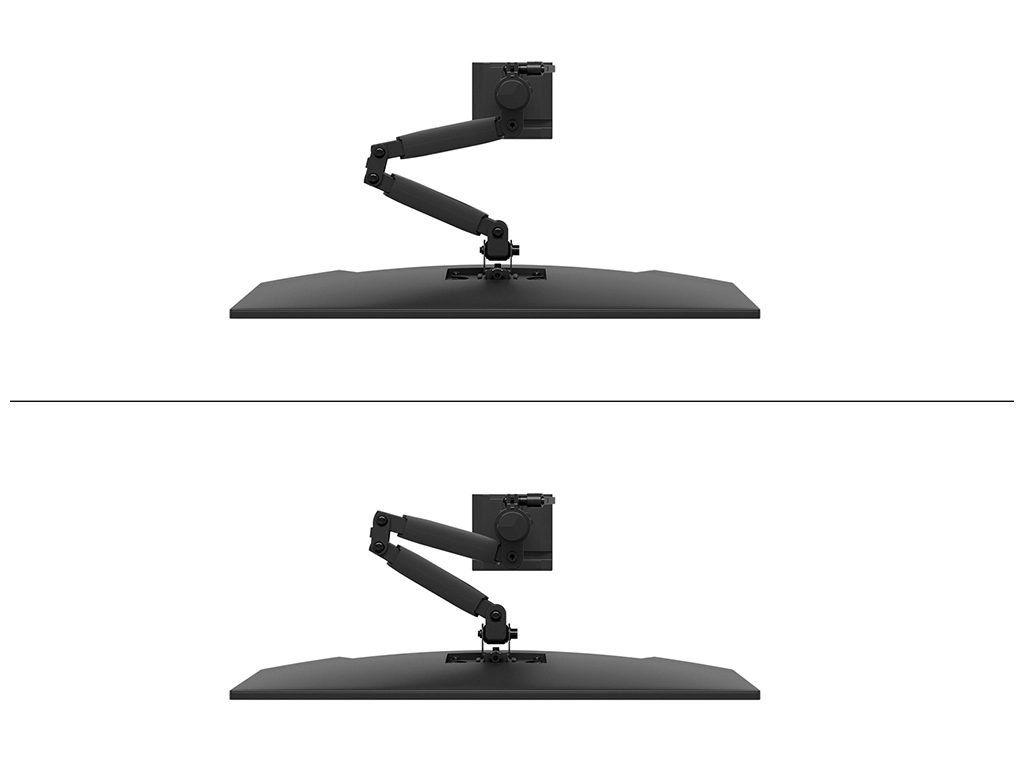

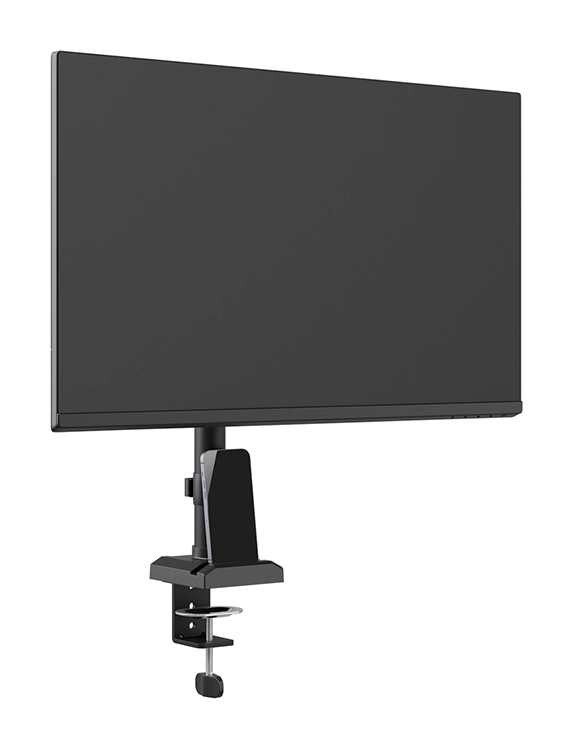

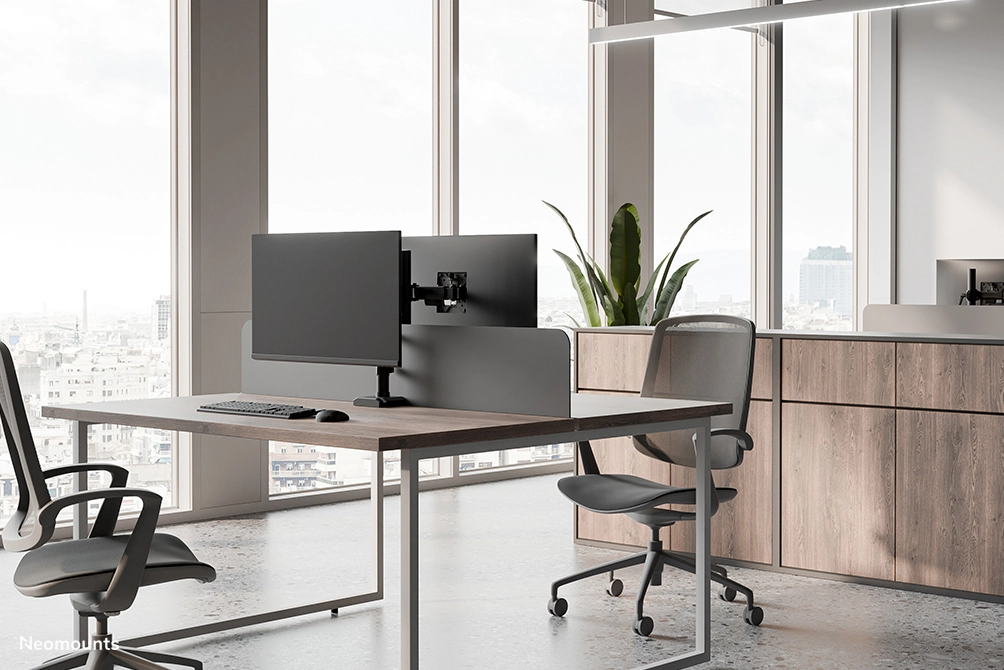

The NERO monitor arm features manual height and depth adjustment, allowing you to adjust your workspace completely to your liking. In addition, the clever 180° stop mechanism prevents the mount from making contact with the wall or separation panel when installed near it. The welded base guarantees optimal stability and sturdiness. The practical cable management system ensures neat routing of cables. In addition, the base of the DS60-600BL1 provides a convenient space to place a phone, for a tidy desk.

The DS60-600BL1 is suitable for screens that meet pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available.

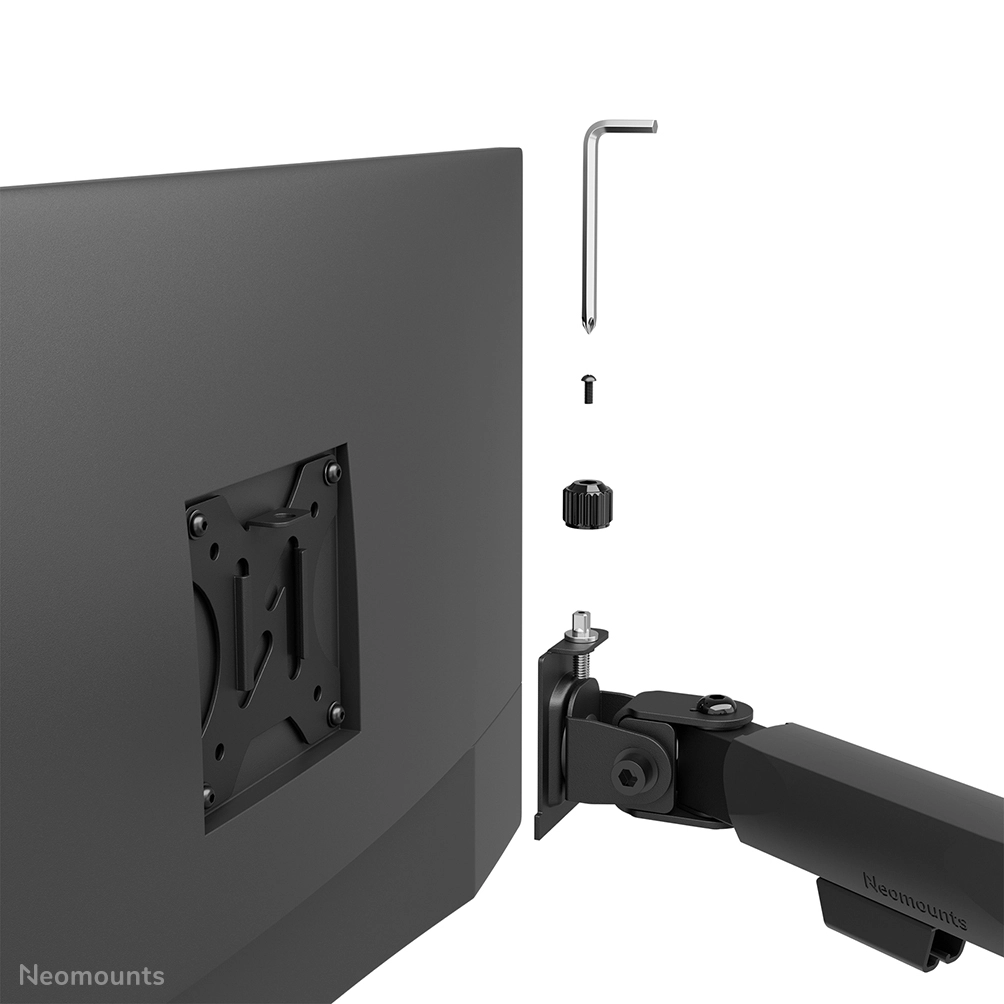

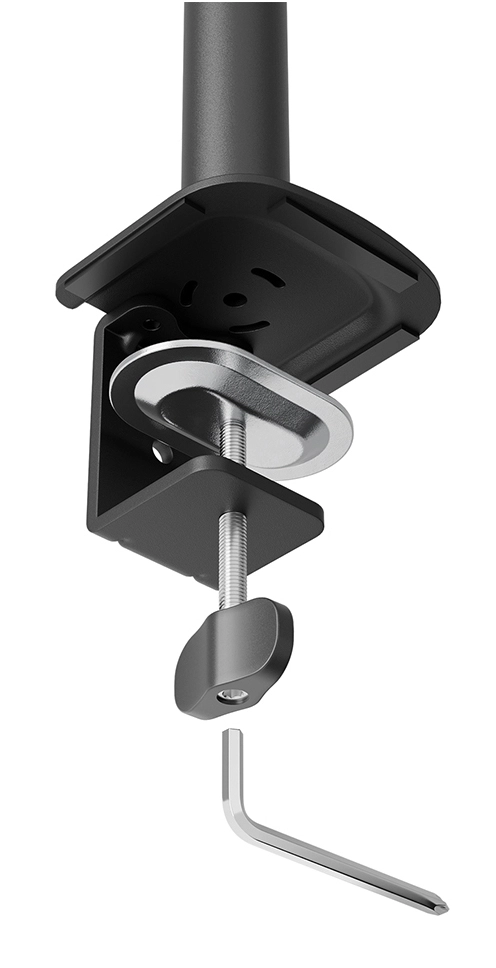

Installation of the NERO is quick and easy. The Easy-release system makes it easy to attach or detach the screen. Additionally, fixing the clamp to the desk only takes a few actions and, in addition to manual installation, can also be installed using an Allen key or drill for even faster installation. The NERO monitor arm's quick-span lever also allows for easy adjustment of the arm's height without additional tools.

With sustainability in mind, the packaging of the NERO monitor arms is 100% plastic-free and made entirely of recyclable cardboard and paper.

Specification

Product
Product id	997103
Brand	Neomounts
Partnr	DS60-600BL1
EAN/UPC code	8717371445959
Warranty (months)	5 year

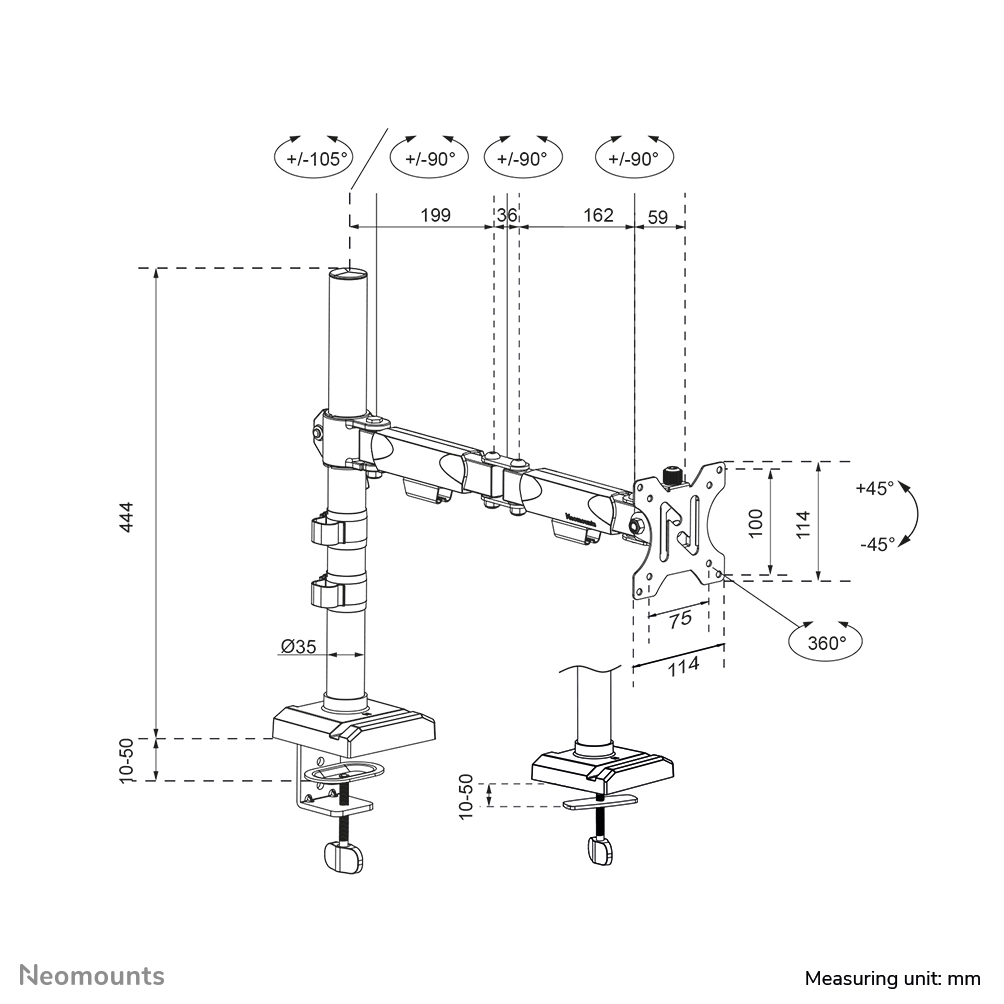

Mounting
Maximum weight capacity	8 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk

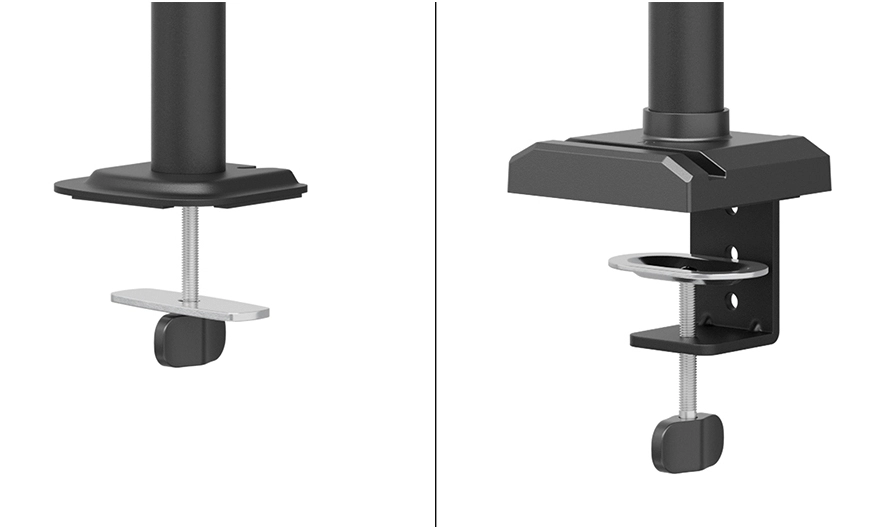

Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	1
Clamp mount desk thickness (max)	50 mm
Grommet mount desk thickness (max)	50 mm
Distance to the wall (min)	172 mm
Distance to the wall (max)	496 mm
Ergonomics
Height adjustment	Y

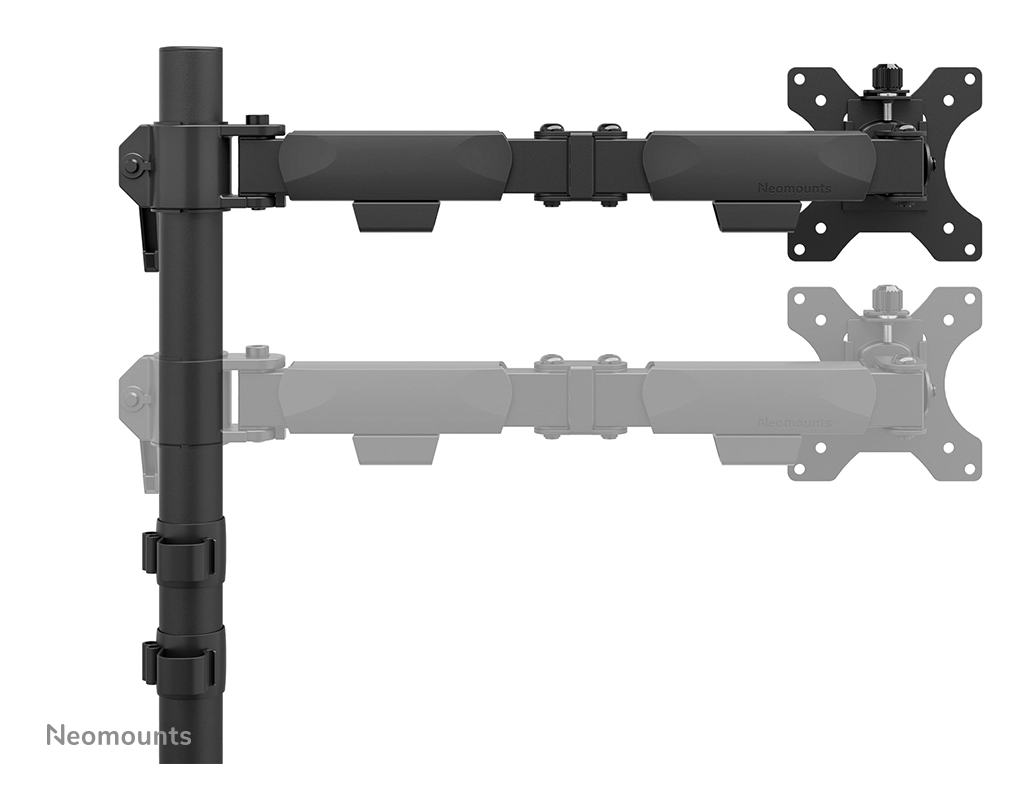

Height adjustment range	140 - 400 mm
Adjustable depth	Y
Depth adjustment range	172 - 496 mm
Tilt angle range	-45 - 45 °
Swivelling	Y
Swivel angle range	-90 - 90 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Technical details
Warranty period	5 jaar
Weight & dimensions
Width	227 mm
Depth	172 mm
Height	450 mm
Weight	2730 g
Package width	232 mm
Package depth	116 mm
Package height	498 mm
Package weight	3100 g
Logistics data
Master (outer) case width	515 mm
Master (outer) case length	250 mm
Master (outer) case height	385 mm
Master (outer) case weight	9900 g
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	9300 g
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	72 stuk(s)
Other features
Country of origin	China
